10KW Hybrid Energy Storage Solar Inverter

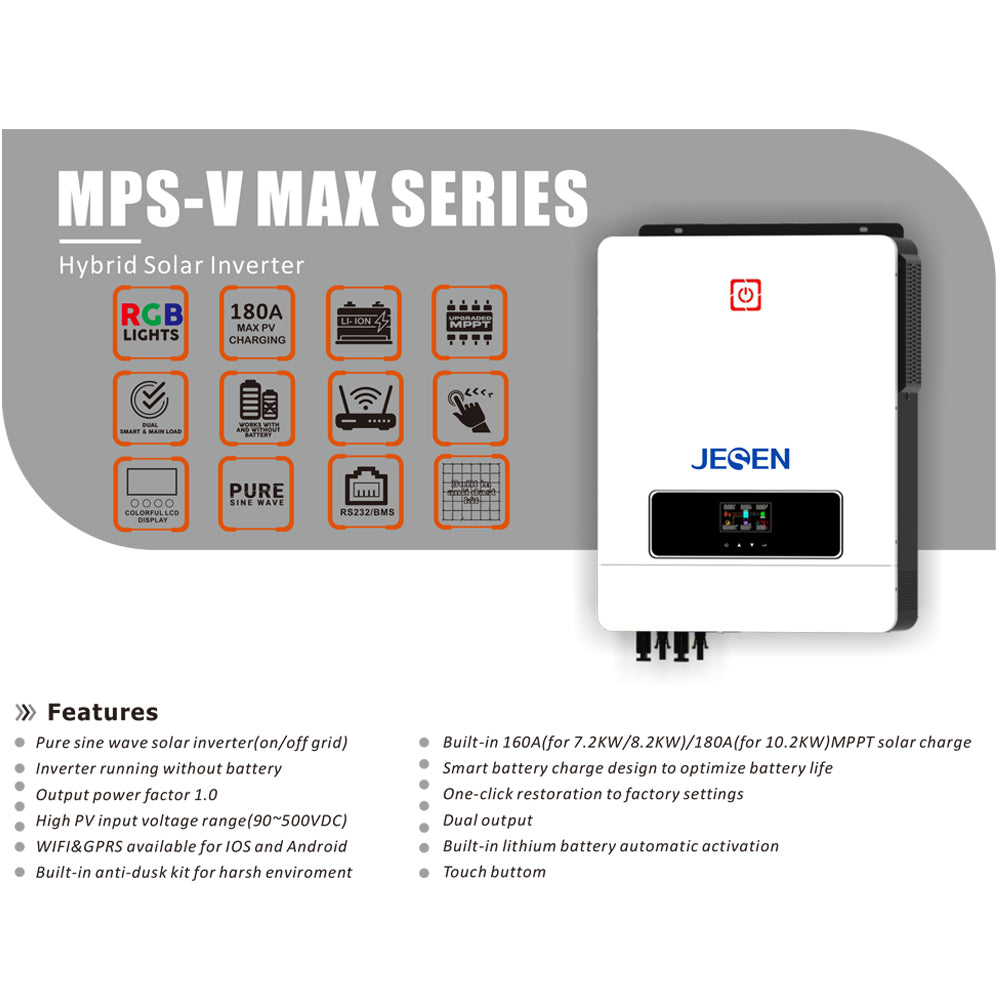

Features
- Pure sine wave solar inverter(on/off grid)
- Inverter running without battery
- Output power factor 1.0
- High PV input voltage range(90~500VDC)
- WIFI&GPRS available for IOS and Android
- Built-in anti-dusk kit for harsh enviroment
- Built-in 160A(for 7.2KW/8.2KW)/180A(for 10.2KW)MPPT solar charge
- Smart battery charge design to optimize battery life
- One-click restoration to factory settings
- Dual output
- Built-in lithium battery automatic activation
- Touch buttom
Data Sheet
| MODEL | MPS-V MAX 7.2KW | MPS-V MAX 8.2KW | MPS-V MAX 10.2KW | ||
| Phase | 1-phase | ||||
| Maximum PV Input Power | 8200W | 8200W | 10200W | ||
| Rated Output Power | 7200W/7200VA | 8200W/8200VA | 10200W/10200VA | ||
| Maximum Solar charging Current | 160A | 160A | 160A | ||
| GRID-TIE OPERATION | |||||
| PV INPUT(DC) | |||||
| Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | ||||
| Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | ||||
| MPPT Voltage Range | 90VDC~450VDC | ||||
| Number Of MPPT Trachers/Maximum Input Current | 1/27A | ||||
| GRID OUT(AC) | |||||
| Nominal Output Voltage | 200/230/240VAC | ||||
| Output Voltage Range | 195.5~253VAC | ||||
| Nominal Output Voltage | 31.3A | 35.6A | 44.3A | ||
| Power Factor | >0.99 | ||||
| Feed-in Grid Frequency Range | 49~51±1Hz | ||||
| EFFICIENCY | |||||
| Maximum Conversion Efficiency(Solar/AC) | 98% | ||||
| TWO LOAD OUTPUT POWER(V2.0) | |||||
| Full Load | 7200W | 8200W | 10200W | ||
| Maximum Main Load | 7200W | 8200W | 10200W | ||
| Maximum Second Load(Battery mode) | 2400W | 2733W | 3400W | ||
| Main Load Cut Off Voltage | 44VDC | 44VDC | 44VDC | ||
| Main Load Return Voltage | 54VDC | 54VDC | 54VDC | ||
| OFF-GRID OPERATION | |||||
| AC INPUT | |||||
| AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||||
| Acceptable Input Voltage Range | 90-280VAC or 170-280VAC | ||||
| Maximum AC Input Current | 40A | 40A | 50A | ||
| Nominal Operating Frequency | 50/60Hz | ||||
| Surge Power | 14400W | 16400W | 20400W | ||
| BATTERY MODE OUTPUT(AC) | |||||
| Nominal Output Voltage | 48VDC | 48VDC | 48VDC | ||
| Output Wavefrom | Pure sinewave | ||||
| Efficiency(DC to AC) | 94% | ||||
| BATTERY & CHARGER | |||||
| Nominal DC Voltage | 48VDC | 48VDC | 48VDC | ||
| Maximum Solar charging Current | 160A | 160A | 160A | ||
| Maximum AC Charging Current | 140A | 140A | 160A | ||
| PHYSICAL | |||||
| Dimension.D*W*H(mm) | 537*390*130mm | ||||
| Net Weight (kgs) | 14.2kgs | 14.2kgs | 14.5kgs | ||
