DEYE brand solar inverter hybrid inverter 3kw 5kw 6kw 8kw 48v for solar hybrid system home

Write a review

Save -55% Rs. 317,475.93 ~~Rs. 704,513.73~~

Brand : Shanvis

Collection : Home&TechAcc

SKU : 182380907013089_91405574

Availability : 0 In Stock Sold Out 0 0 0 0 0 0 0 0 0

System Energy6kw5kw8KW

ApplicationHybrid Solar SystemOn-Grid Solar SystemOff-Grid Solar System

Translation missing: en.products.product.product_variants

Quantity

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

FREE SHIPPING

WORLDWIDE

BIG SAVING ON

WEEKENDS

24H SUPPORT

Description
Shipping

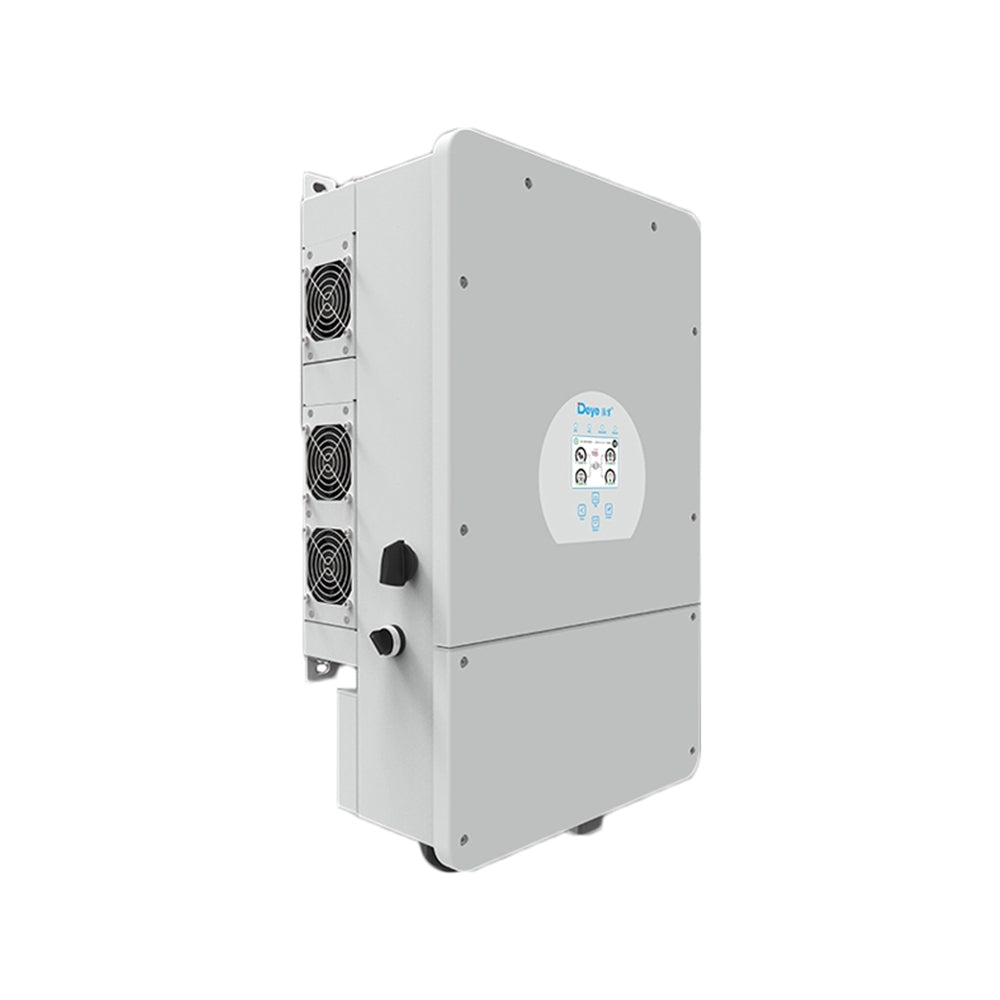

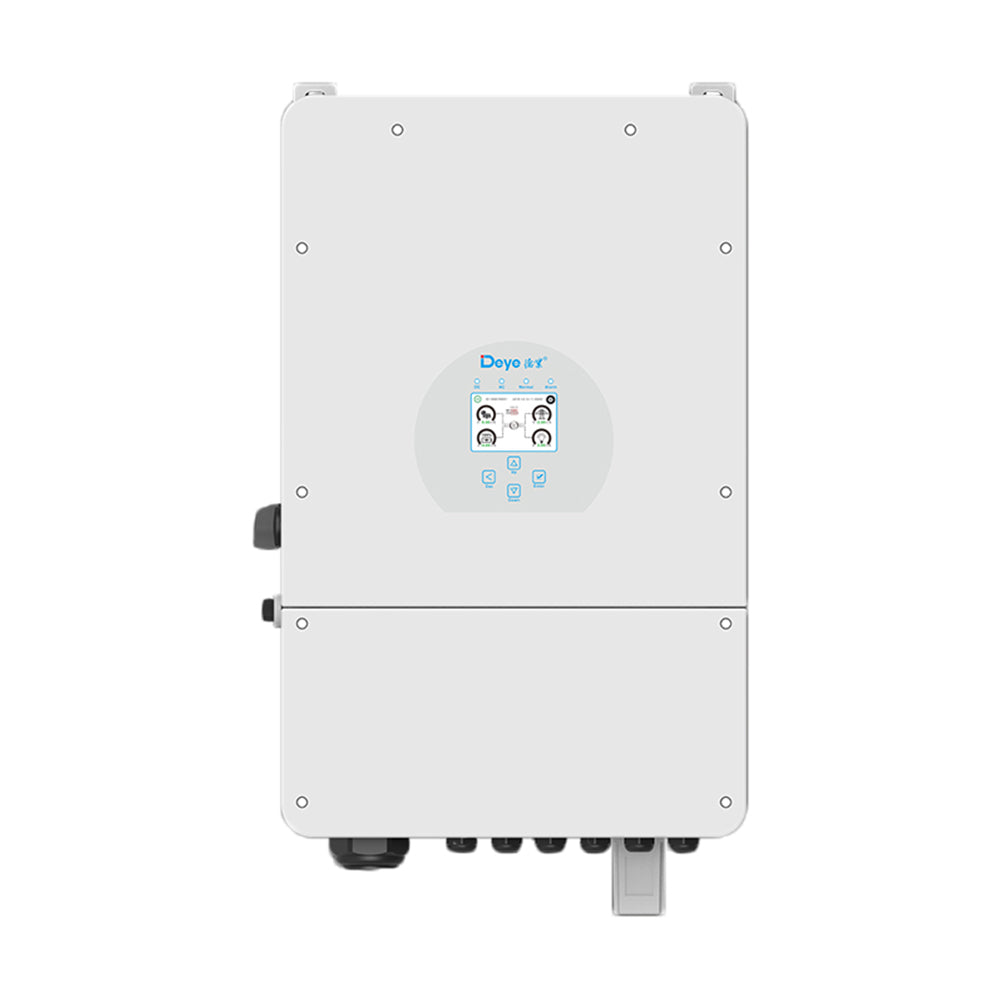

Deye hybrid solar inverter SUN-5K/6K/7K/8K-SG01LP1-EU is a multifunctional inverter, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user configurable and easy accessible button operate on such as battery charging, AC/solar charging, and acceptable input voltage based on different applications.

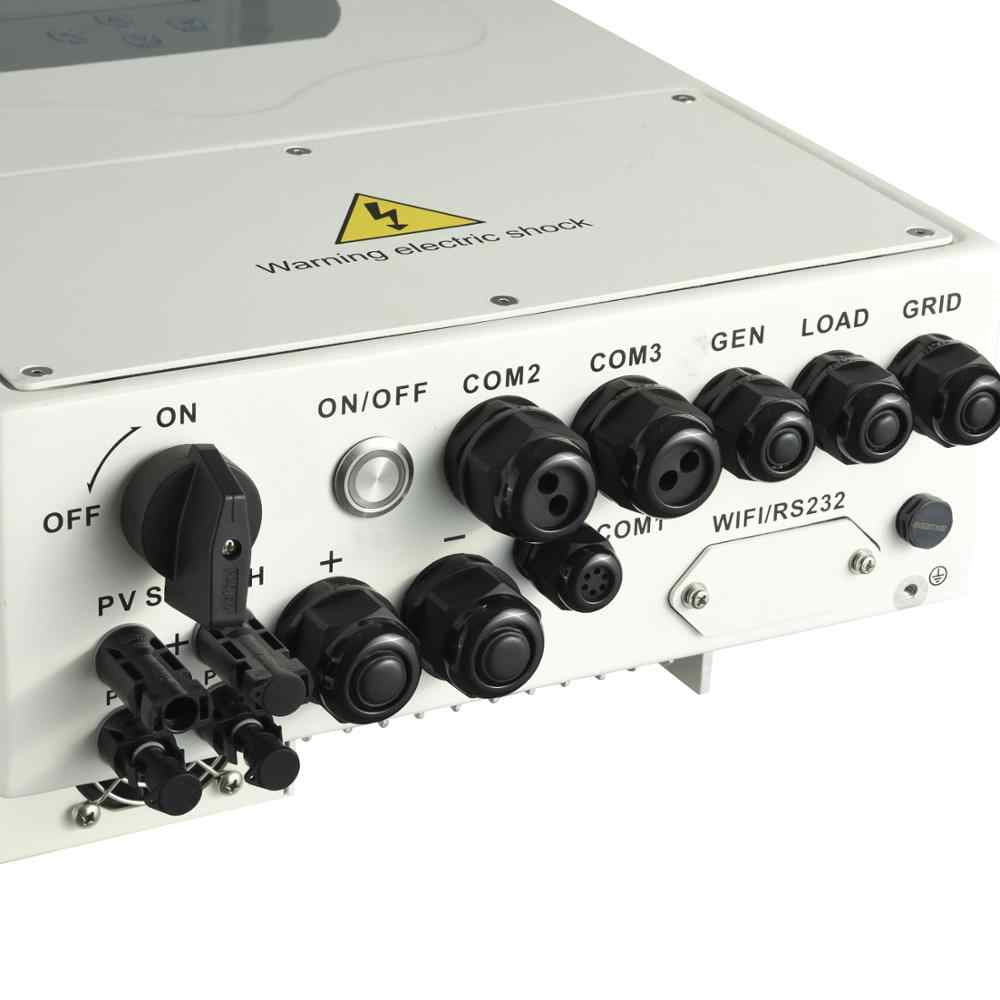

1. Inverter Indicators

2. LCD display

3. Function Buttons

4. DC Switch

5. Power on/off button

6. RS 485 Port

7. CAN Port

8. Battery input connectors

9. Function Port

10. Meter-Con Port

11. Parallel Port

12. PV input with two MPPT

13. Grid

14. Generator input

15. Load

16.WiFi Interface

Inverter Features

- Supports Single Phase 220Vac/230Vac/240vac Solar System.

- Self-consumption and feed-in to the grid.

- Auto restart while AC is recovering.

- Programmable supply priority for battery or grid.

- Programmable multiple operate on modes: On grid, off grid and UPS.

- Configurable battery charging current/voltage based on applications by LCD setting.

- Configurable AC/Solar/Generator Charger priority by LCD setting.

- Compatible with mains voltage or generator power.

- Overload/over temperature/short circuit protection.

- Smart battery charger design for optimized battery performance.

- With limit function, prevent excess power overflow to the grid.

- Supporting WIFI monitoring and build-in 2 strings of MPP trackers.

- Smart settable three stages MPPT charging for optimized battery performance.

- Time of use function. - Smart Load Function.

System Architecture

Product Parameter

Technical Datasheet
Model	SUN-7.6K-SG01LP1-EU	SUN-8K-SG01LP1-EU
Battery Input Data
Battery Type	Lead-acid or Lithium-iron
Battery Voltage Range (V)	40-60V
Max.Charging Current (A)	190A	190A
Max.Discharging Current (A)	190A	190A
Charging Curve	3 Stages/Equalization
External Temperature Sensor	Optional
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV Strings Input Data
Max.DC Input Power (W)	9880W	10400W
PV Input Voltage (V)	370V(100V~500V)
MPPT Range (V)	125-425V
Full Load DC Voltage Range	240-425V
Start-up Voltage (V)	150V
PV Input Current (A)	18A+18A
No.of MPPT Trackers	2
No.of Strings Per MPPT Tracker	2+2
AC Output Data
Rated AC Output and UPS Power (W)	7600W	8000W
Max AC Output Power (W)	8360W	8800W
Peak Power(off grid)	2 times of rated power,10S
AC Output Rated Current(A)	33A	35A
Max.AC Current(A)	38A	40A
Max Continuous AC Passthrough(A)	50A
Power Factor	0.8 leading to 0.8 lagging.
Output Frequency and Voltage	50/60Hz; 230(single phase)
Grid Type	Single Phase
Current Harmonic Distortion	THD<3%(Linear load<1.5%)
Efficiency
Max.Efficiency	97.60%
Euro Efficiency	97.00%
MPPT Efficiency	99.90%
Certifications and Standards
Grid Regulation	VDE 0126,AS4777,NRS2017,G98,G99,IEC61683,IEC62116,IEC61727
Safety Regulation	IEC62109-1, IEC62109-2
EMC	EN61000-6-1, EN61000-6-3
General Data
Operating Temperature Range (℃)	-25~60℃, >45℃ Derating
Cooling	Fan
Noise (dB)	<30
Communication with BMS	RS485; CAN
Weight (kg)	32
Size (LengthWidthHeight mm)	670×420×233mm
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 years

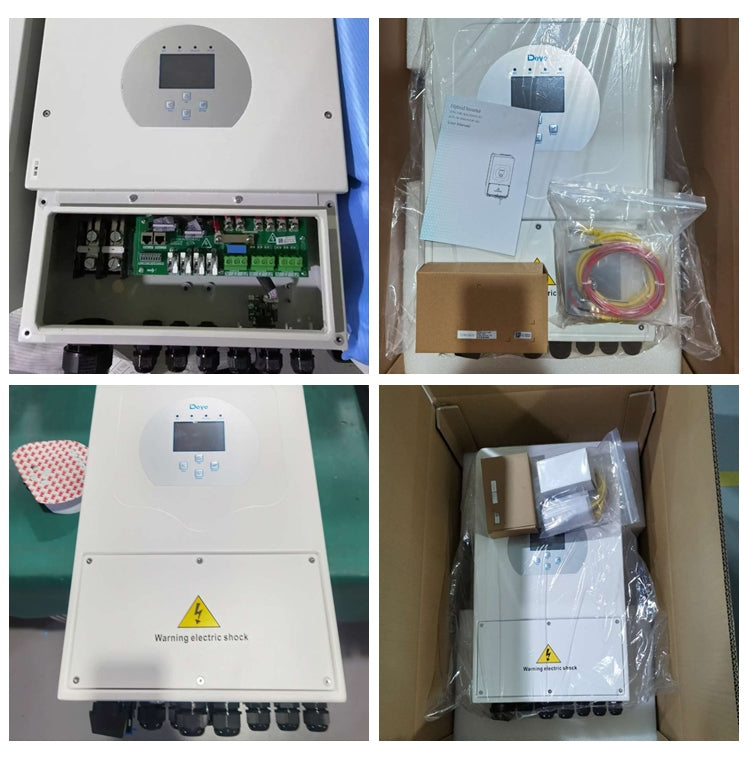

Product Details
