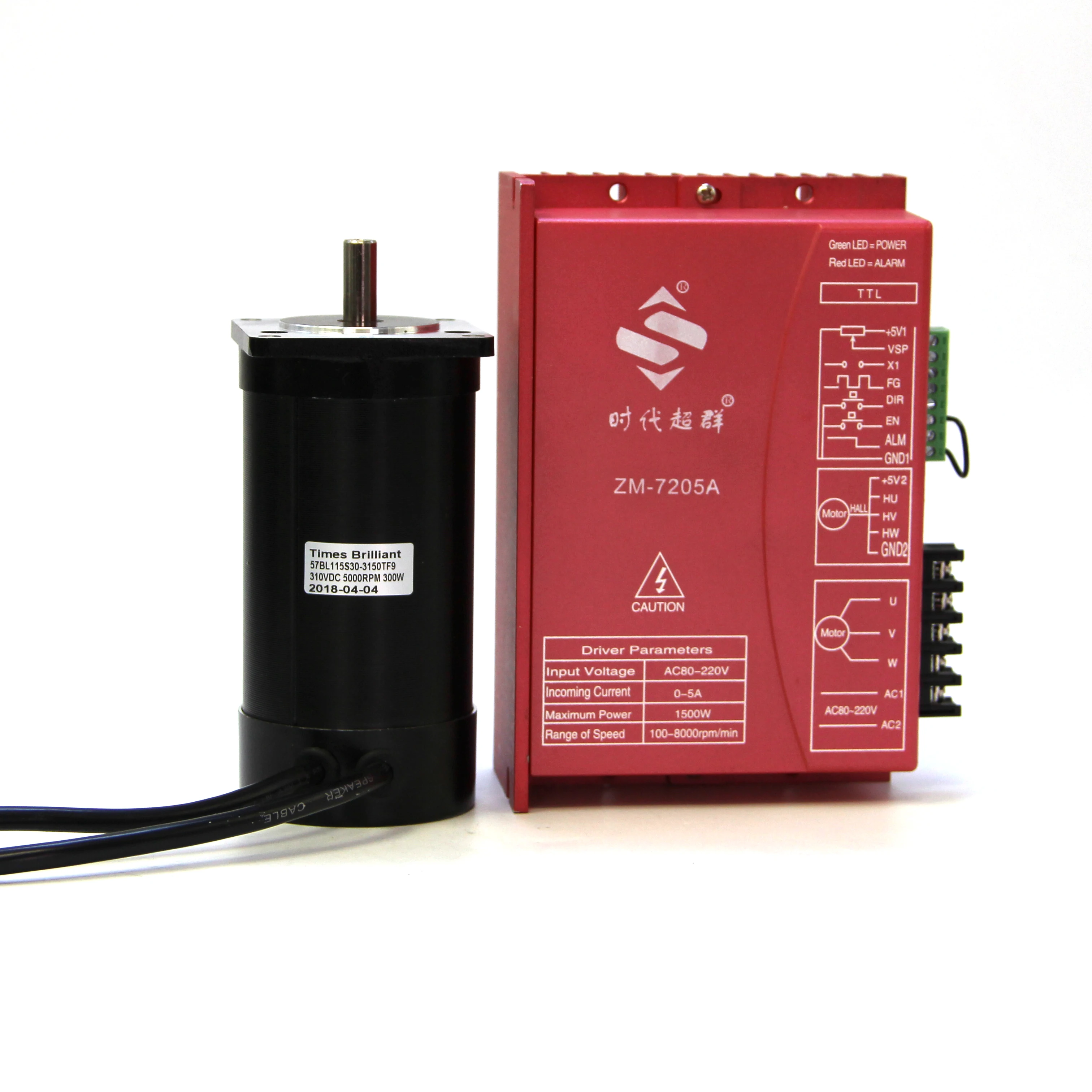

BLDC motor 310V 300W 5000rpm Brushless DC Motor with 220v controller
Share

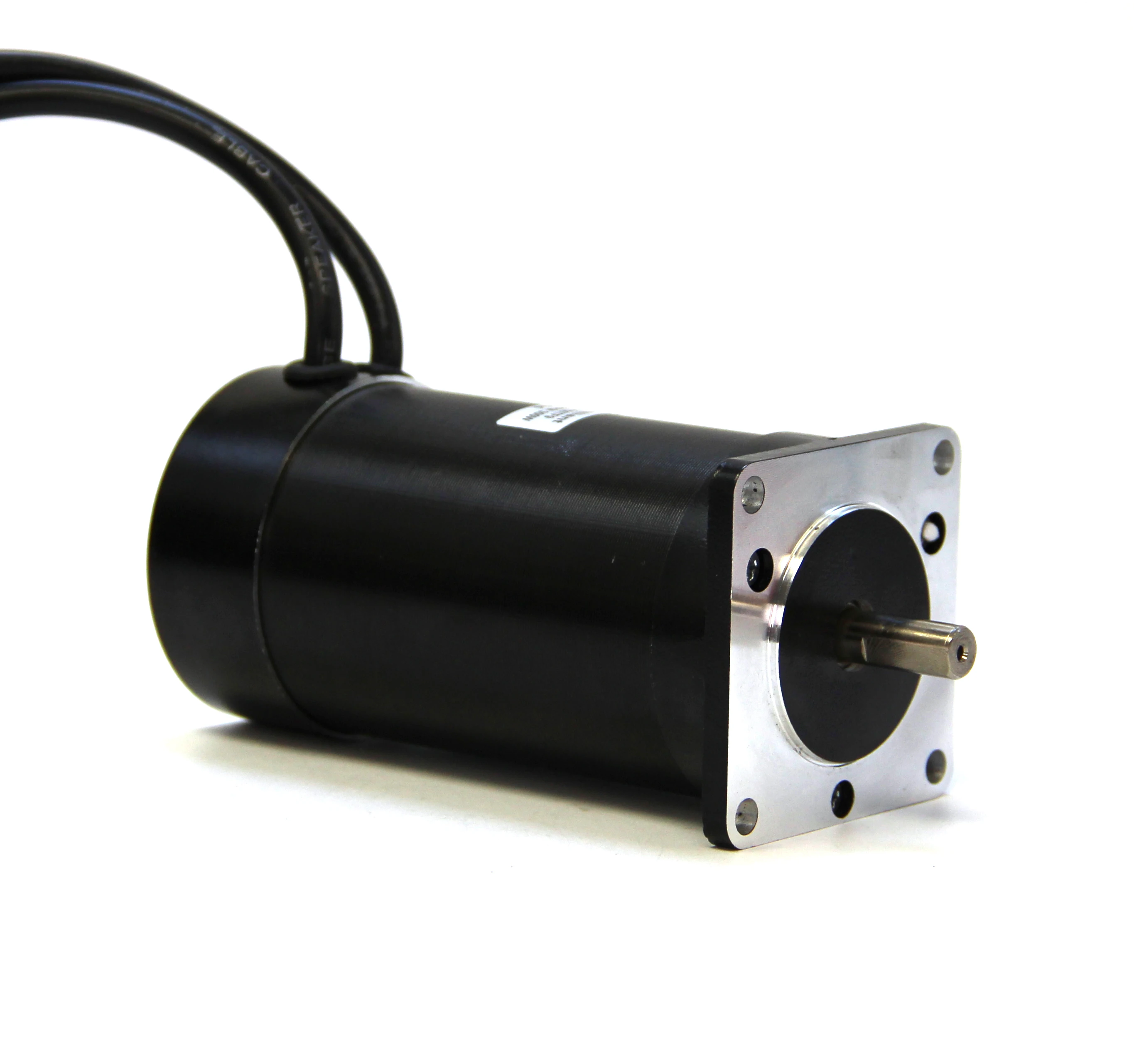

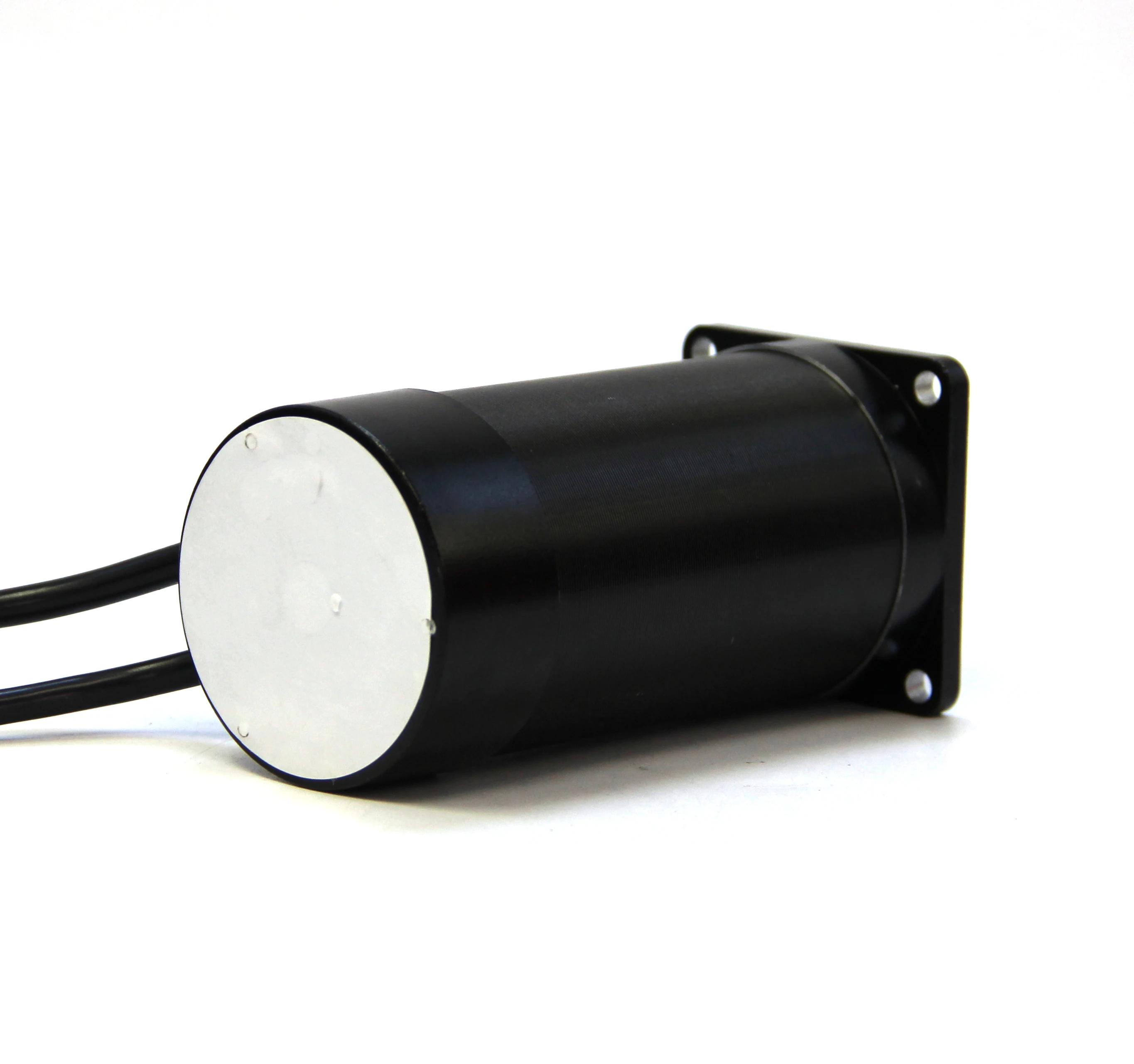

China Supply 310V 300W 5000rpm Brushless DC Motor
1.Product Feature:
High Integration and Stable Brushless DC Motor Controller
This controller has three manners of working: speed control, current control and open-loop control.
Control functions of braking, direction, enable,Maximum current limit can be adjusted
Total Hardware Design, High Speed, Anti-Interference
Limited Current Intelligent, Protect more fast and accurate
Low fever, High Power
2.Main Function:
Low Voltage ≤18V or Overheat than >150℃ can automatically protection.
Overload protect time can judged arround 2 - 15 seconds.
Hall error can automatically protect.
Output limited Current Can be adjust around 1A-15A.
Potentiometer, potentiometer outside, Analog voltage
and PWM speed adjust.
Start and Stop function.
Speed signal feedback and output.
EABS electrical fast stopping function.
Less speed start function, avoid current overflow, protect moter effect.
3.Production Basically Working Condition:
| Parameter | Min | Rated | Max | Unit |
| Envirment Tempreture | -30 | 60 | ℃ | |
| DC Power Input | 18 | 48 | 50 | V |
| Drive Current Output | 0 | 25 | 45 | A |
| Suitable Motor Speed | 0 | 20000 | rpm | |
| Hall Sensor Voltage | 4.5 | 5 | 5.5 | V |
| Hall Sensor Current | 20 | mA | ||
| External Potentiometer | 10k | Ω | ||
| Simual Voltage Speed Control | 0 | 5 | V | |
| PWM Speed Control Signal Voltage | 4.5 | 5.5 | V | |
| PWM Speed Control Signal Voltage Occupation | 0 | 100 | % | |
| Control Ways Voltage | 4.5 | 5 | 24 | V |

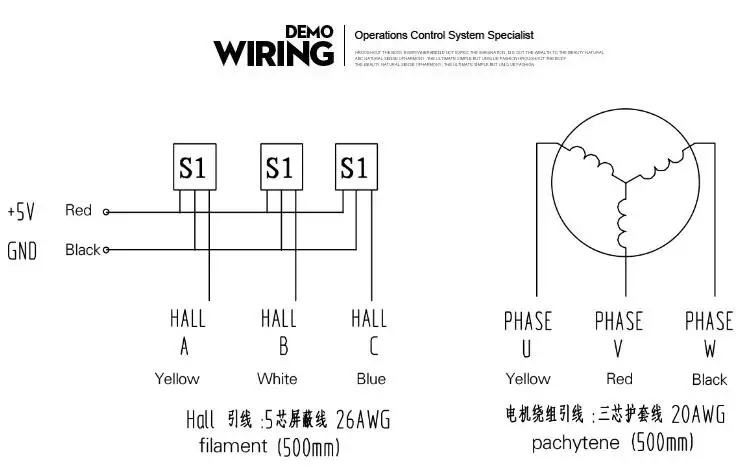

4.Port Defination:
| Name | Description |
| Positive/Negative | DC Power Input 24-60 |
| U,V,W | Mechine Line |
| H+,H- | Hall Powder Line, Only use by Hall |
| Hu,Hv,Hw | Hall Signal Line |
| FG | Speed Feedback Signal |
| ER | Warning Output |
| BK | Brake, Dangling , High Level is Normal and Low level brake. |
| DR | Director and dangling round positive when in high level model,turn nagtive position in low level. |
| EN | Director and dangling round positive when in high level model,turn nagtive position in low level. |
| V- | Outside speed control reference COM port. |
| Ve | Outside speed signal control, can line to potentiometer,Analog voltage or PWM at outside. |
| V+ | Speed control in Positive position when line to outside potentiometer. Dangling when free. Power Light Powder light on when turn on. |
| VSP-RJ | Inside potentiometer speed control,turn 0-100% by clockwise. |
| SW1 Code | Swich of Inside and Outside. ON: Inside OFF: Outside |
| SW2 Code | Swich of brake. ON: High level dangling is standby. OFF: Low level standby. |
| RV1 | Adjust overload protect time; trun to limit by counter clockwise. |
| RV2 | Limit Current Adjust of 1A - 16A; Turn to large by clockwise. |
