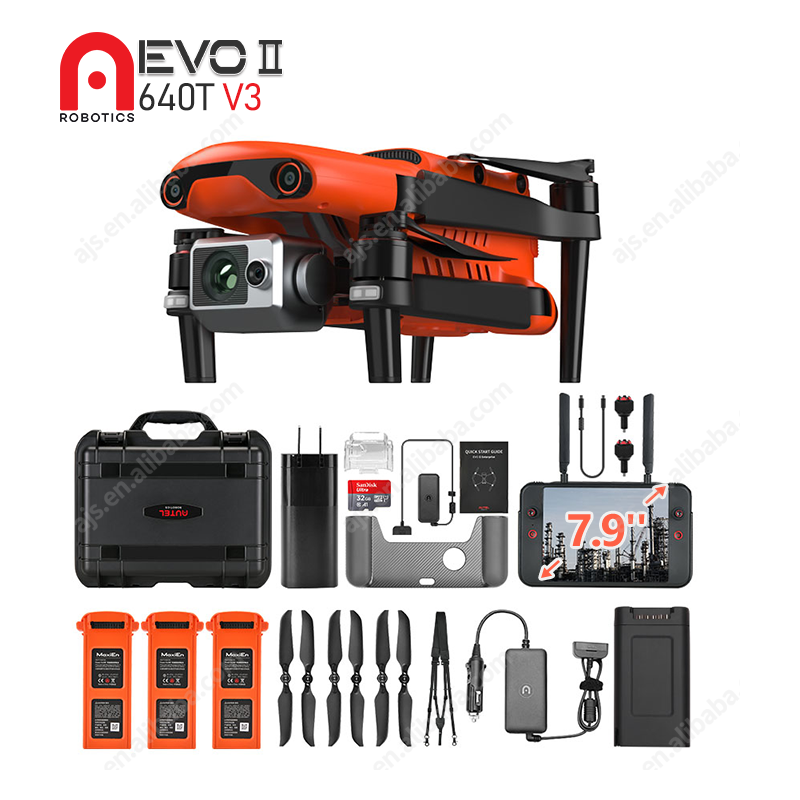

Autel Robotics EVO II Dual 640T V3 Thermal Drone 10 Thermal Color Palettes 50MP Camera Drone 4k Professional HD 8K Drone
Action Camera - Sports Camera - Water Camera Drones & Accessories
167976962013089_77129509
120 In Stock Sold Out 120
Share
|
Aircraft
|
Thermal camera
|
||||
|
Takeoff weight
|
1150 g
|
Sensor
|
Uncooled VOx Microbolometer
|
||
|
Max takeoff weight
|
2000 g
|
Lens
|
FOV H33°V26°
|
||
|
Size(L*W*H)
|
230*130*108mm（folded）
|
Focal length 13mm
|
|||
|
457*558*108mm（unfolded）
|
Zoom
|
1 - 16x
|
|||
|
Wheelbase
|
397 mm
|
Pixel size
|
12μm
|
||
|
Maximum service ceiling altitude
|
7000 m
|
Wavelength range
|
8 - 14μm
|
||
|
Max ascent speed
|
8 m/s (Ludicrous)
|
Temperature range
|
High gain mode: -20° to +150°
|
||
|
Max descent speed
|
4 m/s (Ludicrous)
|
Low gain mode: 0° to +550°
|
|||
|
Max horizontal flight speed
|
20m/s (Ludicrous)
|
Temperature measurement accuracy
|
±3℃ or ±3% of reading (whichever is greater)
|
||
|
Max flight distance
|
22 km
|
@Environmental temperature-20℃~60℃
|
|||
|
Max tilt angle
|
33° (Ludicrous)
|
Video resolution
|
640x512@30fps
|
||
|
Max flight time
|
38 min
|
Video format
|
MOV / MP4 (Support H.264/H.265)
|
||
|
Max hovering time
|
33 min
|
Camera resolution
|
Infrared mode: 640*512
|
||
|
Operating temperature range
|
-10℃ ~ 40℃
|
Picture-in-picture mode: 1920*1080, 1280*720
|
|||
|
Maximum resistance to wind
|
12 m/s (Take-off and landing)
|
Photo mode
|
Single shot
|
||
|
Operating frequency
|
902-928MHz (FCC Only)
|
Burst shooting: 3/5 frames, 3 is the default
|
|||
|
2.400-2.4835GHz
|
Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s
|
||||
|
5.725-5.850GHz (non-Japan)
|
Photo format
|
JPG (with irg file)
|
|||
|
5.650-5.755GHz (Japan Only)
|
Visible light camera
|
||||
|
Transmission power
|
900M
|
Sensor
|
1/1.28"(0.8") CMOS; 50M effective pixels
|
||
|
FCC/ ISED：≤31dBm
|
Lens
|
FOV: 85°
|
|||
|
2.4G
|
35 mm format equivalent focal length: 23 mm
|
||||
|
FCC/ ISED：≤32dBm
|
Aperture: f/1.9
|
||||
|
SRRC/CE/MIC/RCM：≤20dBm
|
Focus range: 0.5 m to infinity (with auto focus)
|
||||
|
5.8G (non-Japan) ; 5.7G (Japan)
|
ISO range
|
Video: 100-64000
|
|||
|
FCC/ISED/SRRC/MIC：≤33dBm
|
Photo: 100-6400
|
||||
|
CE/ RCM：≤14dBm
|
Shutter speed
|
Photo mode: 1/8000 ~ 8s
|
|||
|
Hovering accuracy
|
Vertical: ±0.1 m (when the visual positioning is working normally);
|
Other: 1/8000 ~ 1/frame rates
|
|||
|
±0.5 m (when GPS works normally)
|
Zoom
|
1-16x (up to 4x lossless zoom)
|
|||
|
Horizontal: ±0.3 m (when the visual positioning is working normally);
|
Photo mode
|
Single shot/Burst shooting/AEB/Time Lapse/HDR imaging
|
|||
|
±1.5 m (when GPS works normally)
|
Maximum photo size
|
8192*6144（4:3）
|
|||
|
GNSS
|
GPS/Beidou/Glonass/Gallieo
|
4096*3072（4:3）
|
|||
|
Internal storage
|
8GB
|
3840x2160（16:9）
|
|||
|
SD storage
|
max. support 256GB (UHS-3 or Class 10)
|
Image Format
|
JPG (default) / DNG / JPG+DNG
|
||
|
Gimbal
|
Video format
|
MOV / MP4
|
|||
|
Gimbal
|
3-axis stabilization
|
Video resolution
|
3840x2160P60/P50/P48/P30/P25/P24
|
||
|
Mechanical range
|
Tilt: -135° to +45°;
|
2720x1528P60/P50/P48/P30/P25/P24
|
|||
|
Pan: -100° to +100°
|
1920x1080P60/P50/P48/P30/P25/P24
|
||||
|
Controllable rotation range
|
Tilt: -90° to +30°;
|
Max bitrate
|
120Mbps
|
||
|
Pan: -90° to +90°
|
Supported file system
|
FAT32/exFAT
|
|||
|
Max control speed
|
300°/s
|
Angular Vibration Range
|
±0.005°
|
||
