Products show
Note:
We are factory supplier.
All our motors can be customized in torque, voltage, speed, power, size etc.
Pls feel free to send inquiry if you need custom your owm motor.
All our motors can be customized in torque, voltage, speed, power, size etc.
Pls feel free to send inquiry if you need custom your owm motor.

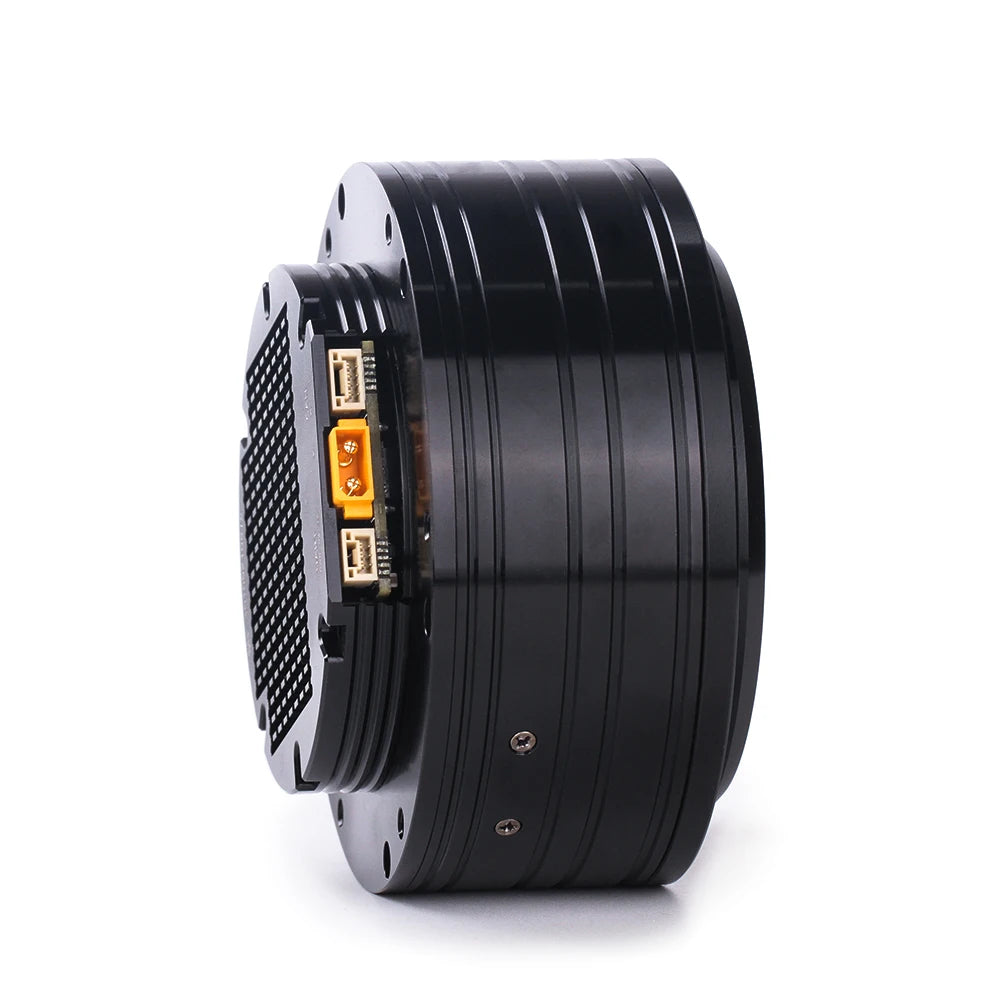

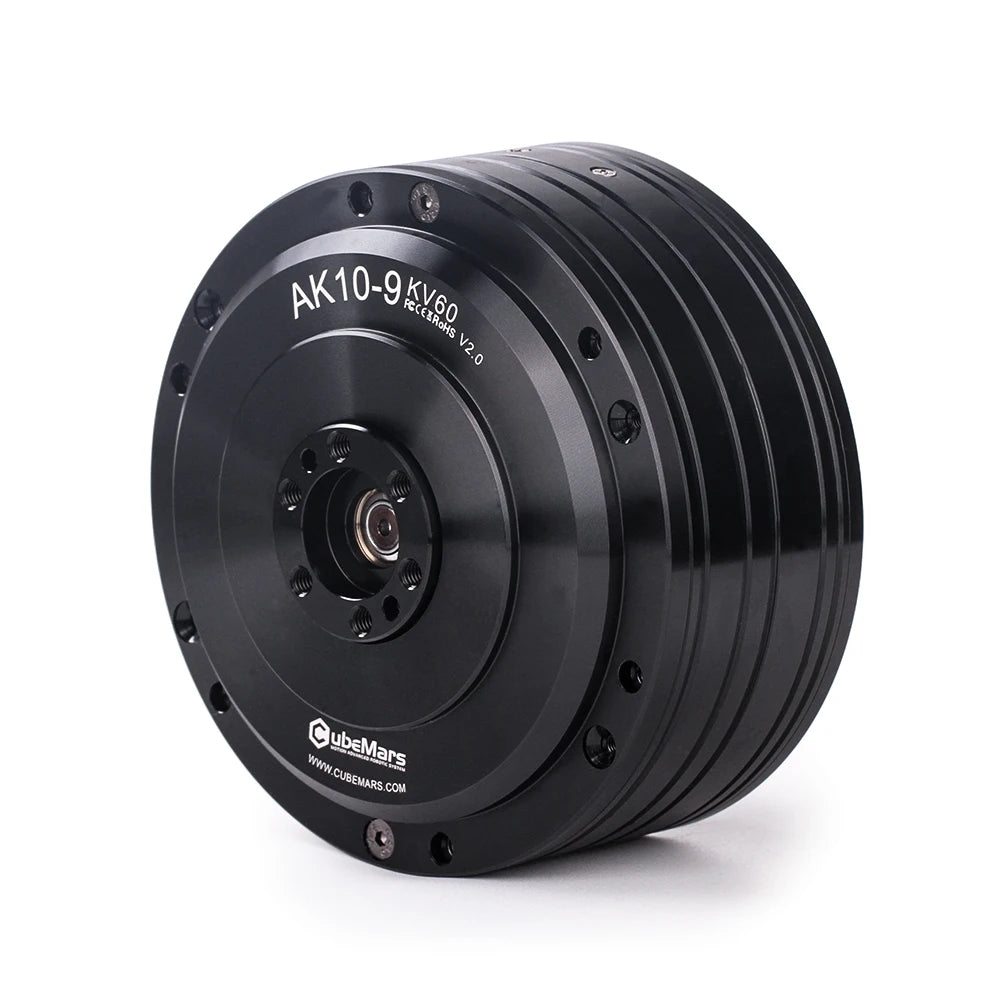

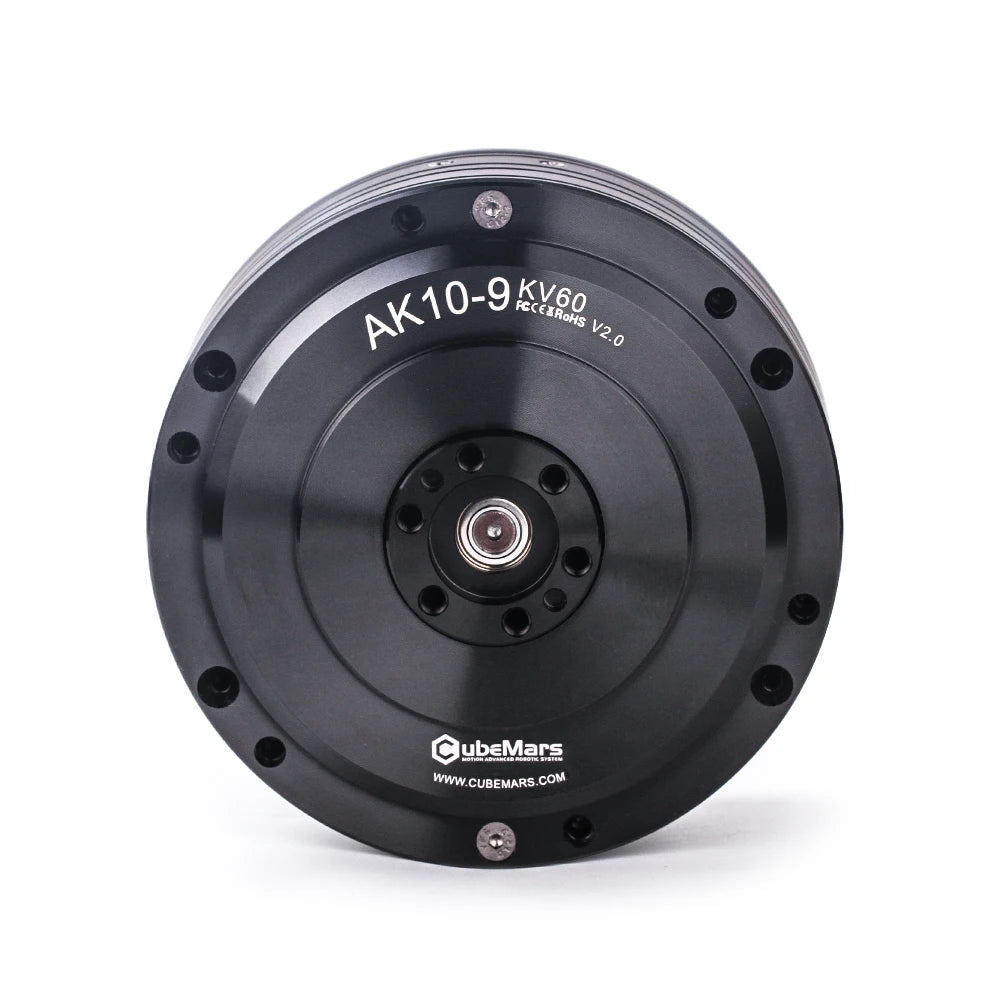

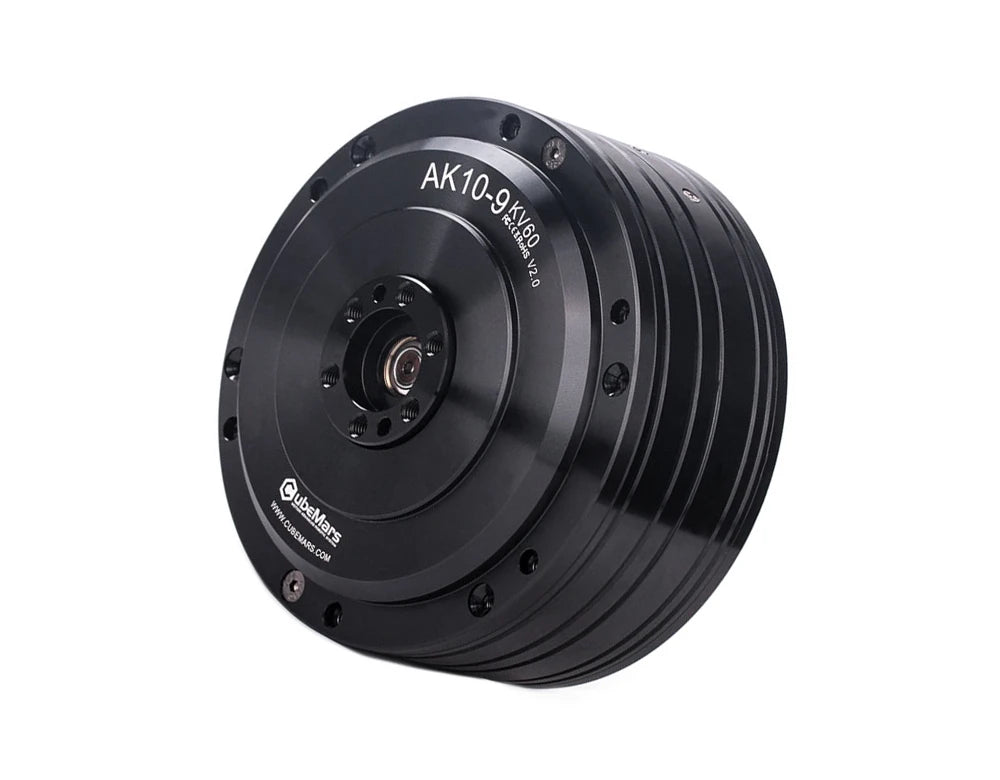

AK10-9 V2.0 electric Silent Bldc low rpm flat gearbox gear dc motor high torque with encoder.

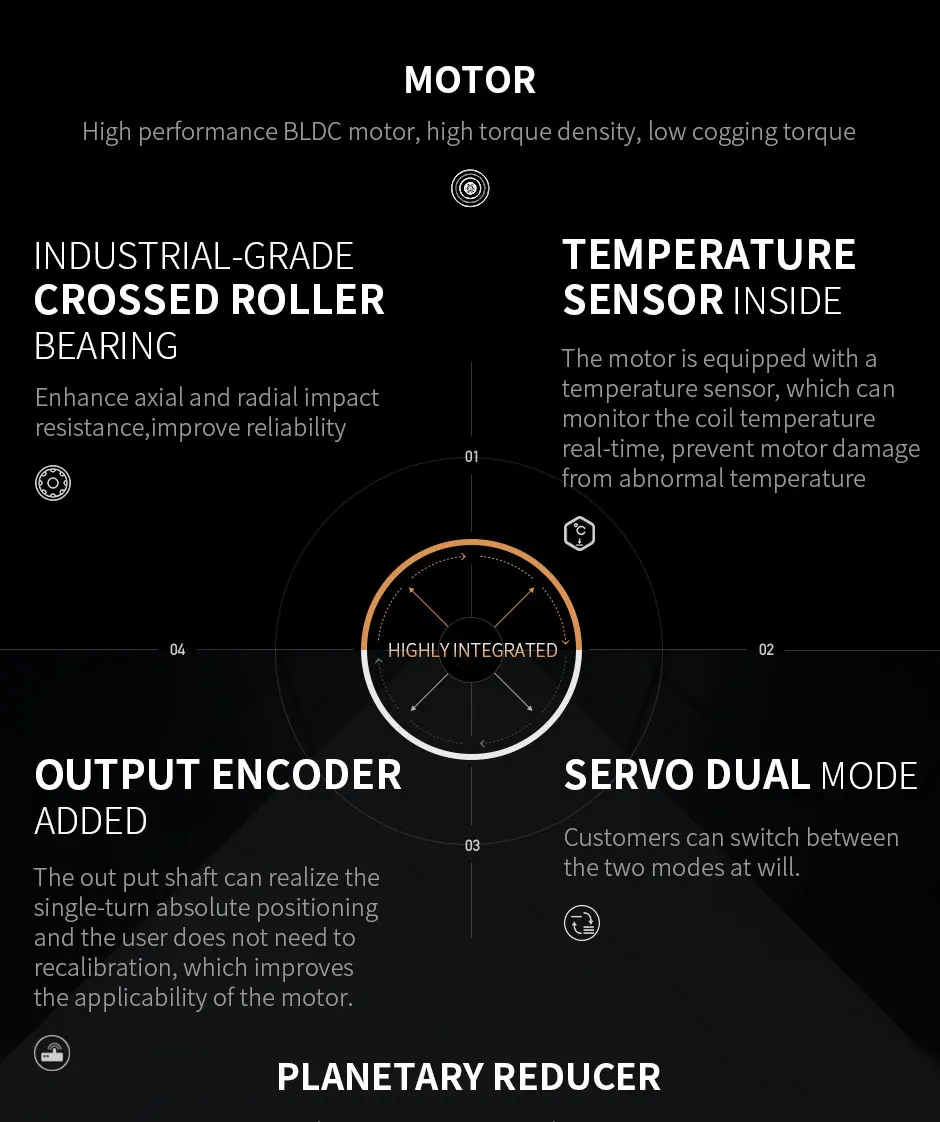

Advantages of Our AK Series Motor
1, Stable and efficient easy to maintain.
2, Strong Powerful Highly integrated Cross roller bearing Temperature and position sensor Low-consumption copper coil.
3, Instant burst, strong power, suitable for a variety of heavy-duty machinery and equipment such as footed robot mit cheetah, more stable, larger torque, and easy to achieve powerful instant burst.
4, Thousands of motor streamline calculations ensure the stability and reliability of the motor in any state of motion.

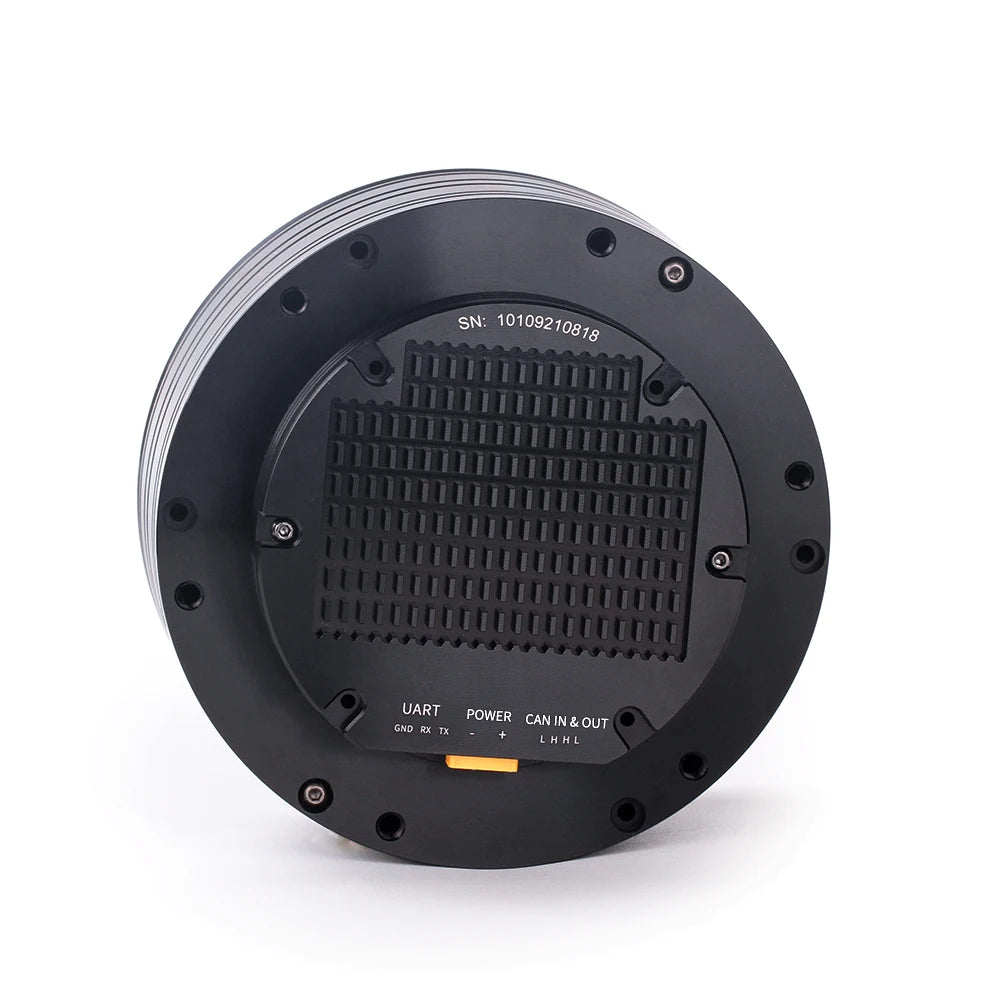

5, Highly integrated Encoder and driver two in one, minus the cumbersome connection line, plug-and-play plug and play, 6,Quick-release structure design to make maintenance easier, closed design to prevent debris from entering the motor.Just plug in the outlet plug and use it.
7,Ultra-thin body design extremely optimized planetary reducer multi-functional small body weight only.
|

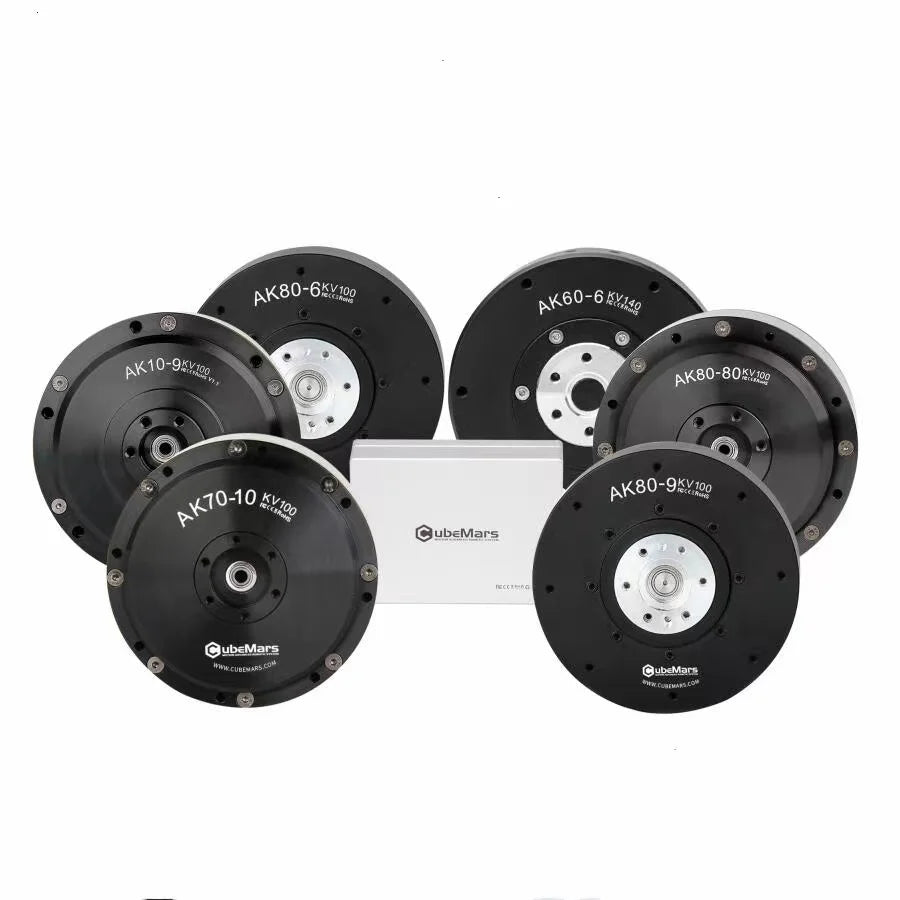

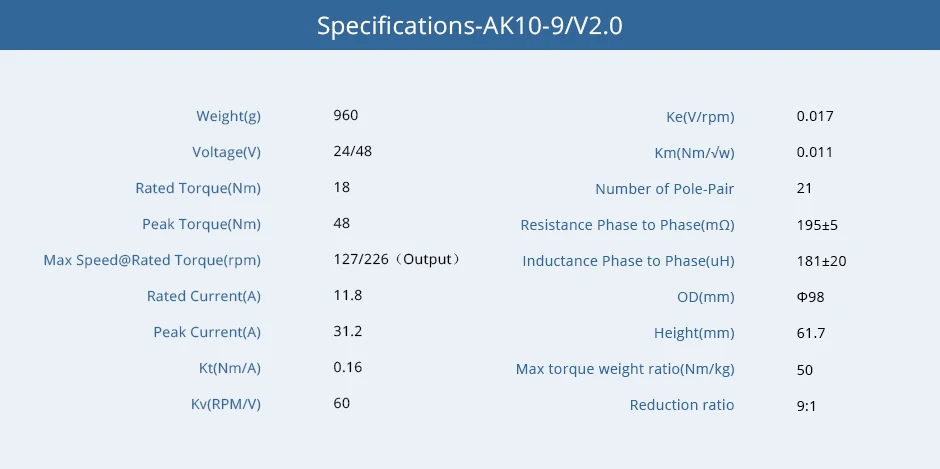

Model No.
|
AK80-6
|
AK80-9
|
AK70-10
|
AK10-9
V1.1
|
AK10-9 V2.0
|
AK60-6
|
AK80-80
|
|||||
|

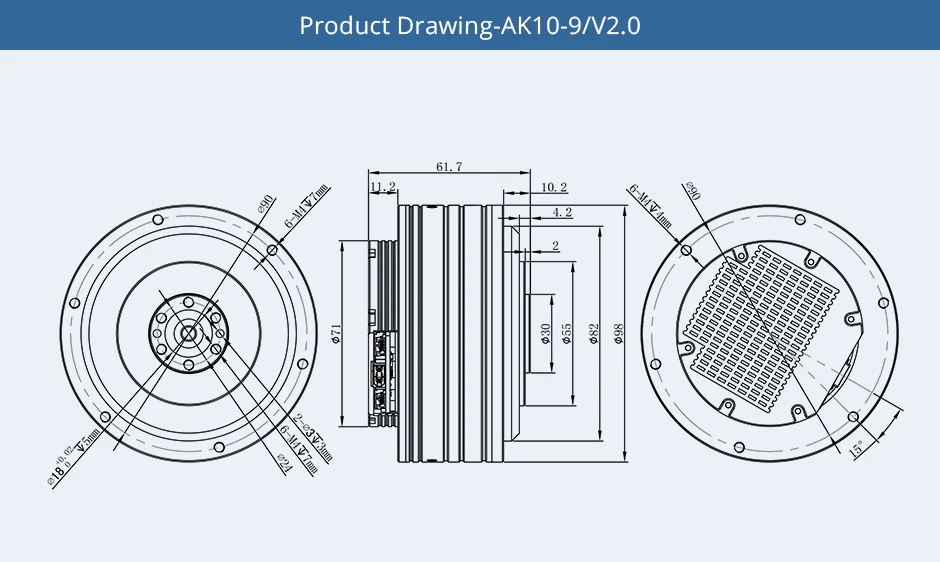

Size (MM)
|
98*48
|
98*45.2
|
89*50.2
|
98*62.5
|
98*61.7
|
76*36.5
|
98*61.9
|
|||||
|
Weight (g)
|
465
|
485
|
521
|
820
|
960
|
315
|
790
|
|||||
|
KV(RPM/V)
|
100
|
100
|
100
|
100
|
60
|
140
|
100
|
|||||
|
Voltage (V)
|
24
|
24
|
48
|
24/48
|
24/48
|
24
|
48
|
|||||
|
Rated Torque(NM)
|
6
|
9
|
8.3
|
15
|
18
|
3
|
48
|
|||||
|
Peak Torque(NM)
|
12
|
18
|
24.8
|
38
|
48
|
9
|
144
|
|||||
|
Rated Current(A)
|
12
|
12
|
8.8
|
18.5
|
11.8
|
7.4
|
13
|
|||||
|
Peak Current(A)
|
24
|
24
|
26.1
|
50
|
31.2
|
22
|
40
|
|||||
|
Speed(RPM)
|
365
|
245
|
400
|
222/445
|
127/226
|
400
|
57
|
|||||
|
Km (Nm/sqr w)
|
0.091
|
0.091
|
0.095
|
0.095
|
0.011
|
0.14
|
0.095
|
|||||
|
Kt(Nm/A)
|
0.00952
|
0.00952
|
0.01
|
0.01
|
0.16
|
0.068
|
0.01
|
|||||
|
Max Torque Weight Ratio
(nm/kg)
|
26
|
32.4
|
47.6
|
65
|
50
|
28.57
|
182
|
|||||
|
Application
|
Biped Quadruped Collaborative Service Training Robot, Robot Arm Joint, Medical Equipment, Mit Cheetah Robot Dog Robot and high precision low speed drive Module equipments.
|
|||||||||||
|
