i.MX6ULL SoC 8 Uart Interfaces 512MB DDR3 8GB EMMC 3.3V NAND
Linnux Industrial Embedded SOM Board with Spring Antenna
Product Description
Core Features:
1. Ultra-small size (38mm*38mm).
2. IPEX antenna or spring antenna
3.128Pin 1.1mm pin pitch, expand all pin resources of i.MX6ULL
4.The default configuration is 256MB DDRL (up to 512MB), 256MBNandFlash (up to 2GB) or eMMC (from 4GBto 32GB)
5.Integrate 1 channel 10/100M Ethernet physical chip (KSZ8081)
6.Strict signal integrity and power integrity design and testing, passed CEandFCC certification
7.Onboard power-on reset circuit and power management circuit
8.Support system standby and wake-up, standby current is only 8mA (3.3V power supply)
3.128Pin 1.1mm pin pitch, expand all pin resources of i.MX6ULL
4.The default configuration is 256MB DDRL (up to 512MB), 256MBNandFlash (up to 2GB) or eMMC (from 4GBto 32GB)
5.Integrate 1 channel 10/100M Ethernet physical chip (KSZ8081)
6.Strict signal integrity and power integrity design and testing, passed CEandFCC certification
7.Onboard power-on reset circuit and power management circuit
8.Support system standby and wake-up, standby current is only 8mA (3.3V power supply)
9. Rich extension interface, enjoy the connection.It supports up to 8 UART interfaces and can extend multiple peripheral devices at the same time
(PS:Arm and Cortex are registered trademarks of Arm Limited in the US and elsewhere.)
Brief Introduction:

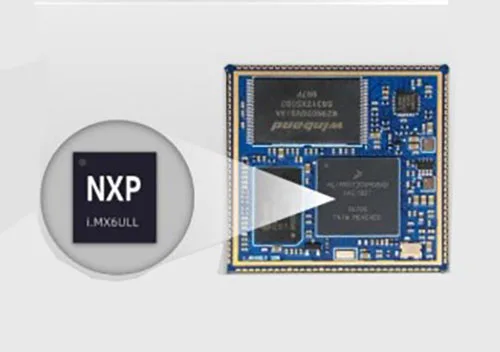

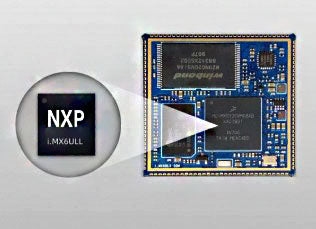

1. The IDO-SOM6Y08 is a tiny insert-ready System on Module populated with the NXP® Semiconductor i.MX 6ULL SoC based on the ARM Cortex-A7 architecture. The module has integrated with DDR3L, Nand Flash(or eMMC ) and one 10/100M Ethernet PHY on board. It delivers high performance with ultra-efficient power that targets Industry Control, HMI, Smart Healthcare and Internet of Things (IoT) smart gateway.
2.The i.MX 6ULL is a power efficient and cost-optimized applications processor family featuring an advanced implementation of a single Arm® Cortex®-A7 core, which operates at speed up to 900 MHz.

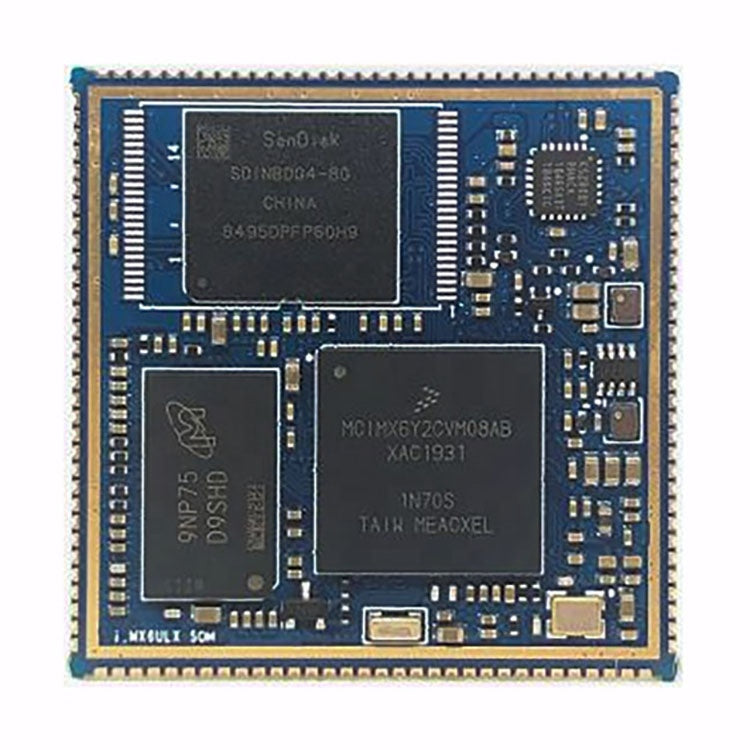

Detail Image
Product Parameters
1.Specification Details
|
Product Type
|
Core board
|
Product Model
|
IDO-SOM6Y08-D512E8G-C
(512MB DDR3 + 8GB EMMC
Commercial grade) |
|
CPU
|
SOCARM Cortex A7 Core
|
SOC
|
NXP i.MX6ULL SoC
|
|
Cache
|
2.4GHz WiFi 802.11 B / g / N protocol
|
CPU
|
ARM Cortex A7 Core
|
|
DDR Memory
|
DDR3 256MB/512MB(Optional)
|
NAND Flash
|
256MB/512MB/1GB/(Optional)
|
|
eMMC
|
4GB/8GB/16GB/32GB(Optional)
|
Clock Frequency
|
800MHZ
|
|
Audio Interface
|
3x I2S/SAI, S/PDIF Tx/Rx
|
Camera Interface
|
8/10/16 bit parallel CSI
|
|
USB
|
2x USB 2.0 OTG, HS/FS, Device or Host with PHY
|
Network Interface
|
Support up to 2 10/100Mbps Ethernet，single-channel onboard
|
|
WI-FI
|
2.4GHz wifi 802.11a/b/g/n/ac protocol
|
Touch Panel
|
support
|
|
Other Interfaces
|
8 x UART，2 x MMC 4.5/SD 3.0/SDIO interfaces
|
Interface Types
|
Stamp hole
|
|
Power Supply
|
3.3V
|
Operate Temperature
|
0-70 °C /–40 ~ 85 °C(Optional)
|
|
PCB Layers
|
4
|
Dimensions
|
（38 x38）mm
|

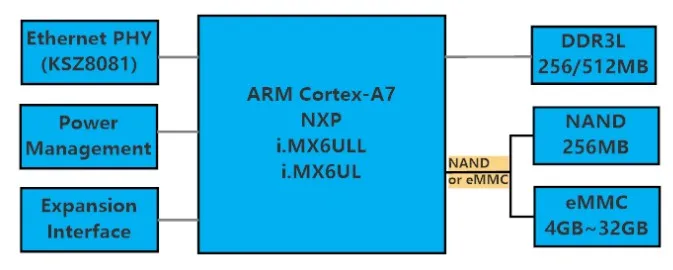

2. Module Block Diagram

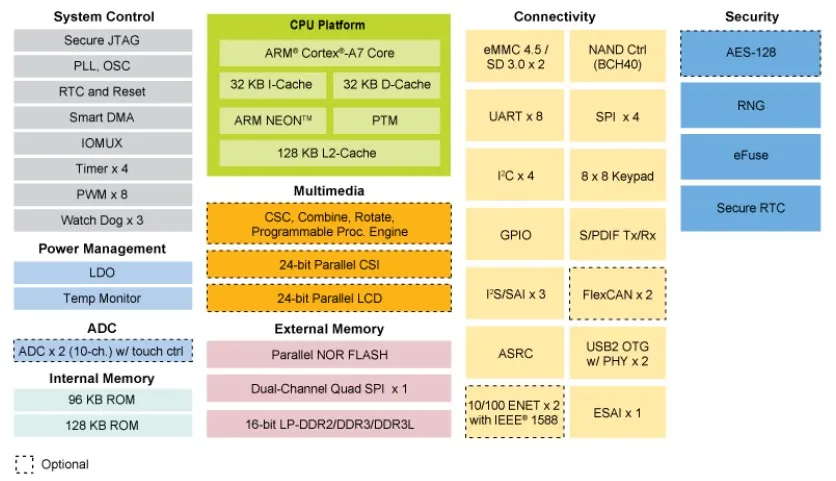

3. i.MX66ULL Functional Framework

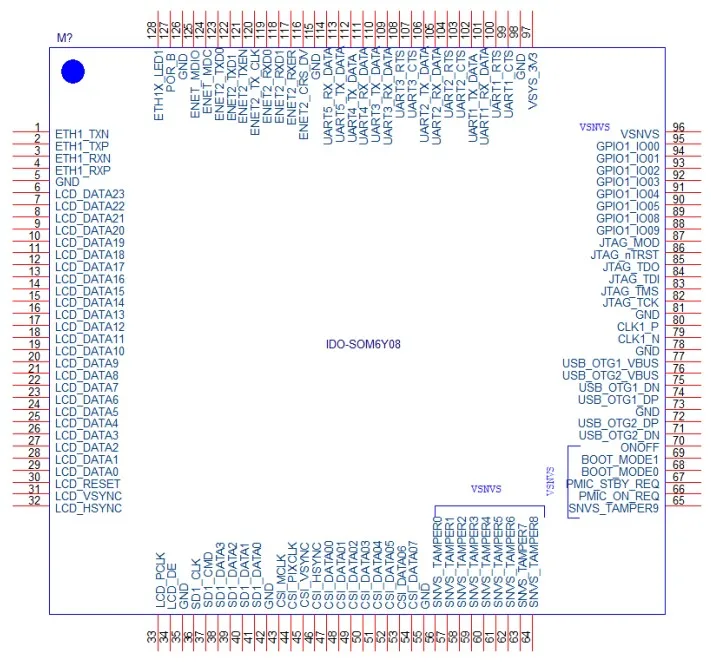

4.IDO-SOM6Y08-Pin Definition

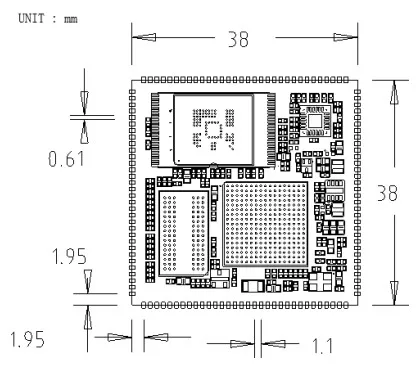

5. IDO-SOM6Y08-Module Measurements
>> Send me inquiry for price, packing, shipping, sample, OEM & ODM service details!
Product Application
