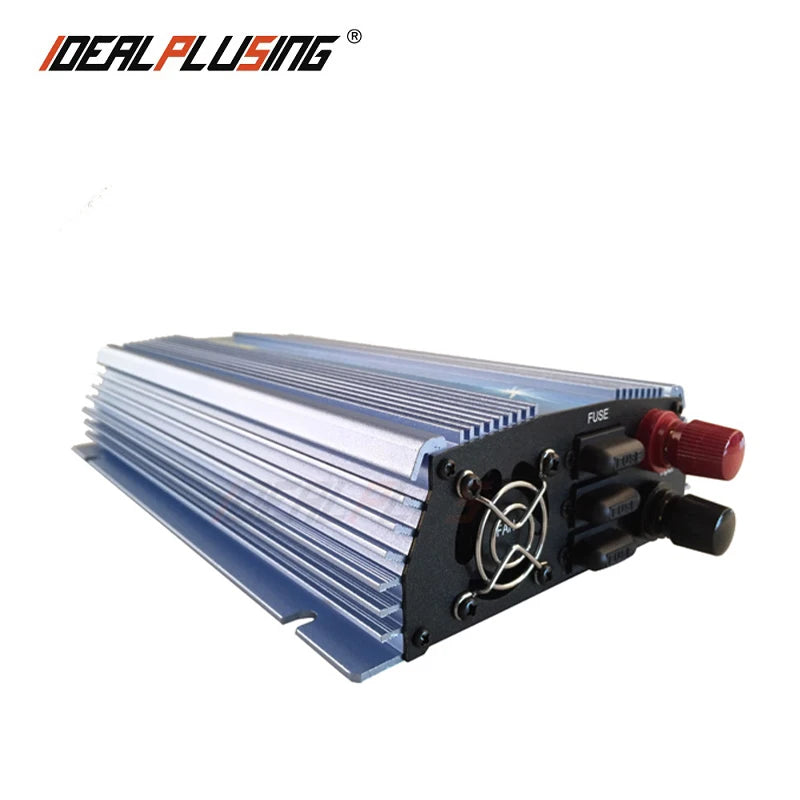

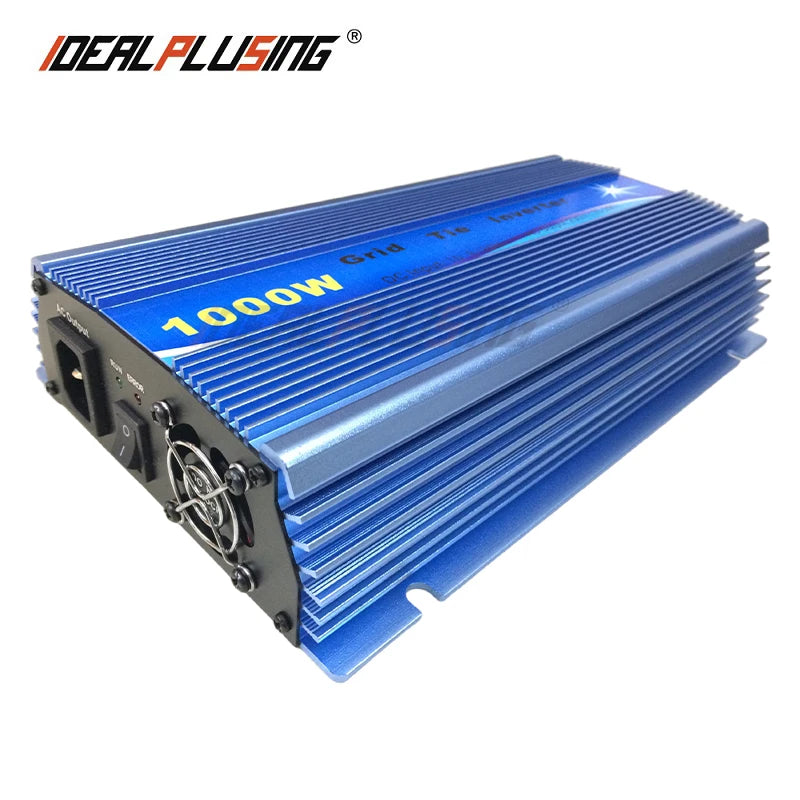

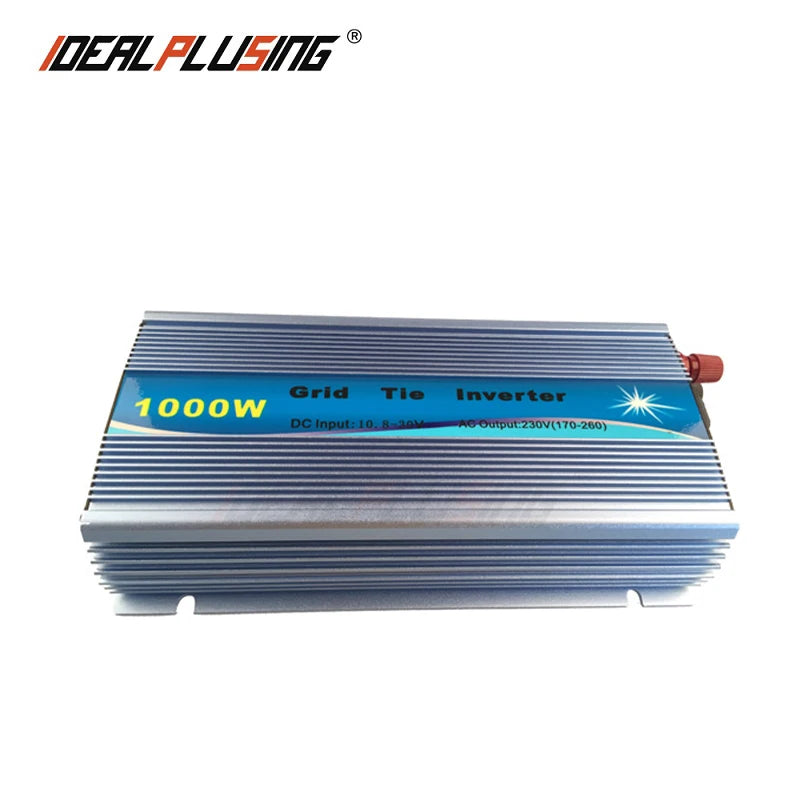

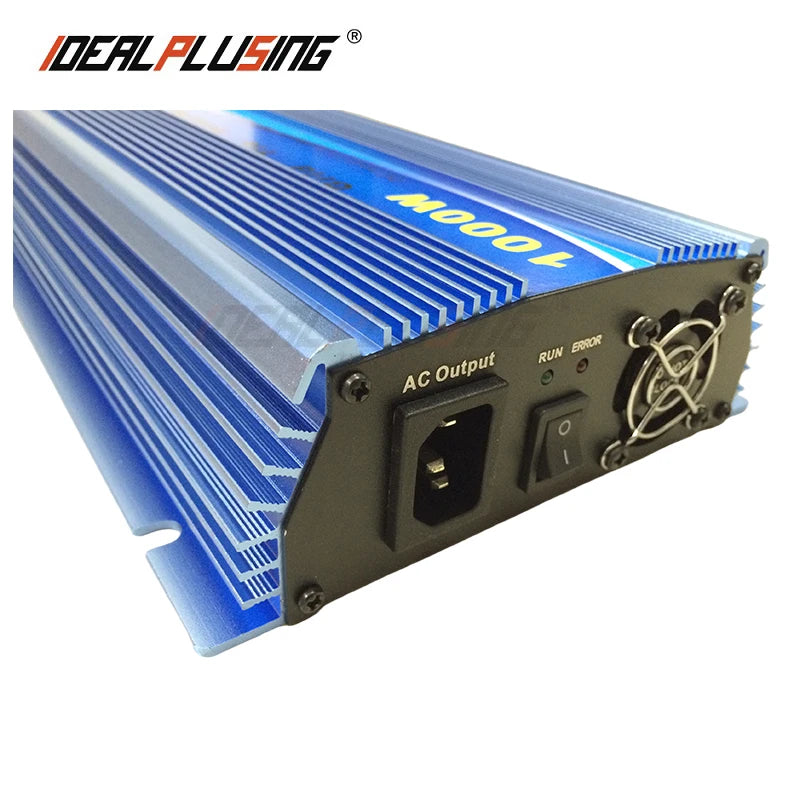

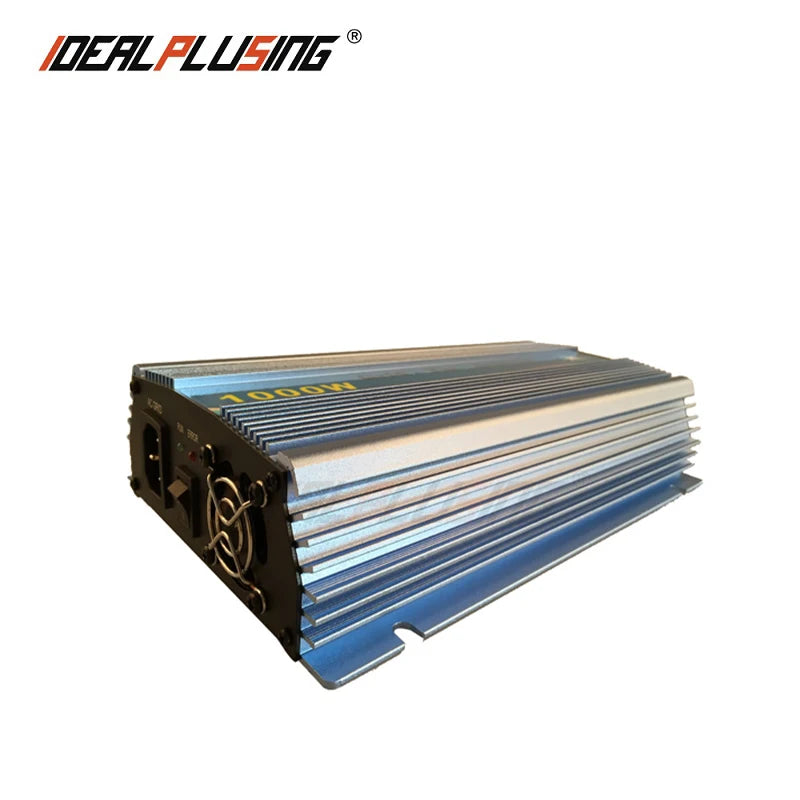

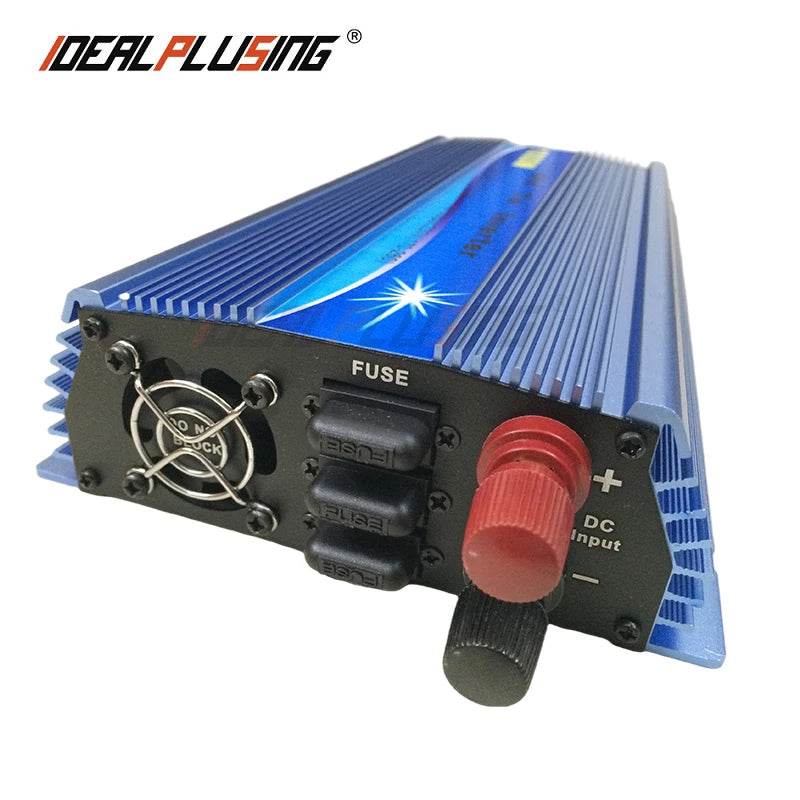

Inverter photovoltaic grid connected 600-1000W Suitable for 30V or 36V solar panels, 36V batteries solar photovoltaic power

1

A smart grid-tie inverter is a compact unit, which directly converts direct current into alternating current for powering appliances and/or office equipment and connecting to the utility grid.

2

The AC output from Smart Microinverter is synchronized and in phase with the utility grid.

3

It is a key device of power generation systems such as PV power generation systems, wind turbine power generation systems.

4

Smart Microinverter specially optimized design to work with modularization of DC power supplies which includes the mainstream solar modules, 18V (36 cells) monocrystal and/or Polycrystalline solar panels, wind turbines, and batteries.

5

Smart Microinverters are stabilization, reliable, and high conversion efficiency items.

6

It is the best choice for PV power generation systems.

1

Unique circuit design, choice of import industrial electronic components, higher efficiency, more stable performance.

2

Creative MPPT technology, efficiency more than 99%, faster and more sensitive reaction, more reliable.

3

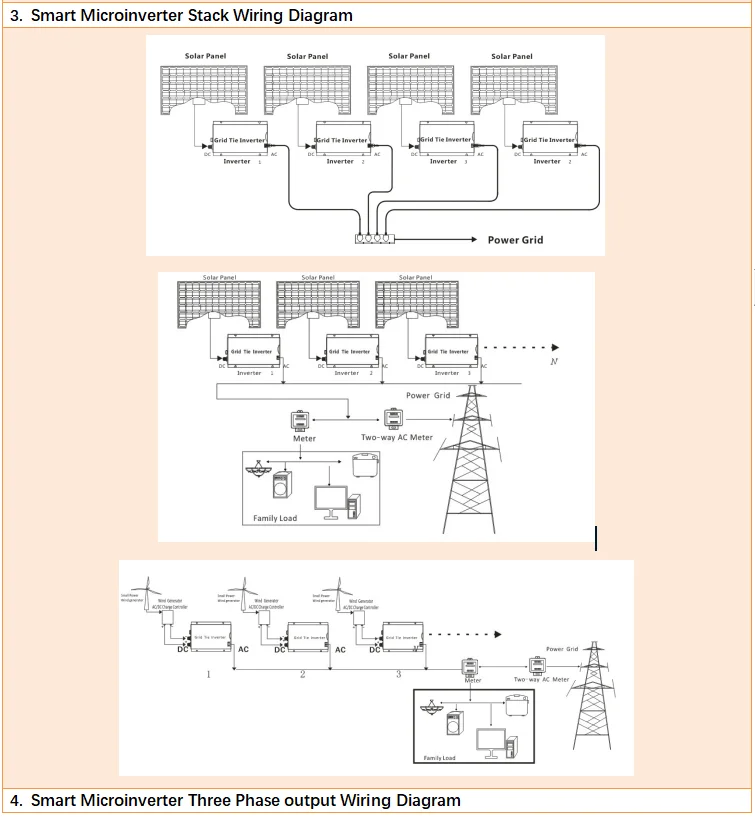

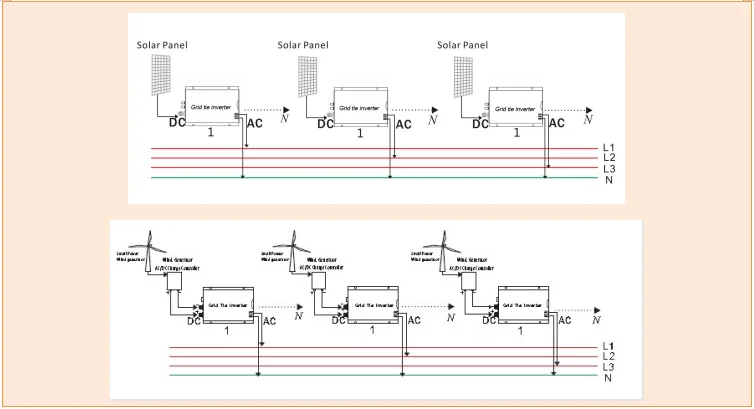

Parallel type design for DC input and modularization design for inverter, small volume, distributed installation, easy for system configuration, flexible for combination, strong expansibility of system.

4

Adopting high-frequency isolation transformer type, high efficiency, and high security.

5

Perfect electrical protection function.

6

Aluminum alloy housing, not rust, heat-resisting, and cold-resistant as well as anti-corrosion.

7

Getting electronic circuit design, appearance design, and other core technology patents.

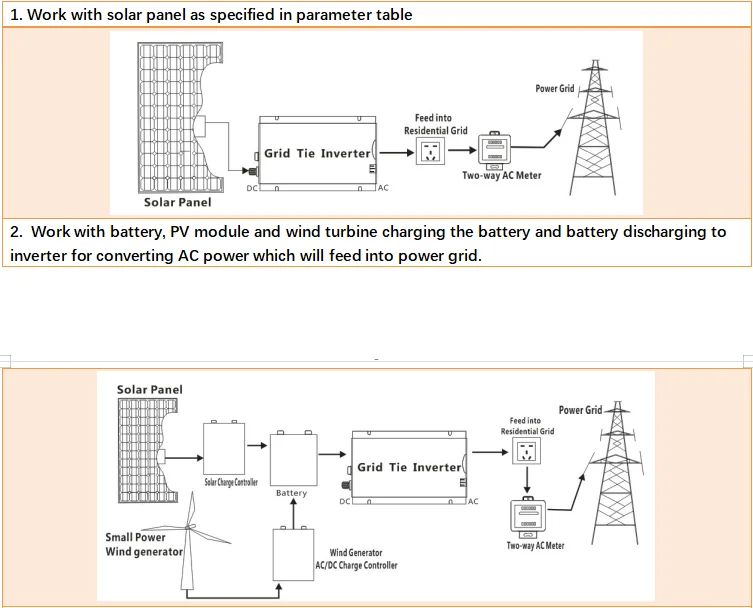

A. Inverter works with solar panels.

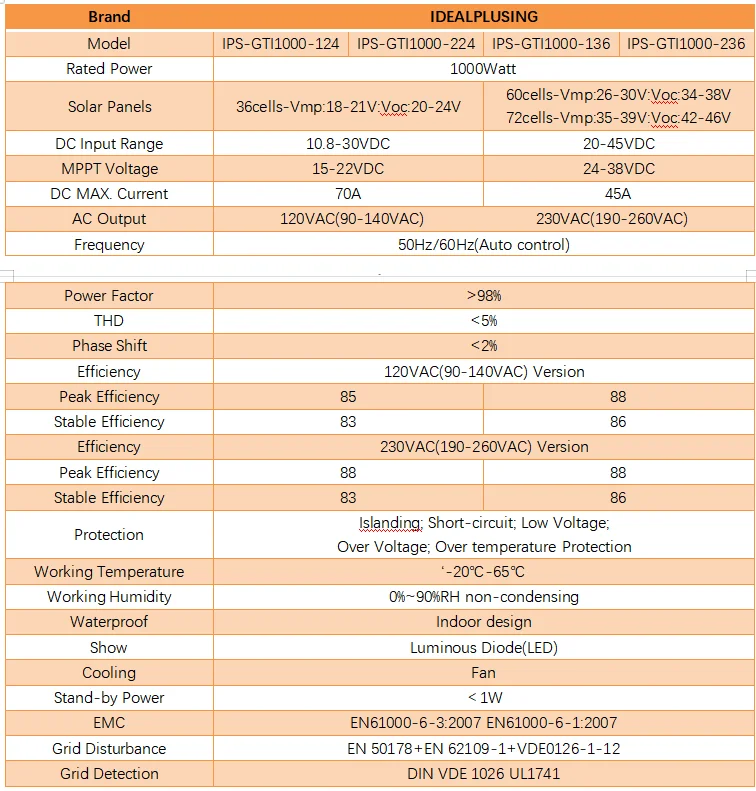

11-32VDC range is for 36cells-Vmp:18-21V:Voc:20-24V solar panels.

22-60VDC range is for 60cells-Vmp:26-30V:Voc:34-38V or 72cells-Vmp:35-39V:Voc:42-46V. This range can suitable for two version solar panels.

B. Inverter works with battery.

If you want to use this grid tie inverter for the battery, then please use a 24VDC battery with an 11-32VDC inverter. 36VDC battery with 22-60VDC inverter.

Because this inverter is designed for solar panels which with MPPT function. So we don't very much suggest customers use it for the battery. It may short the inverter service life. If using a battery to power the inverter, please use a circuit breaker.

Remark:

The starting voltage of the inverter is 16V. Therefore, the DC11V input cannot be used.

32V is only an instantaneous voltage, used as buffer protection, not as a working voltage input. Otherwise, it will damage the inverter.

The solar panel voltage will decrease with the intensity of the sunlight. After the inverter is started at 16V, it will work even if the panel voltage drops.

We designed a wider voltage input range to allow the inverter to output more power. After the voltage is lower than 15V, the working efficiency will start to decline.
