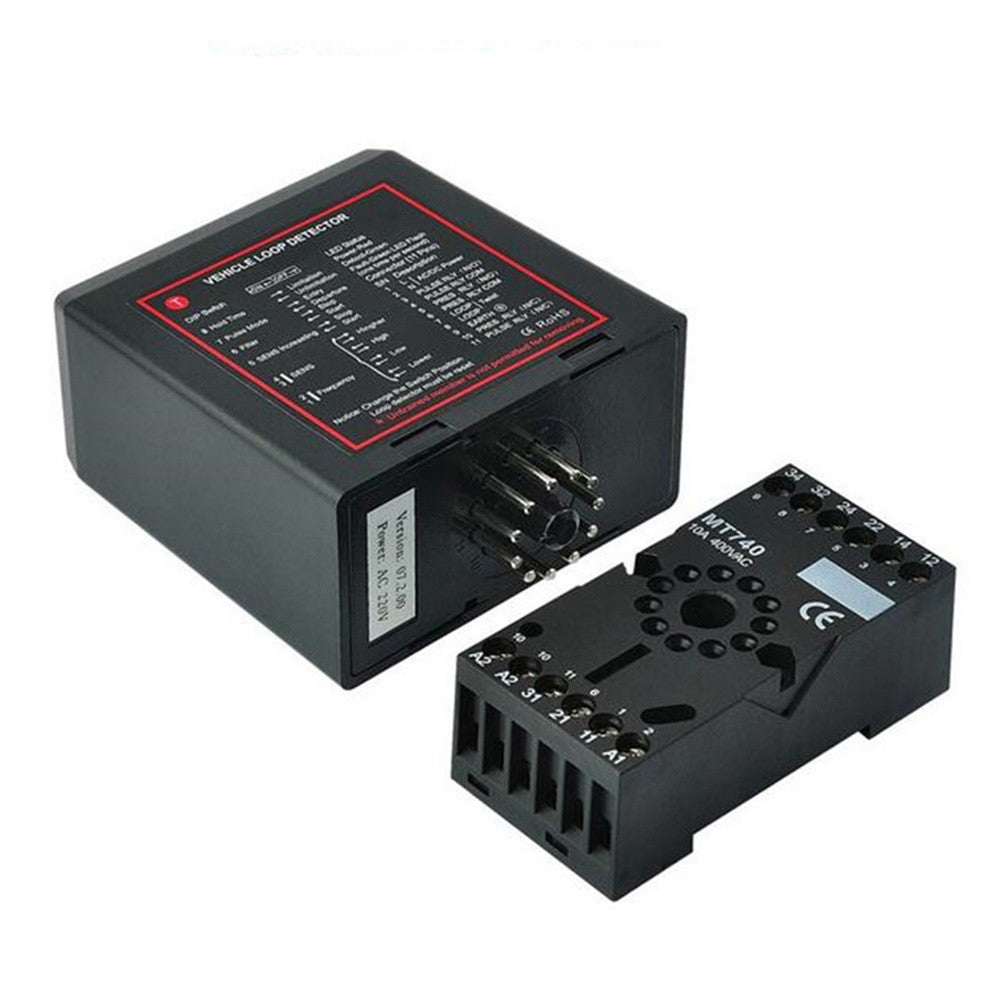

PD-132 Parking Control System Single Channel Vehicle Loop Detector Car Detector Sensor
Save -48%
Rs. 4,029.33
Rs. 7,712.04
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Product Description

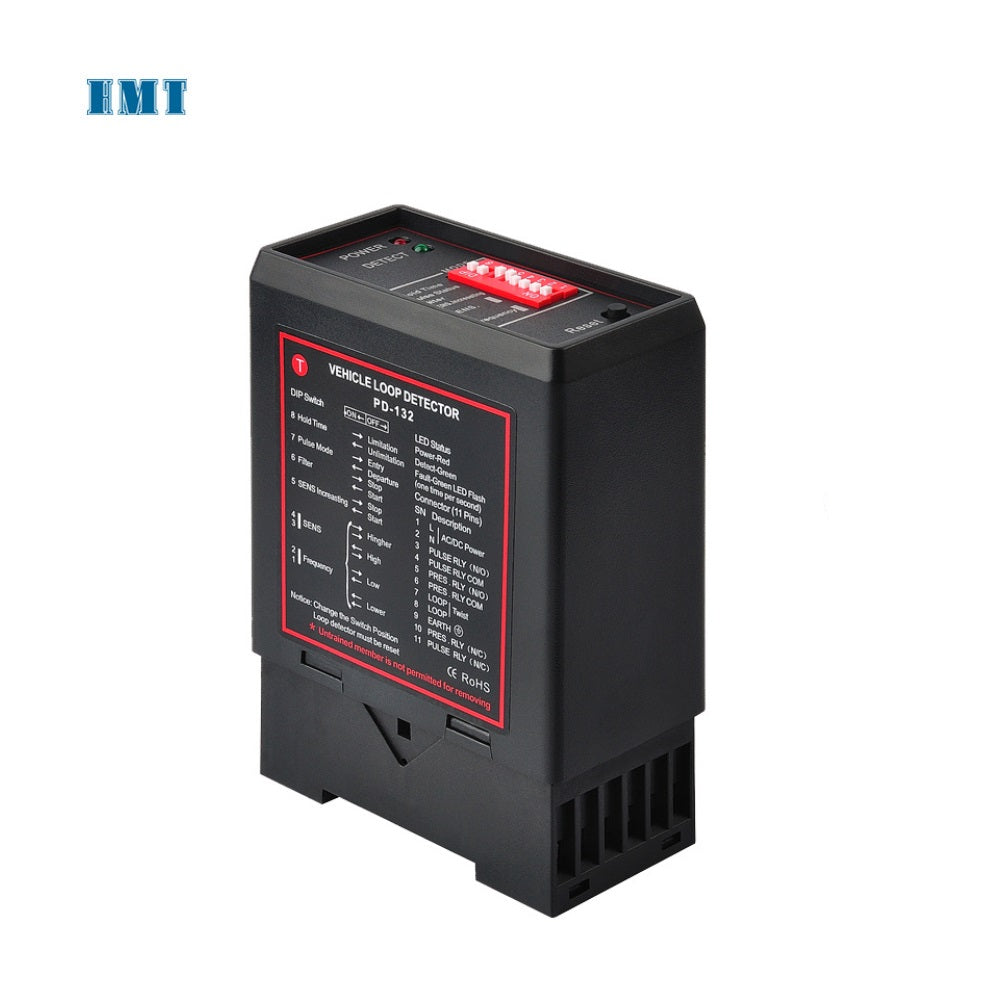

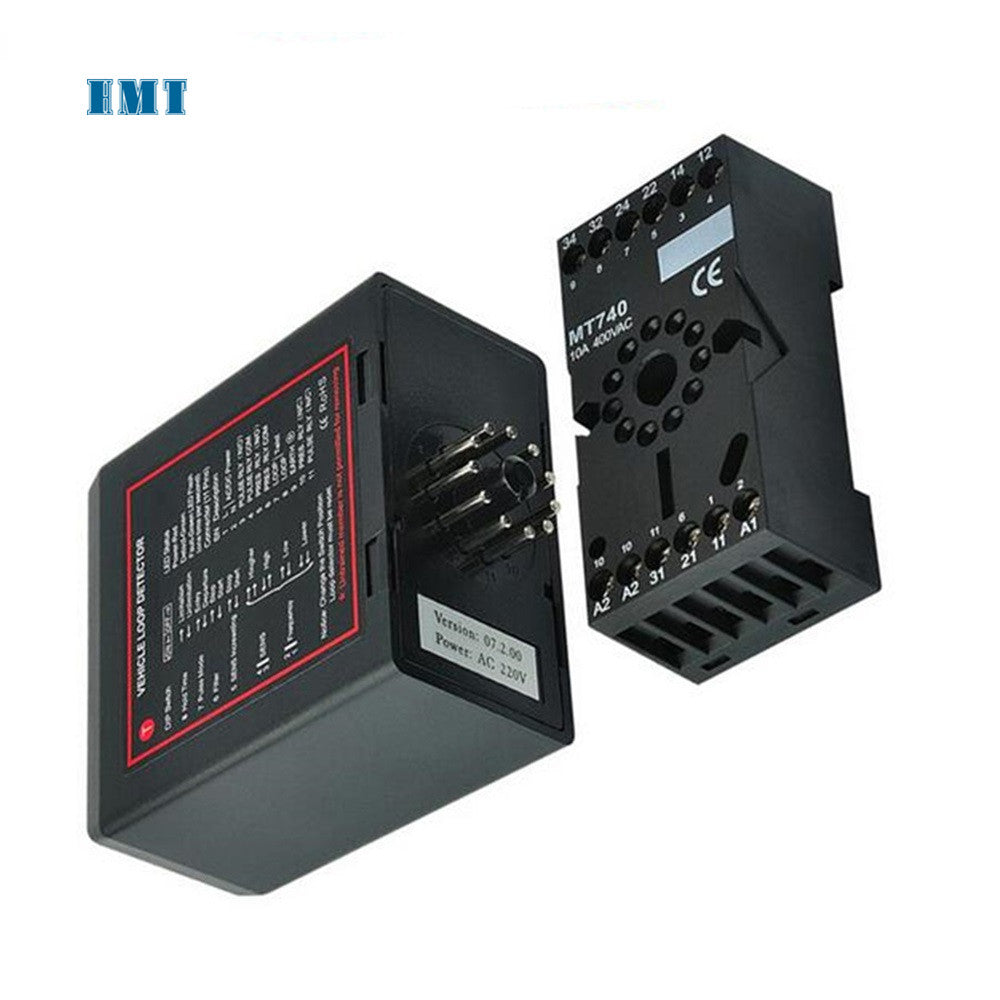

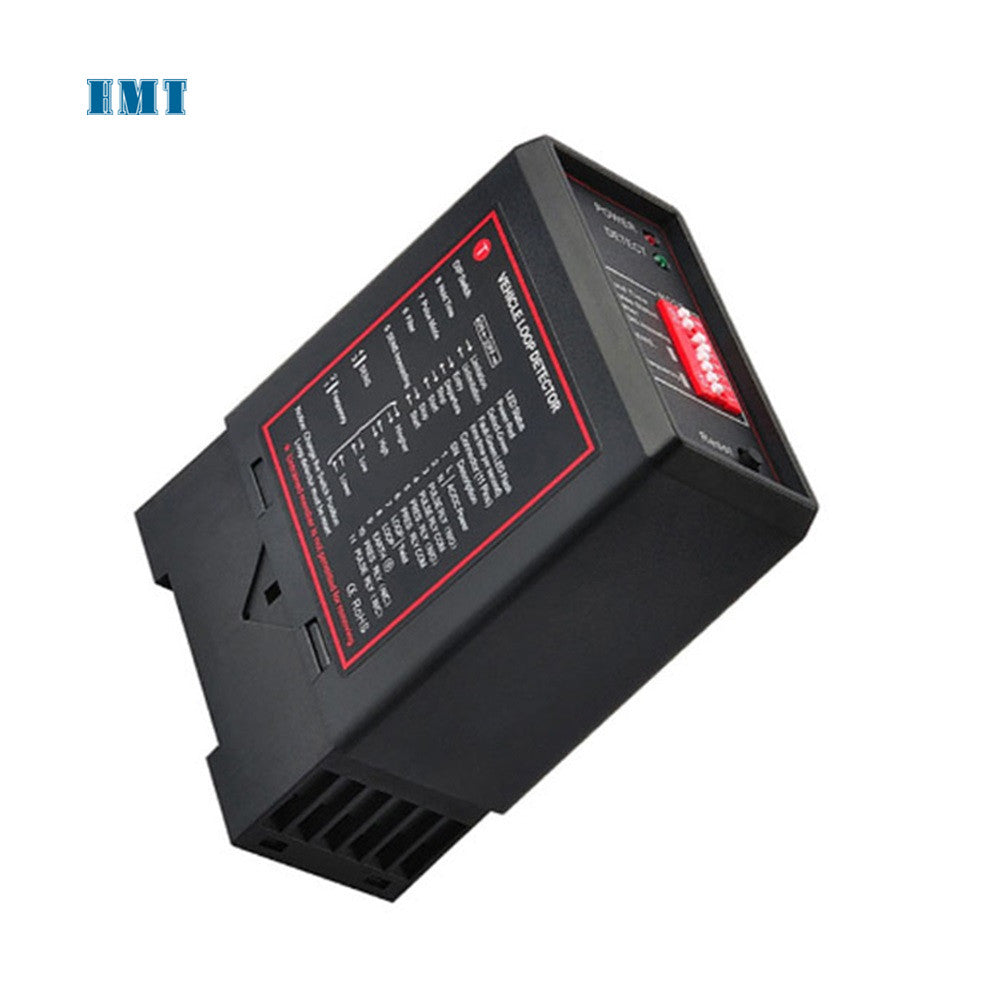

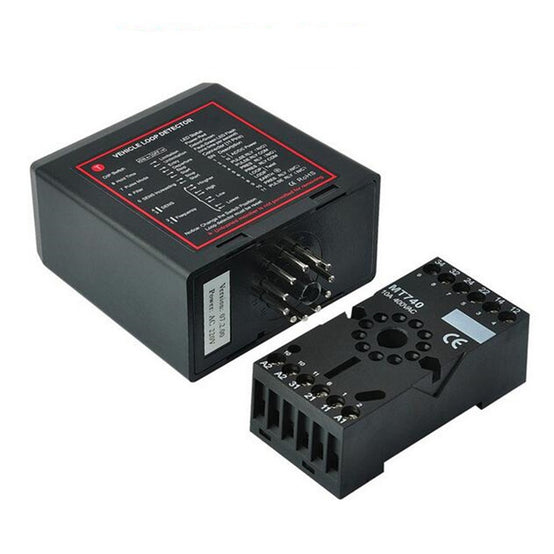

PD-132 Parking Control System Single Channel Vehicle Loop Detector Car Detector Sensor
Features:
1. The accuracy of speed measurement and traffic volume is high.
1. The accuracy of speed measurement and traffic volume is high.
2. The work stability is good.
3. It is not affected by changes in meteorological and traffic environment.
4. Industrial grade design
5. sensitivity levels adjustable.
6. Supports multi output ports
7. Fault self detected function
8. Realized barrier close automatically after car pass.
9. Supports OEM and ODM
3. It is not affected by changes in meteorological and traffic environment.
4. Industrial grade design
5. sensitivity levels adjustable.
6. Supports multi output ports
7. Fault self detected function
8. Realized barrier close automatically after car pass.
9. Supports OEM and ODM
Details Images
Specification
|
Model Number
|
PD-132
|
|
Type
|
Single channel loop detector
|
|
Loop quantity
|
One
|
|
Relay quantity
|
One
|
|
Reaction time
|
10ms
|
|
Frequency range
|
20KHz to 170KHz
|
|
Supply voltage
|
230V AC , 115V AC,24VDC/AC,12V DC/AC( See the label on the detector)
|
|
Voltage tolerance AC
|
+10% / -15%
|
|
Voltage tolerance DC
|
±15%
|
|
Power Consumption
|
4.5VA
|
|
Output relays
|
240V/5A
|
|
Operating temperature
|
-220°C to +65°C
|
|
Storage temperature
|
-40°C to +85°C
|
|
Signal holding time
|
Unlimited
|
|
Sensitivity
|
Adjustable in 4 increments
|
|
Loop inductance
|
Total loop plus connection wiring: 50μH to 1000μH. Ideal is 100μH to 300μH
|
|
Loop connection wiring
|
Maximum length 20 meters, twisted at least 20 times per meter
|
|
Size of Housing
|
75x40x105 mm (L x W x H)
|
Wiring Diagram

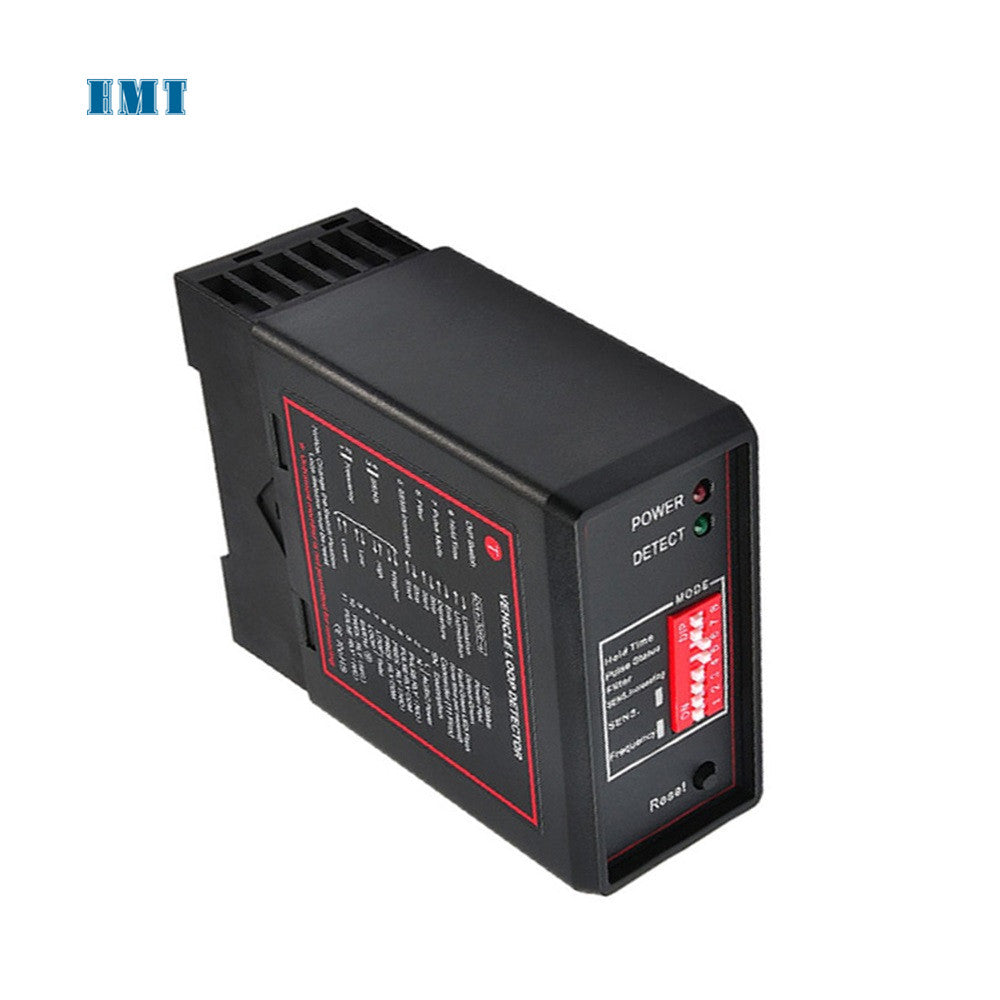

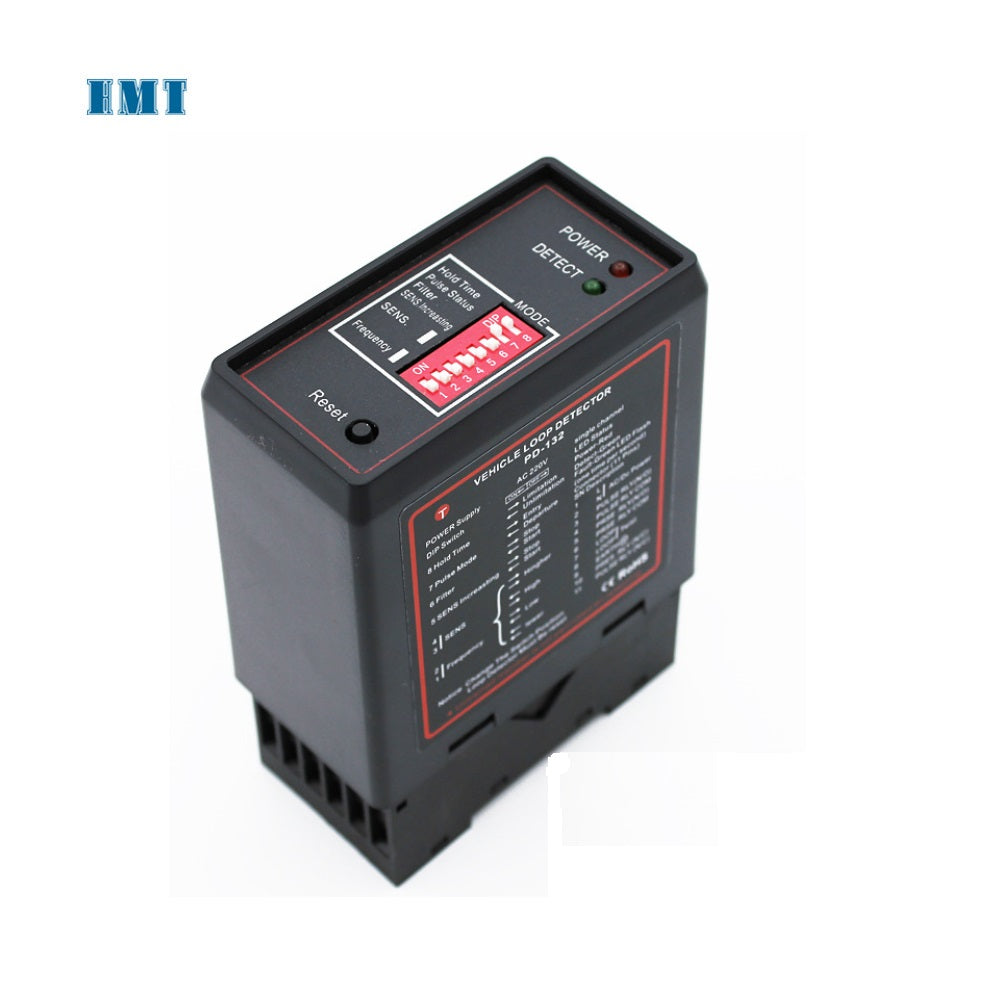

Operation and Indication
While the detector is tuning, the green Channel LED and red Power LED will be turn on. It remain about 2 seconds, then the green LED turn off. If a loop fault exists the Channel LED will come on and flash indicating a fault. If the fault is self-healing the detector will continue to operate.The green channel LED will also glow whenever a vehicle is detected passing over the inductive loop. The red Power LED at the top of the unit will remain on to indicate that the unit is powered.
Frequency
To eliminate interference of two neighbouring wire loops or loop detectors, the frequency can be altered.
Sensitivity
The sensitivity of the detector allows the detector to be selective as to the change of inductance necessary to produce an output.

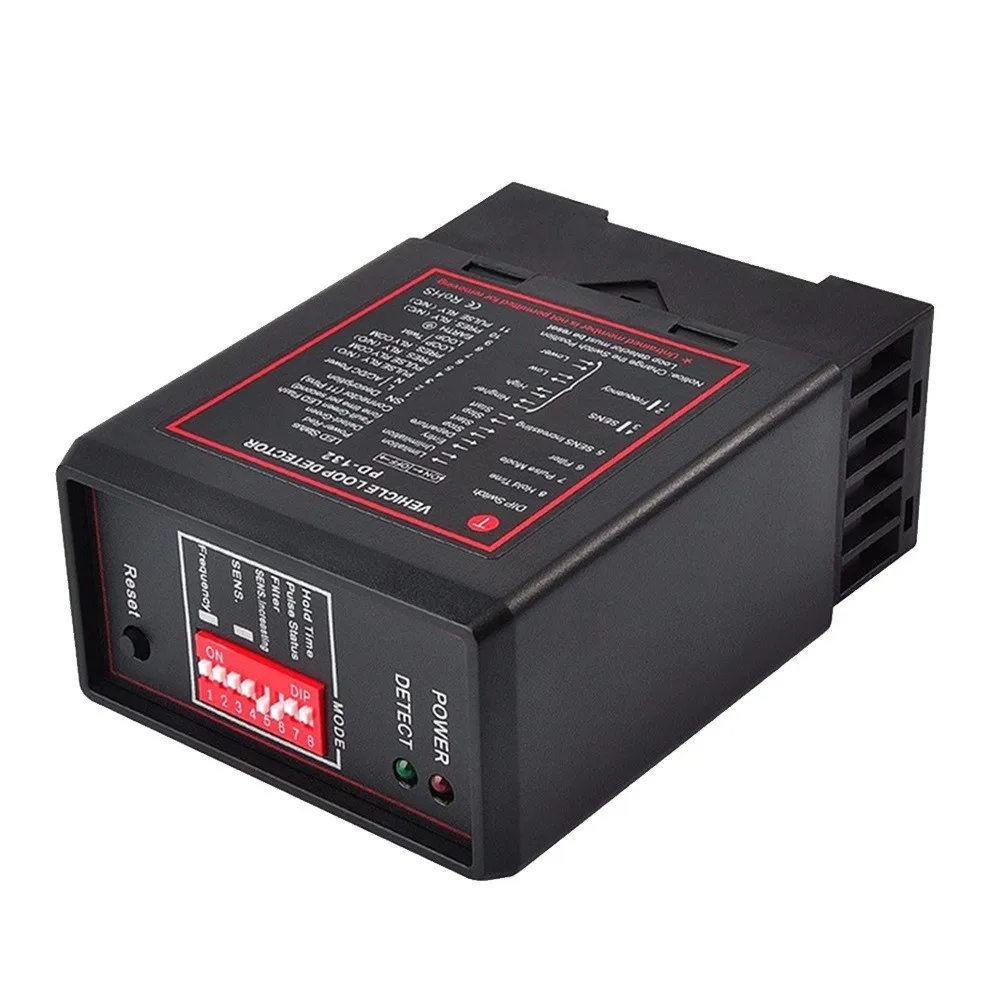

There are four sensitivity selections and are set as follows by DIP3 and DIP4 Switch.
Automatic Sensitivity Boost
Automatic sensitivity boost is selected by DIP5 switch on the front of the enclosure and is set
as follows: OFF - Disabled, ON – Enabled.
Automatic sensitivity boost causes the sensitivity to be boosted to a maximum on detection
on the vehicle, and maintained at this level during the presence of the vehicle over the loop. When
the vehicle departs the loop and detection is lost the sensitivity reverts to the pre-selected level
To eliminate interference of two neighbouring wire loops or loop detectors, the frequency can be altered.
Sensitivity
The sensitivity of the detector allows the detector to be selective as to the change of inductance necessary to produce an output.
There are four sensitivity selections and are set as follows by DIP3 and DIP4 Switch.
Automatic Sensitivity Boost
Automatic sensitivity boost is selected by DIP5 switch on the front of the enclosure and is set
as follows: OFF - Disabled, ON – Enabled.
Automatic sensitivity boost causes the sensitivity to be boosted to a maximum on detection
on the vehicle, and maintained at this level during the presence of the vehicle over the loop. When
the vehicle departs the loop and detection is lost the sensitivity reverts to the pre-selected level
Installation Instructions
Recommend Products

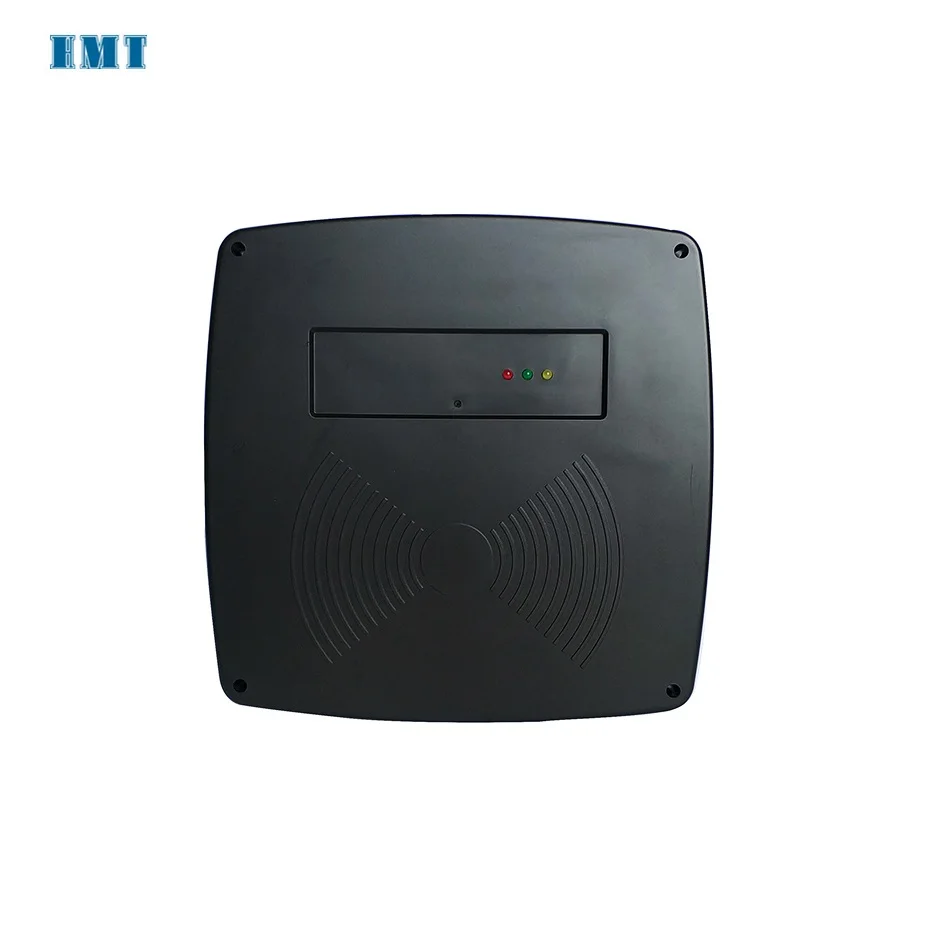

125khz 1M long range rfid reader, HMT105
