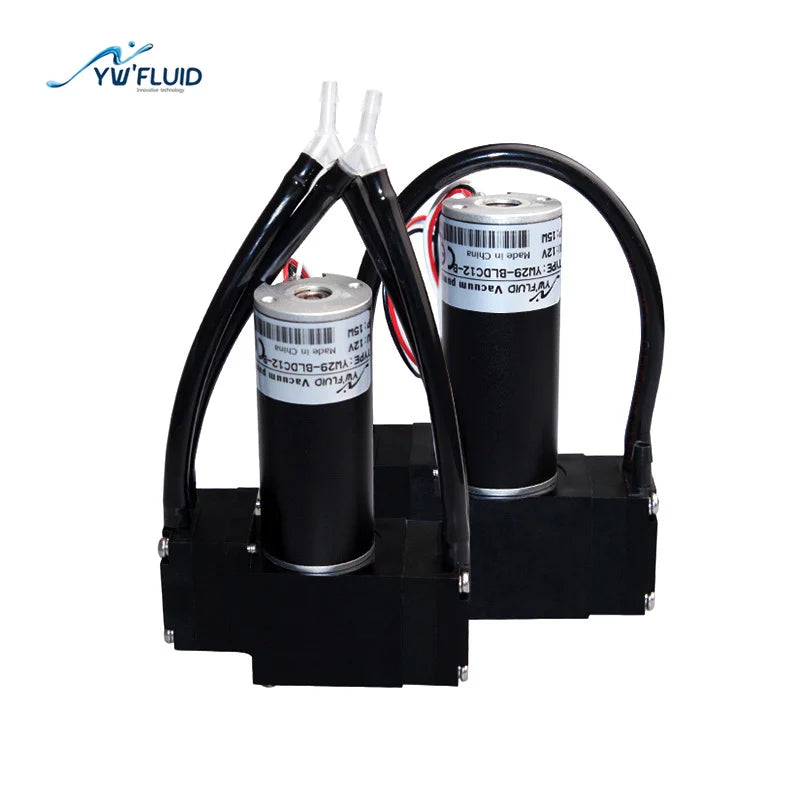

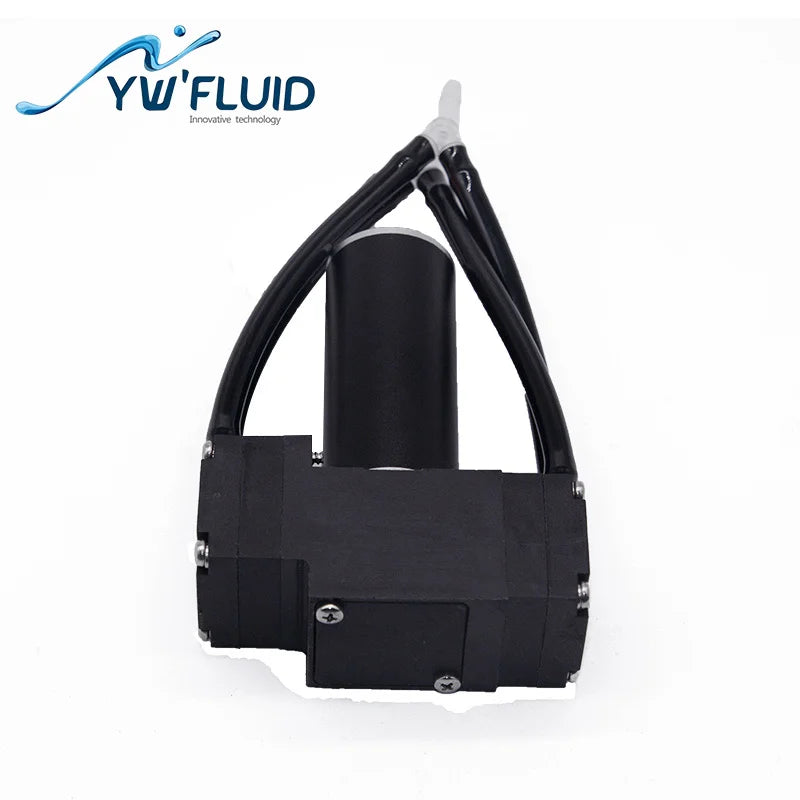

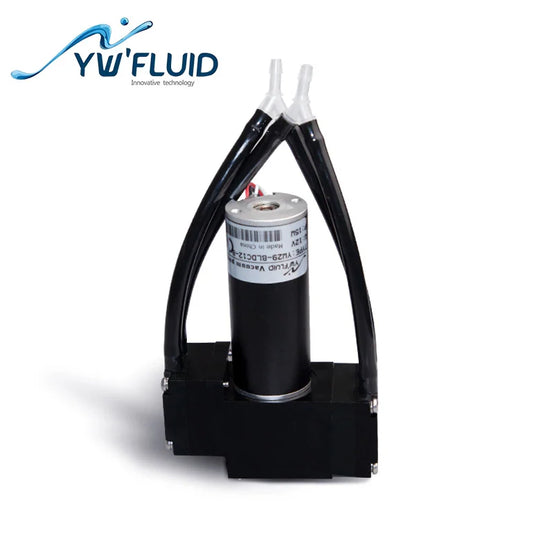

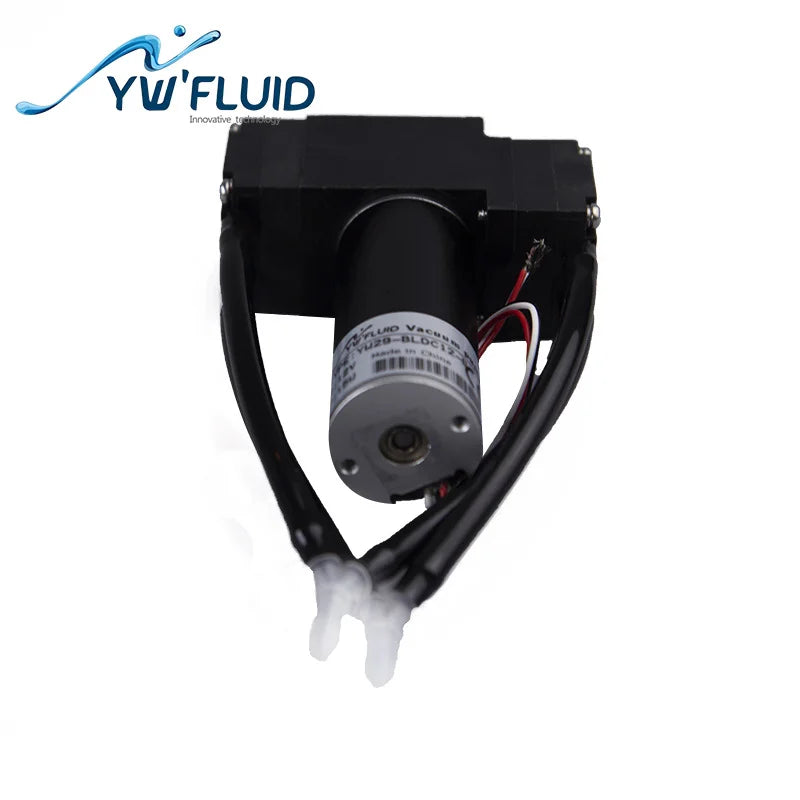

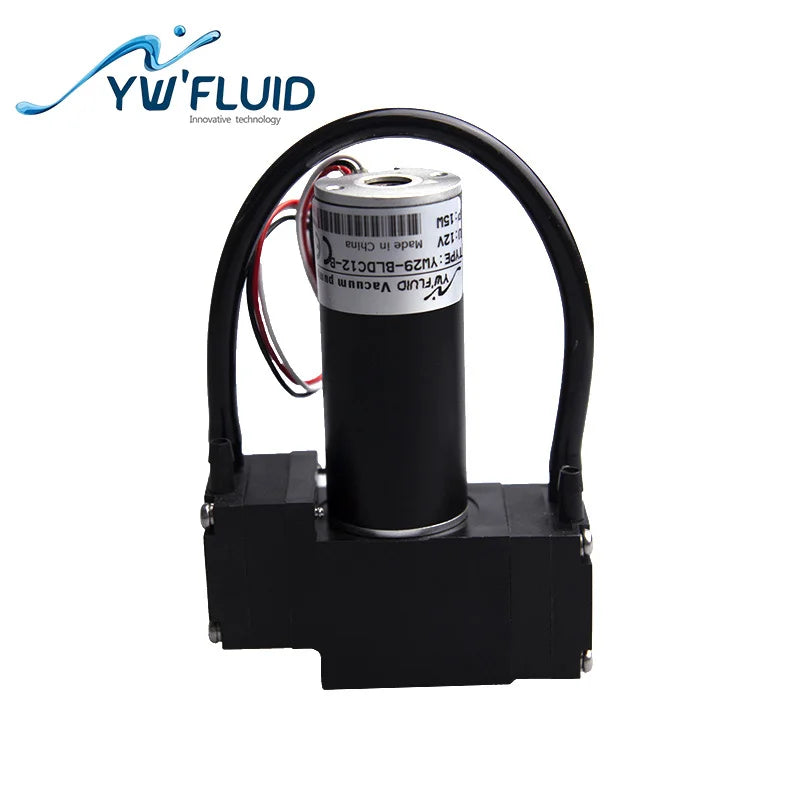

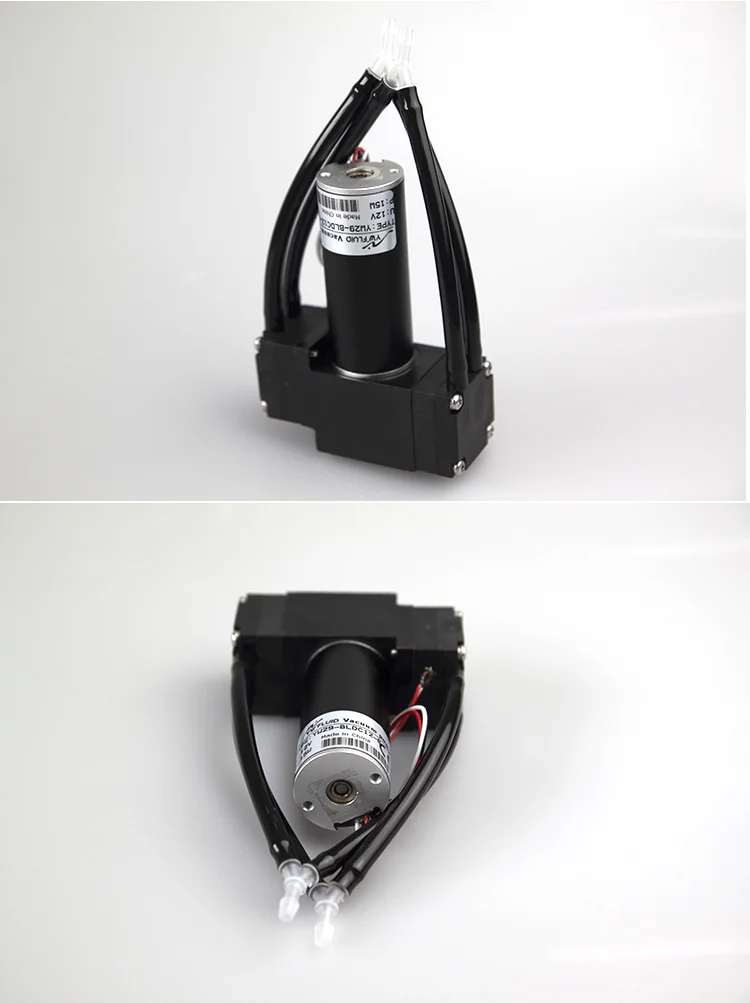

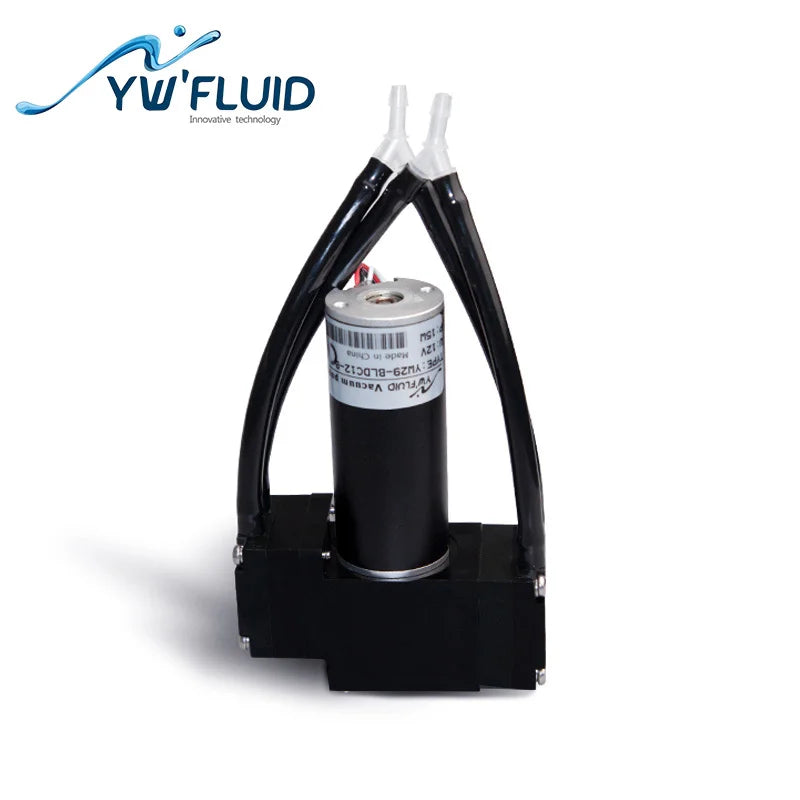

YWfluid High Performance Micro Vacuum Pump With 12V 24V BLDC motor Used for Gas transmission suction YW29-bldc

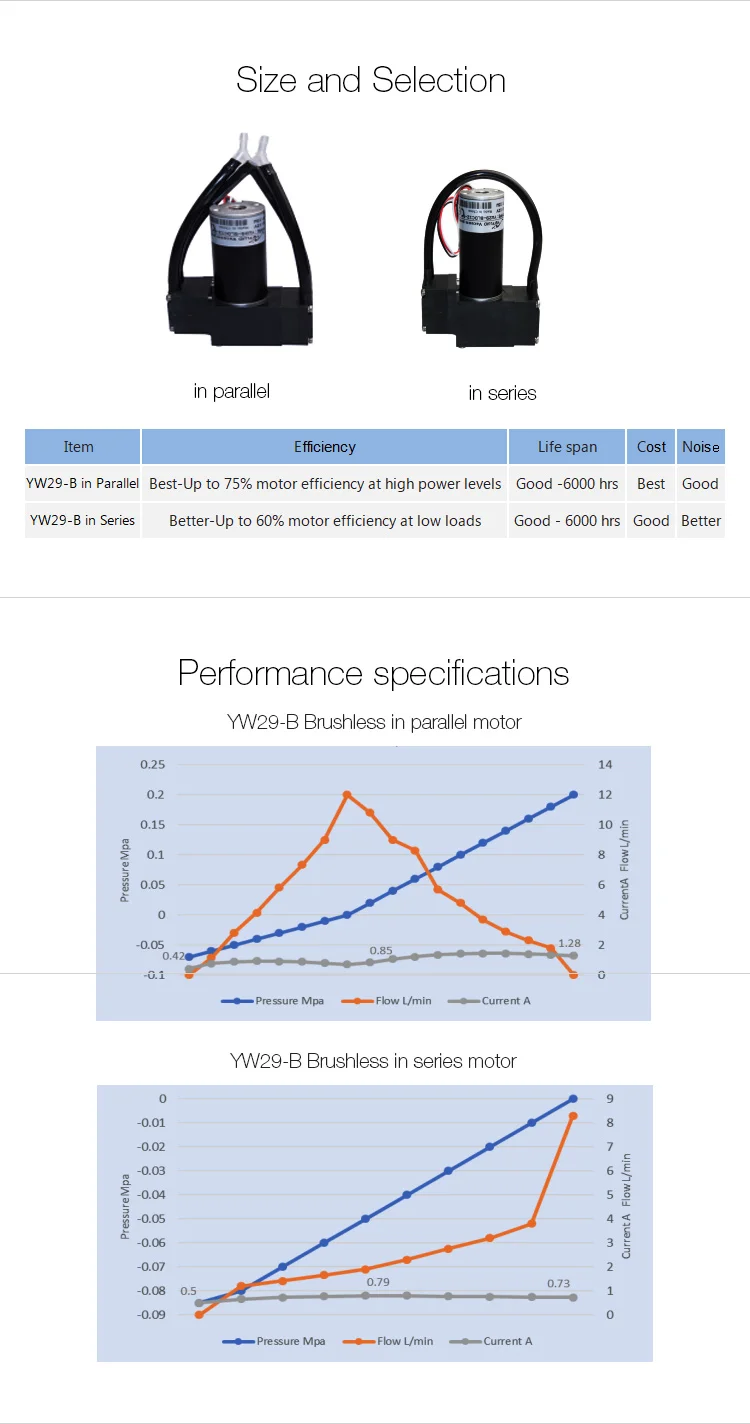

| Item |
Flow |
Pressure |
Vacuum degree |
Motor Type |
Voltage |
Noise level |
| YW29-B in Parallel |
12L/min |
0.20Mpa |
-0.07Mpa |
BLDC/DC |
12V |
70dB |
| YW29-B in series |
8.3L/min |
0.20Mpa |
-0.085Mpa |
BLDC/DC |
12V |
70dB |
Pulse Width Modulation (PWM)
Pulse-width modulation is a commonly used technique for controlling DC motors. 1.The average value of the voltage fed to the motor is controlled by turning a switch between the voltage supply and the motor on-and-off at a fast pace. The longer the switch is on compared to the off time, the higher the power supplied to the motor. 2.The PWM switching frequency varies for different types of devices, and is selected based on how it affects the device. For example, Some applications require a faster switching frequency to reduce the noise or electrical noise that is being heard. 3.The term duty cycle describes the ratio of on-time to the period (one complete on-and-off cycle). Duty cycle is normally expressed as a percentage of on-time, 100% being full-power and 50% being half-power. 4.The advantage of PWM is the reduction of power-loss due to switching versus other control methods. We recommends controlling the pump using 15kHz - 20 kHz frequency range.
keywords:12v 24v BLDC Micro Vacuum Pump used for gas transmission suction,High Performance Micro Vacuum Pump used for Vacuum Generation,High Performance Micro Vacuum Pump used for gas compression
