20M 7 Inch Monitor Handheld Industrial Pipe Inspection Camera System Equipment With DVR Function Used For Pipe Inspection

Write a review

Save -52% Rs. 107,065.30 ~~Rs. 224,667.18~~

Brand : Shanvis

Collection : Action Camera - Sports Camera - Water Camera

SKU : 6815539013089_113437550

Availability : 500 In Stock Sold Out 500

HURRY ! ONLY 500 LEFT IN STOCK.

Networkpipeline inspection equipmen

Resolution1280 X 720

Translation missing: en.products.product.product_variants

Quantity

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

FREE SHIPPING

WORLDWIDE

BIG SAVING ON

WEEKENDS

24H SUPPORT

Description
Shipping

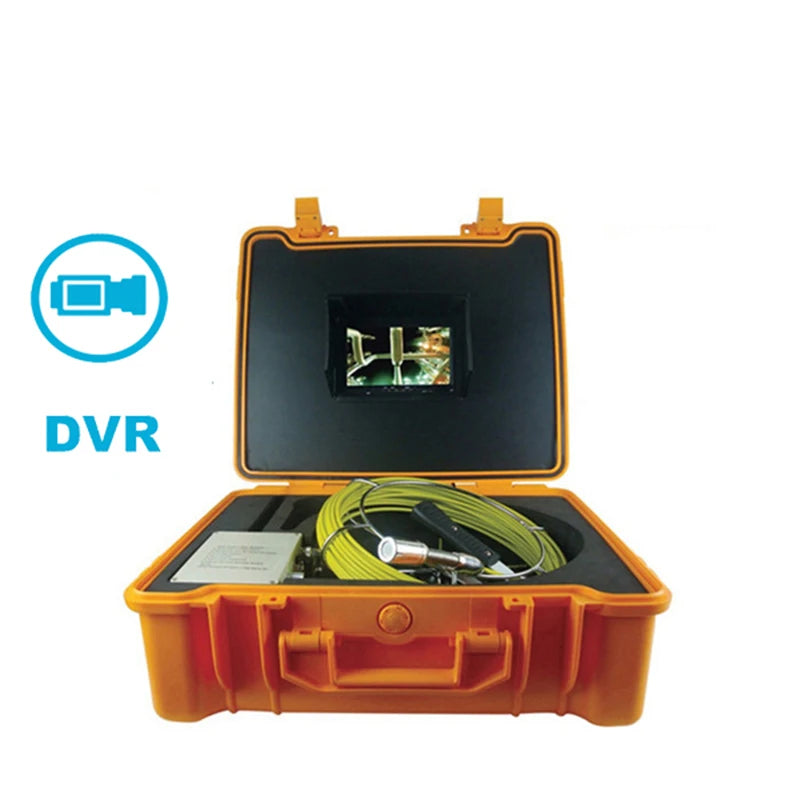

20M 7 Inch Monitor Handheld Industrial Pipe Inspection Camera System Equipment With DVR Function Used For Pipe Inspection

This pipe inspection camera system is a cost-effective portable device designed to deliver high quality video images for a wide range of applications including; sewers, building ducts/piping, wells and power plants. The camera head itself contains 12 adjustable white LED lights to illuminate the inspection area with a flexible spring-coiled joint to easily navigate corners.

The monitor and additional controls are built into a compact, waterproof, lightweight plastic case making it easy to transport.The 7" TFT LCD displays a crisp live color image,with an adjustable sun hood for outdoor inspections.

This product is suitable to inspect the pipeline, sewer, air duct, tank, underwater and others dark environment, check the internal cracks, corrosion, weld, plugs and other unusual circumstance. It has been widely used in detection fields such as municipal pipelines, electricity, telecommunications, field investigations and disaster rescue.

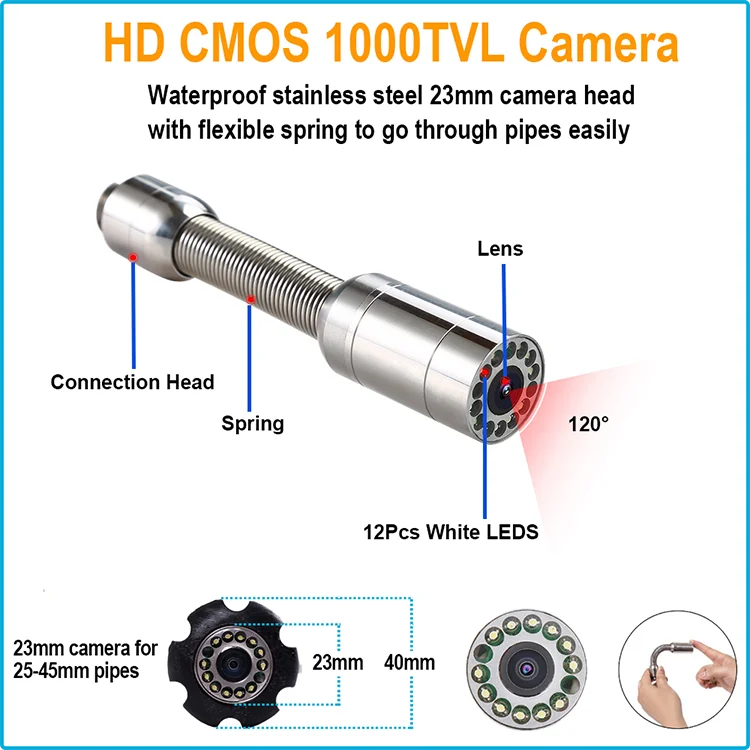

camera

1. camera size:23mmx120mm front size:45mm

2.Camera case material:stainless steel house stainless steel 304

3. Camera glass material:sapphir glass

4. sensor size:1/4 inch

5.Total Pixels:PAL:720X576 NTSC: 720X480

6. view angle:120°.

7. camera light:12PCS white LEDS.

8. Special gold point touch connector

9. waterproof:IP68

10.camerawork current:100MA camara power supply:DC 12V

11. LEDS ADJUASTABLE.

12.Work temperature:-10°C-50°C

monitor

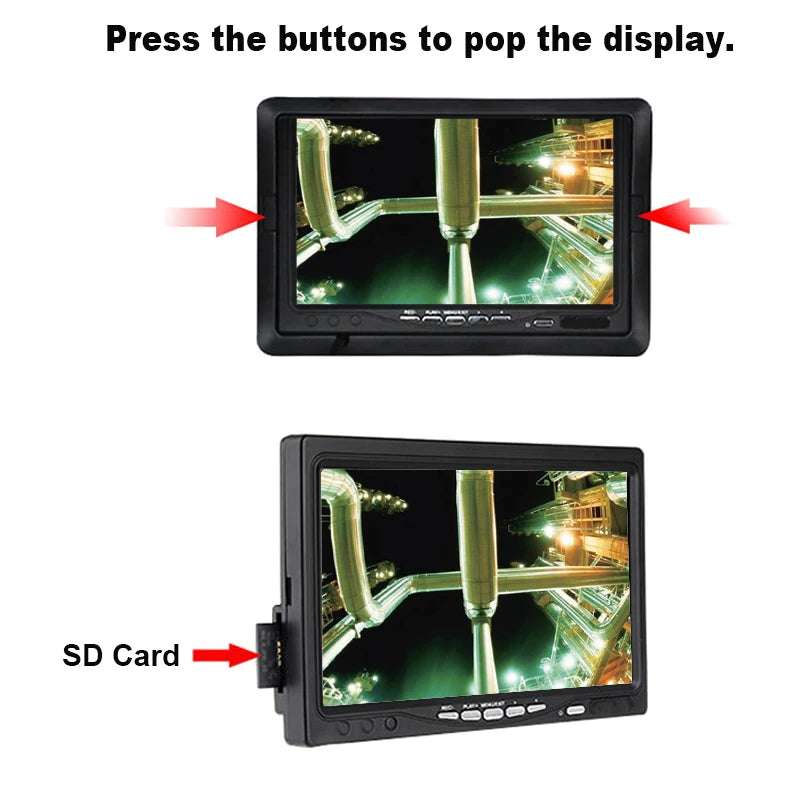

1. monitor size: 7inch TFT color monitor

2. monitor Total Pixels:1440X234

3. monitor power supply:DC 12V

4. osd language: english

5. up,down left,right adjustable.

6. 16:9 4:3 model

7. sunshade include

8. waterproof connector

9. Work temperatureWork temperature

Audio input unit

1. micphone

2. clip type

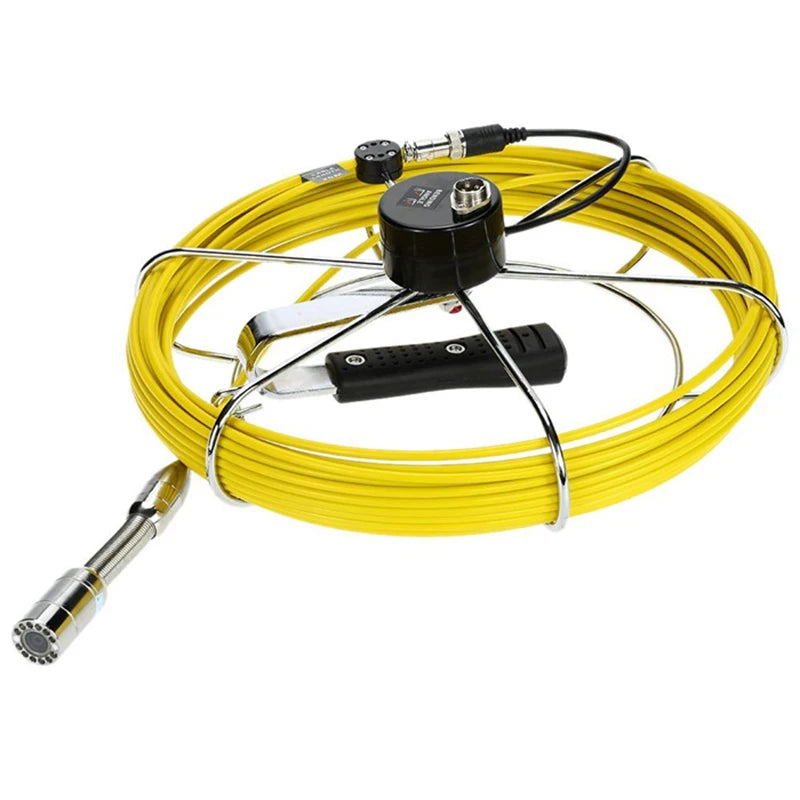

Cable wheel

Cable size:320MM(diameter)X110(h)

Wire material: fiberglass rod

Fiberglass length:20M

Fiberglass diameter:4.8MM

Fiberglass color:yellow

battery

Battey pype: 12V 4000MAH rechargable li –ion battery(18650)

Used time : 7 hours.

charger

input:AC90-260V output: DC 12V 1000MA

Output cable length:1.5M

DC plug diameter :2.1MM

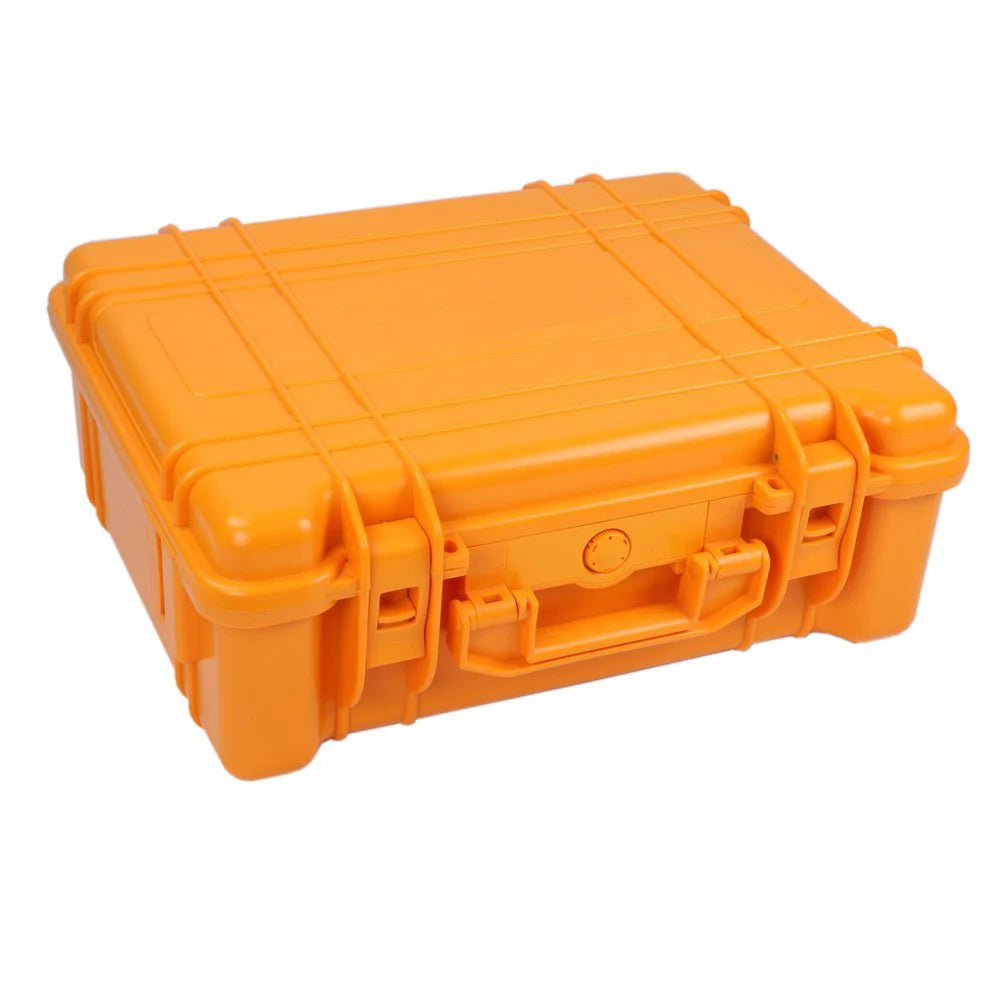

box

box material:fire protection
