Microscope Camera Kit 16MP HDMI-Compatible HD USB Digital Industry Video Camera Big Table Stand 300X C-MOUNT Lens LED Light
Share
Note:
For USB output, the white balance, exposure and color adjustment are automatic. They can't be adjusted.
For HDMI-Compatible output, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.
| Features |
|
| Model |

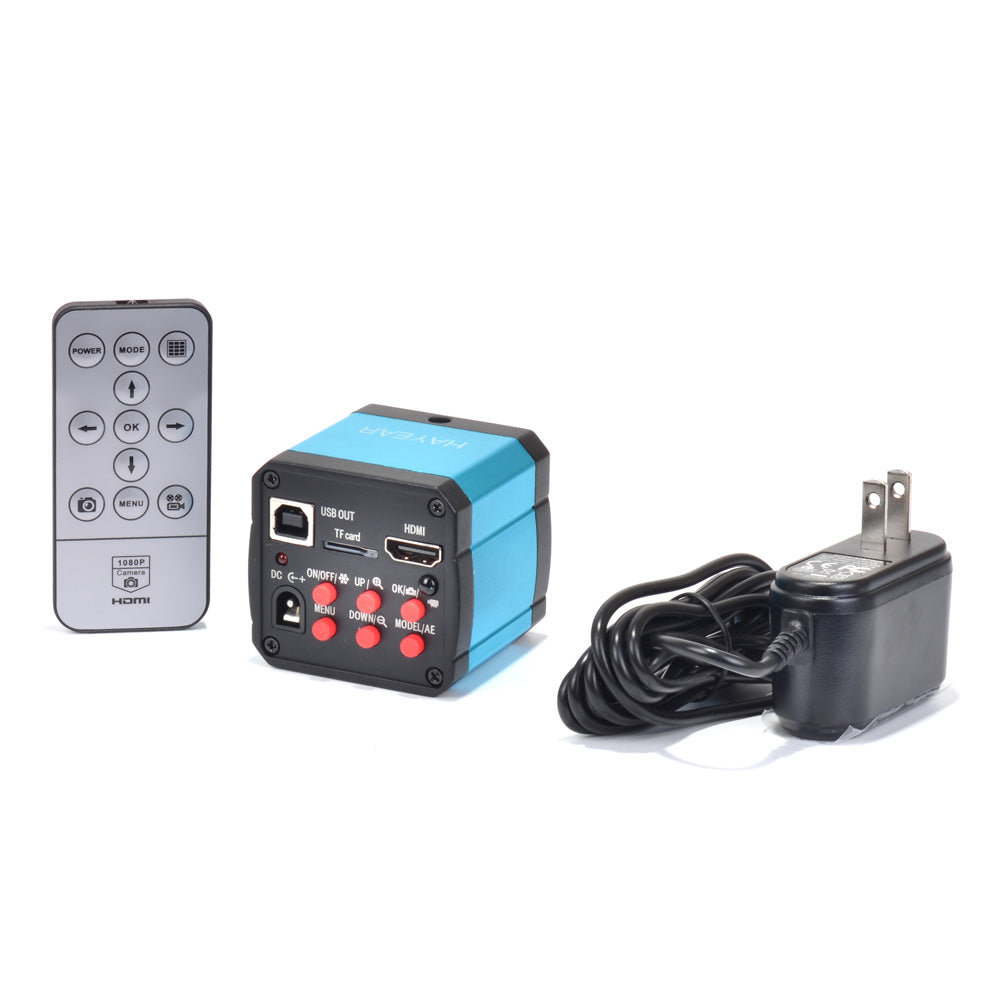

Camera with HDMI-Compatible USB2.0 two output |
| Image format |
jpg |
| Image resolution |
4608*3456 (for TF card) 1920*1080@60FPS(for TF card) |
| Video format |
MOV(for TF card) |
| Video recorder |
1920*1080 @ 60FPS (for TF Card) |
| USB Video resolution |
1920*1080 @ 30FPS |
| White Balance |
Auto |
| Light |
Auto |
| Color |
Color |
| Negative |
Support |
| Morror |
Left/right,Up/Down |
| Freeze |
Support |
| OSD |
English/Chinese/French/Spanish/Portuguese |
| Line |
different color,5 horizontal line , 5 vertical line,any positions |
| Specification |
|

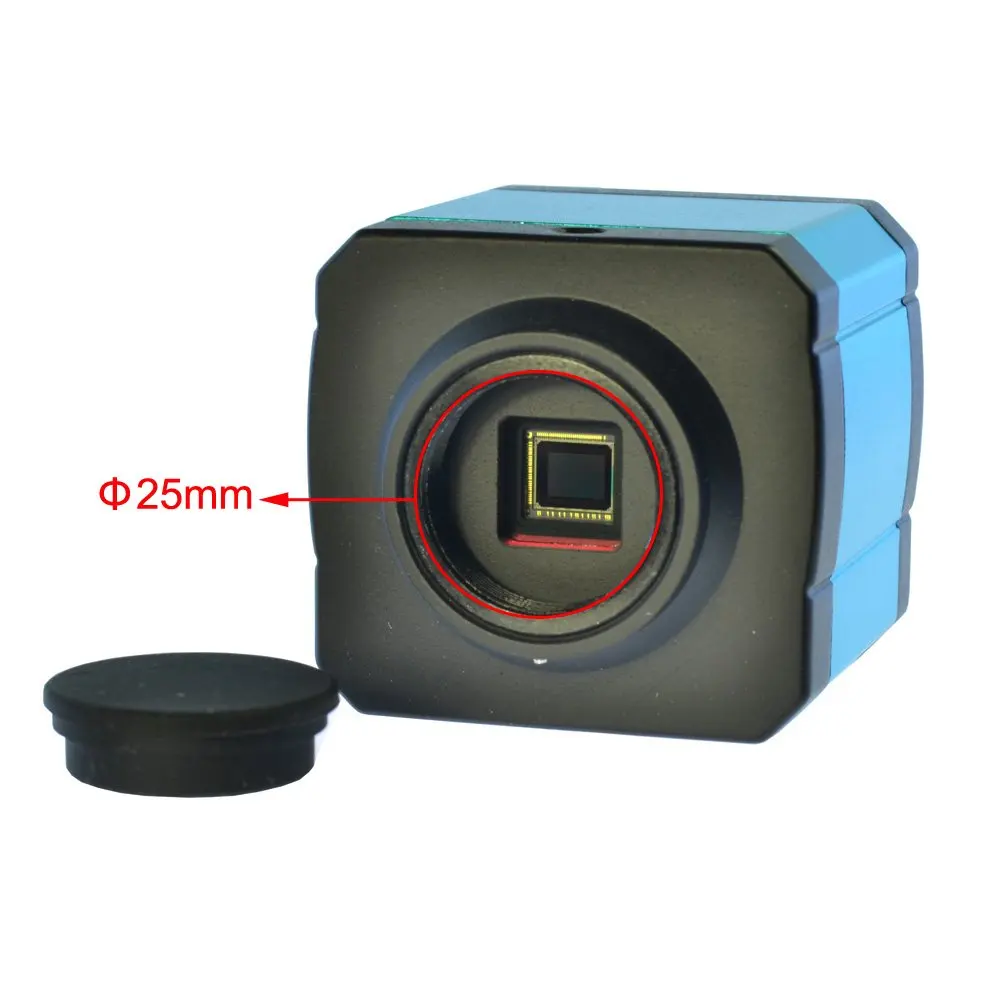

| Image sensor |
16 megapixel Panasonic sensor 1/2.3 inch |
| Effective pixel |
16 megapixel |
| Pixel size |
1.43x1.43um |
| Frame rate |
60fps |
| Definition |
FULL HD |
| Housing |
metal |
| Lens |
CS for test, custom provide |
| Video format |
MP4, AVI |
| Encode |
H.264 (High Profile) |
| Digital magnification |
5 times digital zoom |
| Brightness control |
Auto/manual |
| Color |
R/G/B adjustable |
| Film and record |
Support |
| Cross cursor |
Support multi-color, size adjustable |
| Transverse and vertical line |
Support multi-color, 5 pcs of transverse lines/vertical lines, movable Different color,5 horizontal line , 5 vertical line,any positions |
| SNR |
Support |
| TF card interface |
Max 64G |

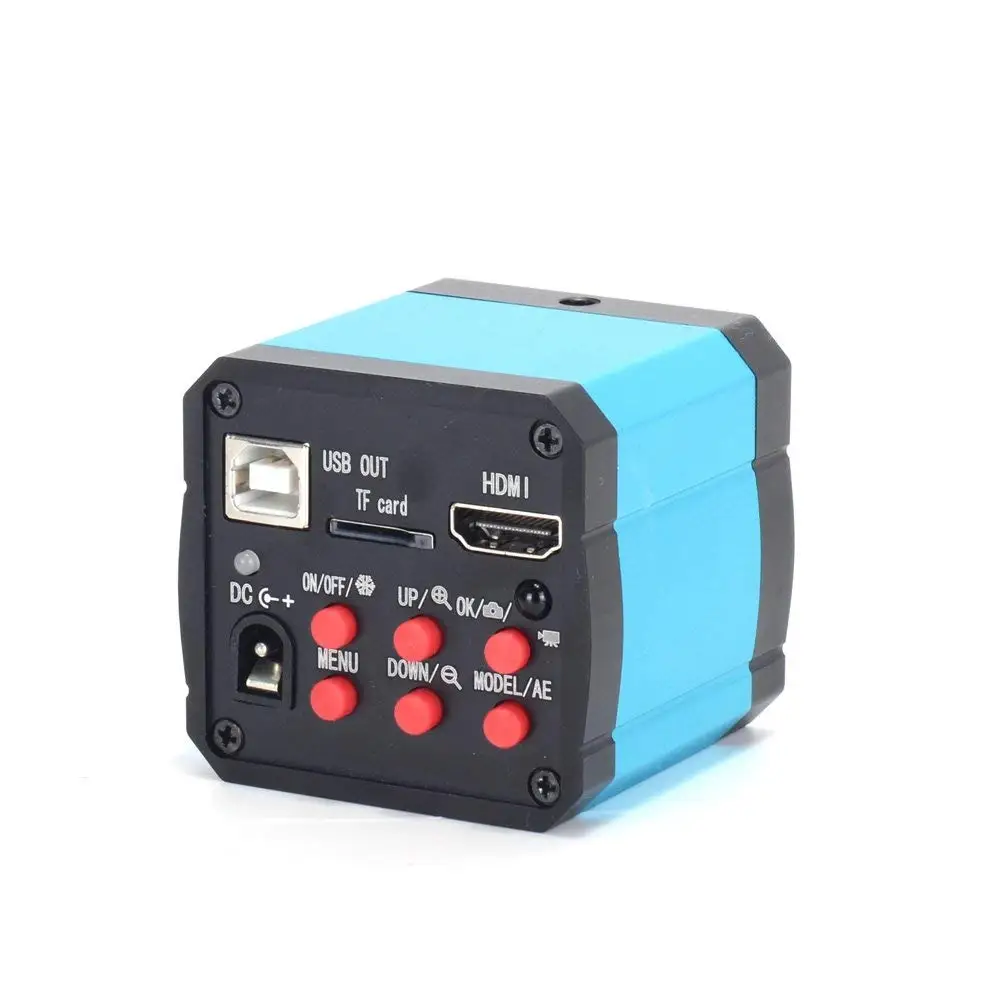

| HDMI-Compatible interface |
Standard HDMI-Compatible output (Type A) |
| Lens |
C/CS |
| USB interface |
Standard usb2.0 interface (Type B) |
NOTED!!! TF card storage is only for HDMI-Compatible output. USB output will be storaged in PC.

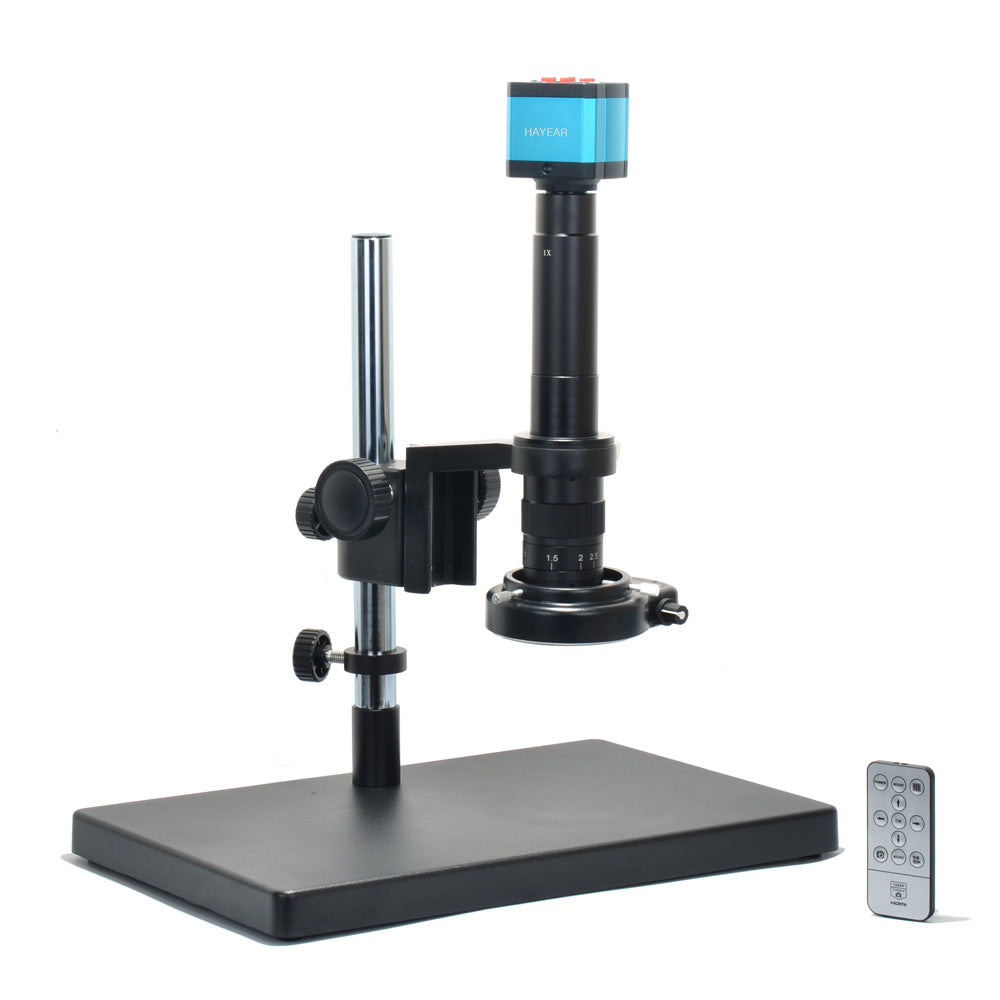

Stereo Table Stand Feature:
Need a Sturdy Boom Stand for reduced Vibration and Optimal Versatility? This stand provides what is needed!
Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
Steel Gears on Focusing Holder.
Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
Weight: 2.6kg

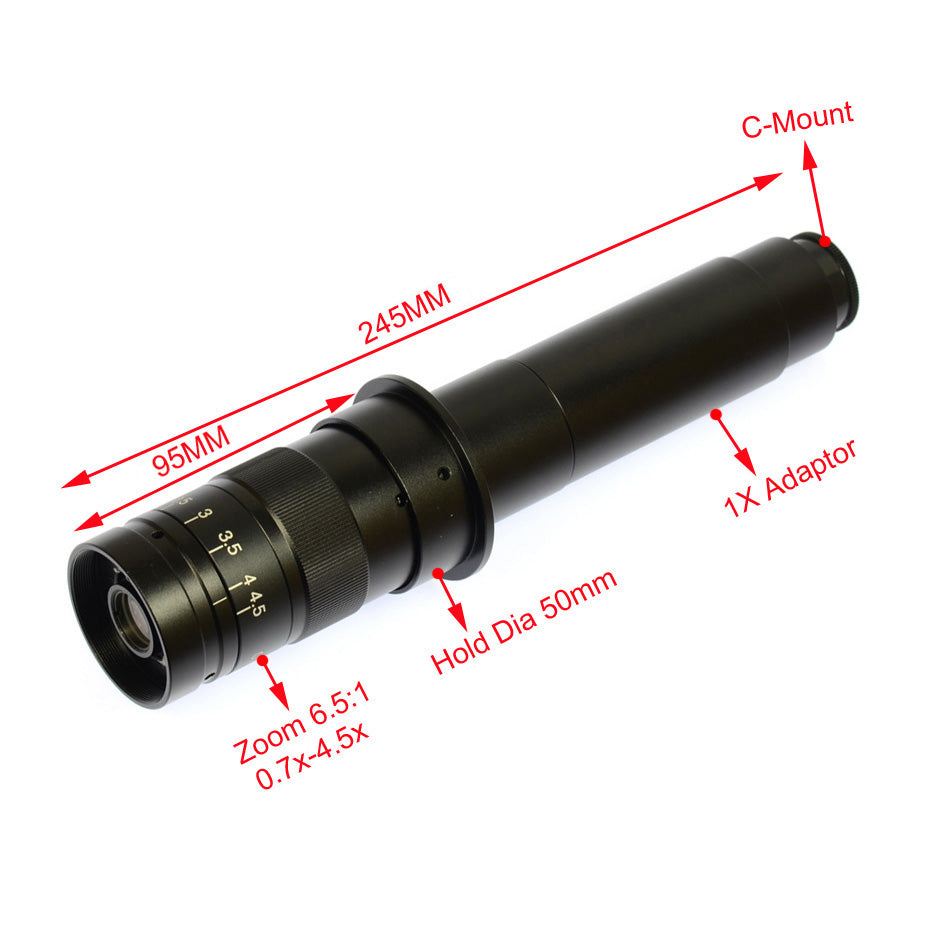

C-MOUNT Lens:
Working distance: 95mm
Zoom c-mount Lens
1.0X C-mount adapter
Zoom ratios:
Objective Magnification Power by 0.7 - 4.5X(about 10 - 300X on the display)
Size: 24.5mm(L) * 50mm(DIA)
Weight: 630g

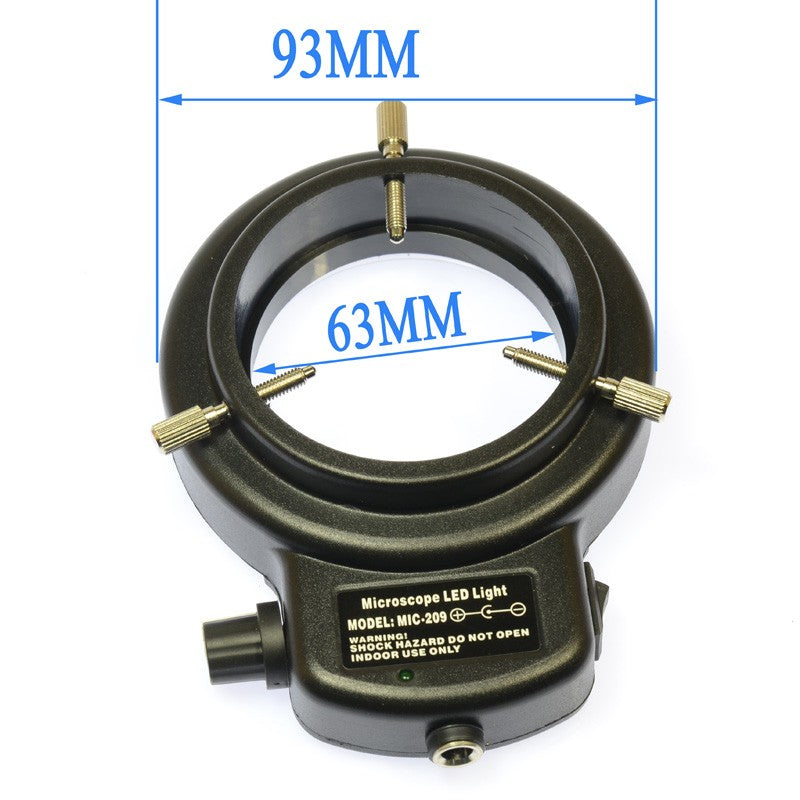

144 Bulbs Microscope LED Ring Light:
144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
