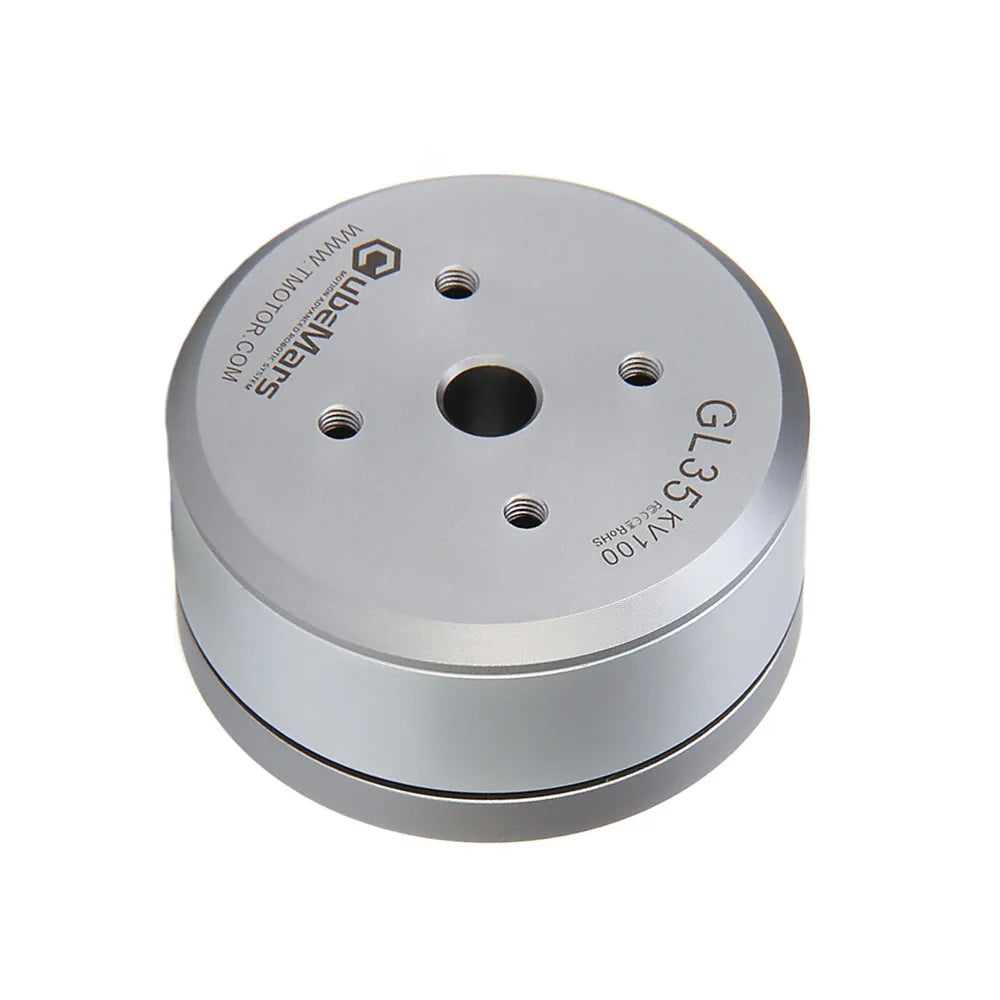

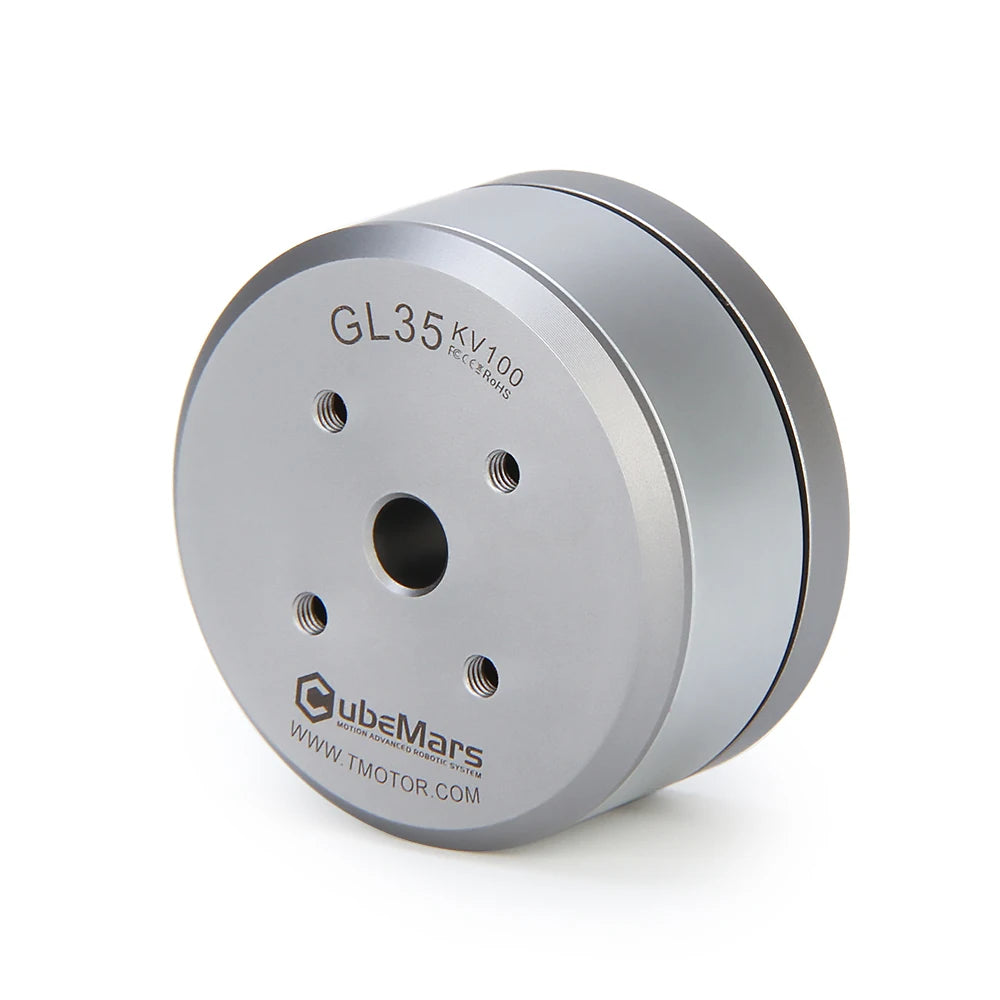

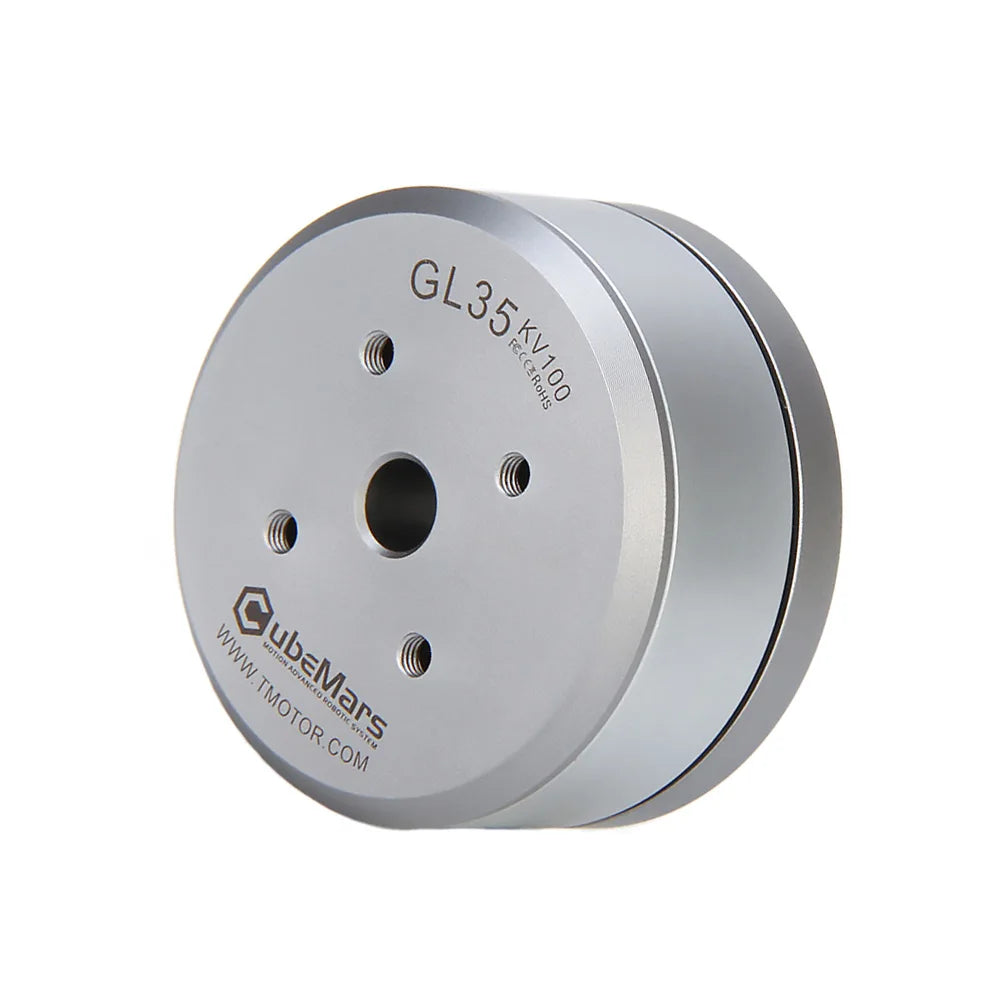

T-Motor GL35 IP45 Custom 100kv High precision Flat camera gimbal bldc motor

Write a review

Save -53% Rs. 21,091.42 ~~Rs. 44,765.03~~

Brand : Shanvis

Collection : Action Camera - Sports Camera - Water Camera

SKU : 6015858013089_94181550

Availability : 9999 In Stock Sold Out 9999

HURRY ! ONLY 9999 LEFT IN STOCK.

Output Power95W/Adjustable

Voltage(V)12V/16V/24V/custom

Speed of Revolution900rpm/adjustable

Translation missing: en.products.product.product_variants

Quantity

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

FREE SHIPPING

WORLDWIDE

BIG SAVING ON

WEEKENDS

24H SUPPORT

Description
Shipping

Products Show

Note: We are factory supplier.

All our motors can be customized in torque voltage rpm output size etc.

Pls feel free to contact us for more details and requirements.

For mass order/project support, pls send inquiry for discount.

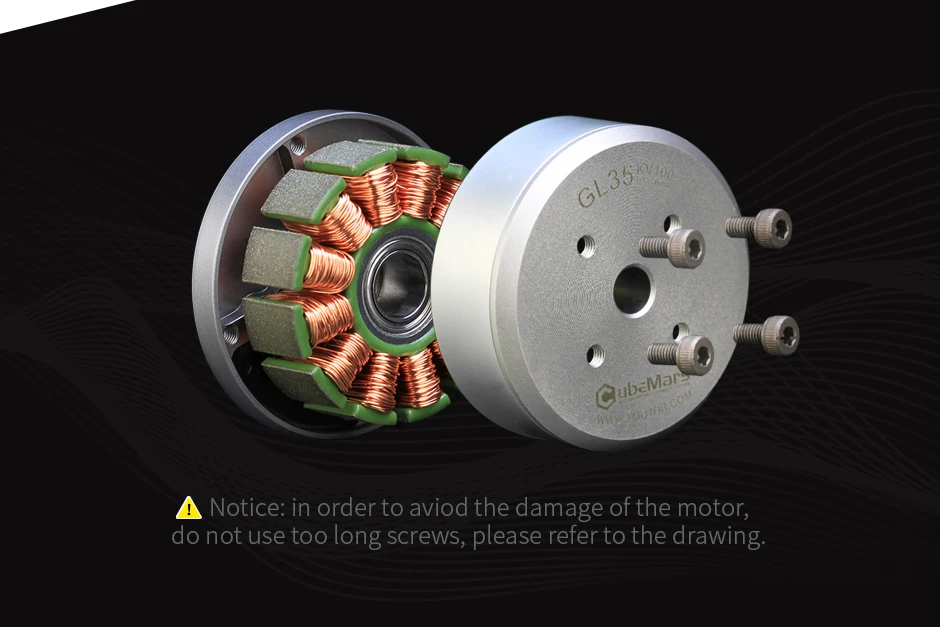

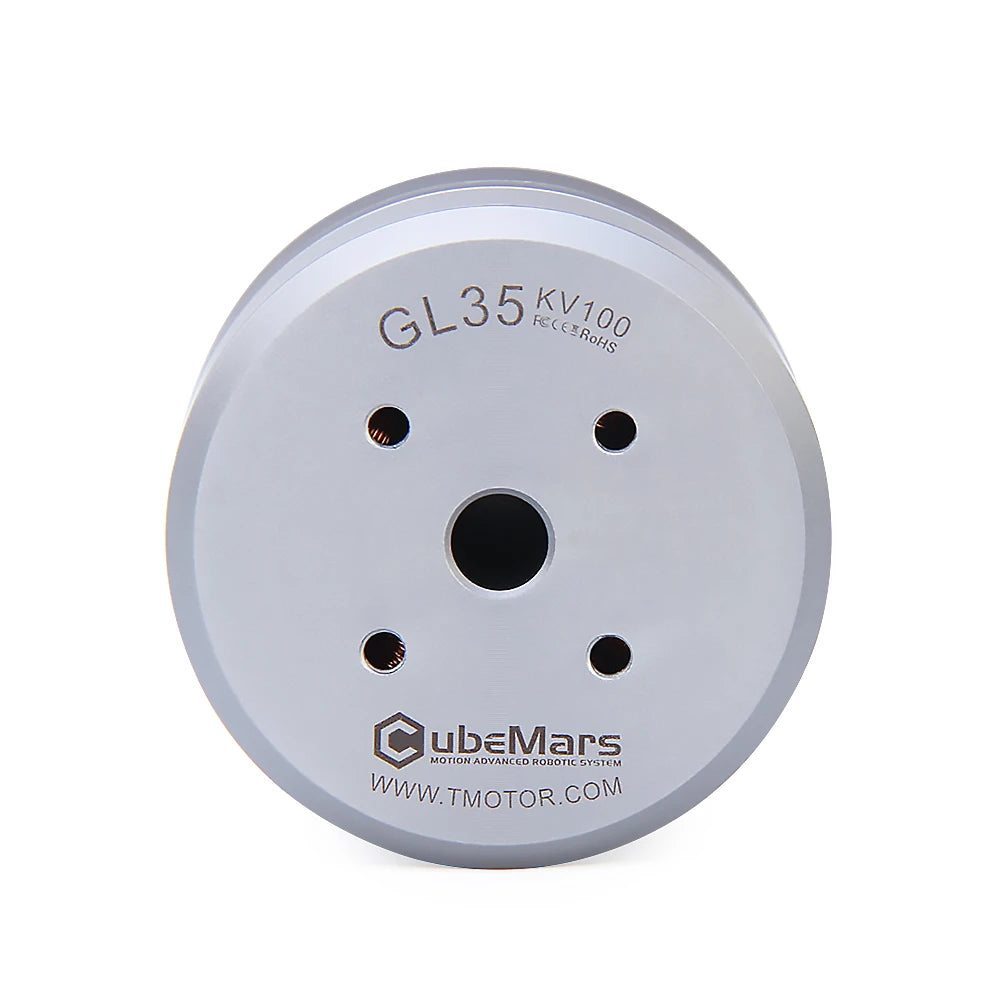

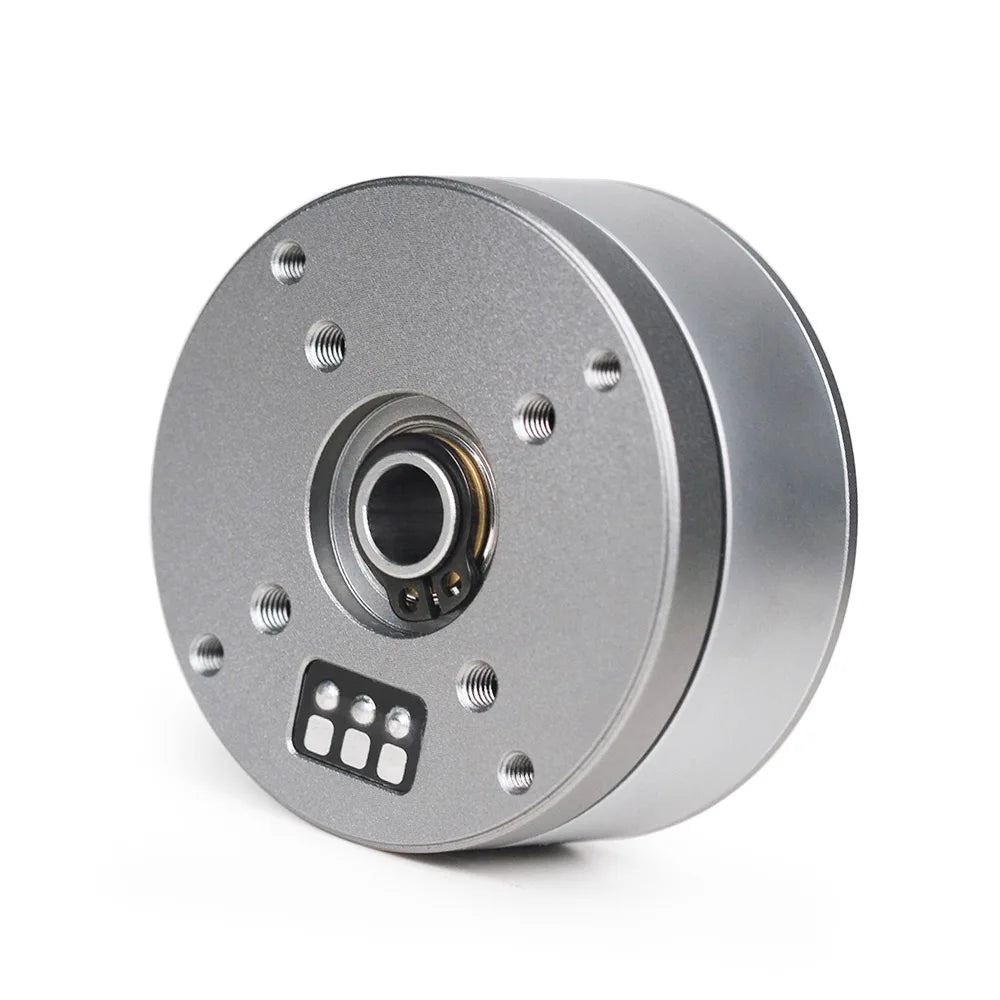

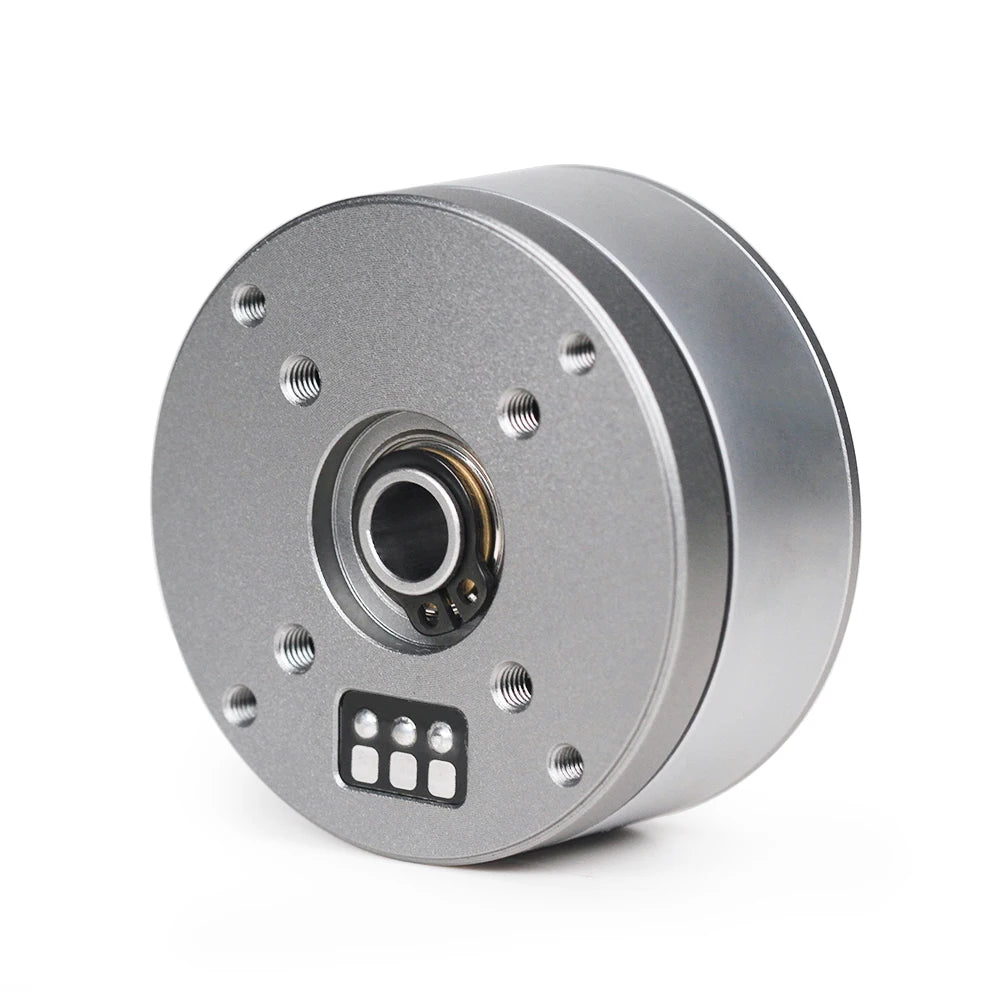

T-Motor GL35 IP45 Custom 100kv High precision Flat camera gimbal bldc motor.

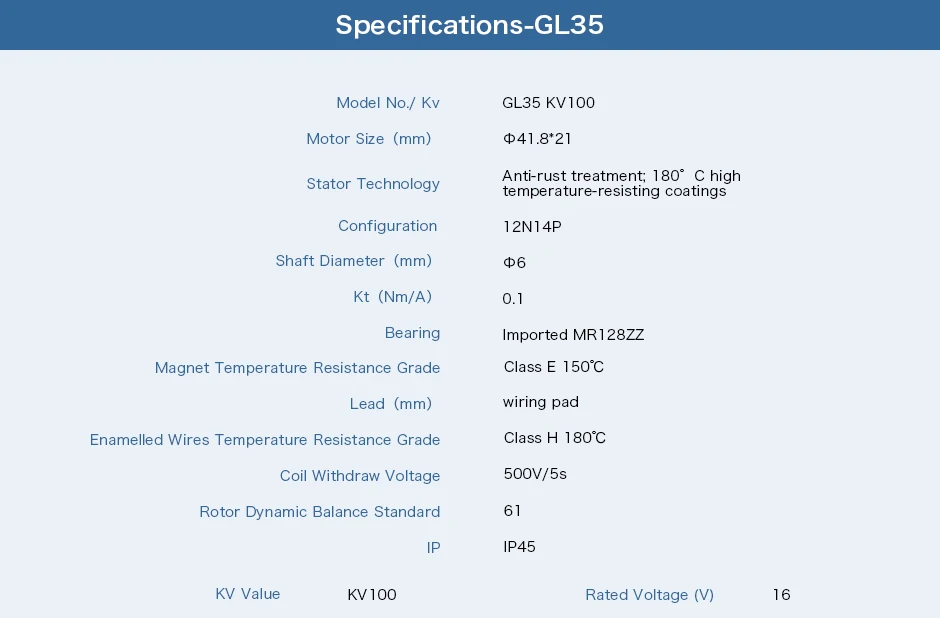

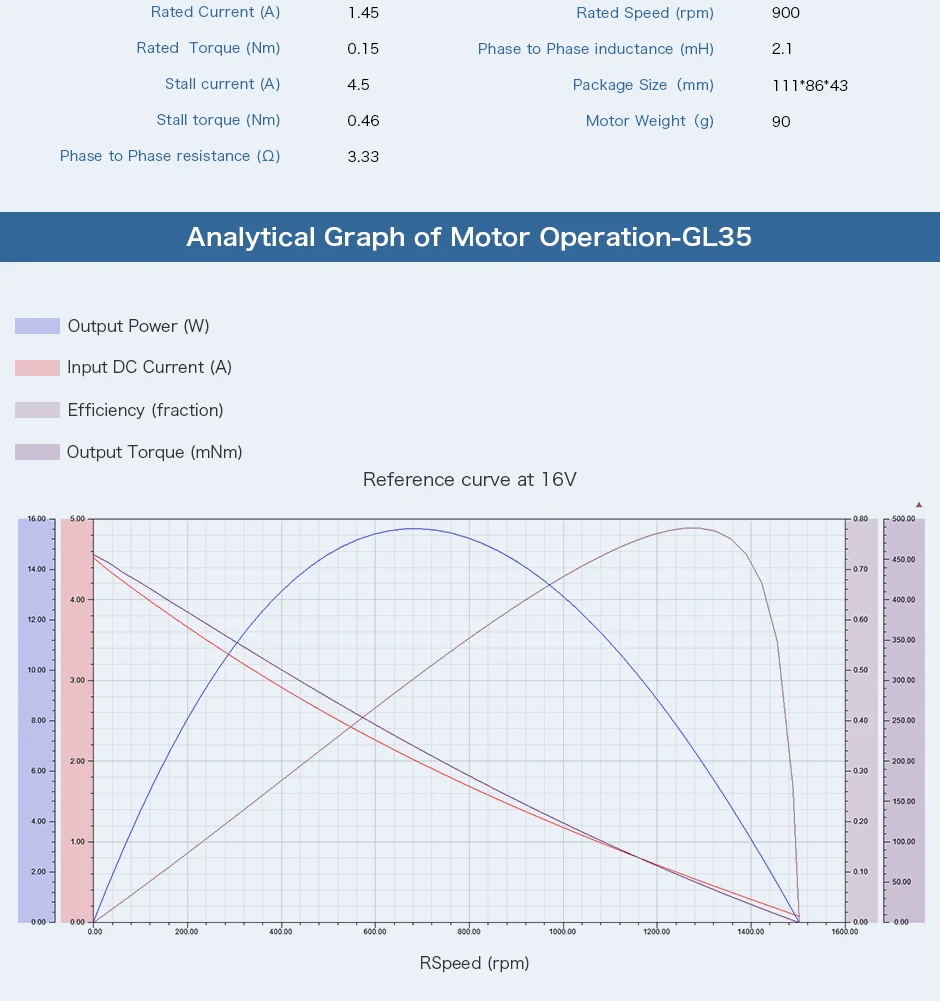

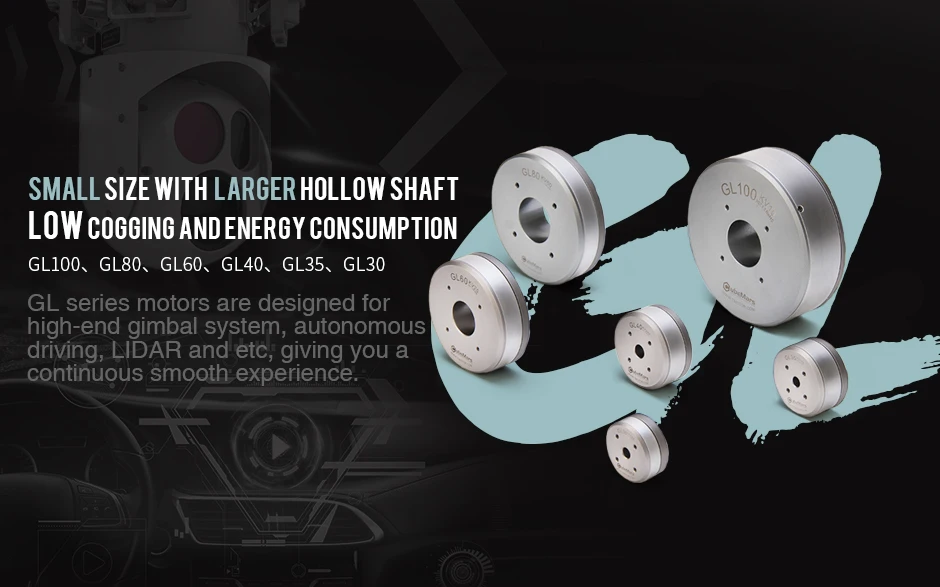

Motor NO.	GL30	GL35	GL40	GL60	GL80	GL100

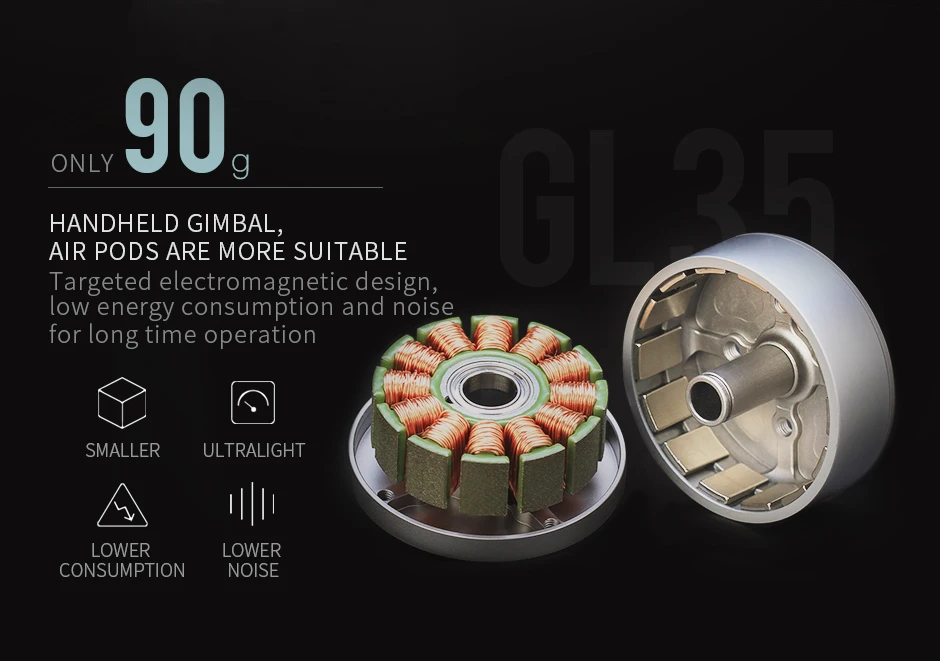

Weight(g)	41	90	107	230	315	698
Voltage(V)	12	16	16	24	24	24
RatedTorque(N.m)	0.08	0.15	0.25/0.33	0.6	0.6/1	3
Peak Torque(N.m)	0.28	0.46	0.73/0.98	1.75	1.75/2.9	7.7
Rated Current(A)	2.3	1.45	1.65/7	1.43/3.1	1.43/5.8	2.8
Peak Current(A)	8.5	4.5	5/22	4.2/9.5	4.2/17	8.4
Kt(N.m/A)	0.033	0.1	0.14/0.046	0.4/0.188	0.35/0.17	1
IP	IP45	IP45	IP45	IP45	IP45	IP45
Kv(Rpm/v)	290	100	70/210	25/55	30/60	10

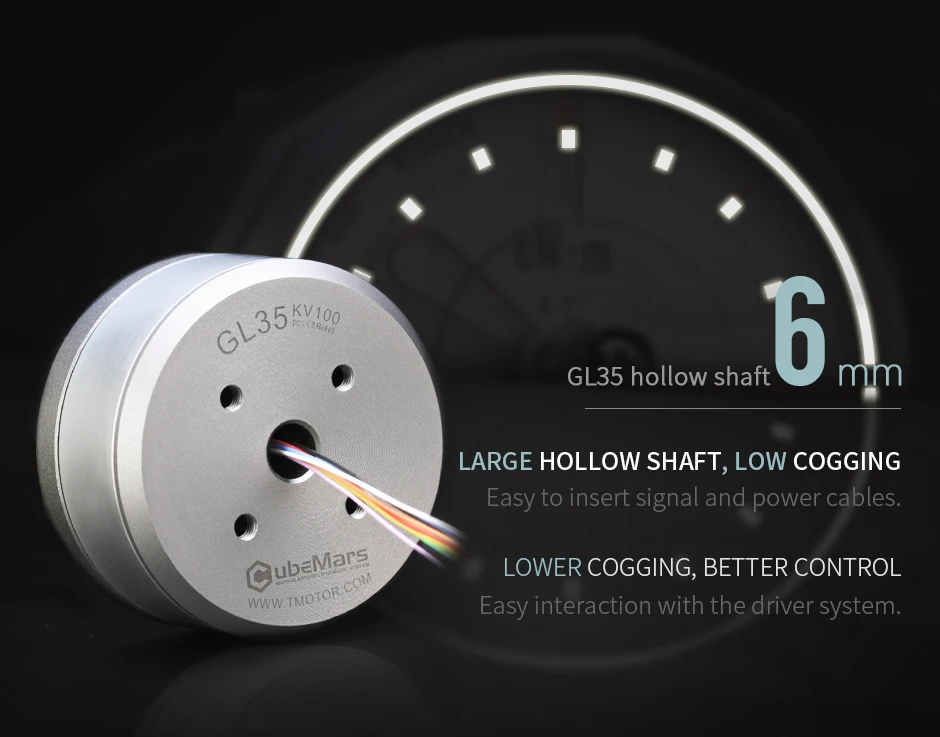

Hollow Shaft(mm)	6	6	8	21	30	30

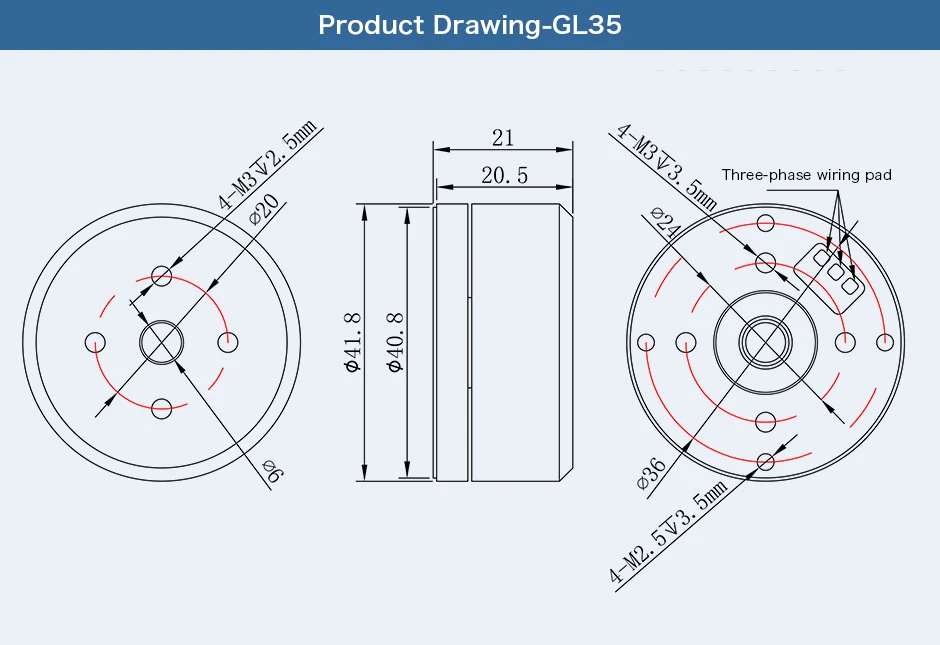

OD(mm)	34.5	41.8	46.5	69	69	106.8
Height(mm)	15.7	21	21.5	22.3	22.3	34.2
Rated Speed(rpm)	2200	900	600/2200	350/850	350/1050	140
