13090 Automatic Sofa Leather Dress Jacket Machine Trousers Pattern Design Template Machine Industrial Sewing Machine
Share
13090 Automatic sofa leather dress jacket machine trousers pattern design Template machine industrial sewing Machine.
1. Efficient intelligent sewing: one button operation, fully automatic sewing of set patterns, no intervention in the whole process! Simple, fast, efficient and accurate! Everyone can work.
2. High end sewing: patterns can follow the fashion trend and can be designed freely. There is no need to worry about the difficulty and accuracy of sewing! Intelligent formwork machine specially designed for ordinary workers.
3. Easy to operate: easy to operate color touch screen, Chinese and English operation interface can be switched freely, and all functions are clear at a glance. Basic operations can be performed by pressing the key as illustrated in the figure.
4. Template identification device: automatically identify the template, automatically identify the starting point of sewing, one key operation, in line with the standardized production process, and there is no need to worry about the novice!
5. Programming is simple and convenient, and can be entered in USB flash disk: DXF and PLT graphics generated by garment CAD software can be directly used through the upper software. The recognition formats include DXF, PLT, DST & AI, which is simple and convenient.
6. In addition, it can also be programmed directly by inserting USB flash disk to read graphics, or converted into a runnable program with upper software.
7. Thread breakage detection function: ensure sewing quality!
8. A wide range of fabrics can be sewn: both thin, medium and thick fabrics can be sewn.
| Item No: |
GT-13090 |
| Sewing rang : |
1300mm X 900mm |
| Sewing speed: |
2800-3500rpm/min |
| Work holder lift: |
25mm (max:30mm) |
| Stepping foot lift: |
20mm |
| Stepping foot stoke: |
4-10mm (Optional) |
| Hook : |
Double capacity hook |
| Stitch Formation: |
Single needle Lock Stitch |
| Motor : |
750W direct drive servo motor |
| Memory device: |
USB |
| Stitch Length: |
0.1-12.7mm |
| Needle : |
DP*17(#16-#23) |
| Operation screen: |
7 inch LCD touch control panel |
| Voltage : |
Single phase 220-240V |
| Air pressure : |
0.5Mpa 1.8L/min |
| Memory Card: |
999 patterns |
| Max. needle number: |
Each pattern 20,000 needles. |
| Packing size : |
245x235x160cm |
| G.W/N.G: |
900kgs/750kgs. |

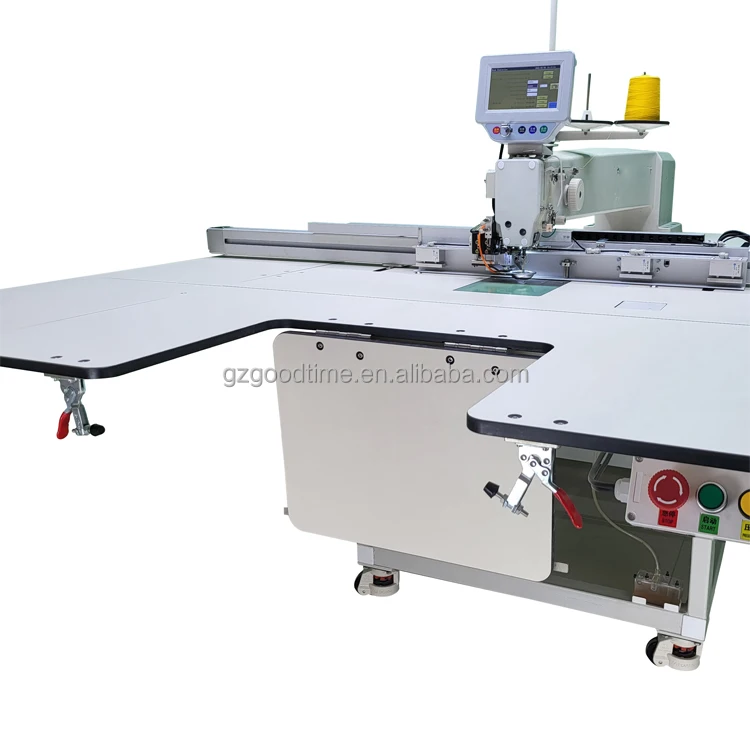

Scientific transmission structure, accurate, fast easy operation, low noise. Working area: 130x90cm, a new design for leather automatic perforation punching hole and sewing function template industrial sewing machine.
With 7 inch LED colorful touch screen, clear & good using.
Great wisdom, multi-purpose, small footprint, multi-function. The precise automatic control unit can perfectly sew the straight line, right angle, circle, arc and other sewing stitching lines in the garment & leather upholstery process.
According to the sewing process to prepare a good template file, just press a start button, the automatic template machine will follow the program automatically and quickly complete a set of sewing process, do not need to be like traditional sewing equipment to adjust the feed.
Light and convenient, easy to move, suitable for intelligent sewing of related parts in garment car interior, seat cover, sofa, living room lether etc leather upholstery production.
Shuttle/hook: double shuttle/hook, reduce the number of bottom thread replacement, good hardness and wear resistance.
Guide rail components: high quality linear guide rail, stable and smooth operation, wear-resistant and durable, no displacement.
After the template file is written according to the sewing process, just press a start button, and the automatic template machine will automatically and quickly complete a whole set of sewing process according to the program.
In the automatic sewing process of the template machine, the operator can also simultaneously clamp the fabric in the template to realize continuous automatic sewing, which greatly improves the production efficiency.

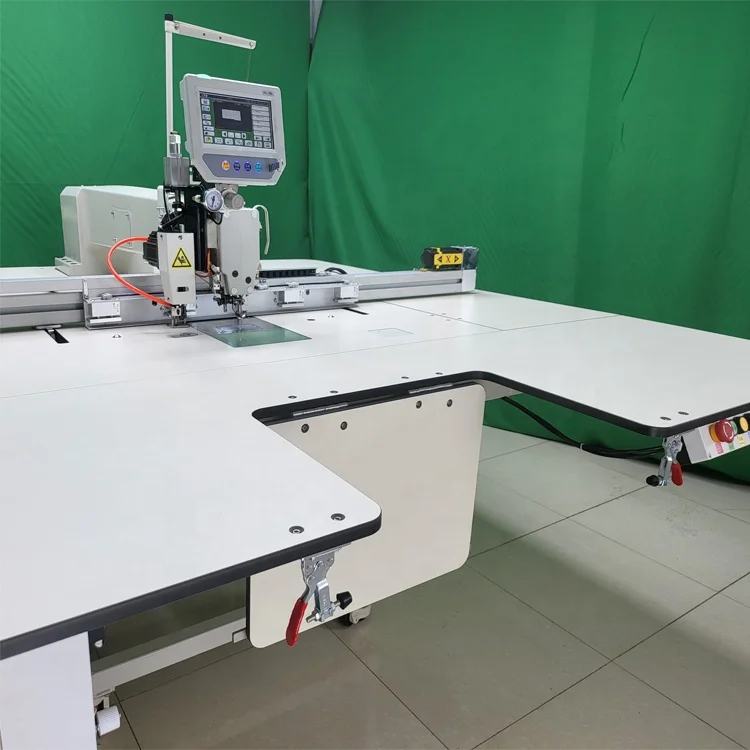

Foldable table is convenient for moving and transportation.
Perforation punching hole and stitching line show: punching hole diameter: 0.8mm, 1.0mm, & 1.2mm for option.
Punching of automobile speaker.
Stitching thickness: 15mm foam + leather. Perfect beautiful stitching lines.
If you like it, please act quickly and order immediately!
Especially suitable for lean production of clothing assembly line intelligent sewing unit. Such as collar, cuff, epaulette and zipper. T-shirt, uniform, down jacket, coat etc.
It is also good for sewing shoes, bags, suitcase, clothes, textiles, leather bags, footwear, belts, car decoration, sofa & furniture, etc. With big sewing area and extensive usage. It is competitive in productivity and cost effectiveness, which improves productivity by 100% - 300%
