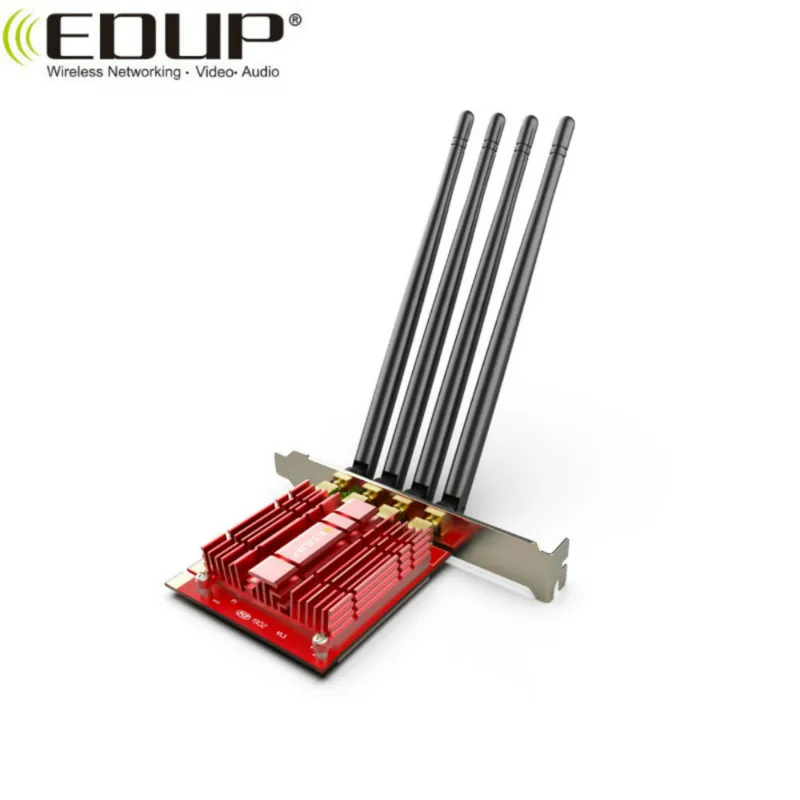

EDUP High Speed Realtek RTL8814AE PCI-E Network External Wireless Adapter
Share
EDUP High Speed Realtek RTL8814AE PCI-E Network External Wireless Adapter
- pci express wifi adapter
pci express wireless adapter
pci express network card
Features
Standard: 802.11b/g/n/ac
Transmission Rate: 1300Mbps +600Mbps
2.4GHz/ 5.8GHz Dual Band
Encryption: WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, WEP
Maximum Transmit Power: 20dBm
Support System: Microsoft Windows 7 32/64, Windows 10 32/64
Specifications
Model |
EP-9609 |
Chipset |
RTL8814AE |
Standards |
IEEE802.11ac,IEEE802.11n,IEEE802.11b,IEEE802.11g,IEEE802.11a |
PCI Bus |
PCI EXPRESS X1 |
Sensitivity @PER |
5G 11ac VHT80M MCS9:-55dBm @10% PER HT40M MCS7: -65dBm @10% PER HT20M MCS7: -68dBm @10% PER 2.4G 11N HT40M MCS7: -65dBm @10% PER HT20M MCS7: -68dBm @10% PER OFDM 54M:-70dBm@10% PER 11b 11M:-81dBm@8% PER |
Transmit Power |
20dBm(Max.) |
Antenna |
4*3dBi dual band removable omnidirectional antennas |
Transmission Rate |
2.4G up to 600Mbps 5G up to 1300Mbps |
Operating System |
Microsoft Windows 7 32/64, Windows 10 32/64 |
LED |
Link/Act |
Environment |
Operating Temperature: 0℃~45℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage humidity: 5%~95% non-condensing |
