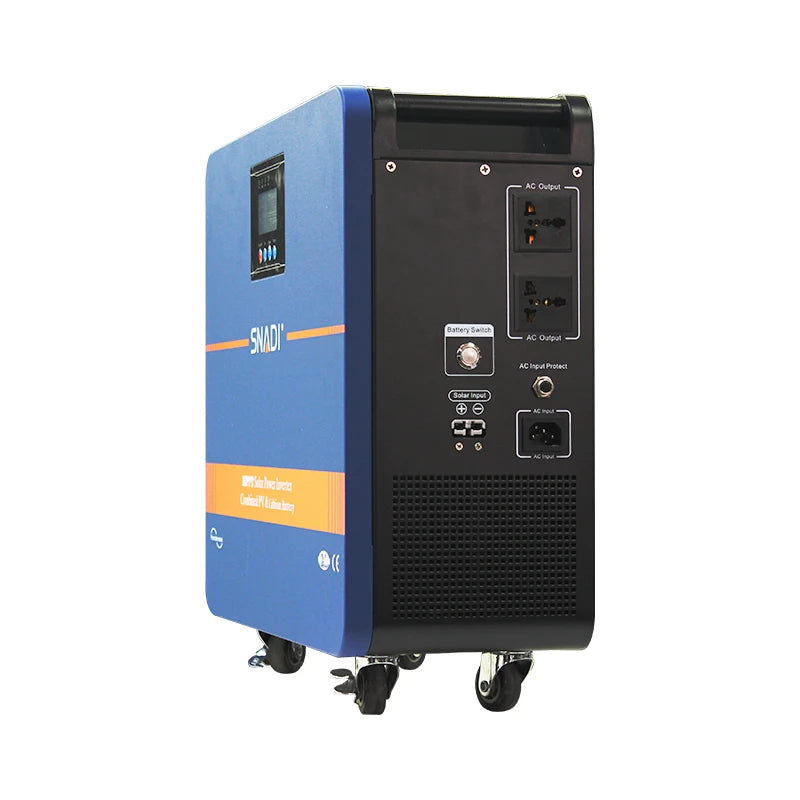

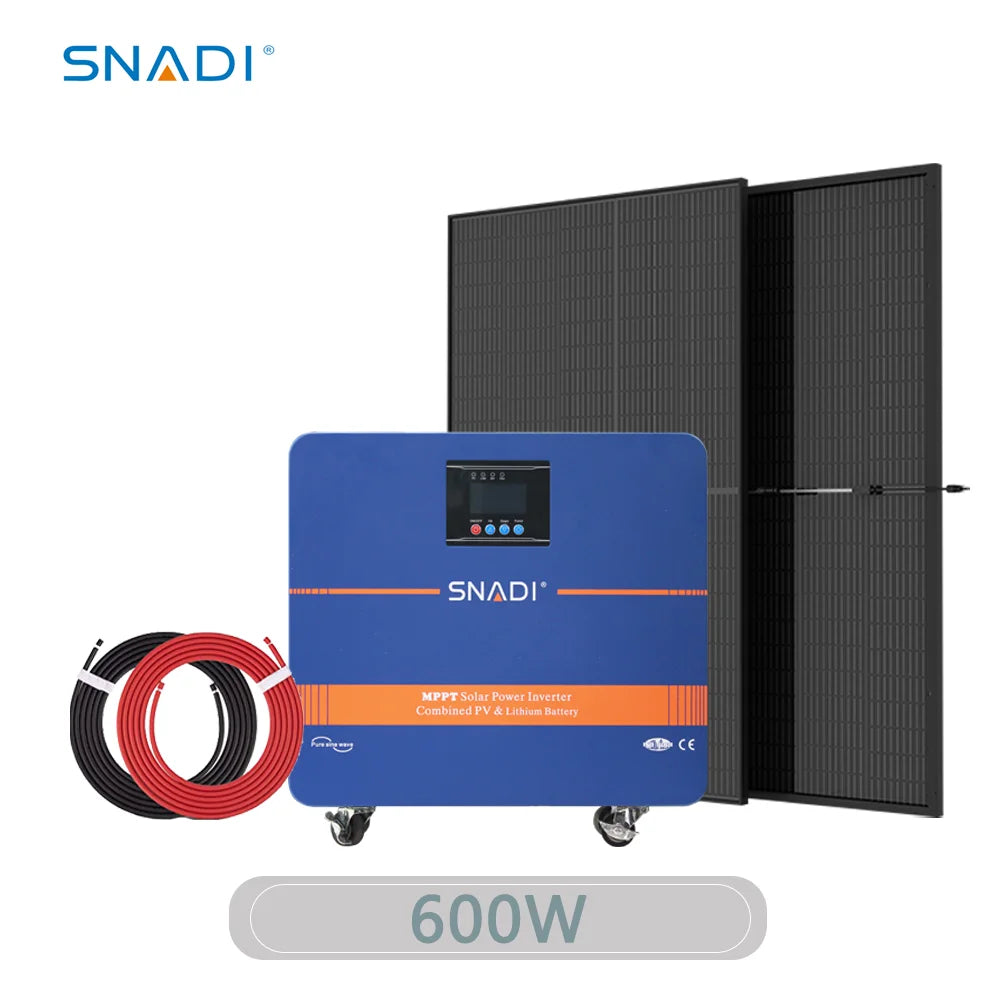

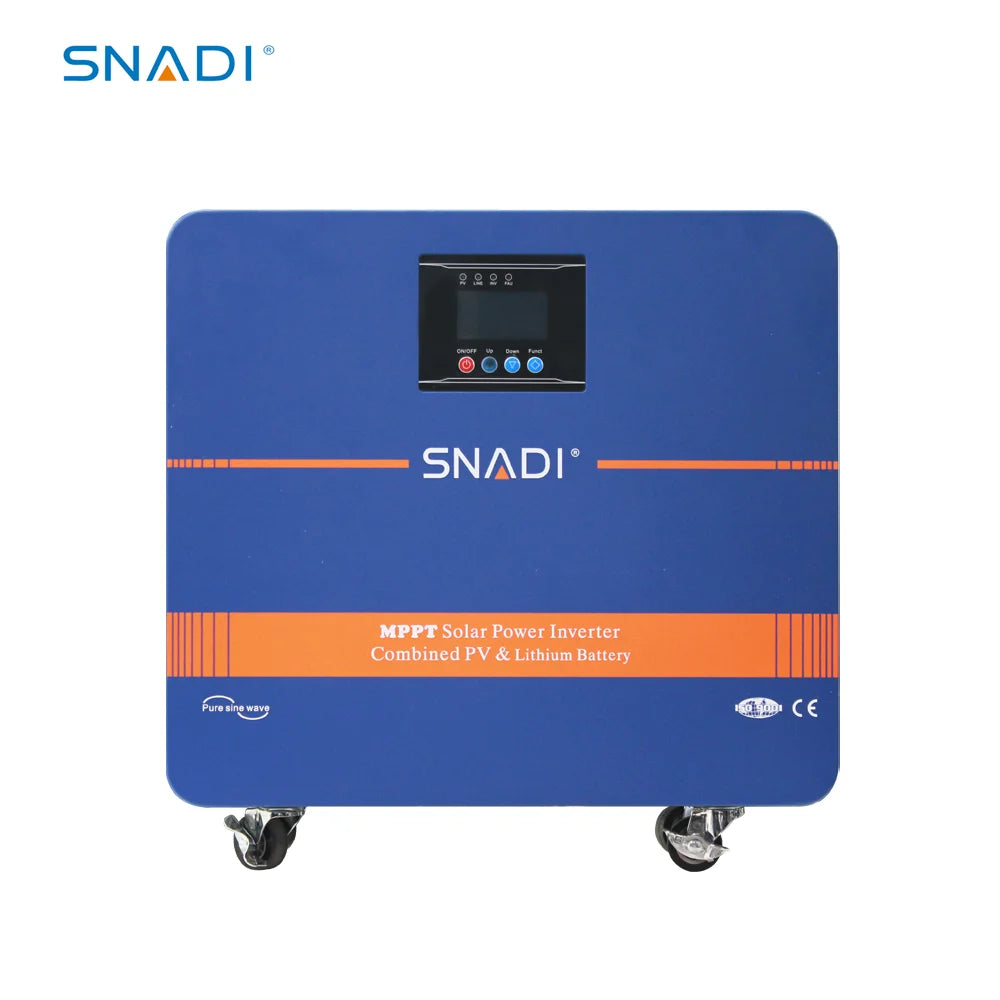

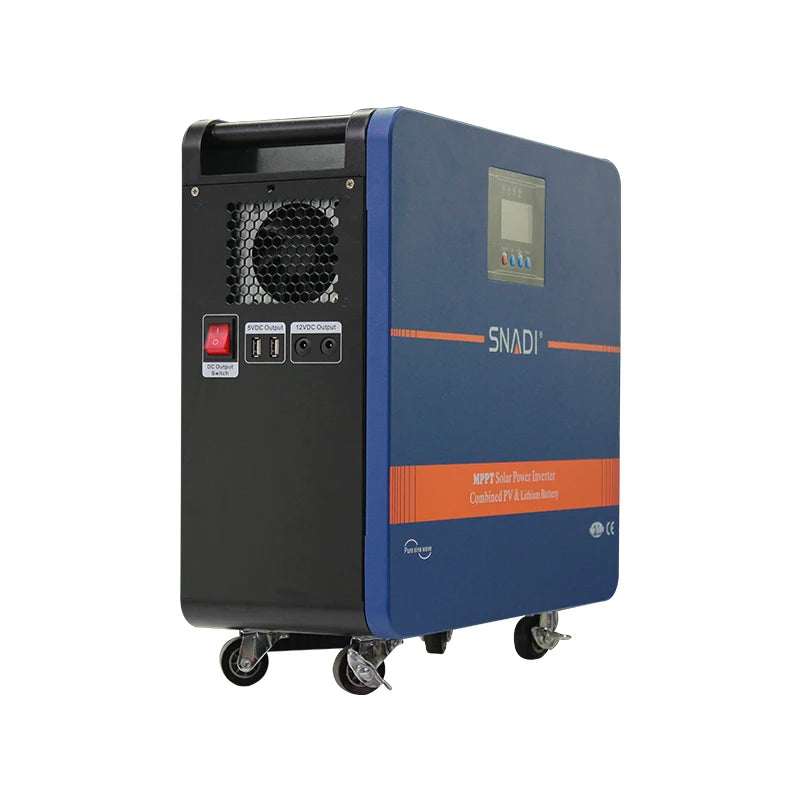

SNADI banks lithium battery generator solar for camping emergency lifepo4 500w 1000w 3000w 5000w portable power station
Camping - Camping Products - Camping Essentials
6987854013089_114741672
9999 In Stock Sold Out 9999 9999 9999 9999 9999
Share
|
Model： AL
|
AL-S600
|
AL-S1200
|
AL-S2200
|
|||
|
Inverter
|
||||||
|
Battery voltage
|
12.8V
|
25.6V
|
||||
|
In-built battery specification
|
50AH/12.8V
|
50AH/25.6V
|
100AH/25.6V
|
|||
|
Rated power
|
600W
|
1200W
|
2200W
|
|||
|
Output voltage
|
110V/220VAC
|
|||||
|
Output frequency
|
50/60HZ
|
|||||
|
Output waveform
|
Pure Sine Wave
|
|||||
|
Input voltage range
|
72-138/145-275VAC
|
85-138/170-275VAC
|
||||
|
Input frequency
|
45-65Hz
|
|||||
|
MPPT charge
|
||||||
|
Maximum photovoltaic voltage
|
≤100V
|
|||||
|
PV input range voltage
|
18-100V
|
35-100V
|
||||
|
Rated charge current
|
MPPT 30A
|
|||||
|
Maximum power
|
420Wp
|
840Wp
|
||||
|
Voltage of floating charge
|
14.2V
|
28.4V
|
||||
|
DC output
|
||||||
|
Voltage of high-voltage protection
|
16V
|
32V
|
||||
|
Voltage of high voltage recovery
|
14.5V
|
29V
|
||||
|
Voltage of low voltage recovery
|
13V
|
26V
|
||||
|
Voltage of low voltage protection
|
11.2V
|
22.4V
|
||||
|
5VDC USB output port
|
2 units/MAX 2A
|
|||||
|
12VDC output port
|
2DC ports/MAX 2A
|
|||||
|
Other
|
||||||
|
Heat dissipation/CoolingAmbient temperature for operation
|
Temperature control by intelligent exhaust fan
|
|||||
|
Ambient temperature for storage
|
-20 - +50℃
|
|||||
|
Operation/storage conditions
|
-25 - +55℃
|
|||||
|
External dimensions: DxWxH (mm)
|
0-90%(no condensation)
|
|||||
|
Packing dimension: DxWxH (mm)
|
460x182x397
|
485x202x406
|
500x229x464
|
|||
|
Temperature control by intelligent exhaust fan
|
527x267x470
|
552x277x477
|
570x310x535
|
|||
