Empower your business with the Diaphragm Micro Vacuum Pump Mini Air Pump. This high-utility asset is meticulously selected for the Shanvis Store 2026 B2B series, offering a strategic bridge between industrial durability and commercial affordability. Engineered for marketplace resellers and corporate procurement, it ensures top-tier quality and logistical efficiency.

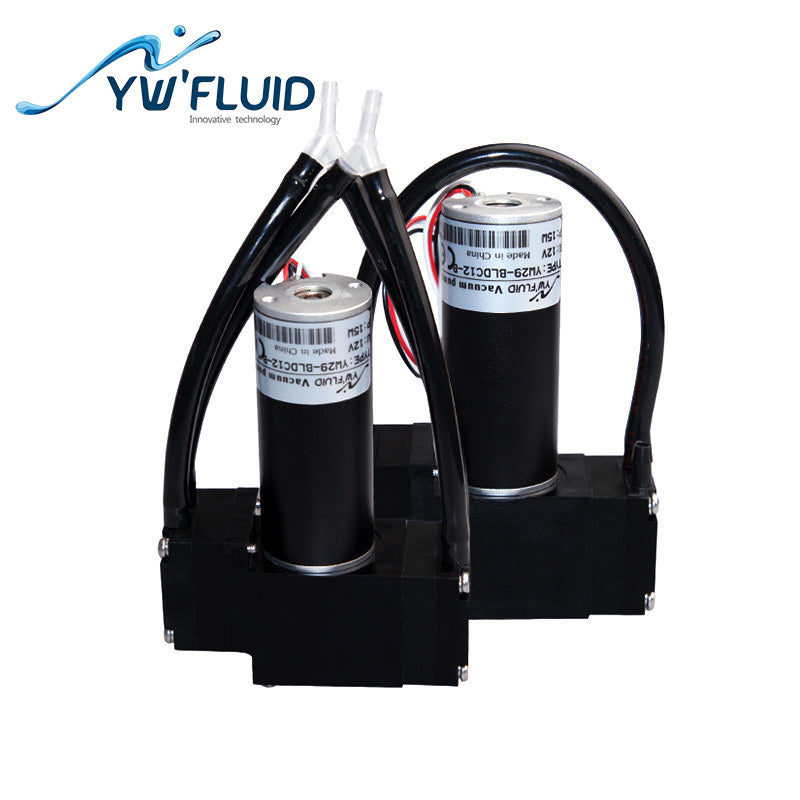

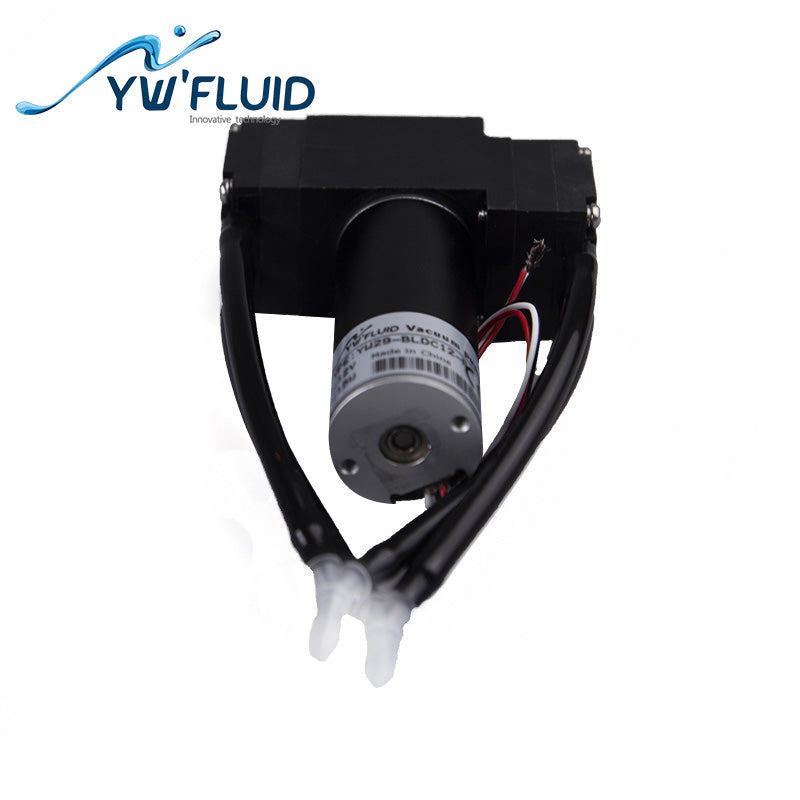

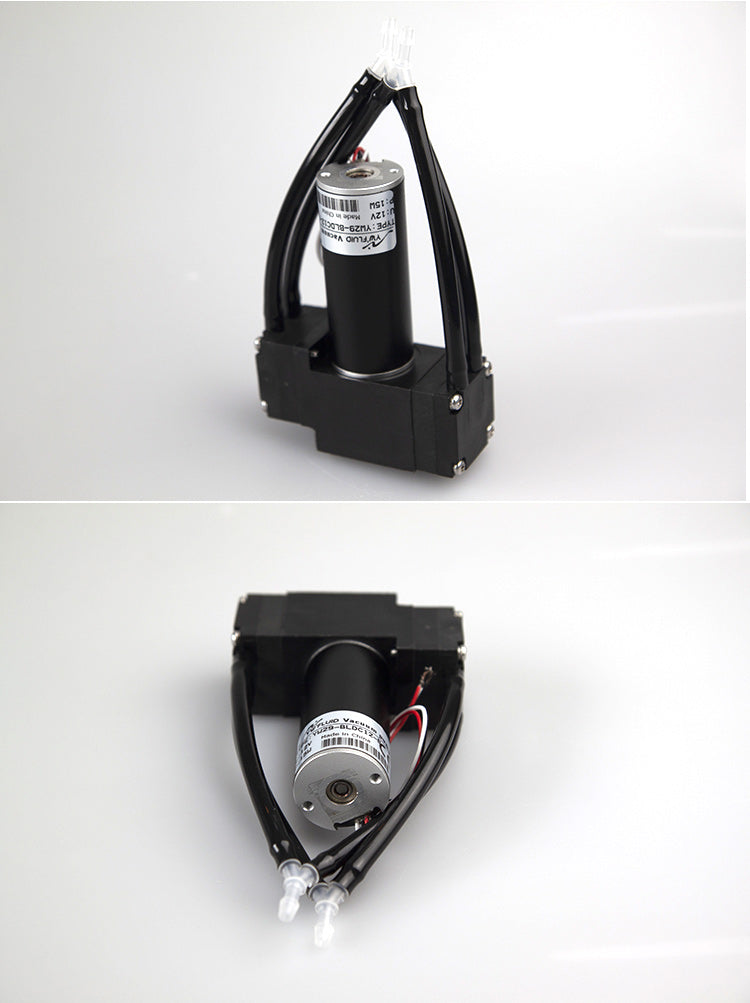

Diaphragm Micro Vacuum Pump Mini Air Pump
📍 Official Shanvis Store B2B Procurement Series | Version 17.0
🔍 1. Professional Product Overview
The Diaphragm Micro Vacuum Pump Mini Air Pump is a high-utility asset meticulously selected for the Shanvis Store 2026 collection. Engineered to bridge the gap between industrial reliability and commercial affordability, this product is a cornerstone for D2C brands and B2B resellers looking to establish market dominance through quality-vetted inventory.
📦 2. Manufacturer Specifications & Technical Configuration
Please refer to the detailed configuration, dimensions, and reference data provided below:
Diaphragm Micro Vacuum Pump Mini Air Pump

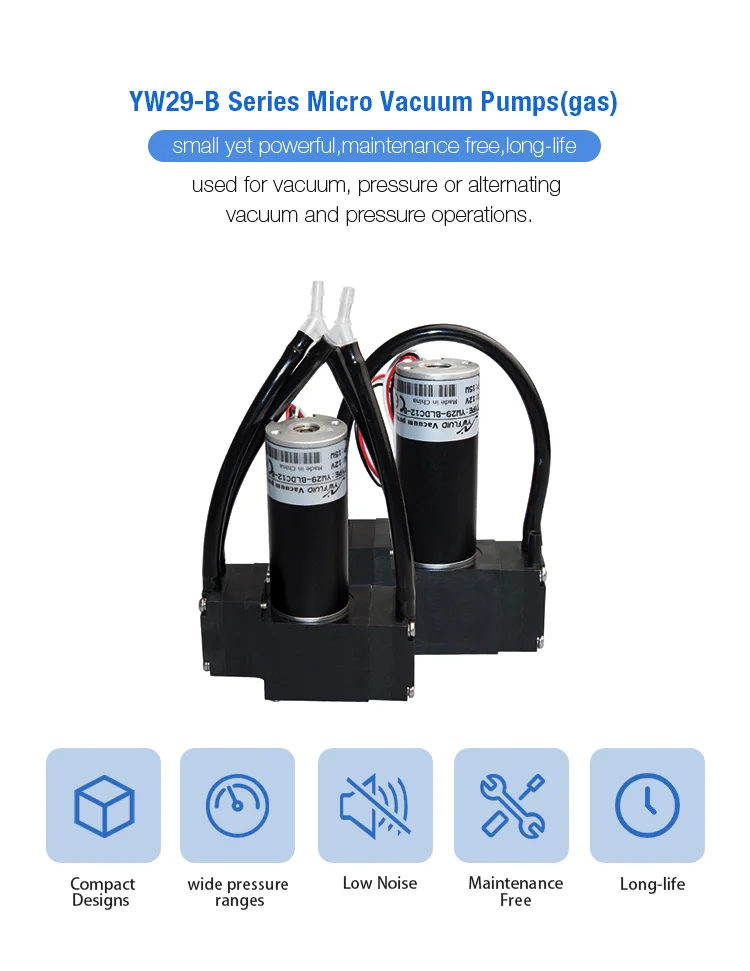

YW29Micro Diaphragm Pumps are a series of brush and brushless DC motor driven pumps which are customized to meet the specific performance requirements.The innovative compact designs adopt leading technology.so the pumps will operate more efficient.

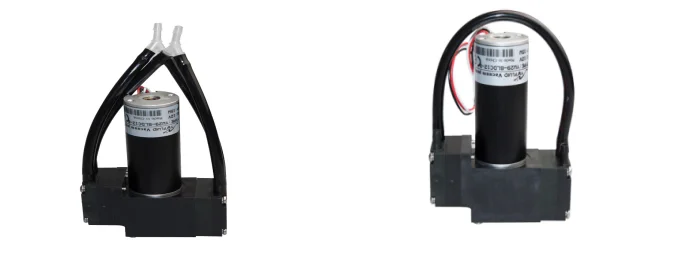

YW29 can be used for vacuum, pressure or alternating
vacuum and pressure operations.
YW29 is ideal for compact, high flow, wide pressure ranges, long life and low noise applications.
Typical Applications
• medical facility
•environmental protection
• Chemical Technology
• laboratory applications
• food engineering
• home applications
Features
• YW29series pump with our unique brushless dc
motor design, Set new standards for maintenance-free performance,
• YW29maximize flexibility by providing multiple installation options,
• Our 100% oil-free and grease-free diaphragm pump and compressor designs maintain the purity of the
system and pass the international certified.
Product Specifications
| Physical Performance | Electrical performance | Pneumatic performance |
| Operating Environment1 : | Motor Type: | Head Configuration: |
| 0-40℃ | brushless motor, brush motor | Dual |
| Storage Environment: | Nominal Motor Voltages4: | Maximum Flow Rate: |
| -20-100℃ | 12VBLDC,DC Other voltage can be customized. | 12L/min |

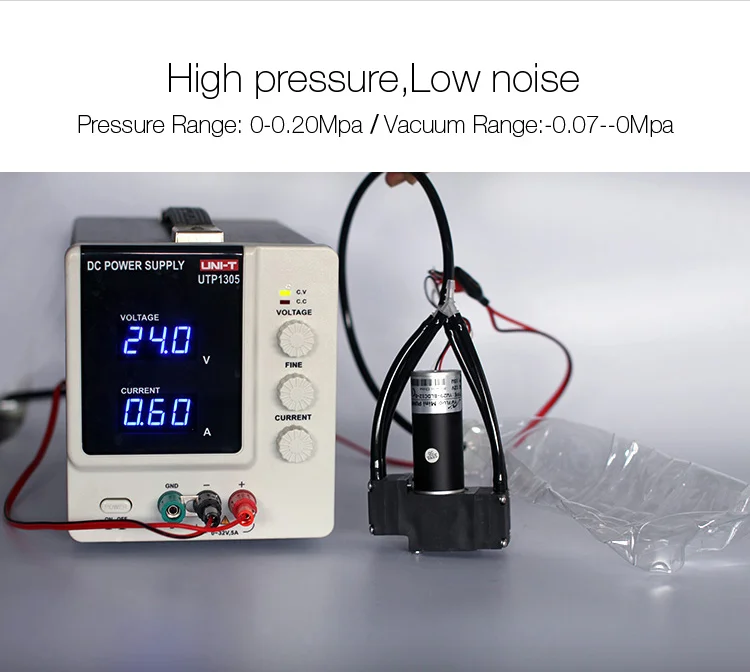

| Media: | Current Range5: | Pressure Range: |
| Nonreactive gas | 0.68- 1.5A | 0-0.20Mpa |
| Humidity: | Kitting Materials | Vacuum Range: |
| Less than 80% | Diaphragm: | -0.07--0Mpa |
| Noise Level2: | EPDM | Filtration: |
| 70dB | Valves: | / |
| Pump Assembly Rated Life3 : | EPDM | Free Flow Efficiency: |
| BLDC 6000h DC1000h | Pump Head: | / |
| Weight: | PPS | |
| 288.4g/pcs |

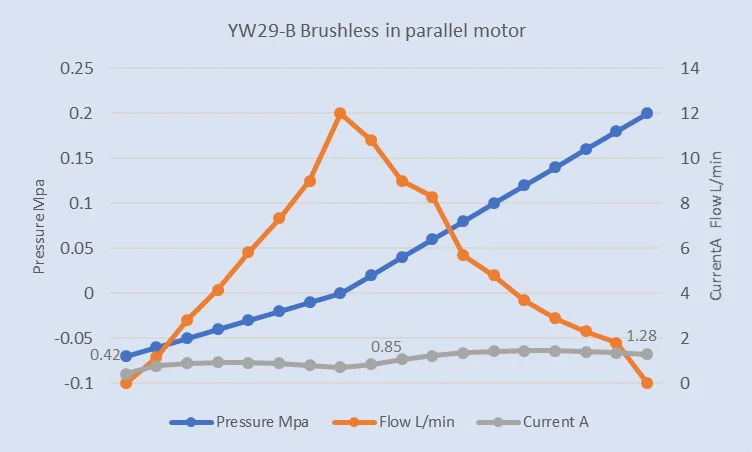

Performance specifications
The figure above represents a performance example of the YW29 series pump .Performance will depend on atmospheric pressure and medium temperature.The curve represents the standard pump configuration.Pump configurations can be customized for higher or lower flow according to specific customer requirements.
If have any requirements, please contact Changzhou Yuanwang Fluid Technology Co., LTD.
Size and Selection

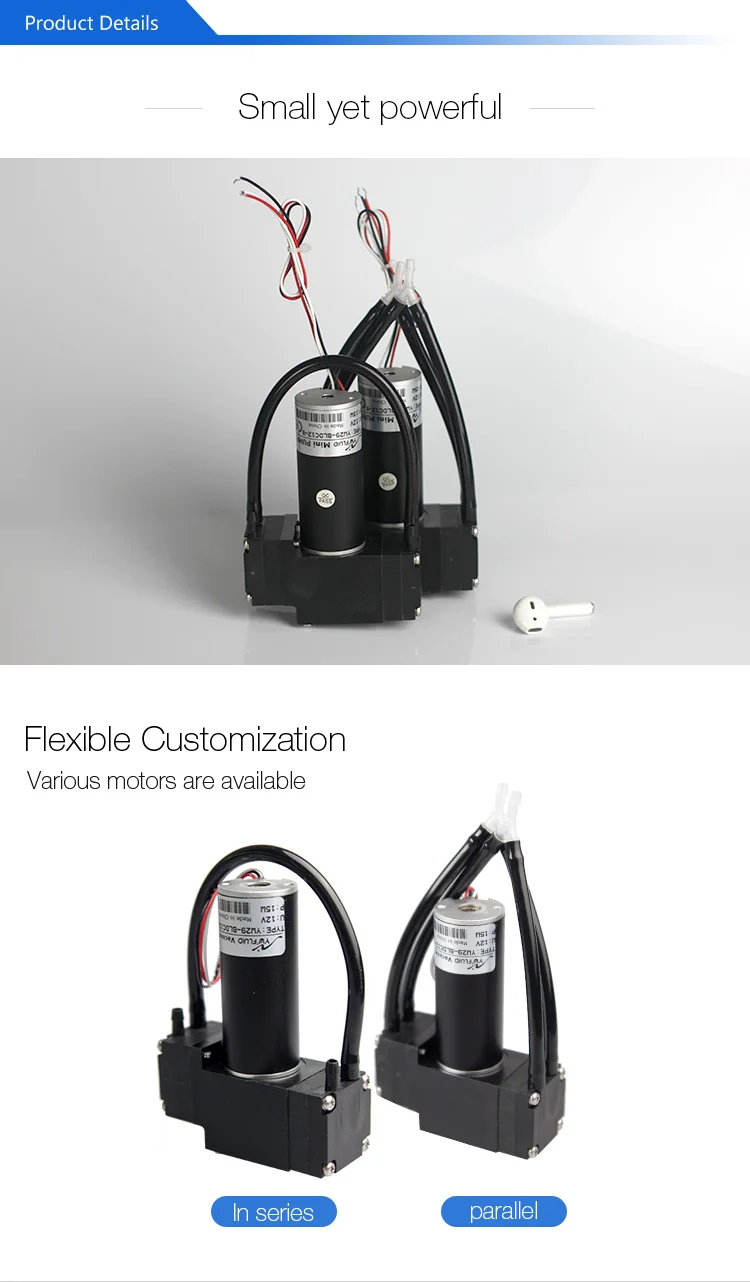

| Item | Efficiency | Life span | Cost | Noise |
| YW29-B in Parallel | Best-Up to 75% motor efficiency at high power levels | Good -6000 hrs | Best | Good |
| YW29-B in Series | Better-Up to 60% motor efficiency at low loads | Good - 6000 hrs | Good |
Electrical Integration and Motor Control
| Item | Flow | Pressure | Vacuum degree | Motor Type | Voltage | Noise level |
| YW29-B in Parallel | 12L/min | 0.20Mpa | -0.07Mpa | BLDC/DC | 12V | 70dB |
| YW29-B in series | 8.3L/min | 0.20Mpa | -0.085Mpa | BLDC/DC | 12V | 70dB |
Brush Motor
| Two(+,-) | |
| specification | Thickness0.5mm,width2.8mm,Height6.2mm |
Brushless Motor Control Options
| Red (+), Black (-) | |
| 3 Wire (Speed Control) | Red (+), Black (-), White (PWM) or Yellow (Analog) |
| 4 Wire (Speed Control & Feedback) | Red (+), Black (-), White (PWM) or Yellow (Analog),Blue(tachometer) |
| Wire specification | 22AWG, Insulation OD 0.051 inch (1.30 mm), 20” (508 mm) Wire Leads |
Other Motor Control Considerations
The drive electronics for the BLDC motors are integrated into the motor itself, all that needed is a power supply with the sufficient voltage and current.
Key Things to Remember
The pump is not a pressure holding device. An external check valve is recommended, if there is a pressure holding requirement.
Pump orientation does not affect performance or life.

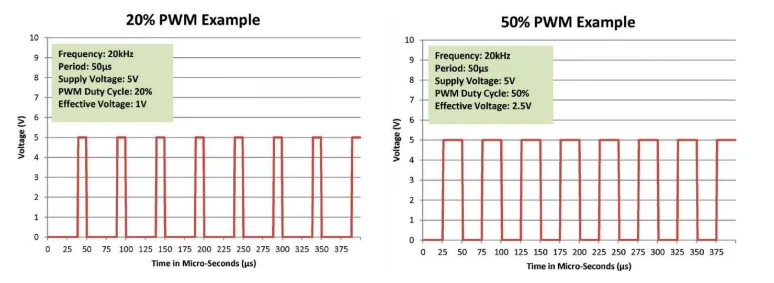

Pulse Width Modulation (PWM)
Pulse-width modulation is a commonly used technique for controlling DC motors.
1.The average value of the voltage fed to the motor is controlled by turning a switch between the voltage supply and the motor on-and-off at a fast pace. The longer the switch is on compared to the off time, the higher the power supplied to the motor.
2.The PWM switching frequency varies for different types of devices, and is selected based on how it affects the device. For example, Some applications require a faster switching frequency to reduce the noise or electrical noise that is being heard.
3.The term duty cycle describes the ratio of on-time to the period (one complete on-and-off cycle). Duty cycle is normally expressed as a percentage of on-time, 100% being full-power and 50% being half-power.
4.The advantage of PWM is the reduction of power-loss due to switching versus other control methods. We recommends controlling the pump using 15kHz - 20 kHz frequency range.

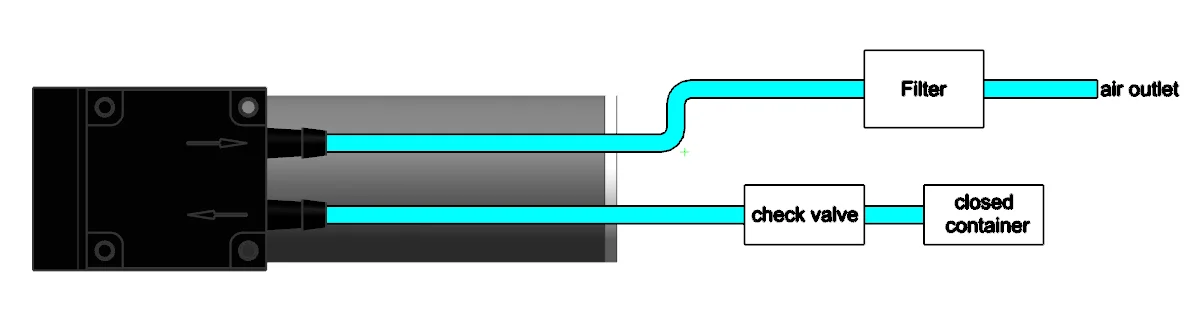

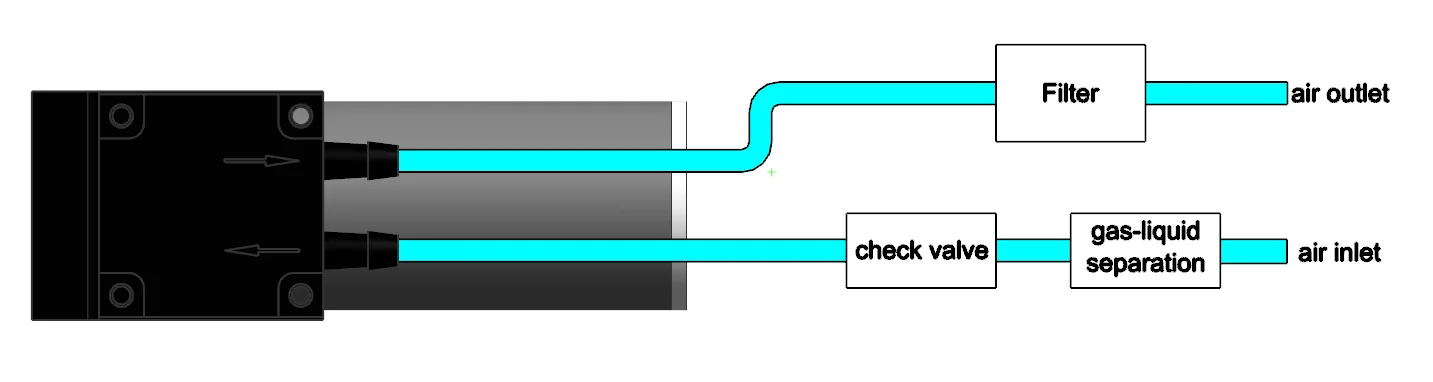

Typical Flow Diagram
Gas transport case
Vacuum case
📦 3. What is in this Order & Packaging Information
What is in this Order:
- 1 x Diaphragm Micro Vacuum Pump Mini Air Pump
- 1 x Operational Accessories / Power Cable (If applicable)
- 1 x Technical User Manual & Configuration Guide
- 1 x Secure Shanvis Store Enterprise Packaging
🚚 Packaging & Shipping Information:
Our units are shipped in multi-layered industrial-grade vibration-proof boxes. Dispatched via DDP through our primary domestic fulfillment centers in Hyderabad and Bangalore, we ensure rapid multi-state transit and intact delivery directly to your warehouse.
💡 4. Strategic Importance & Business Value
In the evolving landscape of 2026 e-commerce, the Diaphragm Micro Vacuum Pump Mini Air Pump matters because it minimizes operational downtime and maximizes end-user satisfaction. For corporate buyers and high-volume sellers, it represents a 'Hero SKU' that maintains consistent performance ratings, reducing return rates and enhancing your brand’s supply chain integrity.
🚀 5. Core Advantages & Key Features
- 🛡️ Advanced Build Integrity: Sourced using premium materials to ensure longevity in high-frequency commercial environments.
- ⚙️ Precision Functionality: Every unit is verified to meet international standards (CE/ISO equivalent) for reliable deployment.
- 💹 High ROI Potential: Low maintenance requirements paired with high-performance output ensures maximum profitability per unit.
- 📦 Fulfillment Ready: Designed with protective packaging standards suitable for global transit and Indian marketplace warehouses.
📊 6. Technical Fact Sheet & Commercial Use Cases
| Series Type | Shanvis Store B2B Enterprise Line |
| Compliance | MeeThought Verified Quality Standard |
| Inventory Status | FBA & Marketplace Ready |
| Logistics Mode | DDP (Delivered Duty Paid) Global Shipping |
| Ideal For | Reselling, Corporate Procurement, Startups, Projects |
🧾 7. Shanvis Store Trust Framework
Operated under the aegis of MeeThought E-Commerce Private Limited in strategic alliance with BHAVITHA SREE TRADING. We manage all customs clearance and import duties via DDP Shipping, delivering directly to your door across India.
✅ 100% GST Invoicing | ✅ Multi-State Fulfillment | ✅ Verified Low MOQ Sourcing
👍 8. Core Business Advantages (Top 10)
- Commercial Durability: Optimized build for educational and industrial use cases.
- DDP Shipping: Final landed cost certainty with no hidden import fees.
- Low MOQ Access: Low entry barriers for growing MSMEs and startups.
- Full GST Compliance: Verified B2B invoices for input tax credit claims.
- Global Quality QA: Strict multi-point checks at international source points.
- Supply Chain Stability: Reliable inventory availability for high-volume resellers.
- High Market ROI: Low overheads and consistent performance metrics.
- Fulfillment Integration: Packaging standard compatible with major Indian logistics.
- Reduced Overhead: Streamlined procurement process through official Shanvis partners.
- Verified Branding: Direct professional partnership with MeeThought/Bhavitha Sree Trading.
❓ 9. B2B Procurement FAQ
Q1: Can we claim GST Input Tax Credit?
A: Yes, we provide official B2B invoices with your GSTIN for full tax compliance.
Q2: What is the benefit of DDP Shipping for us?
A: DDP means the price you see is the final landed cost. No surprise customs or hidden duties at the time of delivery.
Q3: Is this product suitable for high-volume reselling?
A: Absolutely. We source this specifically for Amazon and Meesho power-sellers who require consistent quality.
Q4: How do you handle Quality Assurance (QA)?
A: Each batch undergoes a rigorous multi-point check at our global source facilities before dispatch.
Q5: Can we request bulk customized branding?
A: Yes, for large-scale enterprise orders, we facilitate OEM branding through our manufacturing partners.
🤝 10. B2B VIP Concierge & Bulk Orders
Require a high-volume procurement quote, OEM custom branding, or a product sample? Our enterprise team is ready to assist you directly.
- ✉️ Email our Procurement Desk: contact@shanvis.store | b2b@shanvis.store
- 💬 Live Assistance: Connect with our sourcing experts instantly via the Live Chat widget in the bottom corner of your screen.
- 🏢 Corporate Inquiries: Visit our official Contact Page for comprehensive operational details and localized support.
🛡️ 11. Warranty & After-Sales Support
Shanvis Enterprise Warranty: Every unit is backed by our B2B buyer protection program. We offer comprehensive after-sales assistance, defective-on-arrival (DOA) replacements, and dedicated technical support to ensure your business operations never face unnecessary downtime.
