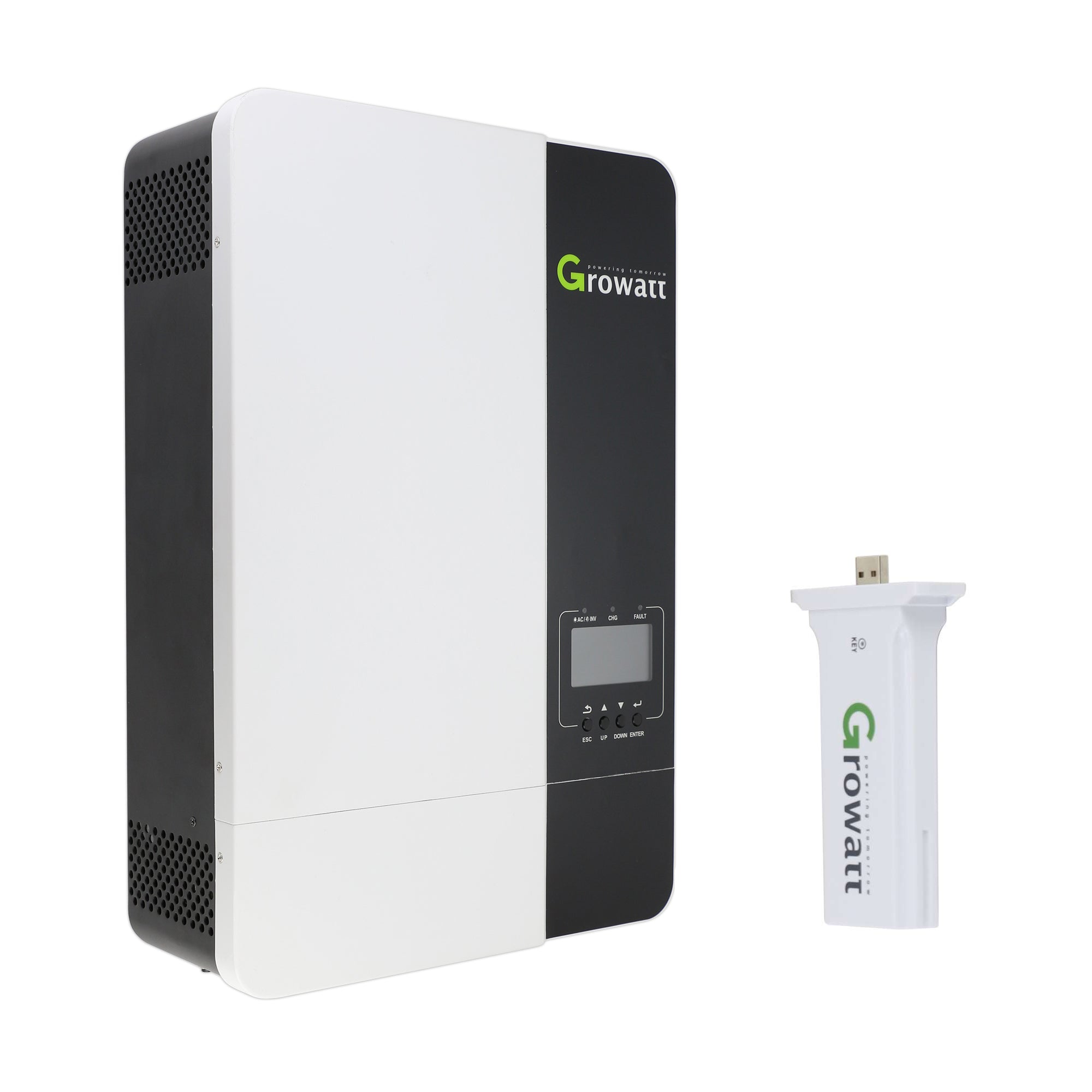

This inverter can work with or without batteries. The whole system also need other devices to achieve complete running such as PV modules, generator, or utility grid. Please consult with your system integrator for other possible system architectures depending on your requirements. The WiFi / GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.

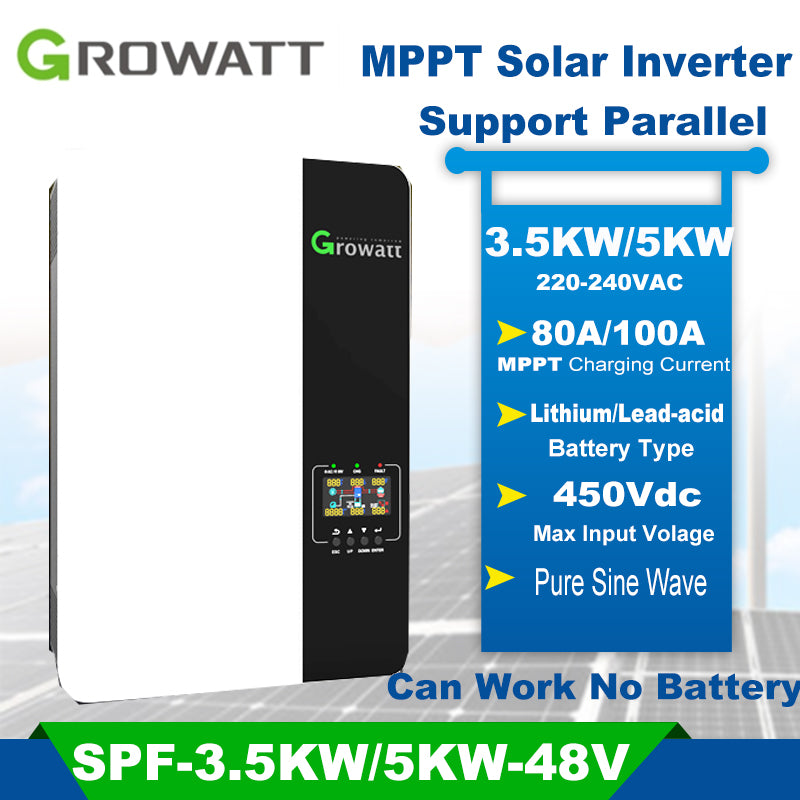

1. Rated power 3.5KW to 5KW, power factor 1
2. MPPT ranges 120V~430V, 450Voc
3. High frequency inverter with small size and light weight
4. Pure sine wave AC output
5. Solar and utility grid can power loads at the same time
6. With CAN/RS485 for BMS communication

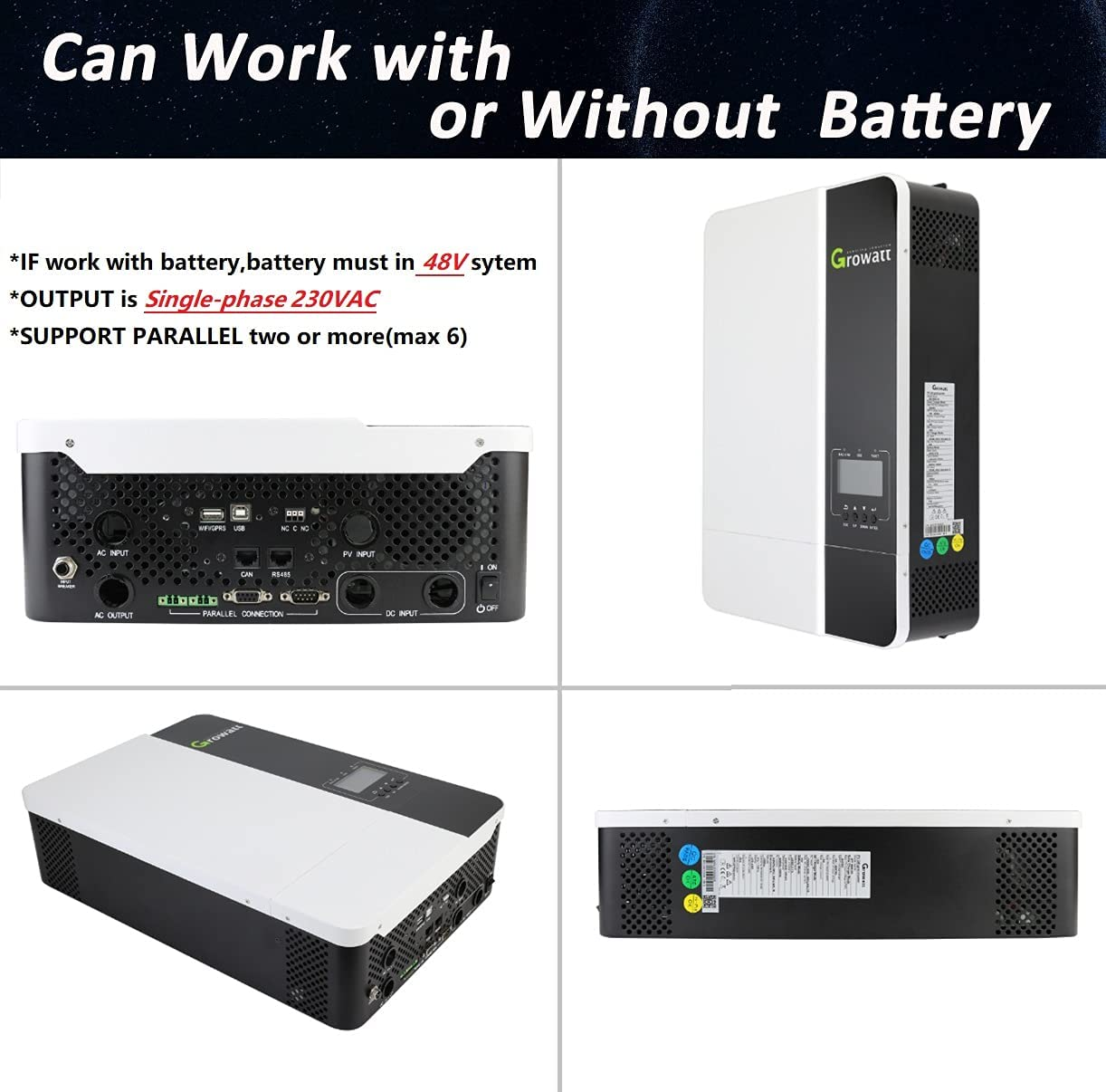

7. With the ability to work without battery

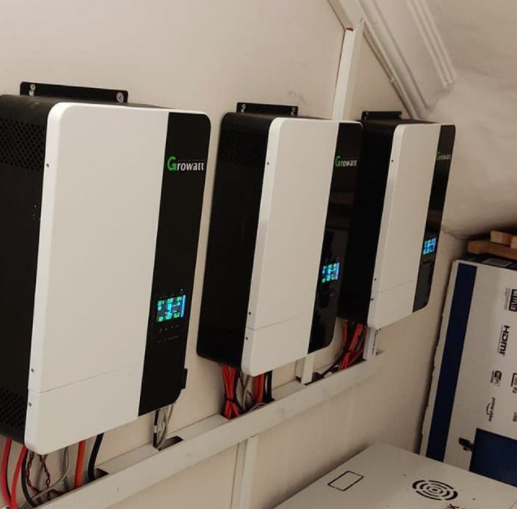

8. Parallel operation up to 6 unit (only with battery connected)
9. WIFI/ GPRS remote monitoring (optional)
How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.
|

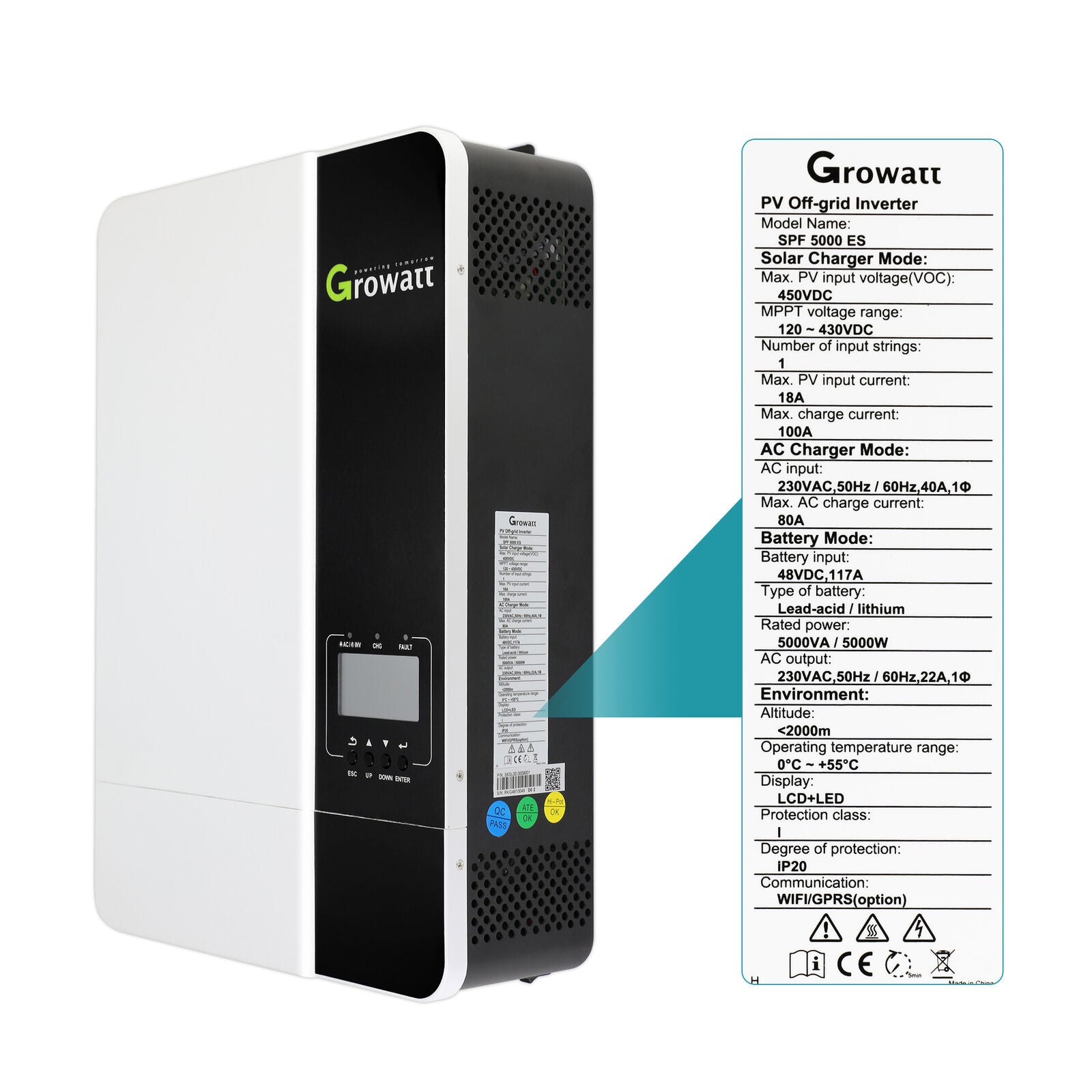

Datasheet
|
SPF 3500 ES
|
SPF 5000ES
|
||
|
Battery Voltage
|
48VDC
|
|||
|
Battery Type
|
Lithium/Lead-acid
|
|||
|
INVERTER OUTPUT
|
||||
|
Rated Power
|
3500VA/3500W5000VA/5000K
|
|||
|
Parallel Capability
|
Yes,6 units maximum
|
|||
|
AC Voltage Regulation (Battery Mode)
|
230VAC±5%@50/60Hz
|
|||
|
Surge Power
|
7000VA10000VA
|
|||
|
Efficiency (Peak)
|
93%
|
|||
|
Waveform
|
Pure sine wave
|
|||
|
Transfer Time
|
10ms typical.20ms Max
|
|||
|
SOLAR CHARGER
|
||||
|
Maximum PV Array Power
|
4500W
|
6000W
|
||
|
MPPT Range @ Operating Voltage
|
120VDC~430VDC
|
|||
|
Number of Independent MPP Trackers/Strings Per 3MpP Tracker
|
1/1
|
|||
|
Maximum PV Array Open Circuit Voltage
|
450VDC
|
|||
|
Maximum Solar Charge Current
|
80A
|
100A
|
||
|
AC CHARGER
|
||||
|
Charge Current
|
60A80A
|
|||
|
AC Input Voltage
|
230 VAC
|
|||
|
Selectable Voltage Range
|
170-280 VAC(For Personal Computers):90-280 VAC(For Home
|
|||
|
Frequency Range
|
50Hz/60Hz(Auto sensing)
|
|||
|
PHYSICAL
|
||||
|
Protection Degree
|
IP20
|
|||
|
Dimension (W/H/D)
|
330/485/135mm
|
330/485/135mm
|
||
|
Net Weight
|
11.5kgs
|
12kgs
|
||
|
OPERATING ENVIRONWENT
|
||||
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|||
|
A1titude
|
<2000m
|
|||
|
Operating Temperature
|
0°C-55°C
|
|||
|
Storage Temperature
|
-15°C-60°C
|
|||
