Brief introduction:

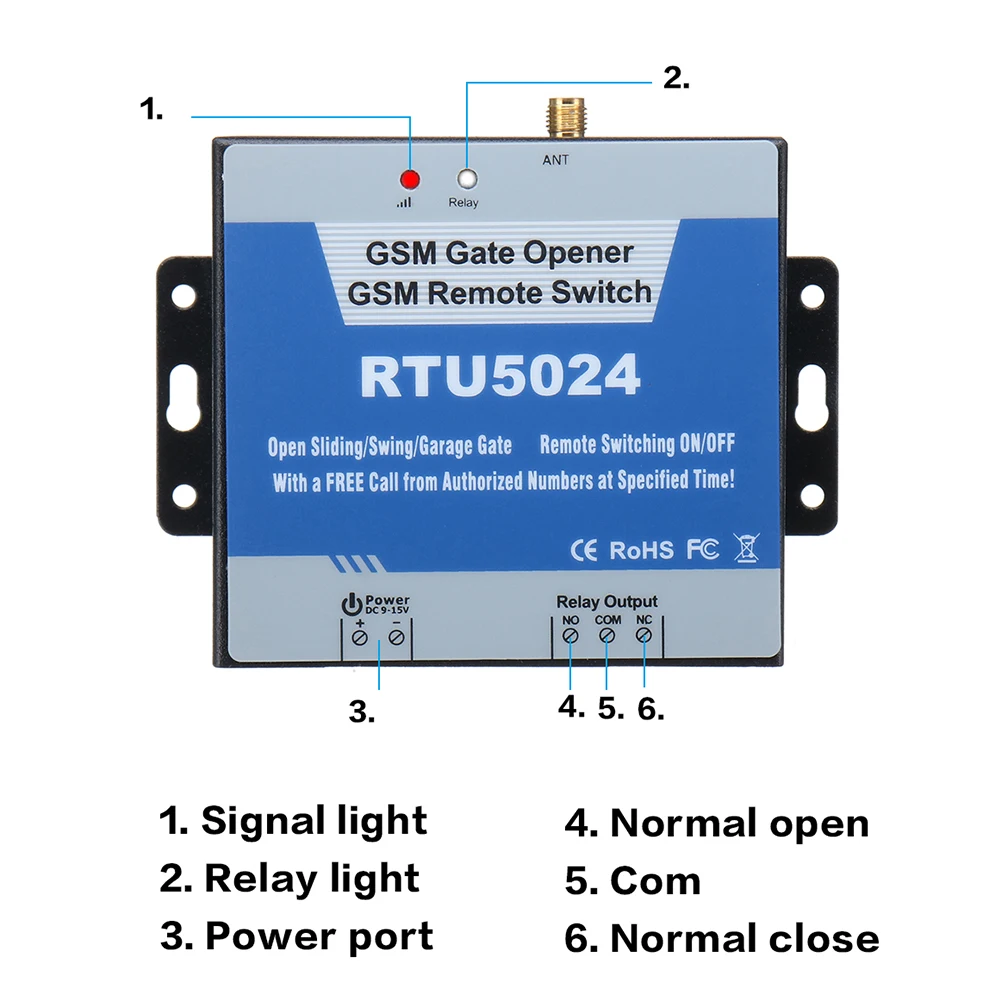

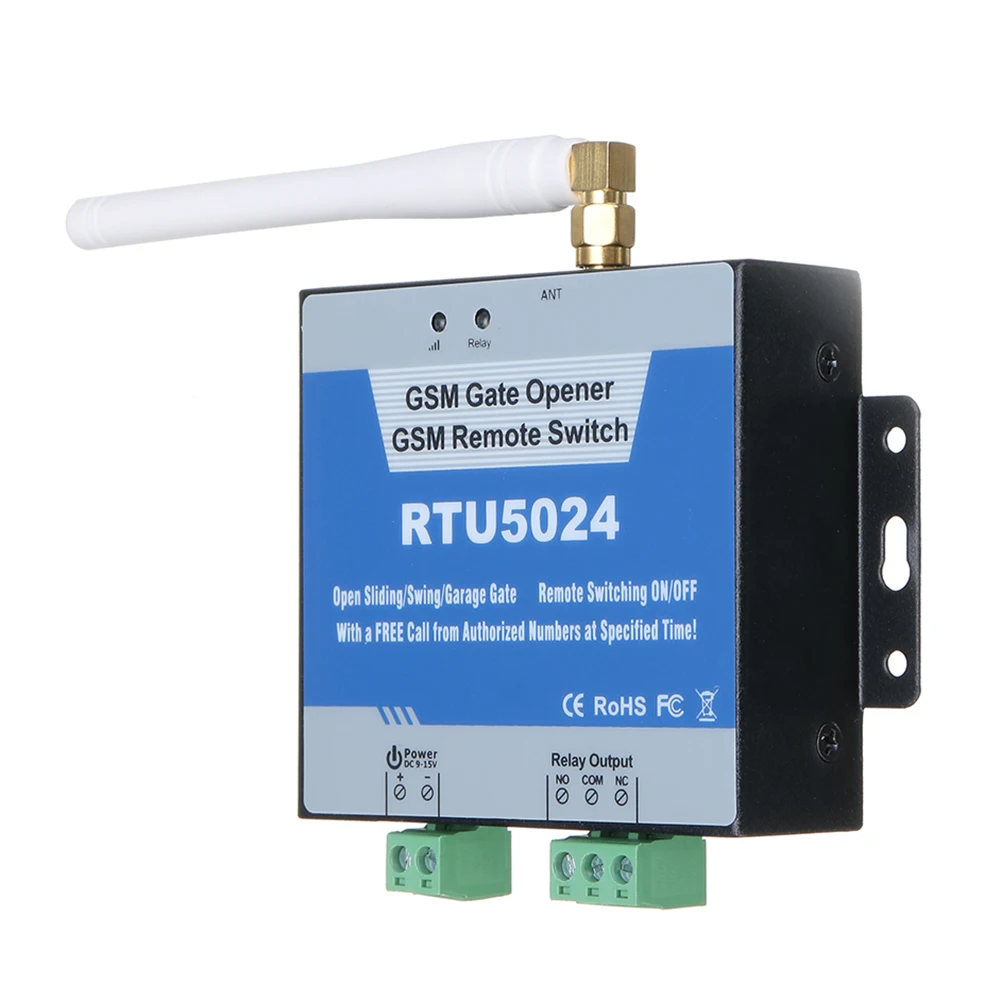

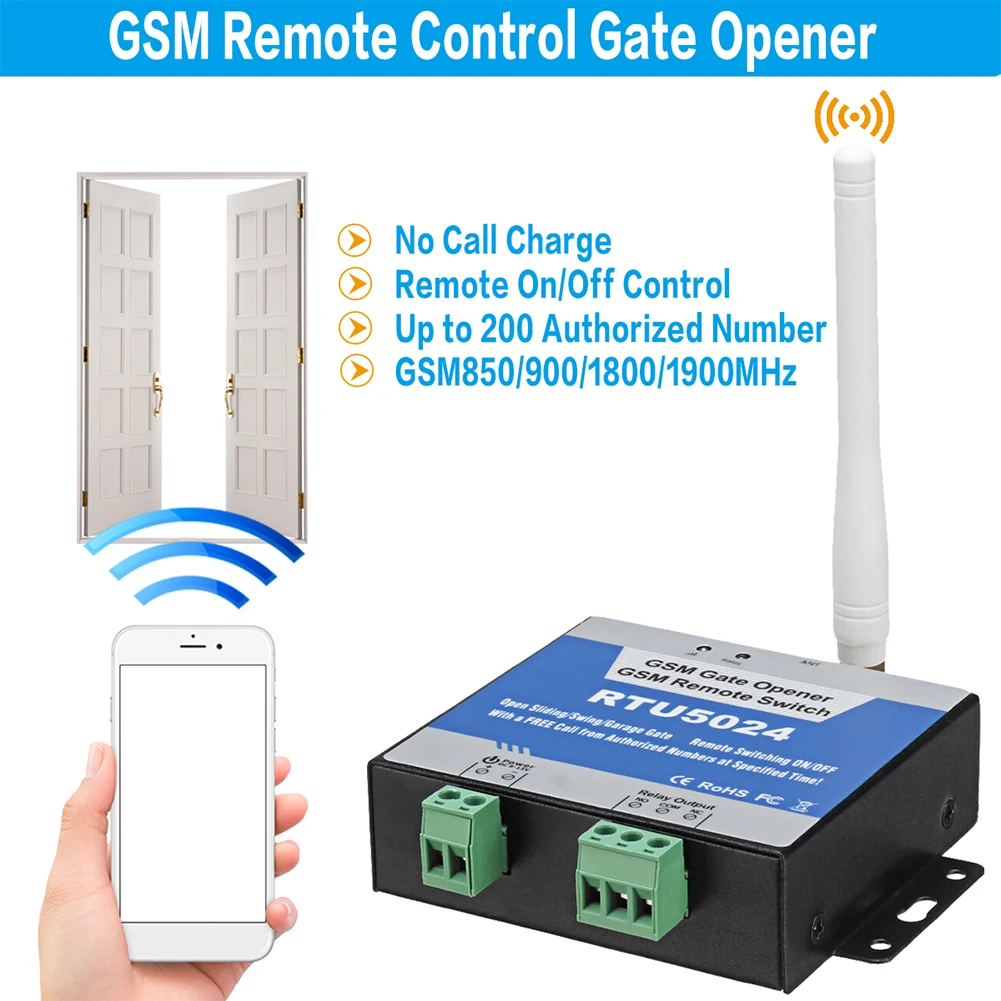

The GSM Door Door RTU5024 is a powerful GSM relay that can be used for authorized access doors, control doors, remote device
switches and parking lot systems.In addition, it can be used in places that require you to remotely turn on/off systems, machines,
or devices by making toll-free calls from your cell phone.
Features:
- Add or remove users via SMS.
- Programmable time for relay closing or opening.
- You can use it from anywhere, no distance limit.
- Quad-band, available on global GSM networks.
- There is no need to provide remote controls or buttons for different users.
- Securely use call identifier for identification, ignoring unknown calls.
- You can set up to 200 authorized phone numbers at a specified time.
- Output with 3A/240VAC relay grade for connecting door switches or machines.
Applications - Multiples.Doors, guardrails, obstructions, garage doors, shutters, access doors or machinery.
The relay operation returns SMS acknowledgement to the owner or the authorized call number, which can be edited by the user.
- There is no charge.The GSM GPRS relay switch rejects the call from the authorization number and then performs the switch
operation at the first "R".
Specifications:
GSM frequency: Quad band 850/900/1800/1900MHz
Gigital output :NC/ dry contact, 3A/240V AC
DC power supply :9-24V DC /2A
Power consumption: Max. 12V input.Average 50mA / 25mA
SIM card: Compatible with 3V SIM card
Antenna antenna interface :50Ω roster
Temperature range :-20 ~ + 60℃
Humidity range: relative humidity 90%

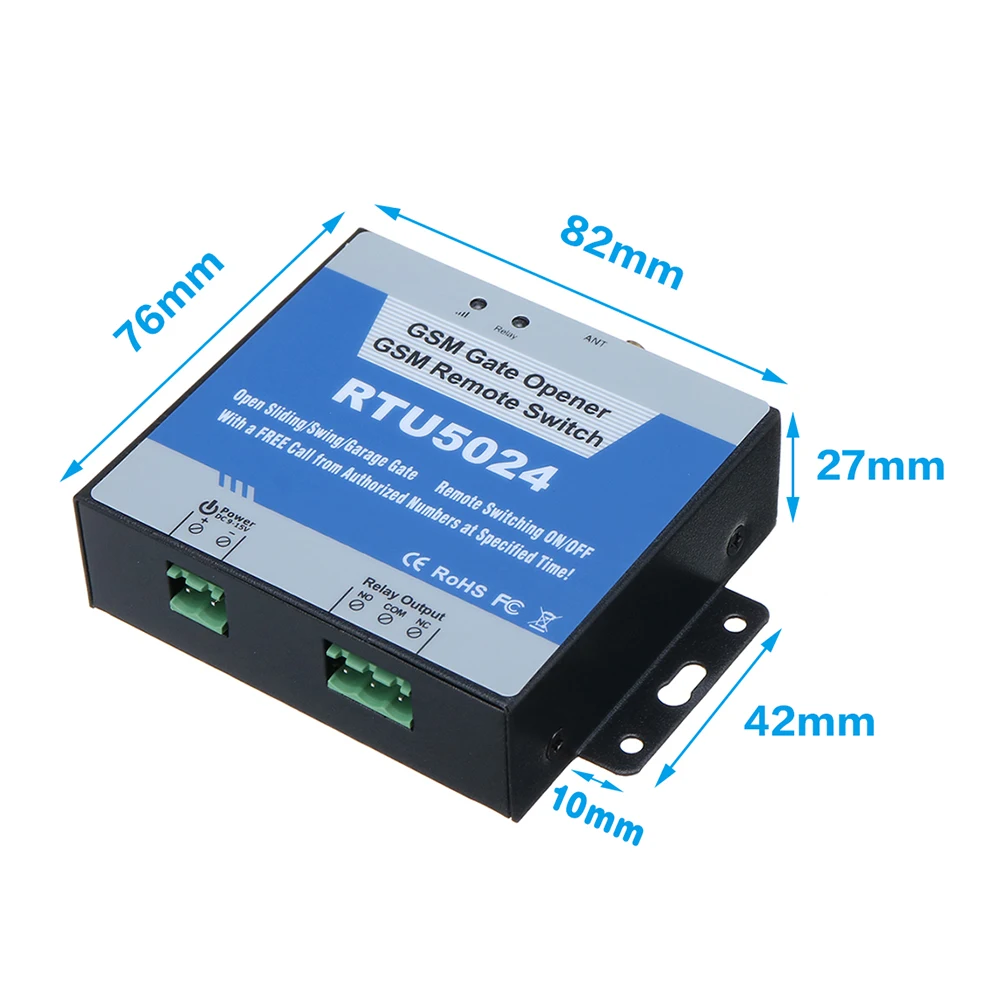

Size :82 mm * 76 mm * 27 mm /3,23*2,99*1,06"
Note:
1. There may be slight dimensional differences due to manual measurements, different measurement methods and tools.
2. The image may not reflect the true color of the item due to the difference in shooting light, Angle and display.
Please note that the mobile network must be on a 2G network when using the mobile remote control.
