ce certificate 2021 hot sale 330 bar high pressure air compressor for scuba diving breathe air 6m3/h 3.5cfm
Diving - Diving Accessories - Snorkeling Accessories
6024000013089_94401694
9999 In Stock Sold Out 9999
Share
220 volt 50hz single phase/three phase/gasoline engine breathing air compressor for scuba diving and fire fighting
we offer full set with filling hose and filling nozzle and filling adapter
voltage available: 220v/50hz single phase, 380v/50hz 3phase, 220v/60hz single phase, 3phase
Filling time of this air compressor to different pressure air tanks:
| Tank filling time @ pressure | |||
| 1L | 3L | 7L | 12L |
| 1.8min@180bar | 5.4min@180bar | 12.2min@180bar | 20min@180bar |
| 2.2min@225bar | 6.7min@225bar | 15.3min@225bar | 25.2min@225bar |
| 3.0min@300bar | 9.0min@300bar | 20.4min@300bar | |
High pressure compressor for scuba / paintball /fire breathe junior
| Model No. | LW100 | LW100ET | LW100P |
| Medium | Breathable air | ||
| Air quality | Comply with EN12021 STANDARD | ||
| Discharge rate | 100L/min (6m3/h) | ||
| Work pressure | 225bar/330bar | ||
| Noise | 95dB | 97dB | |
| Weight | 46kg | 44kg | |
| Drive | Single phase | Three phase | Gasoline engine |
| Power | 2.2kw | 2.2kw | 4.2k2 |
| Compressor Parameters | |||
| Stage | 3 | ||
| 1st-stage cylinder | 60mm | ||
| 2nd-stage cylinder | 28mm | ||
| 3rd-stage cylinder | 12mm | ||
| Travel | 24mm | ||
| Speed | 2300rpm | ||
| 1st-stage exhaust pressure | 0.6-0.7Mpa | ||
| 1st-stage safety valve pressure | 1.0Mpa | ||
| 2nd-stage exhaust pressure | 4-6Mpa | ||
| 2nd-stage safety valve pressure | 8Mpa | ||
| Lubricating system | splash lubrication | ||
| Oil volume | 360ml | ||
| Max. intake temperature | 5-45℃ | ||
| Intake temperature | Environment temperature+20℃ | ||
| Motor protection grade | IP55 | ||
| Length(mm) | 700 | 770 | |
| Width(mm) | 380 | 420 | |
| Height(mm) | 420 | 420 | |
- 100L/min, 3.5cfm
- 225BAR for diving
- 330BAR for fire protection
- 3-stage
- Power: 2.2kw/3.0hp
- Voltage: 220v/50hz 60hz; 380v/50hz,60hz
- Imported seals, brand belt and starter, NSK bearing with first class electric motor
- Each air filter valve with 1 gauge

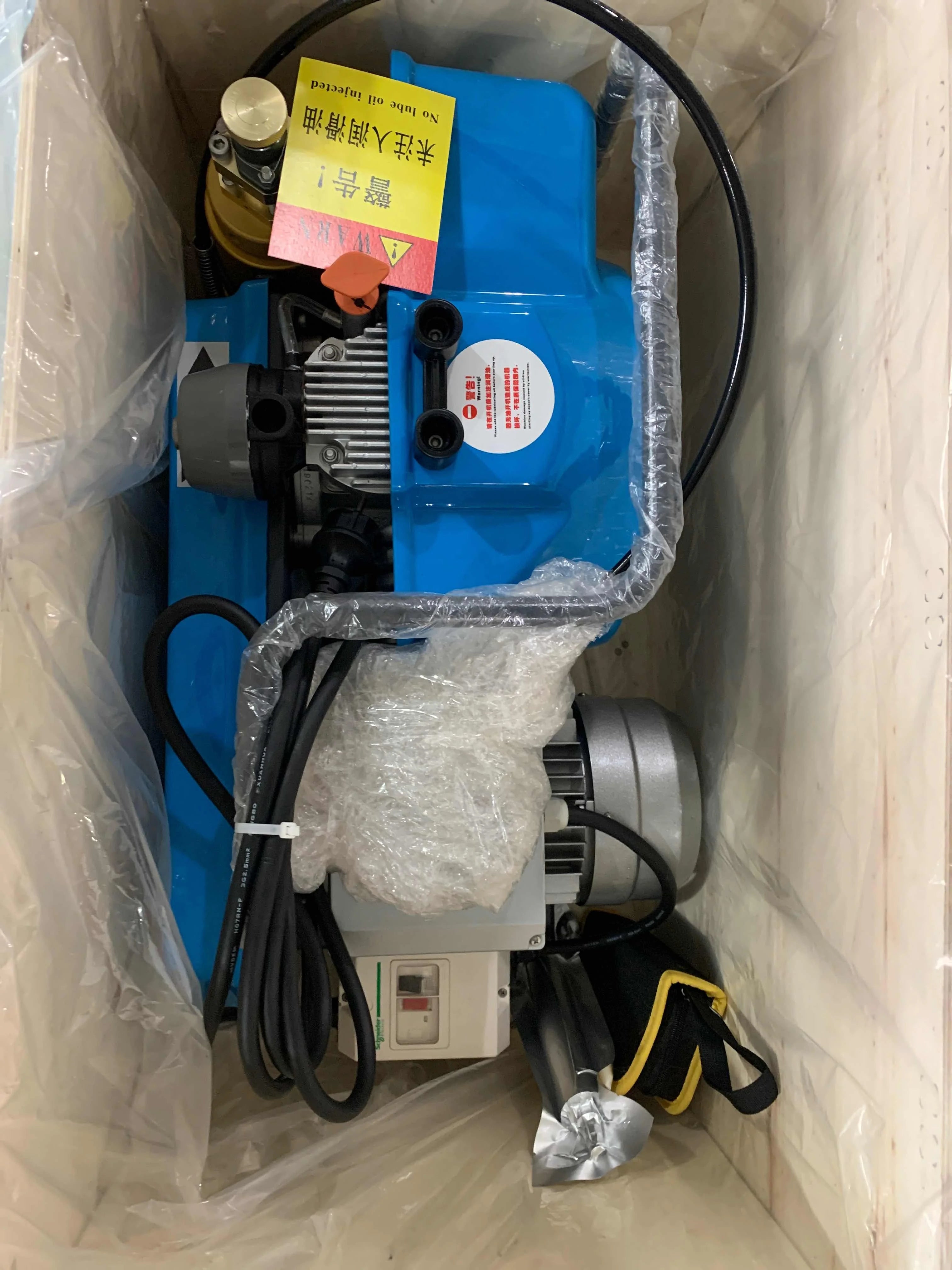

Package photos:

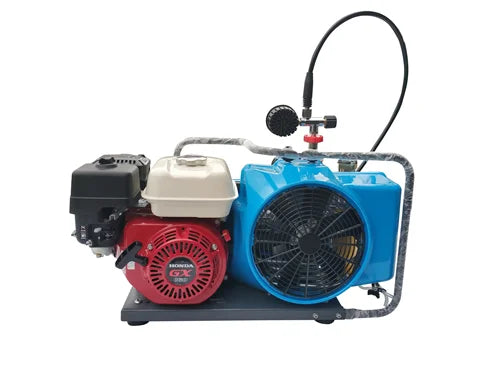

Gasoline engine driven photos
Applications: Widely used in the fields of fire fighting, diving, sports, national defense, aerospace, petroleum and petrochemical, medicine, naval vessels, marine engineering, air tightness detection, electric power, gas, precision instruments, etc.
Air tightness test air compressor applications: Mainly used for gas tightness inspection, gas tightness inspection, pressure test, strength inspection, air tightness inspection and other fields of various high pressure vessels or pressure vessels such as gas cylinders, steel cylinders, valves, pipelines, pressure instruments, high pressure boilers, etc.
