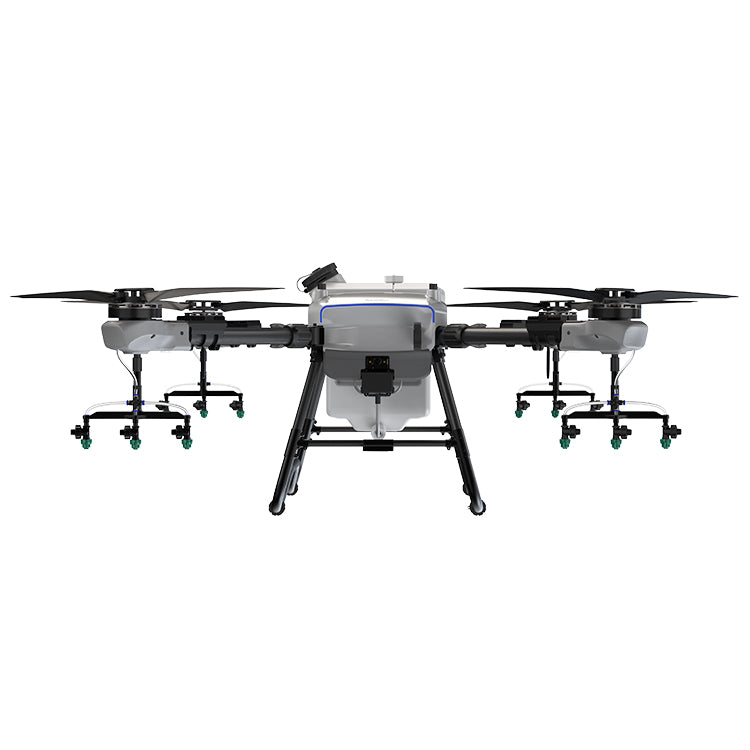

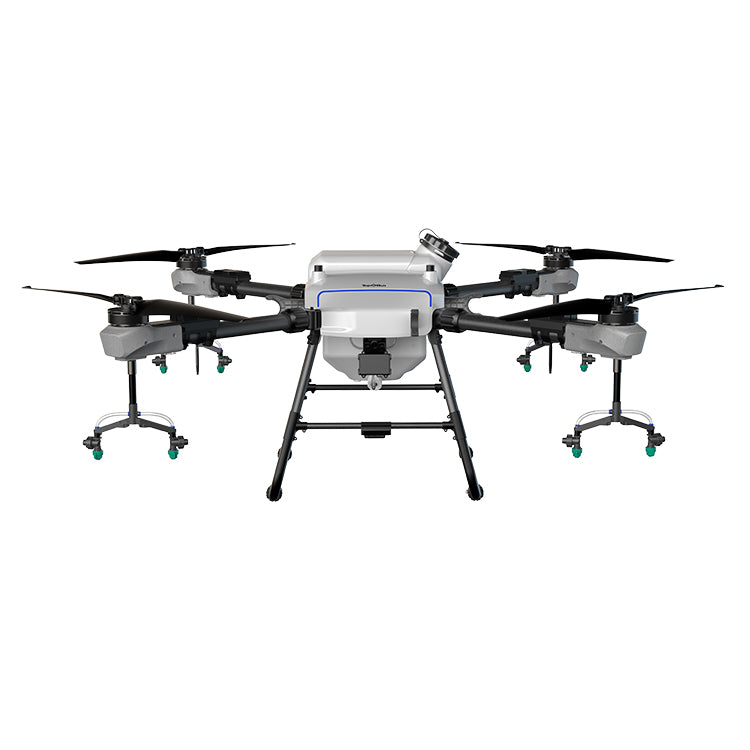

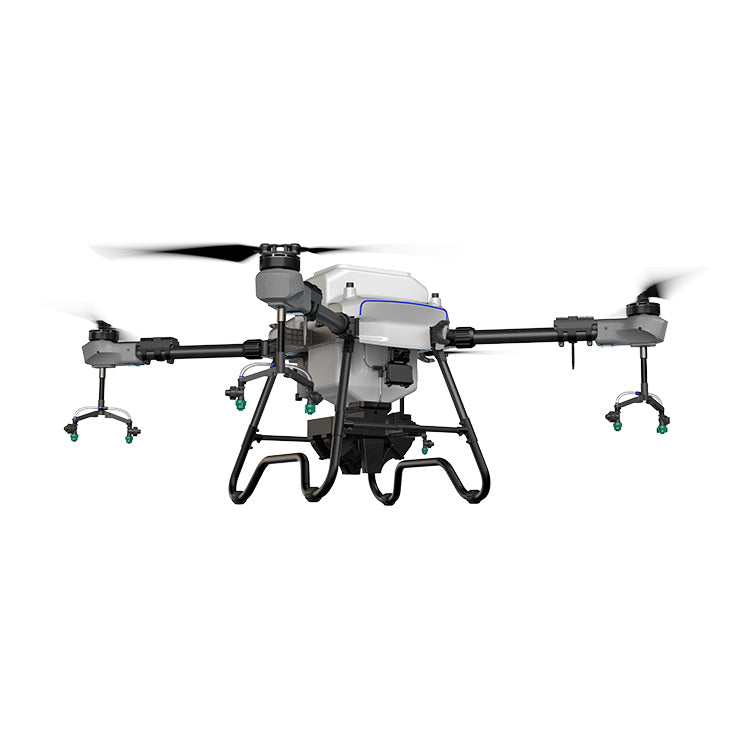

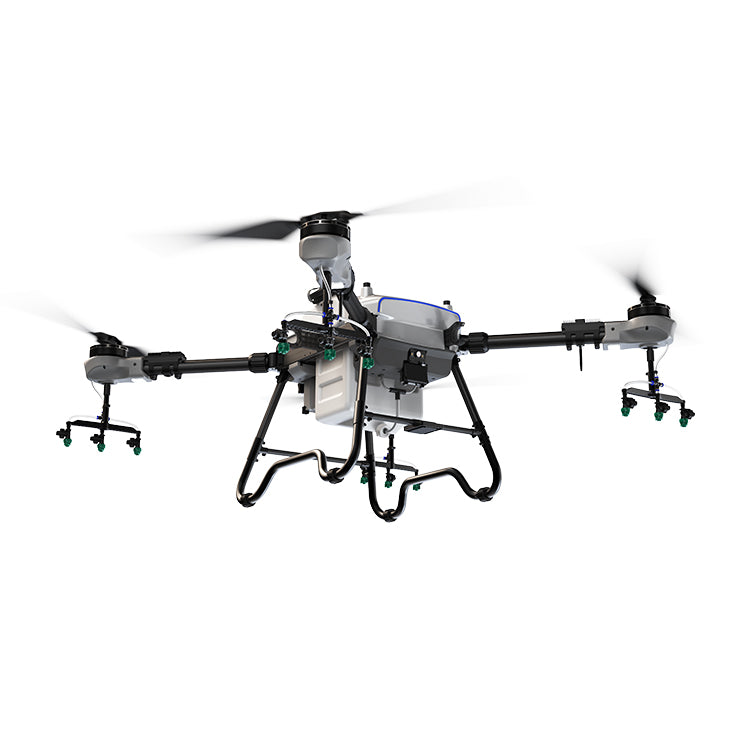

2022 Hot Sale 4 Axis 30L Agriculture Drone Motor Drone Sprayer & Drone Spare Parts Price

Write a review

Save -48% Rs. 1,502,402.43 ~~Rs. 2,888,776.06~~

Brand : Shanvis

Collection : Drone Parts - Drone Accessories - Drone Components Drones & Accessories

SKU : 167480728013089_392638669

Availability : -1 In Stock Sold Out -1

Color White

Translation missing: en.products.product.product_variants

Quantity

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

FREE SHIPPING

WORLDWIDE

BIG SAVING ON

WEEKENDS

24H SUPPORT

Description
Shipping

Products Description

Model	Q300	Q200
Basic Parameters
Wheelbase	1970mm	1945mm
Expanded size	25151650788mm	23401650785mm
Folded size	10401010788mm	11151070785mm
Net weight(with battery)	40.6kg	37.2kg
Maximum effective takeoff weight	77.8kg	63.6kg
Battery	30000mAh,51.8V	30Ah,51.8V
Flight Parameters
Hover	＞20min(no load)	25min
Hover		＞8min(full load)	12min
Maximum flight speed	8m/s(GPS Mode)	GPS Mode
Work height	1.5-3m	1.5-2.5m
Obstacle avoidance perception range	1-40m	1-20m
Autonomous obstacle avoidance	YES	YES
Spray Parameters
Pesticide tank	30L	20L
Nozzle type & No	12 high pressure fan nozzle, support switching centrifugal nozzle	8 high pressure fan nozzle, support switching centrifugal nozzle
Maximum flow rate	8.1L/min	5.4L/min

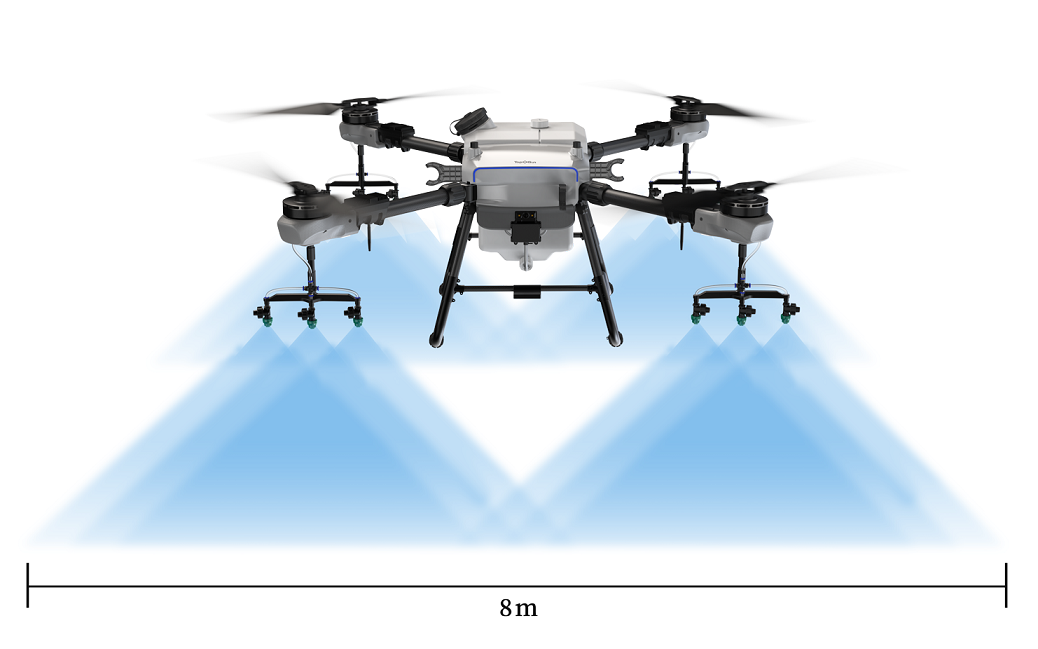

Spray width	6-8m	5-8m
Spread Parameters
Tank capacity	45L	35L
Feeding method	Roller quantitative	Roller quantitative
Spread method	High pressure air delivery	High pressure air delivery
Feeding speed	50L/min	50L/min
Spread width	5-7m	5-7m

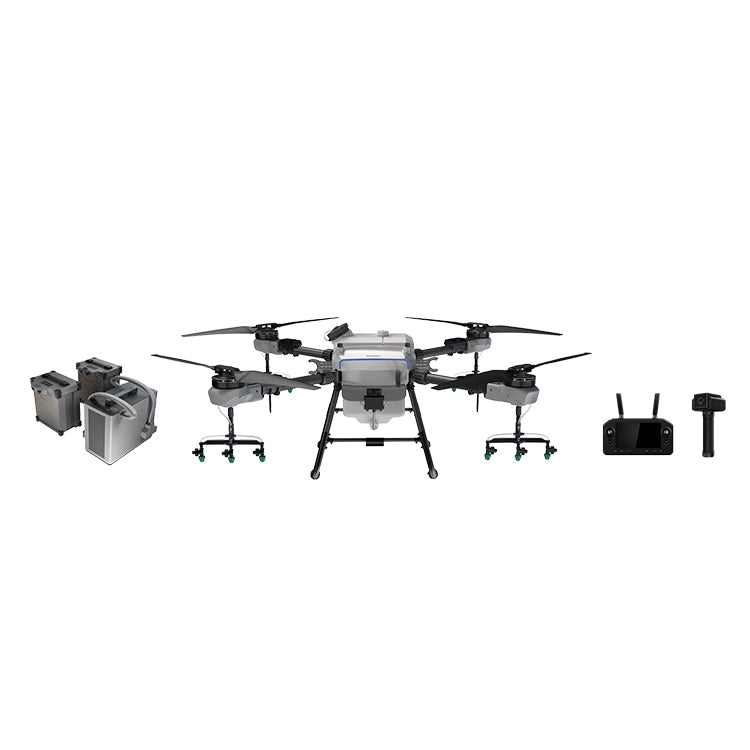

Full set include: Drone*1 Remote Control*1 Charger*1 Battery*2

1.Equipped with a 30L super large chemical tank, the operation efficiency is increased to 14.6Ha/hour. 2.Equipped with hands-free pressure relief valve, automatic exhaust. 3.Equipped with a pressure nozzle, the liquid will not drift, and it can support centrifugal nozzles, and the powder will not be blocked. 4.A full-scale continuous level gauge displays the true liquid level.

1. 45L granule container, super large load, spreading width up to 7m 2. Spreading evenly, air blowing, do not hurt seeds or buds 3. Full anti-corrosion, no damage to the machine, washable, no clogging 4. Measure material weight, report in real time, prevent overweight, and be safer

1. All aviation aluminum main frame, which reduces the dead weight and has high strength and impact resistance 2. The core components are closed to prevent dust from entering and corrosion of chemical-resistant fertilizers 3. The battery can be cycled 1000 times, one battery is fully charged in 10 minutes, and 2 batteries can be cycled

1. Provide a variety of modes of operation, including fully autonomous, AB point, manual, etc . 2. A variety of enclosure methods: RTK hand-held inkers, planes, and maps 3. The bright screen remote control can be seen clearly under the hot sun, and has a long battery life of 6-8 hours 4. Automatically generate edge sweeping routes to prevent edge leakage 5. Equipped with searchlights and landing lights for safe operation at night 6. 10 minutes to fully charge a battery, 2 batteries can be cycled

1.Ultra-far 40m automatic identification of obstacles, autonomous obstacle avoidance 2.Five beams imitate the ground, accurately follow the terrain 3.Front and rear 720P HD FPV, rear FPV can be flipped down to observe the ground

1.RTK positioning technology, supporting Beidou / GPS / GLONASS, and equipped with dual anti-inference antenna.
2. Centimeter-level accuracy ensures the drone taking off and landing at the same point.
3. A magnetic compass is equipped to ensure the drone flies straight in the right direction even when RTK is unavailable.
4. The front and rear obstacle avoidance radars offers ± 10cm accuracy, effectively avoiding obstacles such as utility poles and trees.
