D3530EVO 3530 1100KV 2808 Rotor RC Brushless BLDC Outrunner Motor for UAV Aircraft Multicopters RC Plane Helicopter FPV DRONE

Write a review

Save -45% Rs. 5,777.82 ~~Rs. 10,468.60~~

Brand : Shanvis

Collection : Drones & Accessories

SKU : 167478722013089_76589944

Availability : 9999 In Stock Sold Out 9999

HURRY ! ONLY 9999 LEFT IN STOCK.

Output Power350W

Voltage(V)12V

Speed of Revolution13200rpm

Translation missing: en.products.product.product_variants

Quantity

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

FREE SHIPPING

WORLDWIDE

BIG SAVING ON

WEEKENDS

24H SUPPORT

Description
Shipping

Product Overview

D3530EVO（2808）RC Brushless Motor for UAV Aircraft Multicopters RC Plane Helicopter

Flashhobby has been focus on all series of flight control system, brushless speed controller/ESC, FOC speed controller/ESC, outrunner brushless motor, hall brushless motor and photography applications, supplying high quality RC solutions for many famous brands. Flashhobby takes the customer demands as the orientation, takes the improvement of product performance and the quality as the goal, brings more satisfied products to customers.

FEATURES AT A GLANCE

D3530EVO 1000KV（2808） RC Brushless Motor

Features: 48H Level Magnet Precision Balanced Rotor Test 14P12N High Torque Motor Design CNC 6061-T6 Aluminum Bell High RPM Imported(NSK/NMB) Bearing High Temperature Resistant Copper Wire Winding

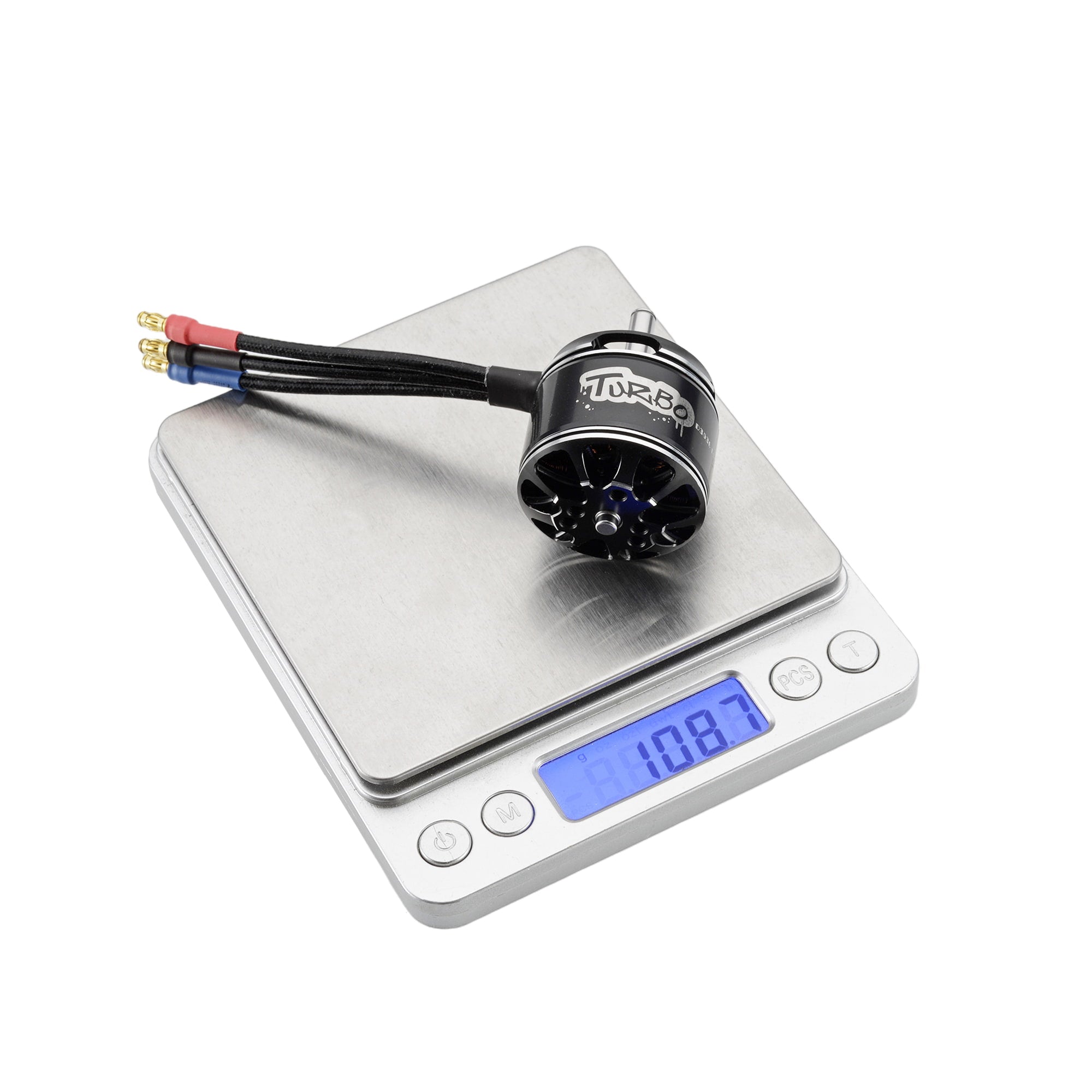

Weight: 75.1g(Including wires) Motor Size: 35.3 x30mm Shaft Size: 5.0*49.5mm Motor Mount: 19*25mm(M3*4) Configuration: 12N14P KV Value: 1100KV, 1400KV,1700KV or customed KV

KV: 1100KV Max watts: 380W Max Current: 23.27A No Load current: 1.16A/10V Resistance: 97.5mΩ Battery: 3-4S Lipo Suggested Prop: 8 inch prop

PRODUCT SPECIFICATIONS

Balance Test

Wire Winding

Production Line
