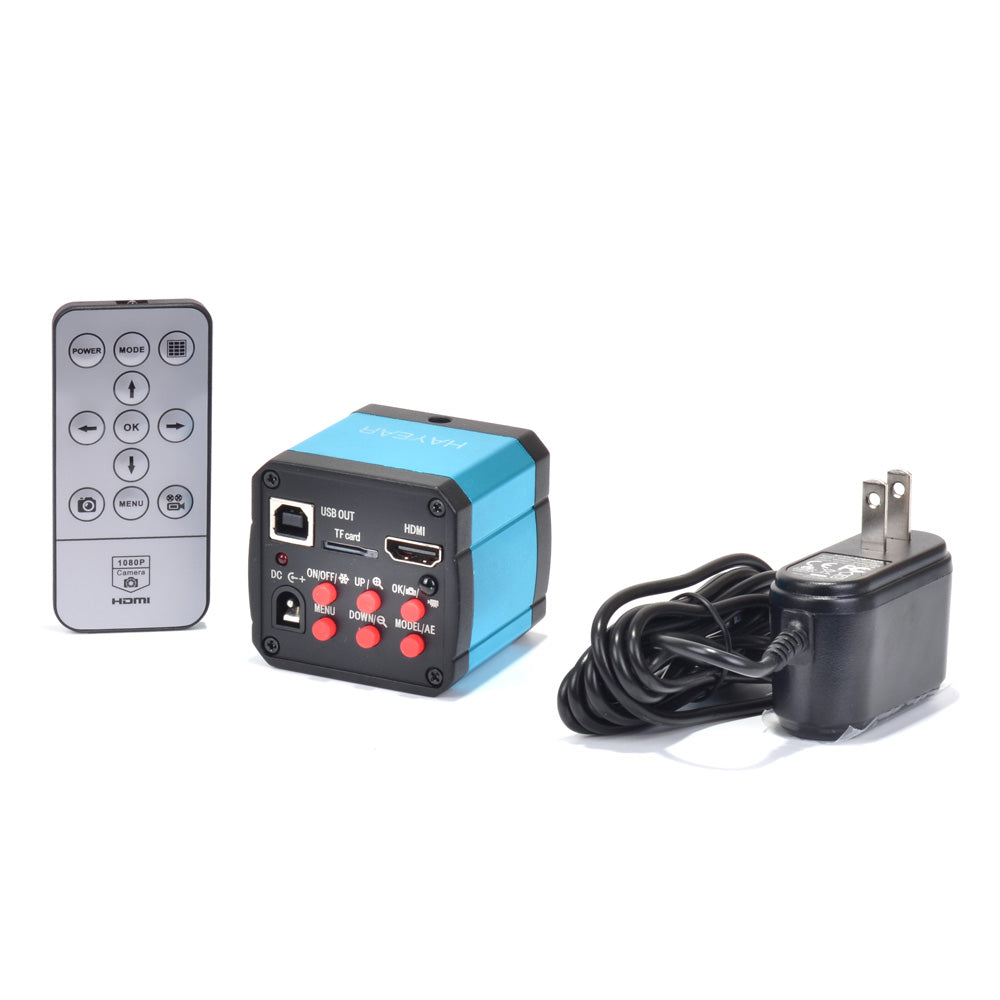

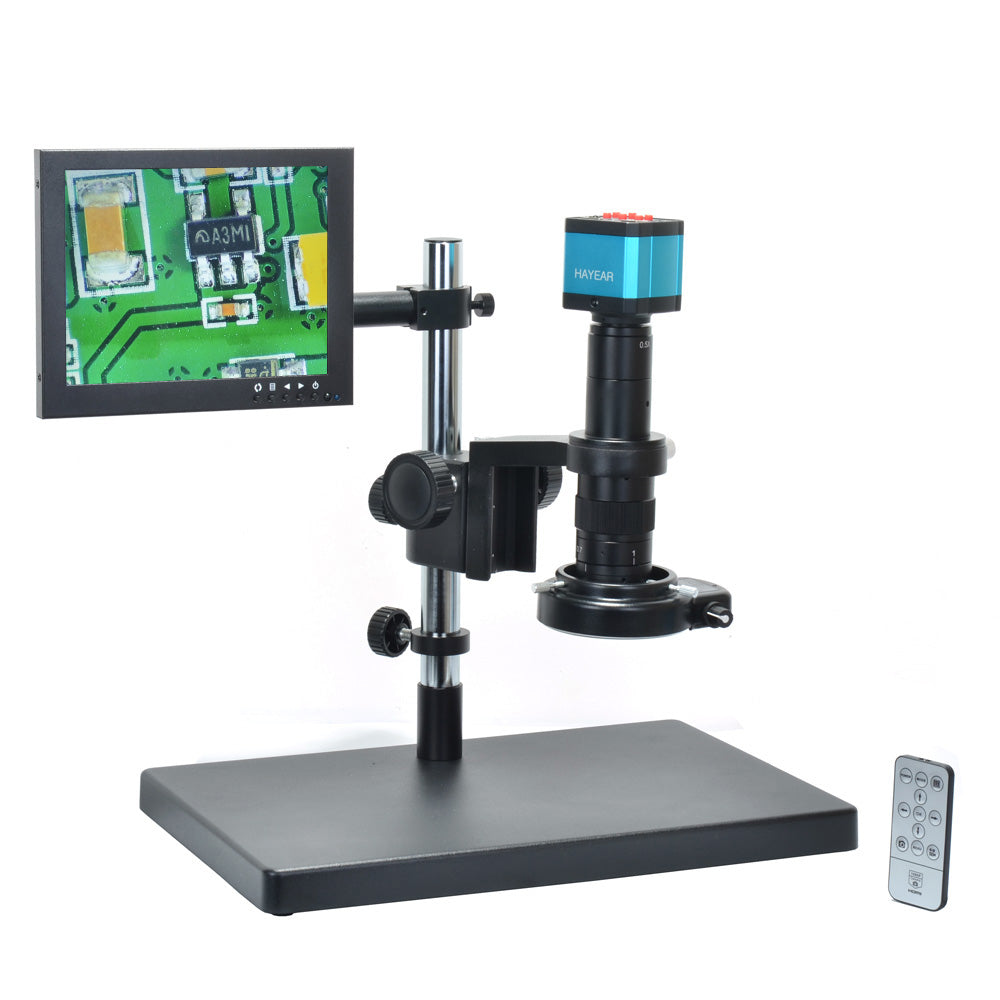

14MP HD HDMI-Compatible USB Digital Video Microscope Camera 180X C-MOUNT Lens Big Boom Stand Universal Bracket 144 LED Light
Share
Note: For USB output, the white balance,exposure and color adjustment are automatic. They can't be adjusted.
For HDMI-Compatible ouput, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.
| Features |
|
| Model |
HY-2307 |
| Image format |
jpg |
| Image resolution |
4320*3240 (for TF card) 1920*1080 @ 60FPS(for TF card) |
| Video format |
MP4 |
| Video recorder |
1920*1080 @ 60FPS (for TF Card) |
| USB Video resolution |
1920*1080 @ 30FPS |
| White Balance |
Auto |
| Light |
Auto |
| Color |
Color |
| Negative |
Support |
| Mirror |
Left/right,Up/Down |
| Freeze |
Support |
| OSD |
English/Chinese/French/Spanish/Portuguese |
| Line |
different color,5 horizontal line , 5 vertical line,any positions |
| Specification |
|
| Image sensor |
14 megapixel Panasonic sensor 1/2.3 inch |
| Effective pixel |
14 megapixel |
| Pixel size |
1.43x1.43um |
| Frame rate |
60fps |
| Definition |
FULL HD |
| Housing |
metal |
| Video format |
MP4 |
| Encode |
H.264 (High Profile) |
| Digital magnification |
5 times digital zoom |
| Brightness control |
Auto/manual |
| Color |
R/G/B adjustable |
| Film and record |
Support |

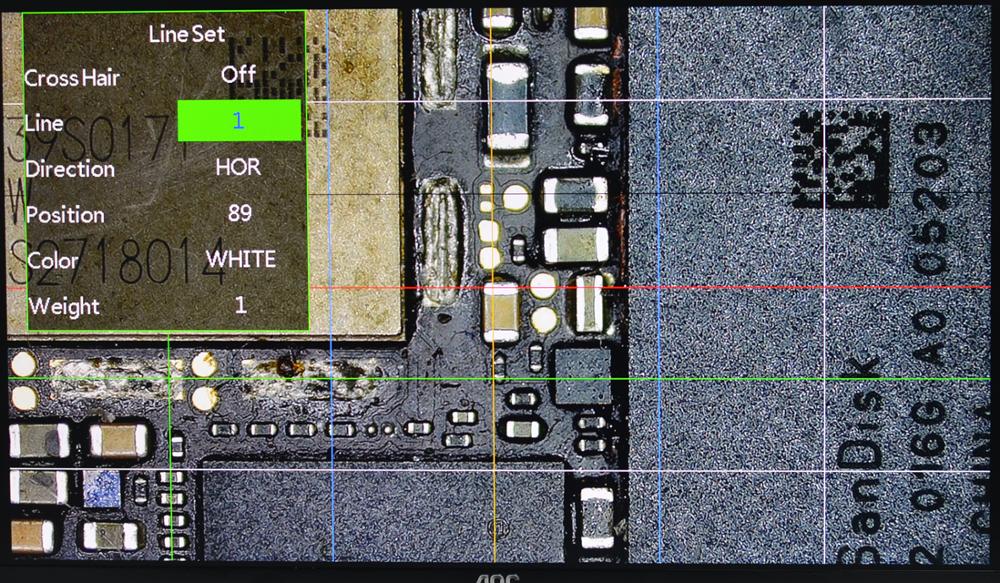

| Cross cursor |
Support multi-color, size adjustable |
| Transverse and vertical line |
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable Different color,5 horizontal line , 5 vertical line,any positions |
| SNR |
Support |
| TF card interface |
Max 64G |
| HDMI-Compatible interface |
Standard HDMI-Compatible output (Type A) |
| Lens |
C |
| USB interface |
Standard usb2.0 interface (Type B) |

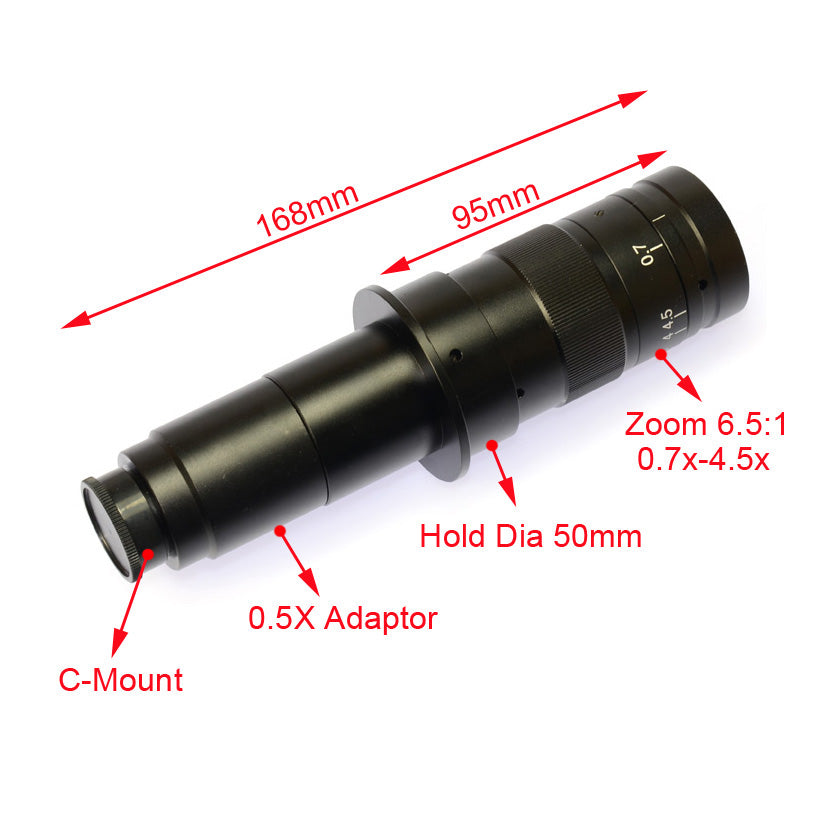

C-MOUNT Lens:
Zoom c-mount Lens
Magnification Power by 0.7 - 4.5X (about 10X - 180X on the display)
Work distance:100mm-150mm
Visual field :2.3mm-22mm
Size: 180mm(L) * 50mm(DIA)
Weight: 450g

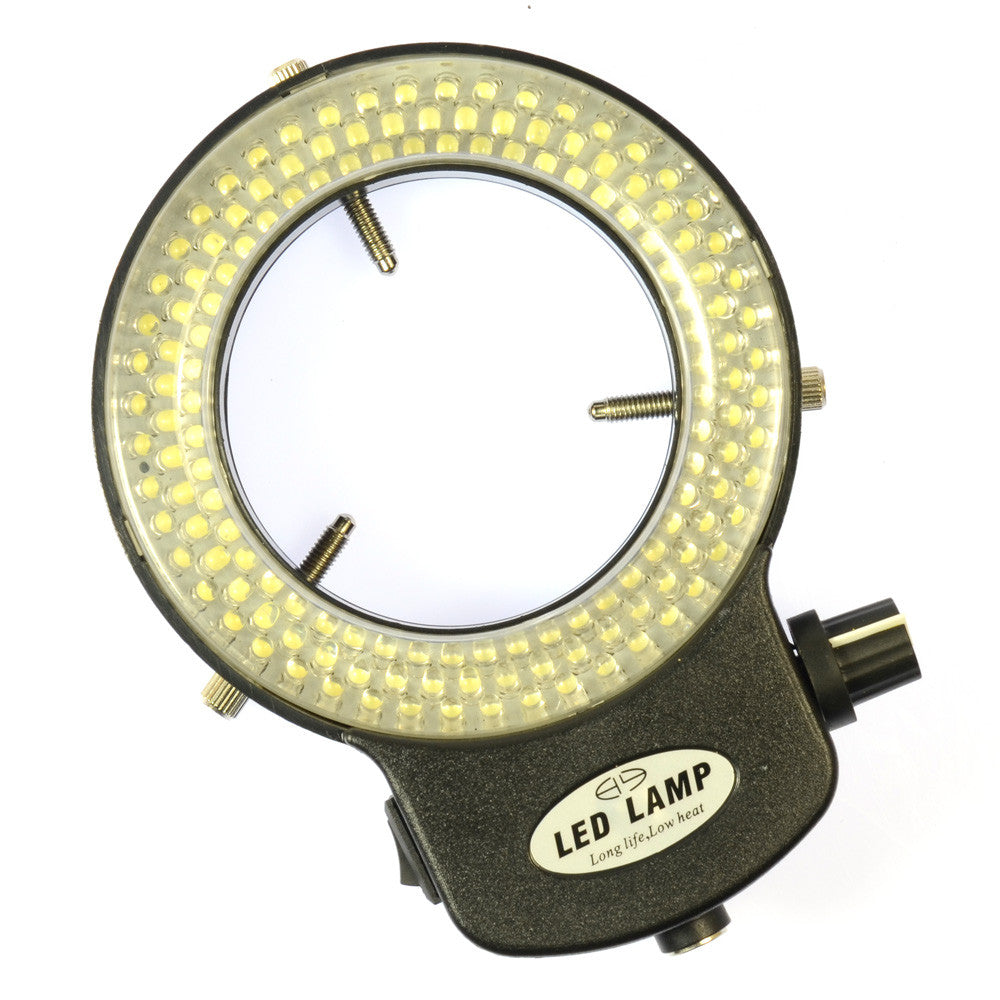

144 LED Light:
144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
8 Inch Monitor:
8 inch (1024 x 768) high resolution TFT LCD monitor
Clear image and colorful display
Support BNC input for professional security system,which can reduce signal interference to achieved a best signal state
Multi video input supported (RCA, VGA, BNC)
Support 15-pin VGA input , connect with PC (1024*768)
Suitable for CCTV monitor, PC monitor or indoor use
Built-in high quality speakers
Auto standy function with timer switch and no signal
Screen Size : 8"
Screen Resolution : 1024 x 768 pixels
Aspect Ratio : 4 : 3
Screen Brightness : 400 cd/m2
Screen Contrast : 400 : 1
Viewing Angle : 160° (H) x 160° (V)
Response Time : <= 12ms
Video Input : HDMI-Compatible, AV-in, VGA, BNC
Power Supply - Input: AC 100~240V, 50~60Hz (worldwide voltage) - Output: DC 12V, 400mA
Dimensions : - approx. 195 (W) x 160 (H) x 32 (D) mm
