Safety : Auto add fuel function
Safety : Auto ignitor
Safety : remote control turn off
Adjusting flame tool and auto ON/ OFF for burner as follow:
Button of burner , remote controller , smart phone that is wifi function , RS485 /dry contact / RS232 /google home /control 4 / Z-wave -/ Zig bee home system
|
SPECIFICATIONS FOR 36 inch paramter form
|
||||||
|
Size of burner
|
610mm L X 193mm W x 168mm H
|
Function
|
Automatic ignition/extinction
|
|||
|
Flame length
|
482mm
|
Electronic heat detectors
|
||||
|
Capacity
|
5 liter
|
Heavy shake sensor
|
||||
|
Fuel Consumption
|
0.4~0.72 L/H
|
Auto-filling fuel
|
||||
|
Heat output
|
2600W ~ 4800W
|
Flame adjustment
|
||||
|
Packing size
|
78*30*32CM H
|
CO2 density alarm
|
||||
|
G.W.
|
18 kg
|
Anti-interference
|
||||
|
Hole size for fit burner in
|
605mm L x 180mm W x 250mm H
|
WIFI function
|
||||
|
Technical data as follow :
|
smart home dry contact
|
|||||
|
Voltage
|
100V~240V
|
|
||||
|
Frequentie
|
50HZ/60HZ
|
|||||
|
Electrical consumption
|
50W
|
|
||||
|
Inside burner
|
DC 24V/2A
|
|||||
Using wifi to operate burner as follow:

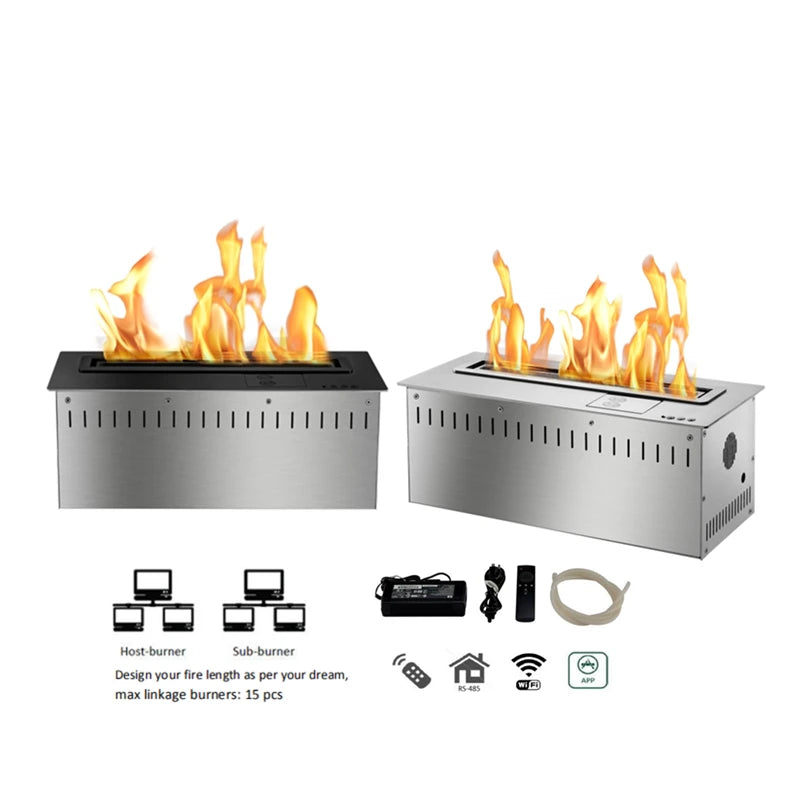

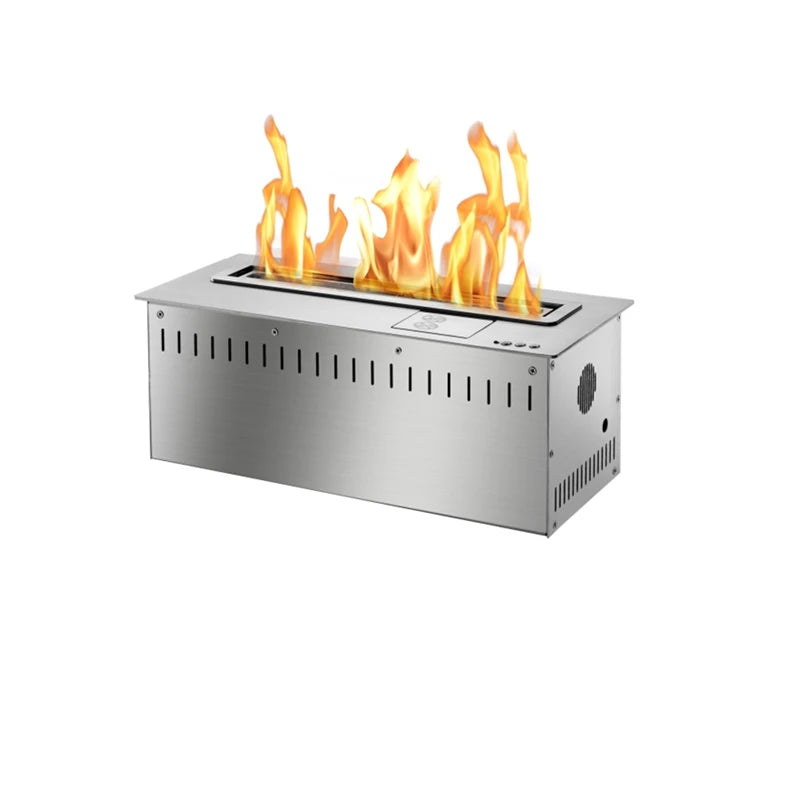

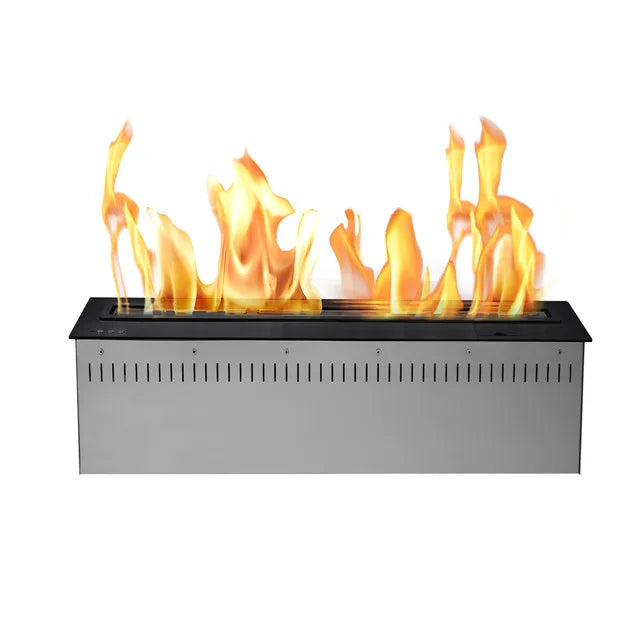

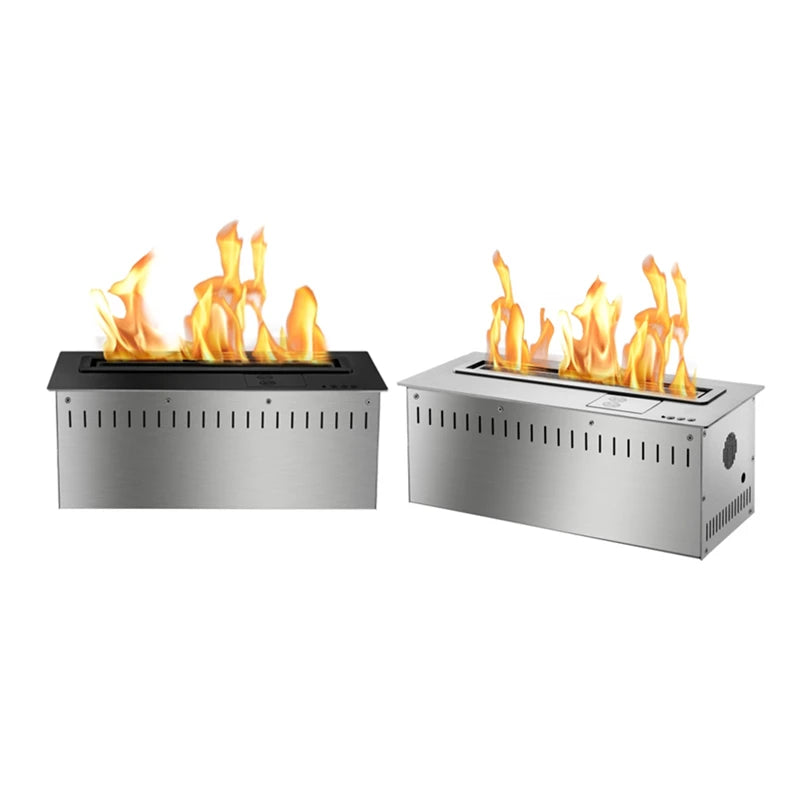

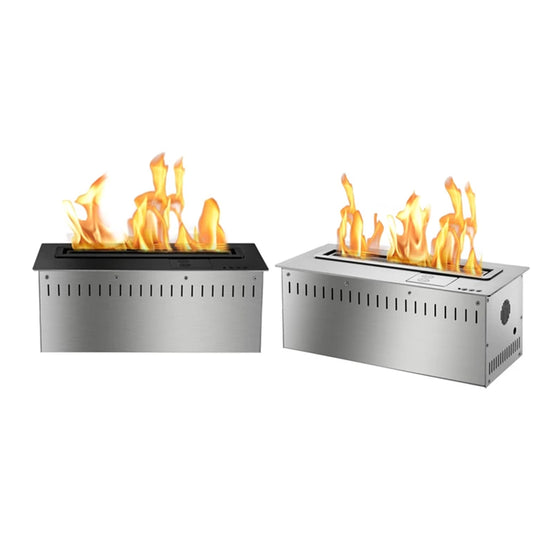

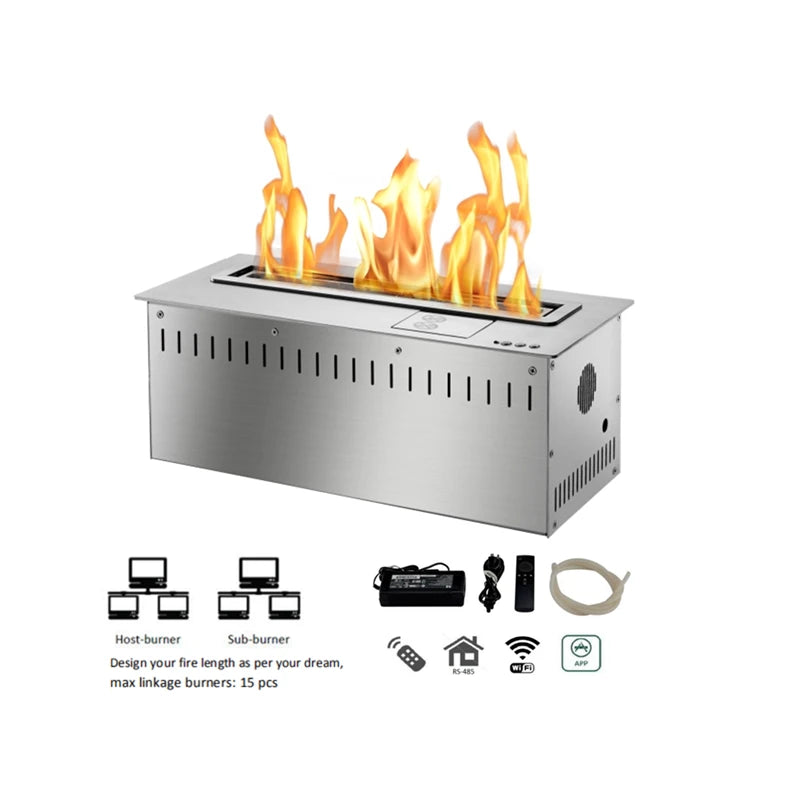

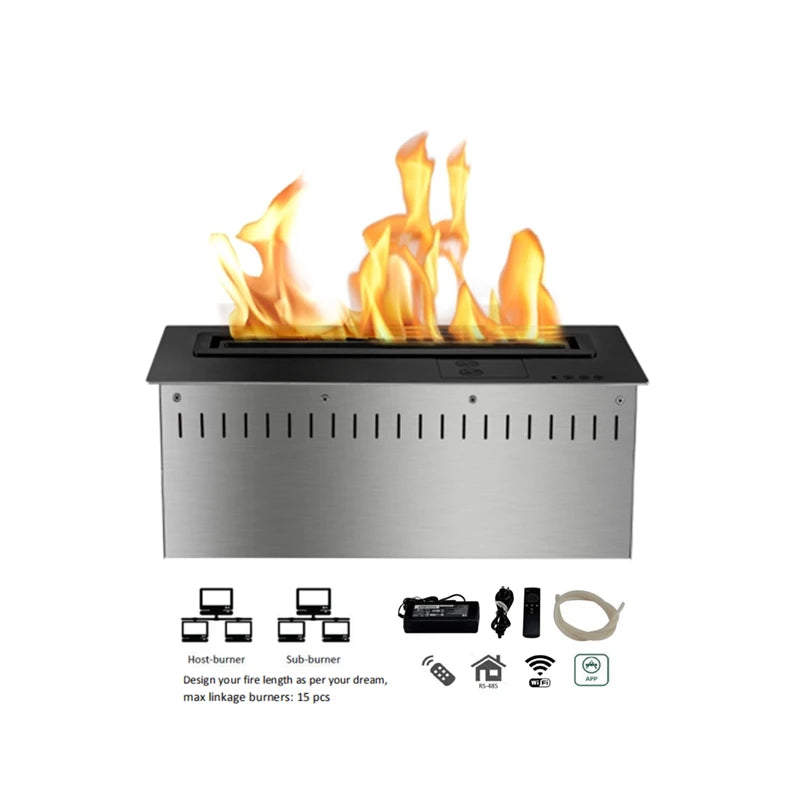

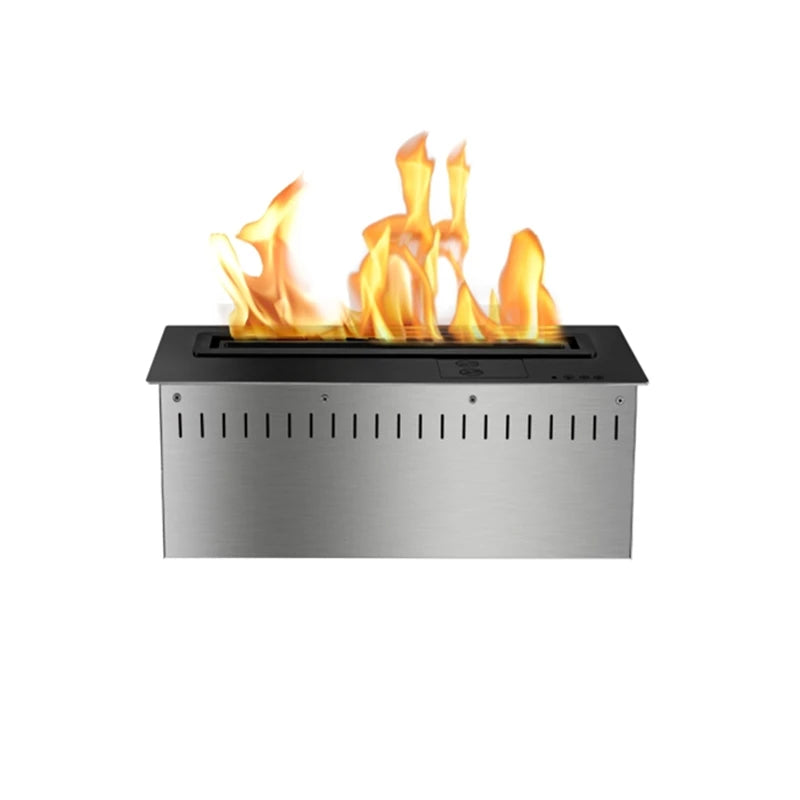

Physical picture as follow:
Size reference as follow:
Main Features
Rectangular Remote Control Fireplace
1. Automatic ignition/extinction, control by a Button ON/OFF and remote control.
2. AC adaptor.
More safety:
1. Save the ethanol fuel in a separate tank which away from the burning chamber.
2. With electronic heat detectors ,it will automatice extinction when the temperature reaching the un-authorized levels.
3. With heavy shake sensor, flame will be distinguished automatically when fireplace body turn over or shake.
4. Auto-filling fuel by press a botton, let your handle free.
5. Flame adjustment- 4 flame size available
6. CO2 density alarm.
Technical data:
Voltage: 100V/240V Inside burner: DC 24V/2A
Frequentie: 50HZ/60HZ
Electrical consumption: 50W
Main Features
Brand: inno fire
Original: China
Machine Parts
Name: part of fireplace
Brand: inno fire
Original: China
