Portable digital soil ph probe rs485 soil ph meter tester

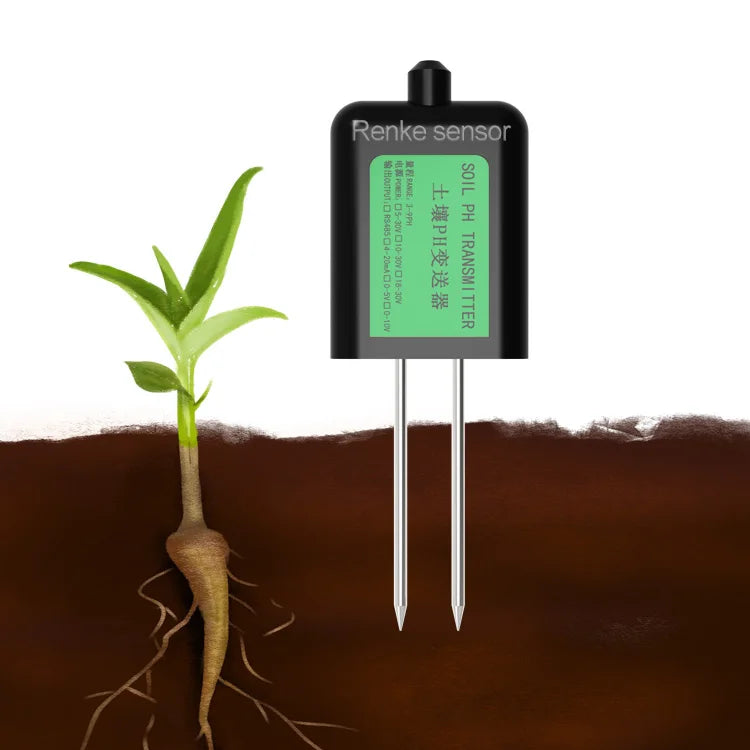

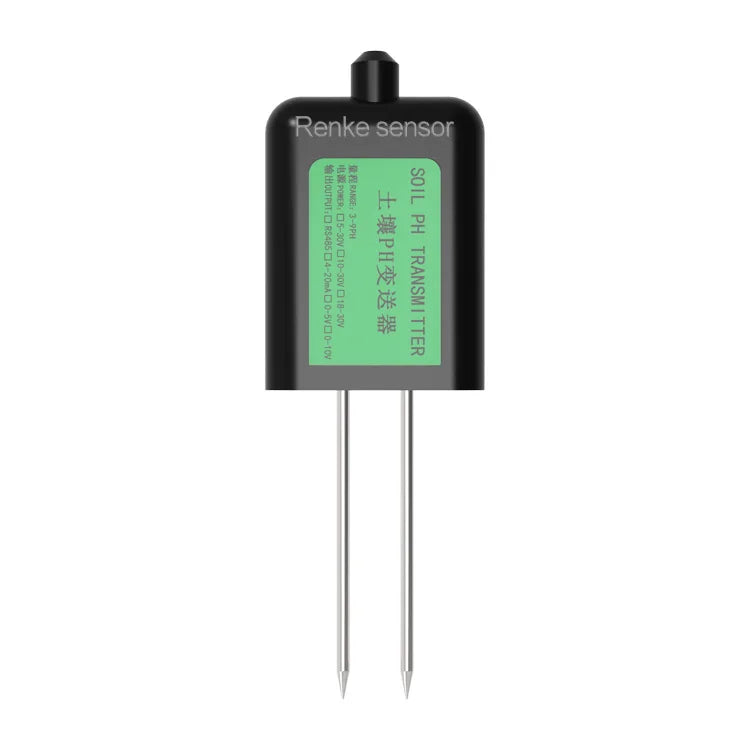

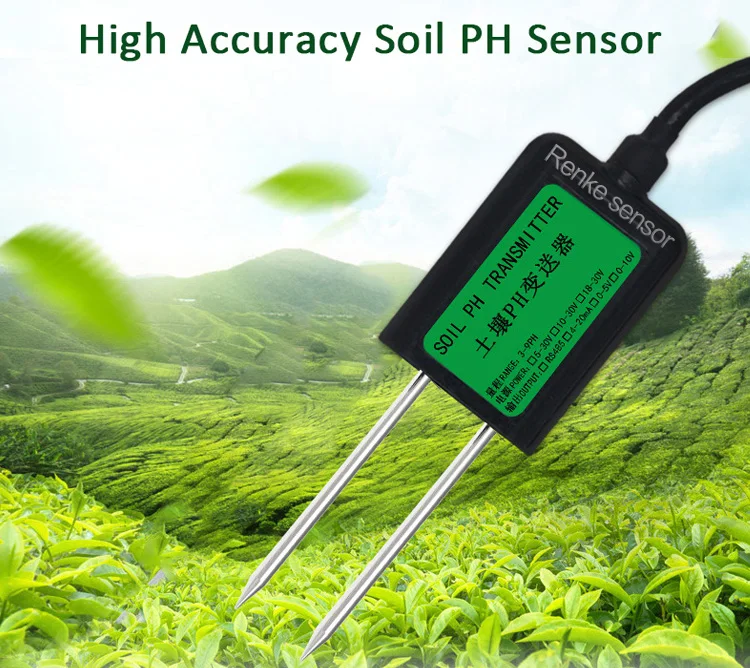

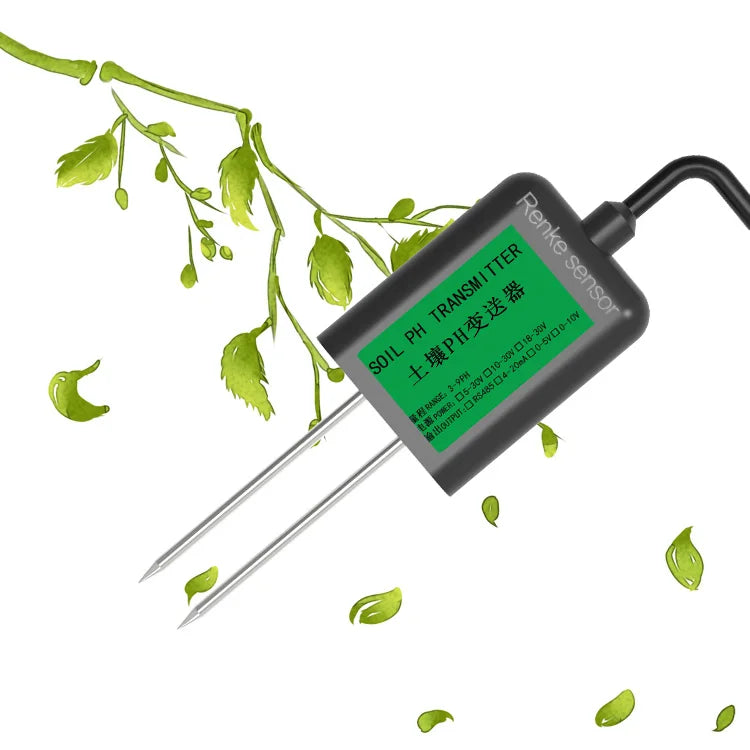

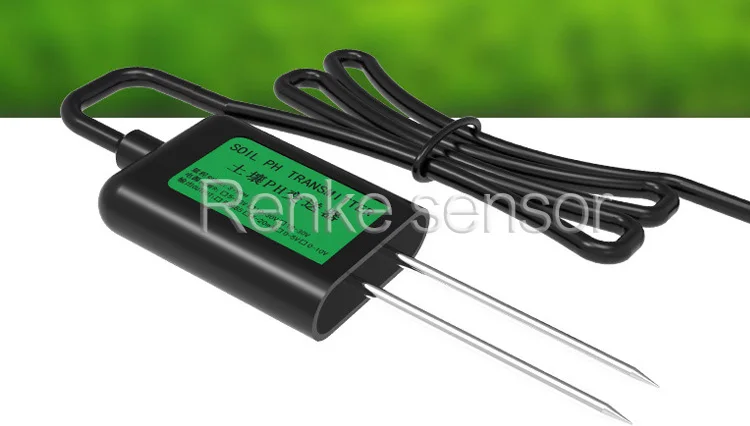

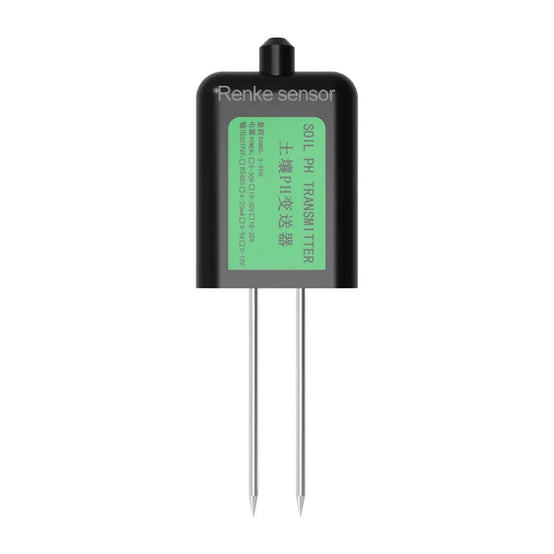

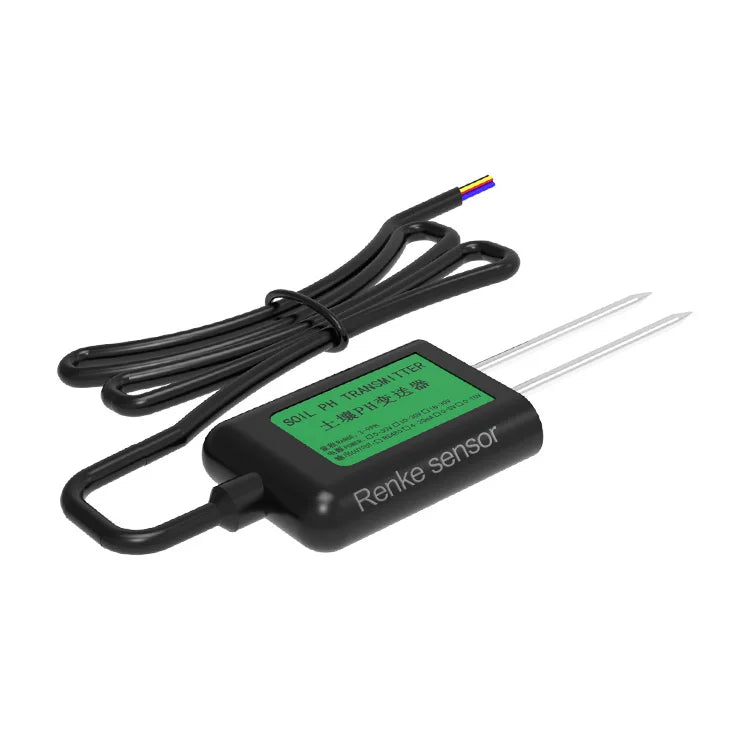

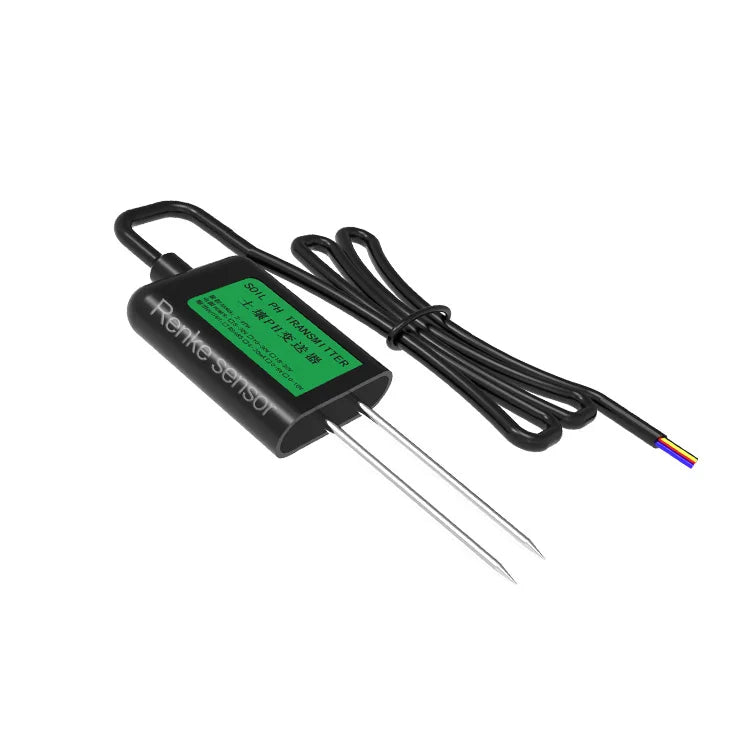

RS-PH-*-TR-1 is a soil PH sensor is developed by our company. The transmitter has high accuracy, fast response, stable output, and is suitable for various soils. Can be buried in the soil for a long time, resistant to long-term electrolysis, corrosion resistance, vacuum potting, completely waterproof.

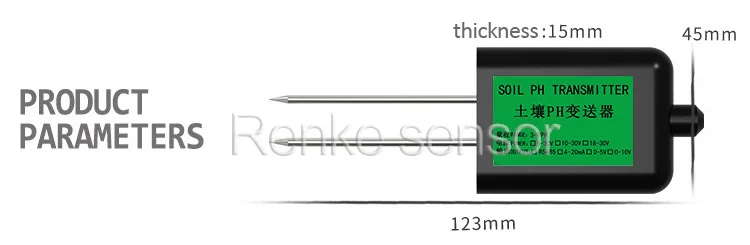

| Power supply | 5-30VDC |
| Maximum power consumption | 0.5W |
| Measuring Range | 3—9 PH |
| Resolution | 0.1 |
| Operating temperature | -20℃~60℃ |
| Long-term stability | ≤5%/year |
| Response time | ≤10S |
| Protection level | IP68 |
| Probe material | Anti-corrosion special electrode |
| Sealing material | Black flame retardant epoxy resin |
| Output signal | RS485/4~20mA/0~5V/0~10V |
FEATURES:
1) The threshold is low, the steps are few, the measurement is fast, no reagents are required, and the number of detections is unlimited.
2) High measurement accuracy, fast response speed, and good interchangeability.

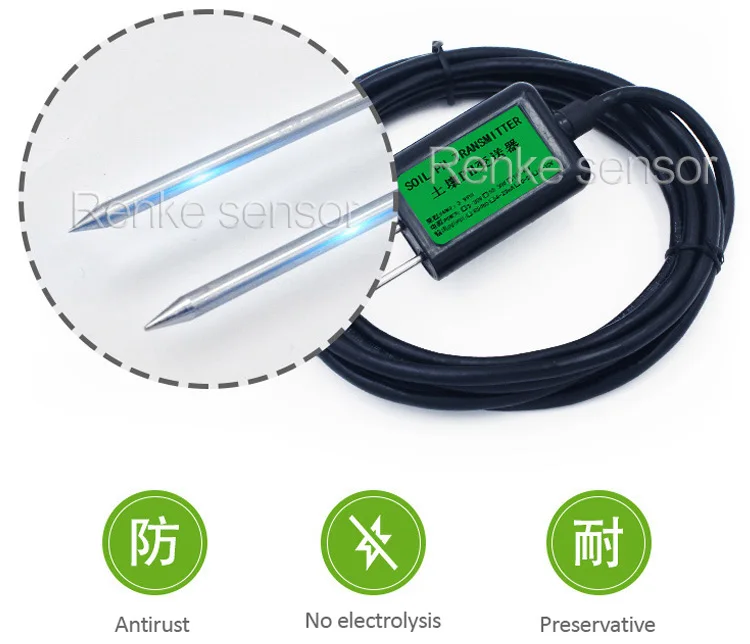

3) The electrode adopts specially treated alloy materials, which can withstand strong external impact and is not easy to damage.
4) Completely sealed, resistant to acid and alkali corrosion, can be buried in the soil for long-term dynamic detection.
5) Probe insertion design ensures accurate measurement and reliable performance.
| RS485 OUTPUT TYPE | ||
| brown | Power is positive | 5~30V DC |
| black | Power ground | GND |
| yellow | 485-A | 485-A |
| blue | 485-B | 485-B |
| ANALOG OUTPUT TYPE | ||
| Thread color | Explanation | Remarks |
| brown | Power is positive | 10~30V DC |
| black | Power supply negative, PH signal negative | GND |
| yellow | PH signal is positive | PH Signal output |
It can be widely used in the measurement of soil pH, precision agriculture, forestry, geological exploration, plant cultivation, water conservancy, environmental protection and other fields.
