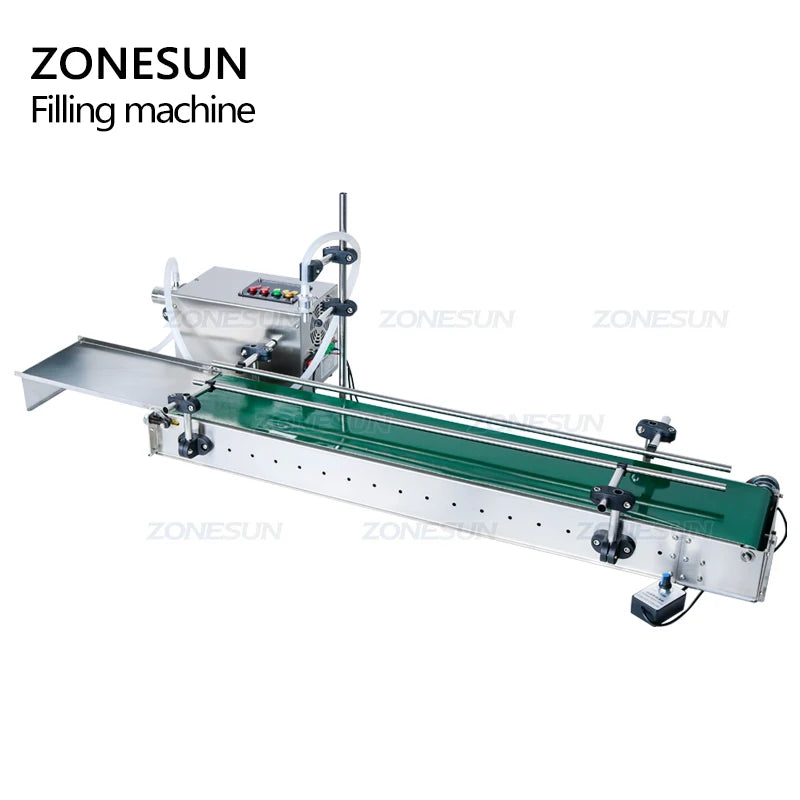

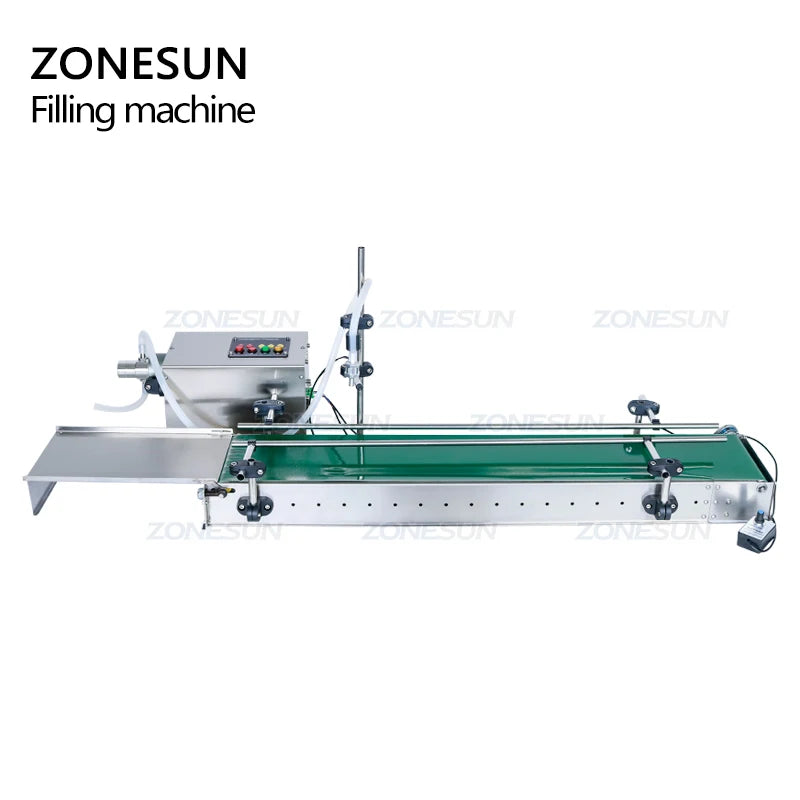

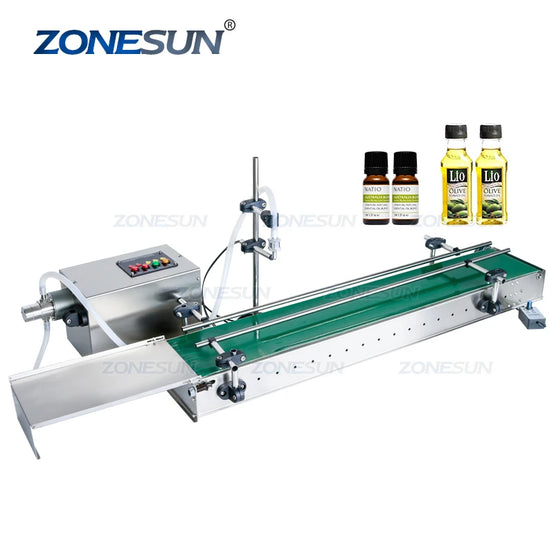

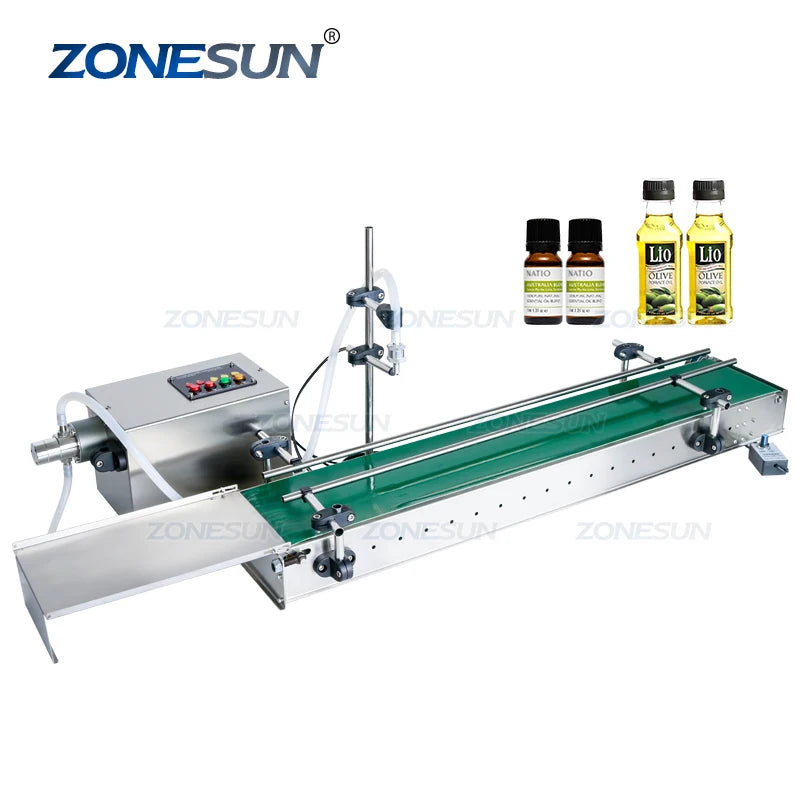

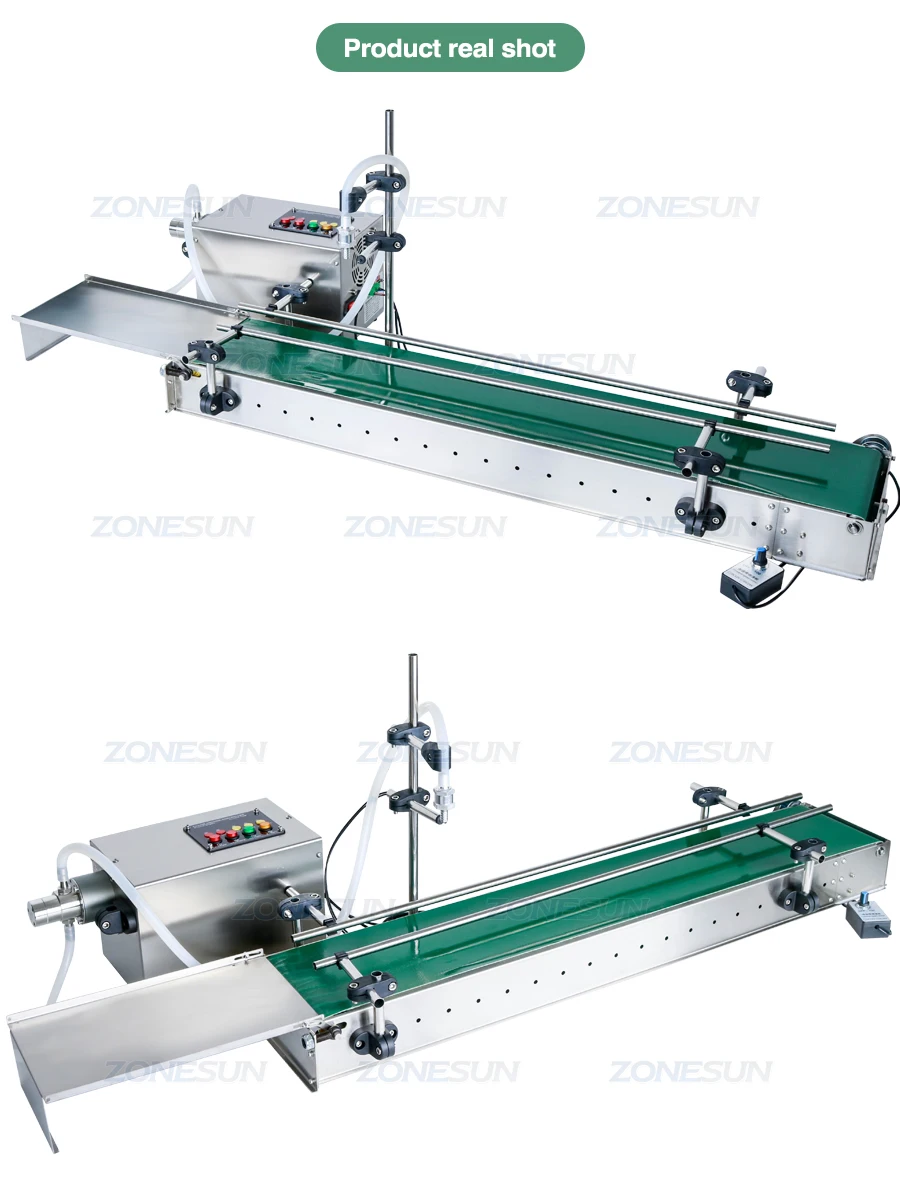

ZONESUN Magnetic Pump Automatic Small Glass Bottle Ink Vial Essential Oil Perfume Eye Drops Liquid Filling Machine With Conveyor
Share

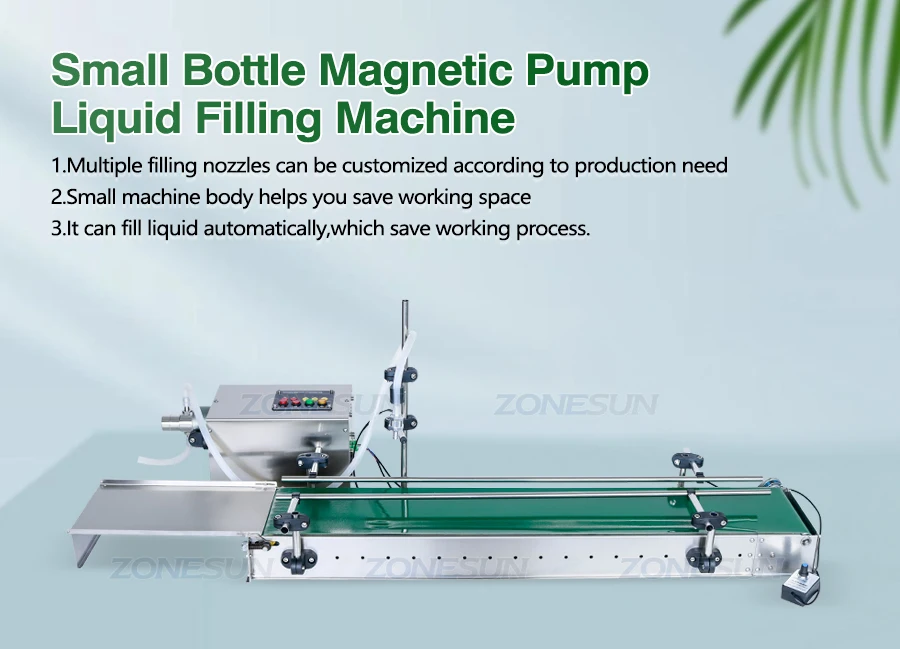

This small automatic filling machine is equipped with high accuracy magnetic pump,it is good for filling low viscosity liquid like water,essential oils,juice etc.Multiple filling nozzle can be customized according to production need.This machine is good for small scale prodcution,the automatic working mode helps you save production.
|

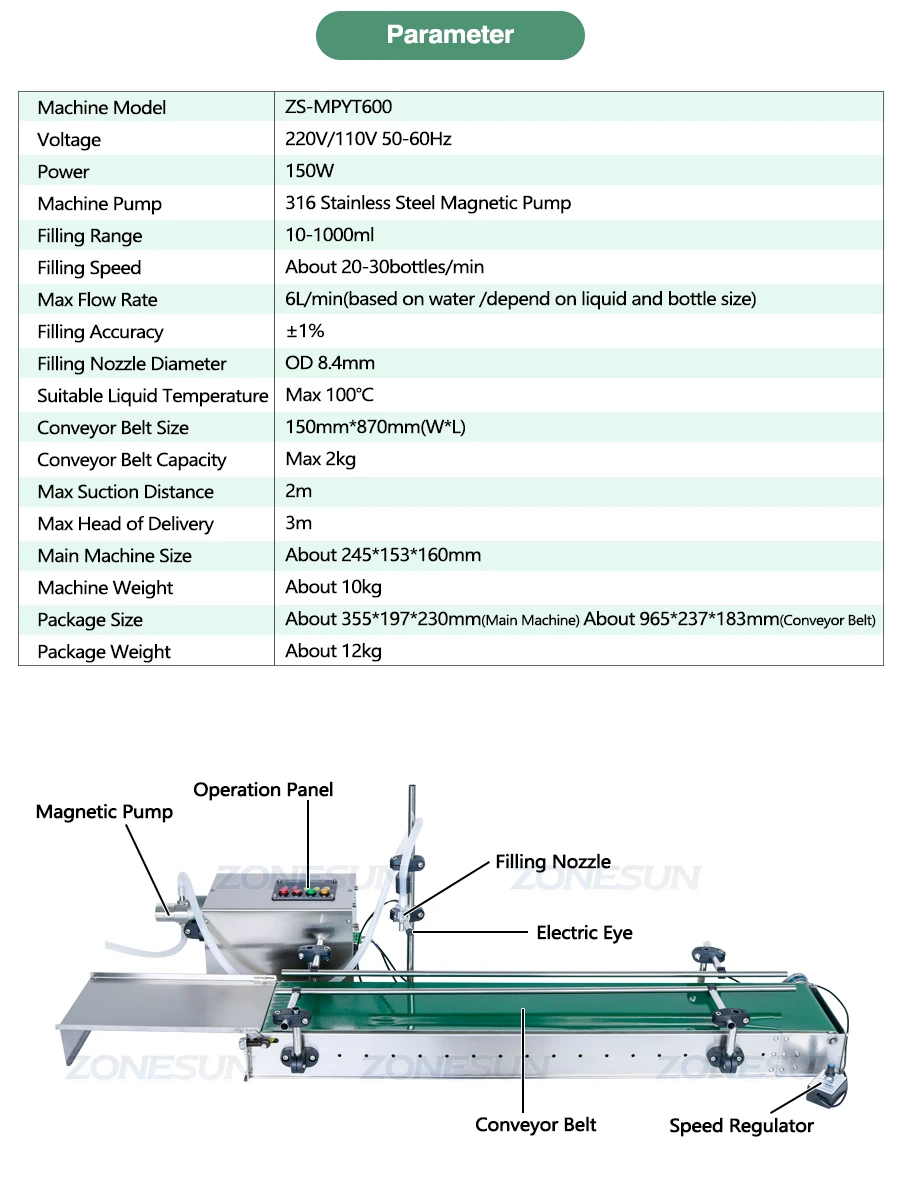

Machine Model
|
ZS-MPYT600
|
|
Voltage
|
220V/110V 50-60Hz
|
|
Power
|
150W
|
|
Machine Pump
|

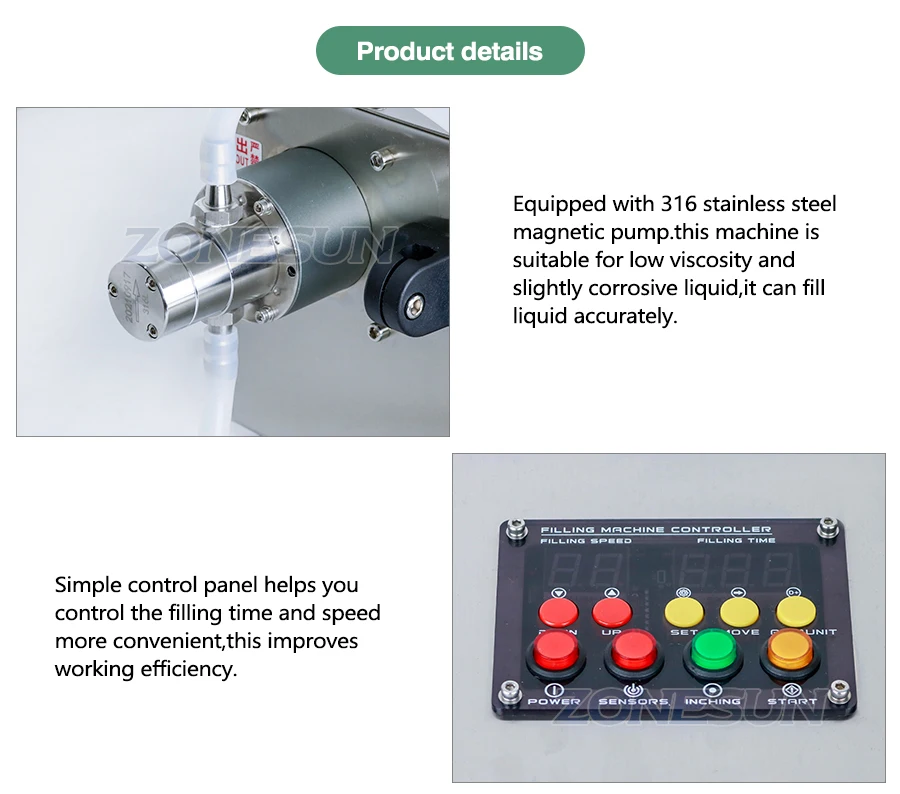

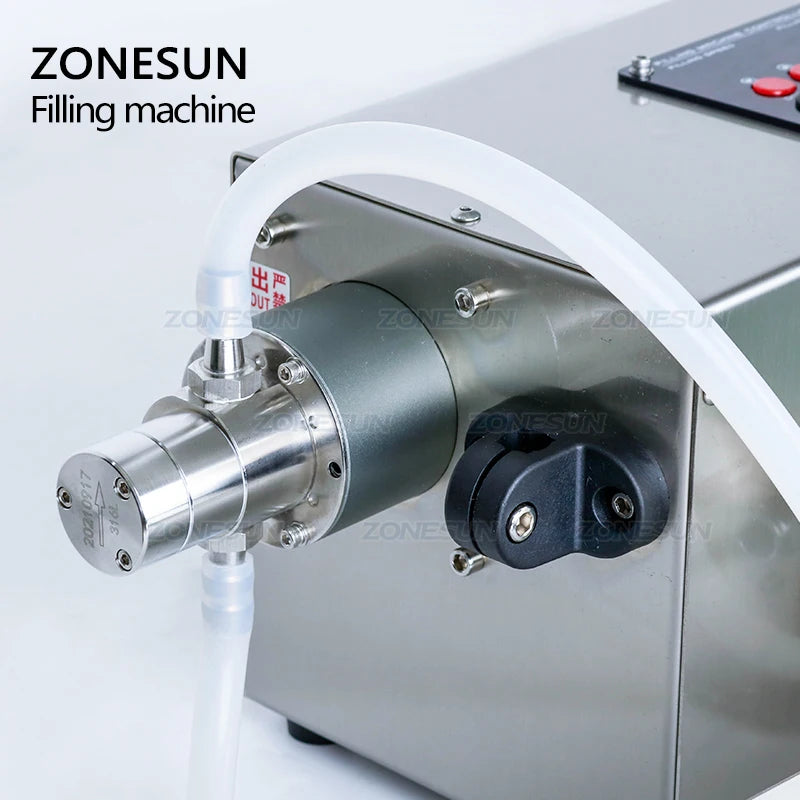

316 Stainless Steel Magnetic Pump
|
|
Filling Range
|
10-1000ml
|
|
Filling Speed
|
About 20-30bottles/min
|
|
Max Flow Rate
|
6L/min(based on water)
(depend on liquid and bottle size)
|
|
Filling Accuracy
|
±1%
|
|

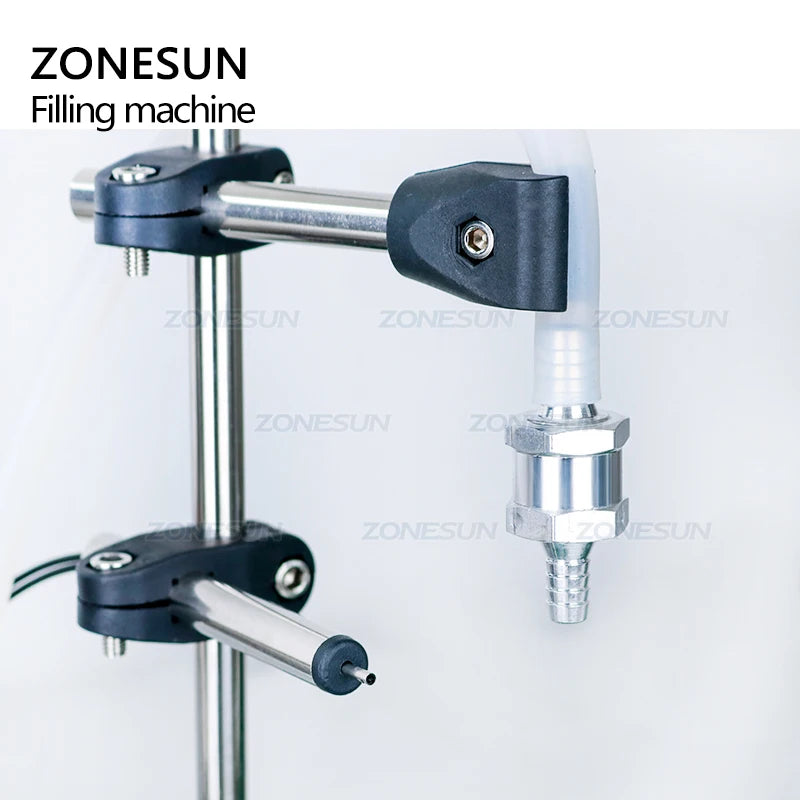

Filling Nozzle Diameter
|
OD 8.4mm
|
|
Suitable Liquid Temperature
|
Max 100℃
|
|
Conveyor Belt Size
|
150mm*870mm(W*L)
|
|
Conveyor Belt Capacity
|
Max 2kg
|
|
Max Suction Distance
|
2m
|
|
Max Head of Delivery
|
3m
|
|
Main Machine Size
|
About 245*153*160mm
|
|
Machine Weight
|
About 10kg
|
|
Package Size
|
About 355*197*230mm(Main Machine)
About 965*237*183mm(Conveyor Belt)
|
|
Package Weight
|
About 12KG
|
