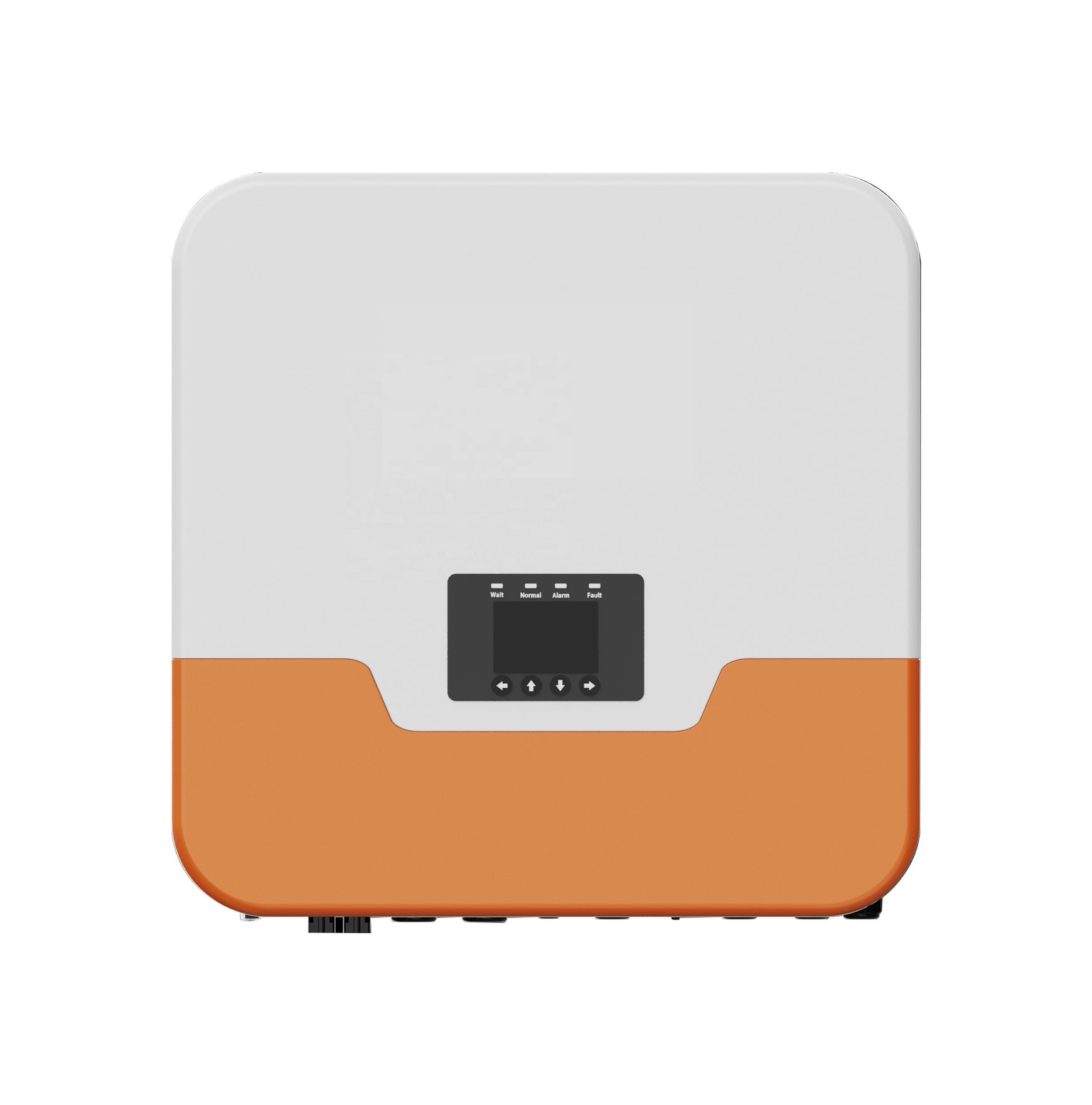

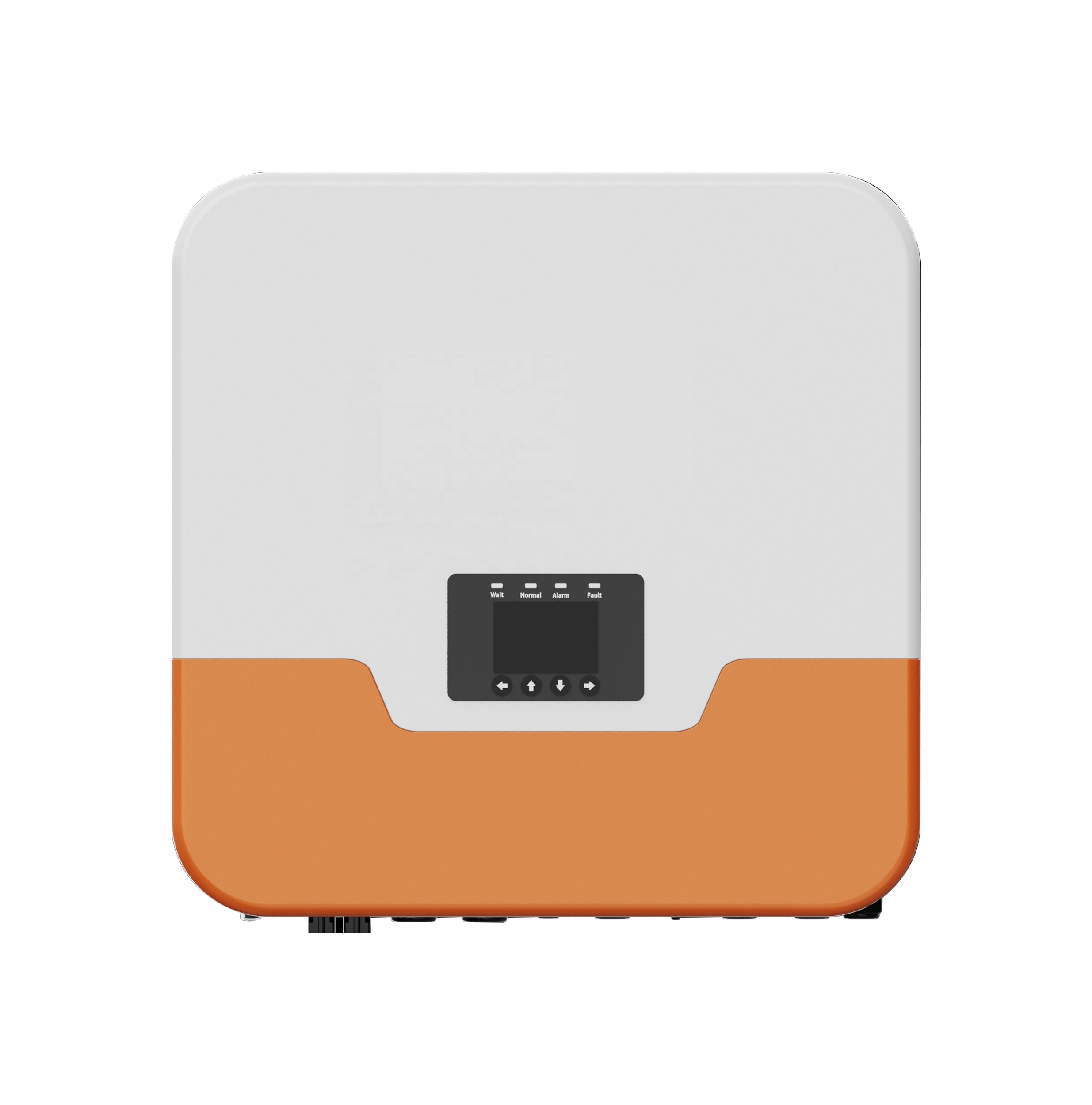

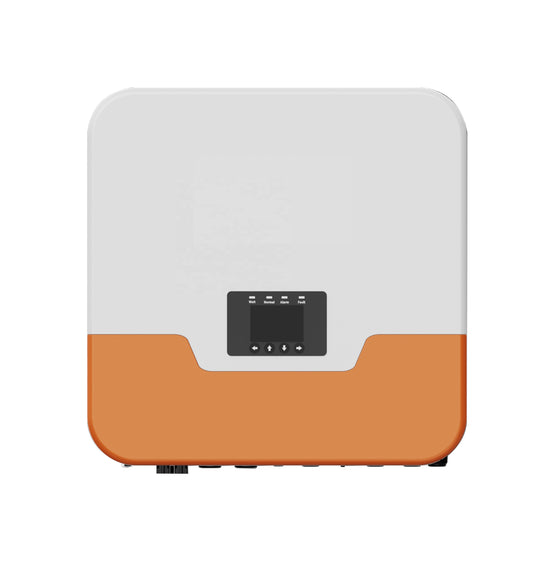

Hybrid MPPT Inverter 3.6kw 5kw 6kw CE SAA certification Sale Electricity Home Use With WiFi Switch Auto for Home Use

Write a review

Save -56% Rs. 959,356.62 ~~Rs. 2,172,689.16~~

Brand : Shanvis

Collection : Home&TechAcc

SKU : 182380944013089_439367228

Availability : 0 In Stock Sold Out 0 0 0

System Energy6kw3.6kw5kw

ApplicationHybrid Solar System

Translation missing: en.products.product.product_variants

Quantity

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

FREE SHIPPING

WORLDWIDE

BIG SAVING ON

WEEKENDS

24H SUPPORT

Description
Shipping

Specification

Model No.	ilNV-HB1-3.6KL	ilNV-HB1-5.0KL	ilNV-HB1-6.0KL
PV input
Max. Input Power	4600W	7000W
Start-up voltage	120V
Max. PV voltage	550V
MPPT range/nominal	125V-500V/360V
Max. input current	14A/14A
MPPT trackerlstrings	2/1
AC output
Rated power va	3600VA	5000VA	6000VA
Max. output current	16.OA	21.7A	26.0A
Nominal voltage/range	230V/176V~270V
Frequency	50/60Hz
Power Factor	1(0.99lagging-0.99leading)
THDI	<3%
AC output topology	L+N+PE
Battery
Battery voltage range	40V~58V
Max. charging voltage	58V
Chargeldischarge current	95.0A/75.0A	95.0A/104.2A	95.0A/110.0A
Battery type	lithium/Lead-acid
Communication interface	CAN
EPS output
Rated power va	3600VA	5000VA	6000VA
Rated voltage	230V
Rated current	16.0A	21.7A	26.0A
Rated frequency	50/60Hz
Automatic switchover time	<20ms
THDU	<2%
Overload capacity	110%,60s/120%,30s/150%,10s
General data
Battery chage/dischage	95.00%
DC max. efficiency	97.60%
Euro efficiency	97.00%
MPPT efficiency	99.90%
Protection class	IP65
Noise emission (typical)	<35dB
Operation temperature	- 25℃~+60℃
Cooling	Natural
Relative humidity	0~95% (non-condensing)
Altitude	2000m
Dimensions (LxWxH)	550×200x520mm/22x8x20inch
Weight	26kg
lnverter topology	Without transformer
Self-consumption	<3W
Features
Display	LCD
lnterface:rs485/can/drmwifi/gprs	yes/yes/yes/optIopt
Certificates
Certificates	CE/TUVISAAIEC62116:2014/IEC61683:1999

Product Description

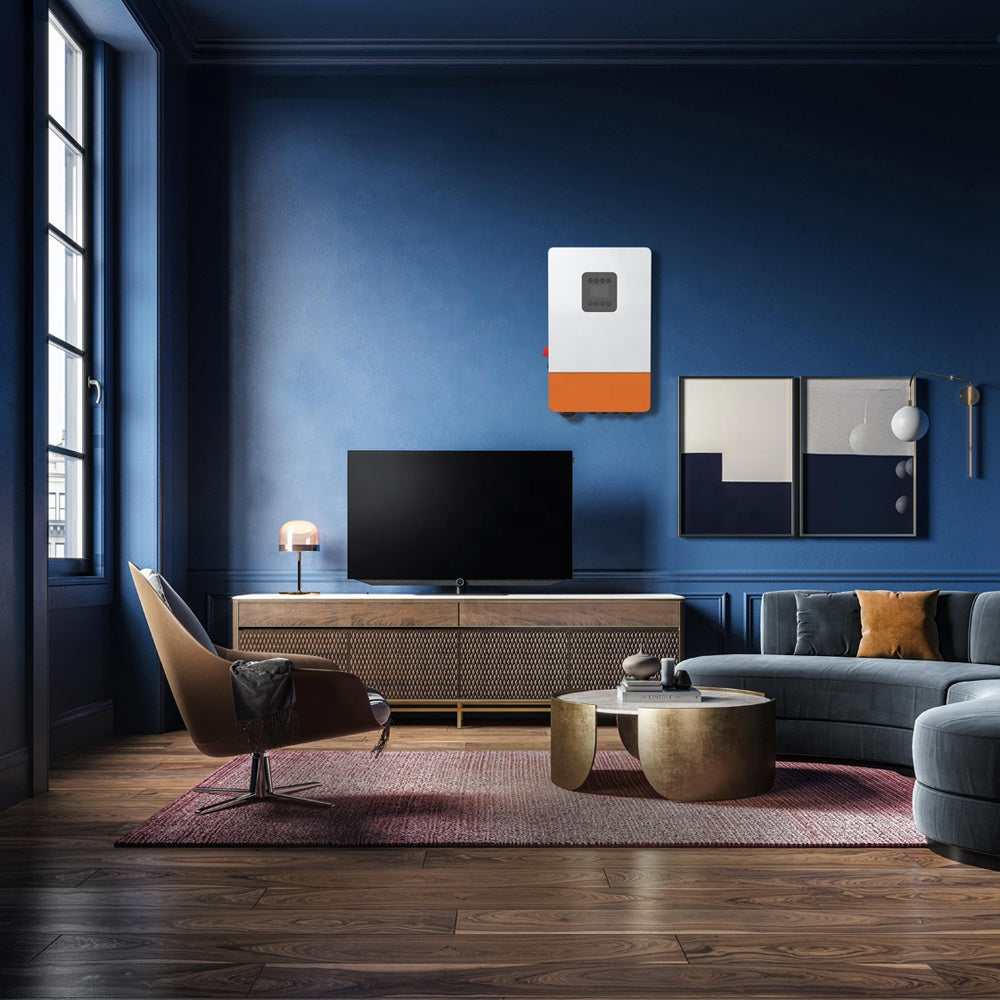

1 Wall-mounted design for easy installation with LCD screen

2. High efficient MPPT solar inverter

3. Multiple application scenarios: telecommunication, PV energy storage, household energy storage etc.

4. Certified with MSDS and UN38.3

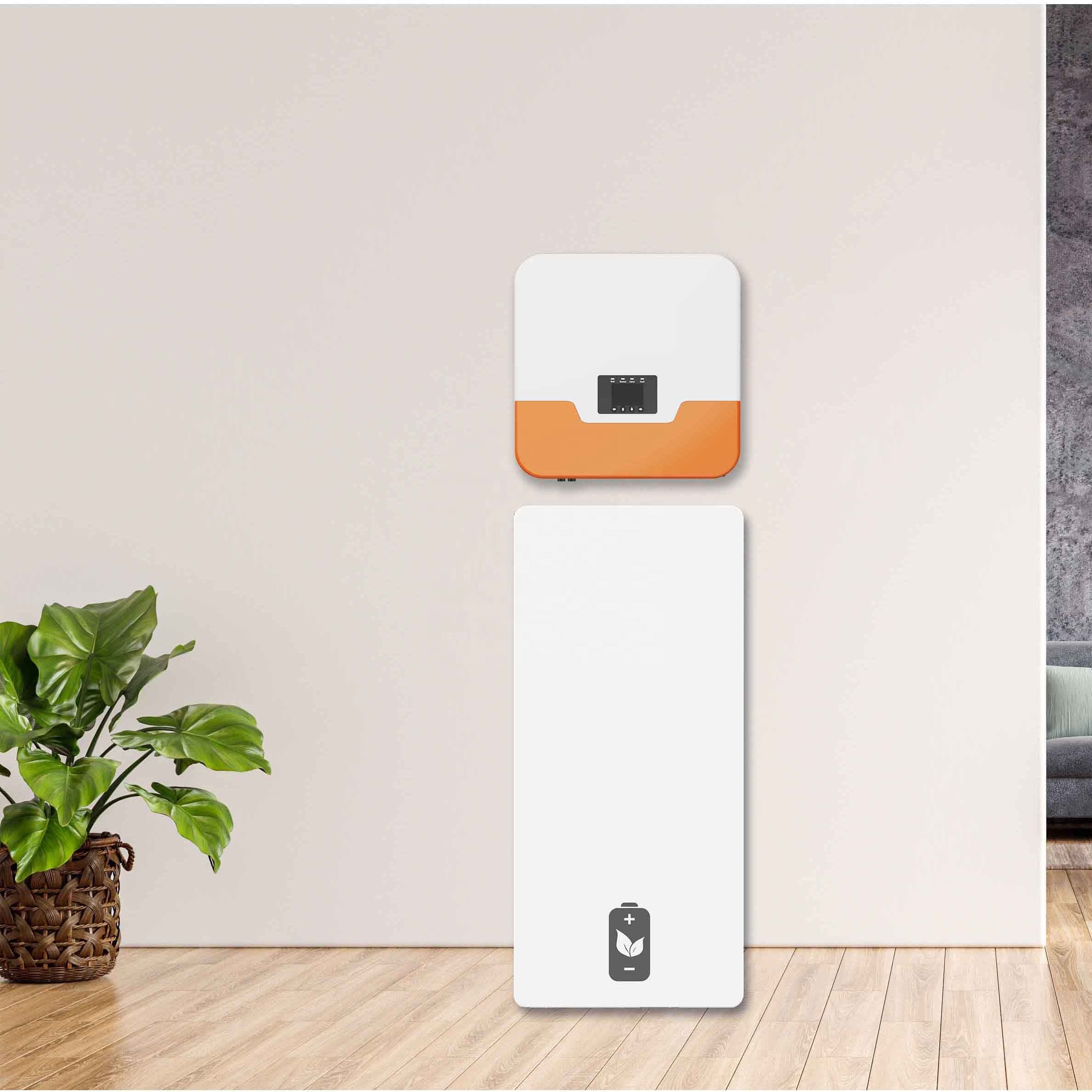

5.Could be hybrid system with solar panels for residential energy storage application

6.Compact size with light weight
