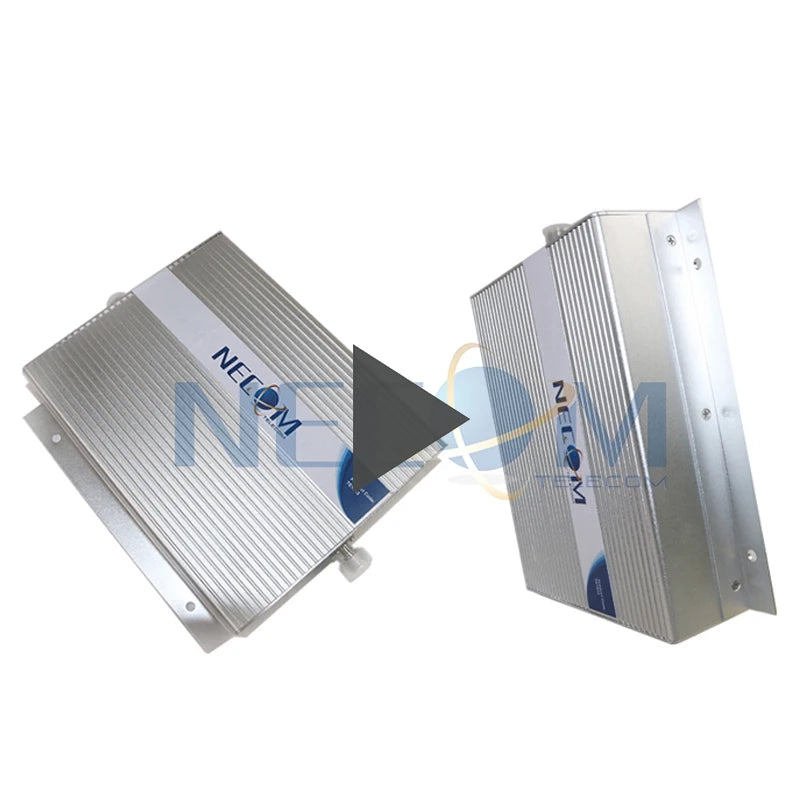

33dBm GSM 2G 3G 4G1800MHz Mobile Signal Booster Best Cell Phone Amplifier Repeater
Our shipping settings are based on the United States.
If you need it, please leave your detailed shipping address.
We will adjust the shipping cost according to your specific address.
Thank you for your cooperation. If you have any questions, please contact us in time
Brief Description:
1800MHz Pico-Repeater is intended to strengthen the signal of 1800MHz mobile phone in the buildings. Ideal for use in areas where the 1800MHz signal is weak to cause Call dropout or Cant connection. The device improves the voice calls and data VOICE GPRS and EDGE (depends of the signal operator).
Features:
*High system gains.
*Full duplex and double-end design, external power supply, and convenient installation.
*ALC technology with auto-steady function adopted.
*Provide power indication and uplink and downlink indications.
*With the amplified power, the inter-modulation an spuriousness are suppressed effectively.
*The reliability conforms to GB6993-86 standards.
*The electromagnetic compatibility conforms to ETS300 609-4 standards.
Applicable place:
It can be applied in Building rooms there have weak signal of mobile.
Specification:
Frequency Range:TE-1833B (Uplink:1710-1785MHz; Downlink:1805-1880MHz);
Gain: TE-1833B (Uplink)Gp≥75dB; (Downlink)Gp≥80dB;
Outout Power: TE-1833B ≥33dBm;
Pass band ripple:≤4dB
Guard band rejection:(BW-60dB)≤42MHz;
(BW-70dB)≤45MHz;
I/O impedance: 50/N Connector
I/O return loss:≤-10dB
Noise figure:≤-8dB
Intermodulation attenuation(Po=13dBm):≤-40dBc
Transmission: ≤0.5μs
Ambient:-10ºC-50ºC
Power supply: AC110-220V±10% 45-55Hz
Size:148mm×106mm×33mm
Reliability:To the GB6993-86 standard
Electromagnetic:To the ETS300 694-4 standard
Function: a) Power supply LED denote b) Export power LED denote
Order Information:
Pico-Repeater GSM900 TE-1830B :Output power 30dBm/Gain 85dB Cover area 2000-3000 square meters;
Pico-Repeater GSM900 TE-1833B:Outputpower 33dBm /Gain 85dB Cover area 3000-3500 square meters;
Pico-Repeater GSM900 TE-1835B:Outputpower 35dBm /Gain 85dB Cover area 3500-4000 square meters;
Package contents:
1 pcs booster
1 set power supply
1 pcs user manual
1 set installation screws
