ATNJ cell phone signal buster high quality tri band 900/1800/2100MHz mobile network amplifier cell phone signal

Write a review

Save -53% Rs. 138,756.56 ~~Rs. 298,197.33~~

Brand : Shanvis

Collection : Mobiles & Accessories

SKU : 6087908013089_96025893

Availability : 999 In Stock Sold Out 999

HURRY ! ONLY 999 LEFT IN STOCK.

Specification52x24x16cm

Translation missing: en.products.product.product_variants

Quantity

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

FREE SHIPPING

WORLDWIDE

BIG SAVING ON

WEEKENDS

24H SUPPORT

Description
Shipping

Product Description

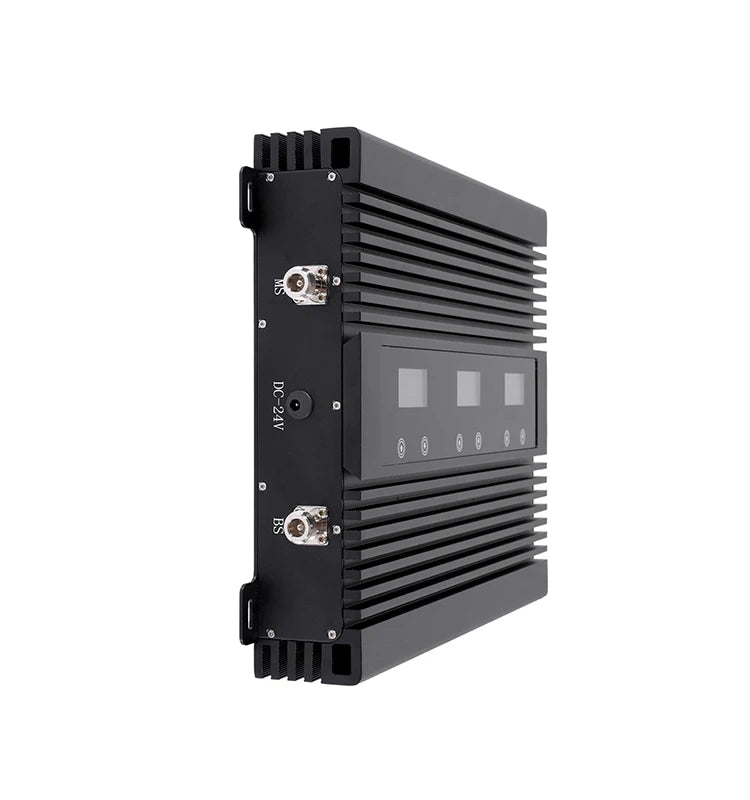

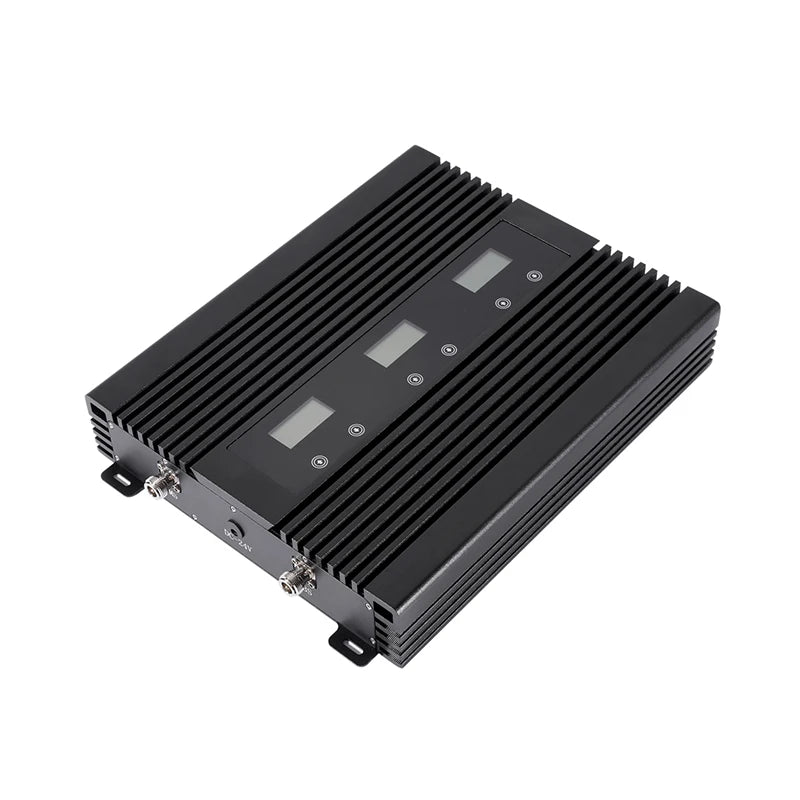

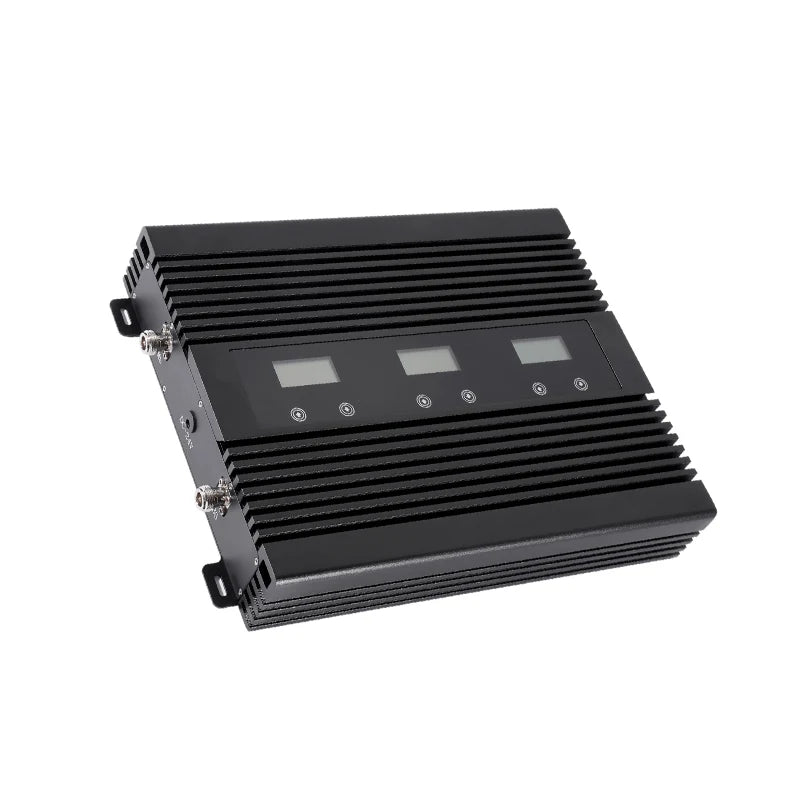

ATNJ 900/1800/2100MHz mobile signal repeater

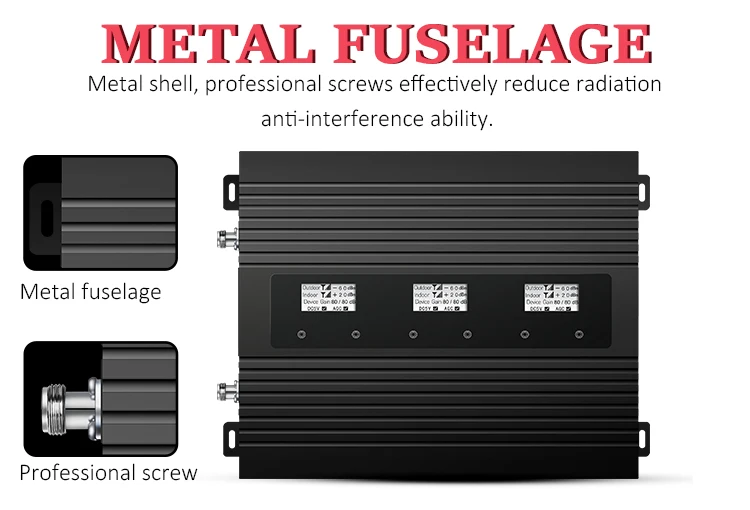

ATNJ RF repeater with industrial design, combines multi mobile network signals together and improves the mobile voice and data communication, aiming to provide a more cost-effective solution for signal. ATNJ RF repeater is easy to install and maintain, which could help signal providers get fast solution.

Selling Point

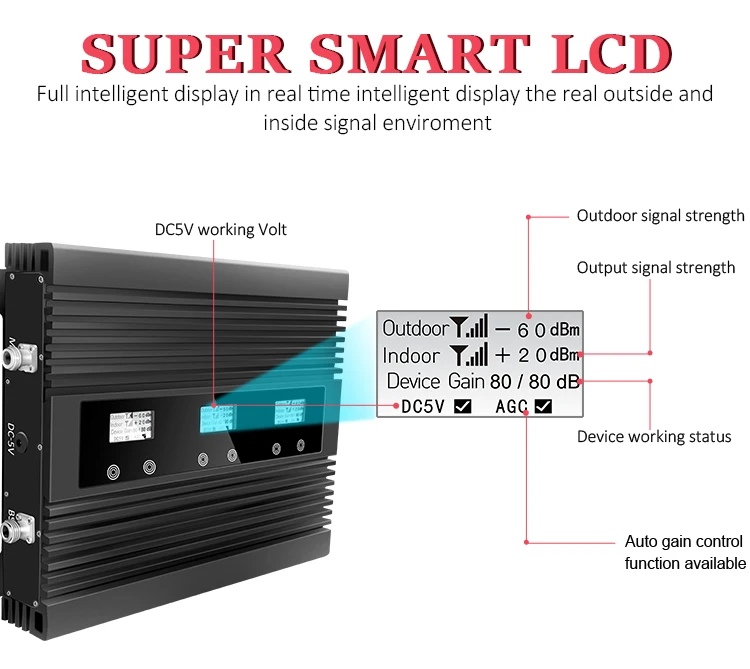

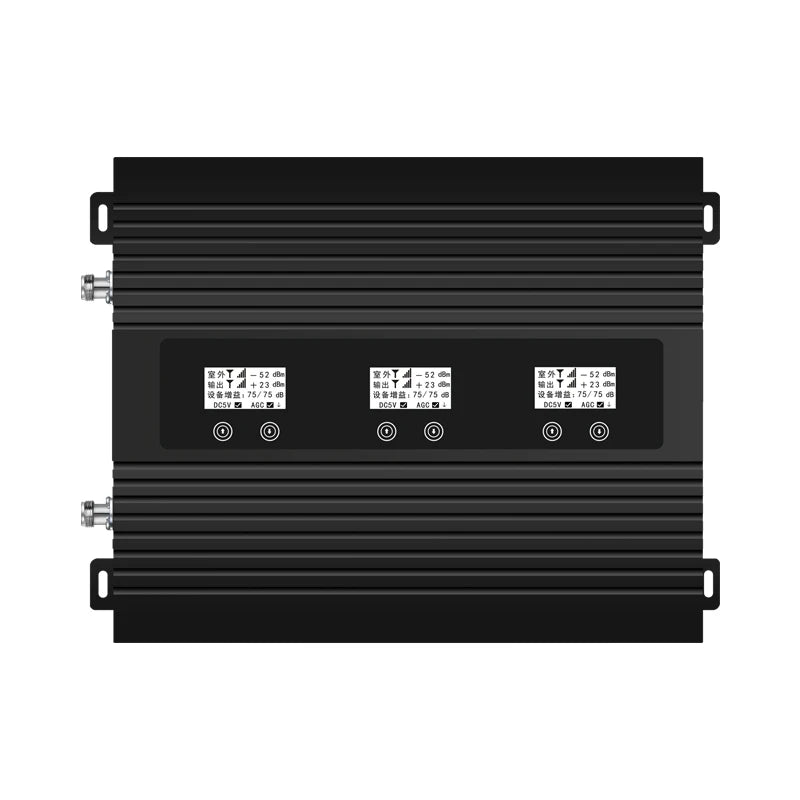

①Intelligent to guide the installation with LCD ②Real time display the signal strength .
Automatic dormancy when no user make the calling .

③Automatic alarm when installation mistake and provide the according solution .
④Automatic adjust the system gain to avoid the repeater self-excitation .
⑤Initiative reminding when the device was damaged .
⑥Supports from 0.2 to 20MHz bandwidth adjusted(Customized) .
Supports 5G bandwidth, 40MHz,50MHz,60MHz,70MHz,80MHz,90MHz,100MHz(Frequency Bandwidth Customized) .
⑦With WIFI Monitor+Control(Customized),NMS(network management system),Function Optional .

SPECIFICATIONS			PARAMETERS
Frequency Range			GSM 900	890-915MHz/935-960MHz
			LTE 1800	1710-1785MHz/1805-1880MHz
			WCDMA 2100	1920-1980MHz/2110-2170MHz
Band Width			GSM 900	25MHz
			LTE 1800	75MHz
			WCDMA 2100	60MHz
Gain			75±3dB
Automatic Gain Control			31dB
MGC (Step Attenuation)			31dB@ 1dB/Step
Output Power			24±3dBm
Spurious Emission	9 kHz -150 kHz/1kHz	≤-36dBm
	150 kHz - 30 MHz/10kHz	≤-36dBm
	30 MHz - 1 GHz/100kHz	≤-36dBm
	1 GHz- 12.75 GHz/1MHz	≤-30dBm
ACPR			Uplink Fully comply with 3GPP 36.106
			Downlink Fully comply with 3GPP 36.106
Unwanted emissions			Fully comply with 3GPP 36.106
VSWR			≤2
Ripple	GSM 900	≤6dB
	LTE 1800	≤6dB
	WCDMA 2100	≤6dB
Noise Figure			≤8dB
Delay			≤1μs
I/O Impedance			50Q

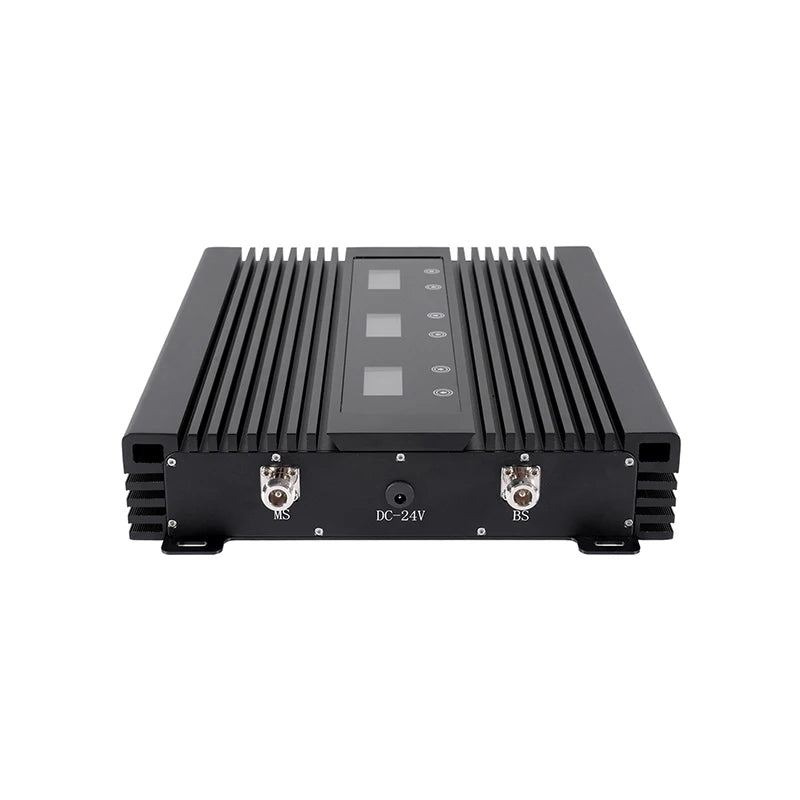

RF Connector			N-Type (Female)
Operating Temperature			-25°~+55°
Power Supply			DC 24V
Power consumption			≤75W
Environment Conditions			IP43
Humidity			≤90%
Weight			6.5kg
Size			32026758mm

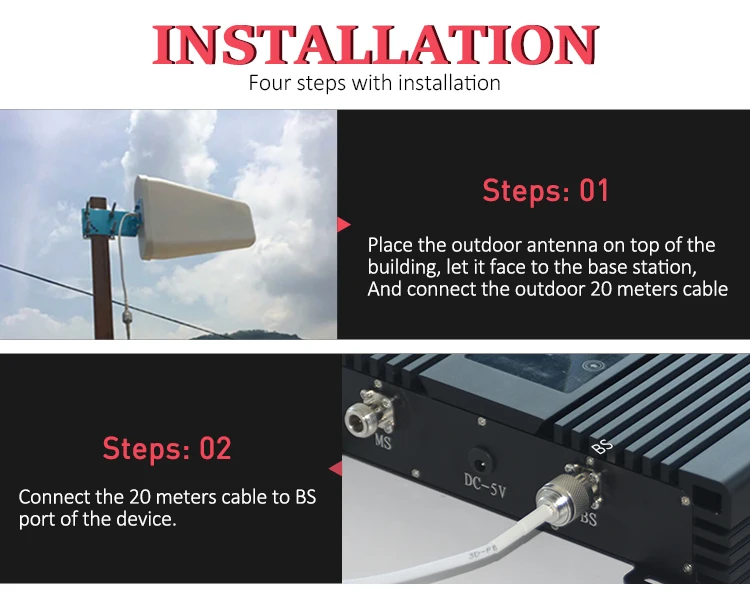

Product Usage

- Product usage introduction

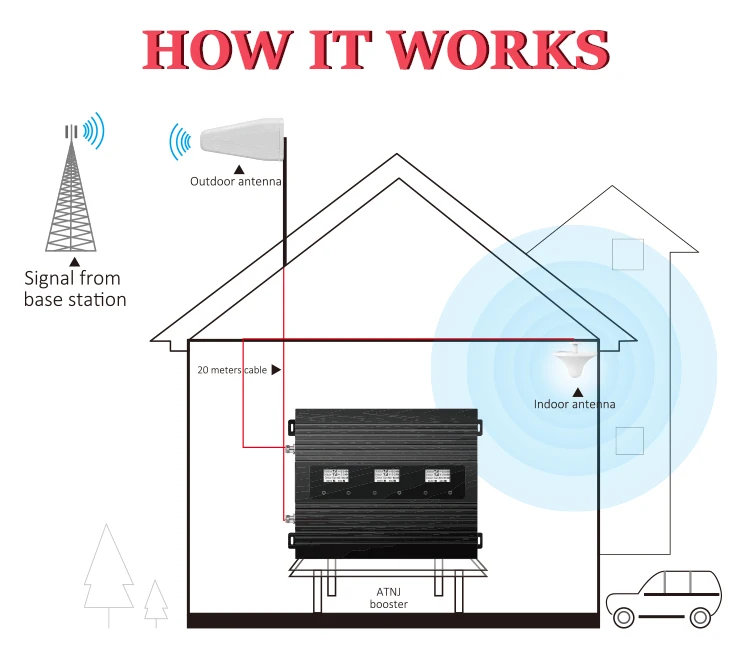

How It Works

Wireless network signal travels through the air in the form of waves. The outdoor antenna is designed to receive the weak signal from the air and transmit it to the indoor booster. The booster amplifies the signal based on its frequency and emits the amplified signal through the indoor antenna making it available for use.
