Technical Specifications
| SPECIFICATIONS |
parameters |
|

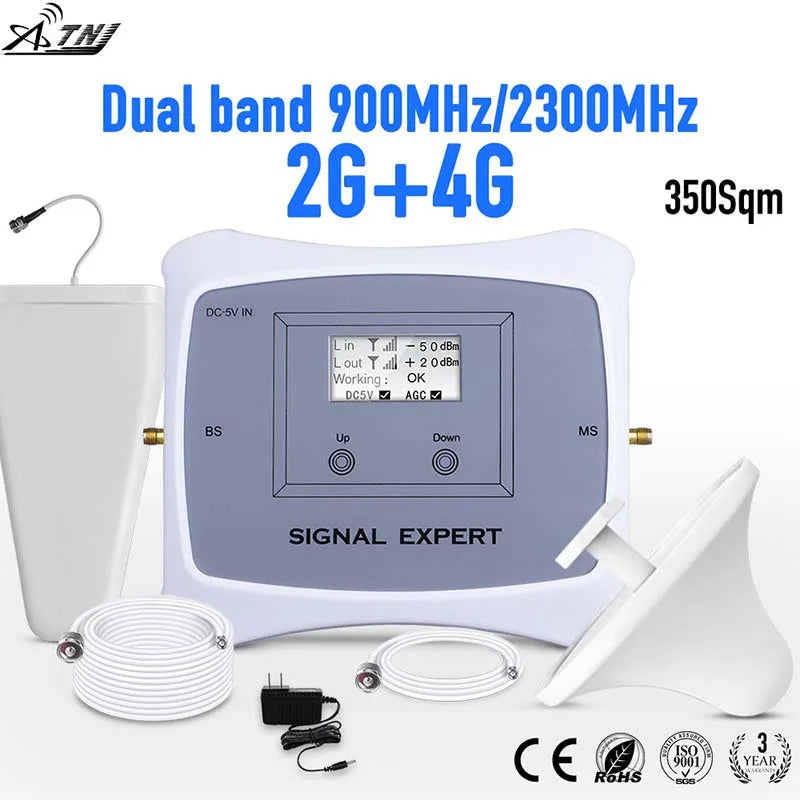

| Frequency Range (Customers to Choose) |
Uplink |
880-915MHz, 2300-2400MHz |
| Downlink |
925-960MHz, 2300-2400MHz |
|
| Frequency Bandwidth (3dB Bandwidth) |
35MHz |
|
| Gain |
70dB |
|
| Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
| Auto Gain Control |
20dB Min. |
|

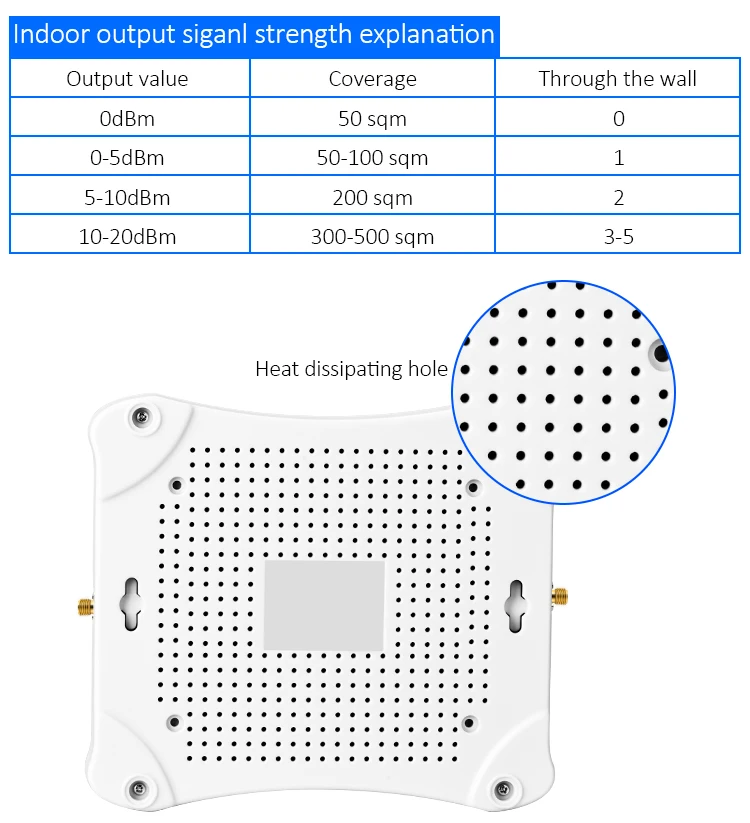

| Output Power(Customers to Choose) |
20dBm |
|
| Spurious Emission |
≤ -15dBm/30kHz |
|
| 9kHz~1GHz: ≤ -36dBm/30kHz |
||
| 1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
| Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
| In-band Ripple |
≤ 3dB |
|
| VSWR |
<=2 |
|
| I/O Impedance |
50 Ω |
|
| Noise Figure |
≤ 5dB |
|
| System Delay |
≤ 5μs |
|
| RF Connector(Customers to Choose) |
SMA (Female) |
|
| Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
| Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|

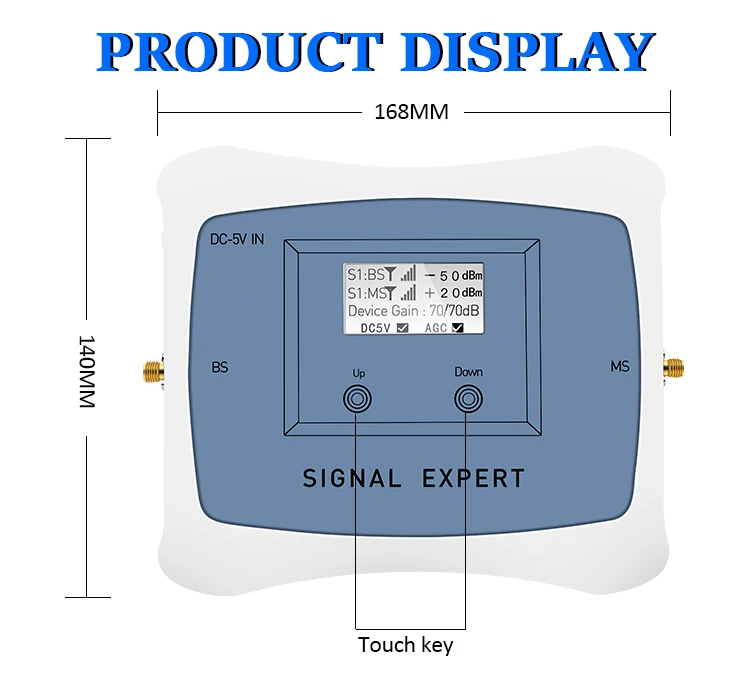

| Dimensions |
165*130*40 (mm) |
|
| Weight |
≤0.8 kg(Net) |
|
| Alarm Monitoring System |
Alarm for uplink self-oscillation |
|

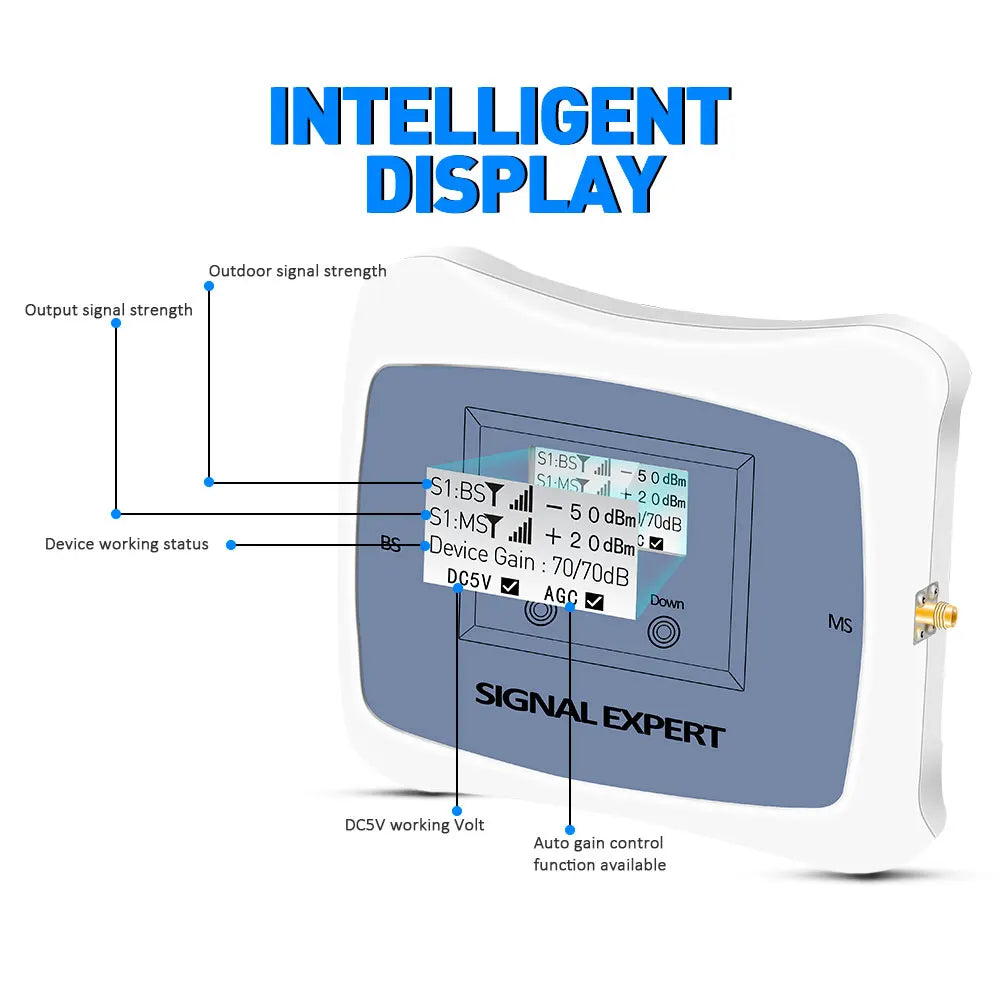

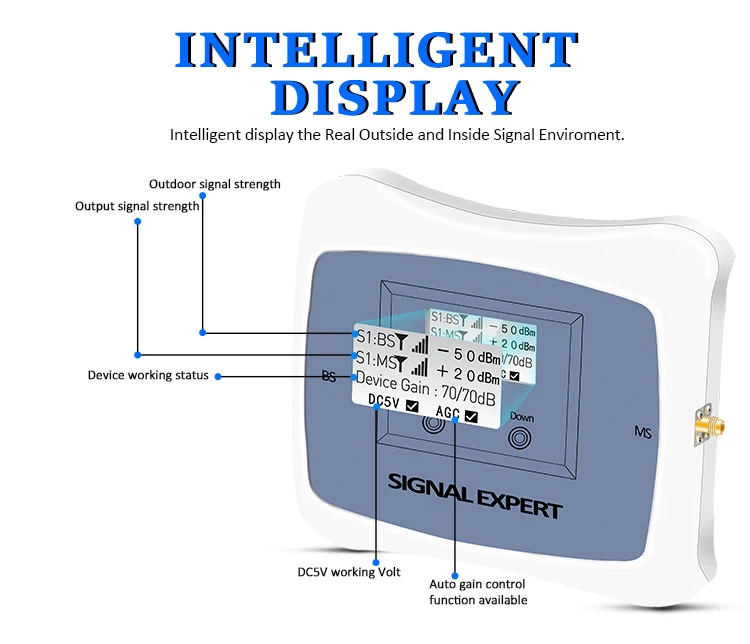

| Indication LED |
Power supply |
|
