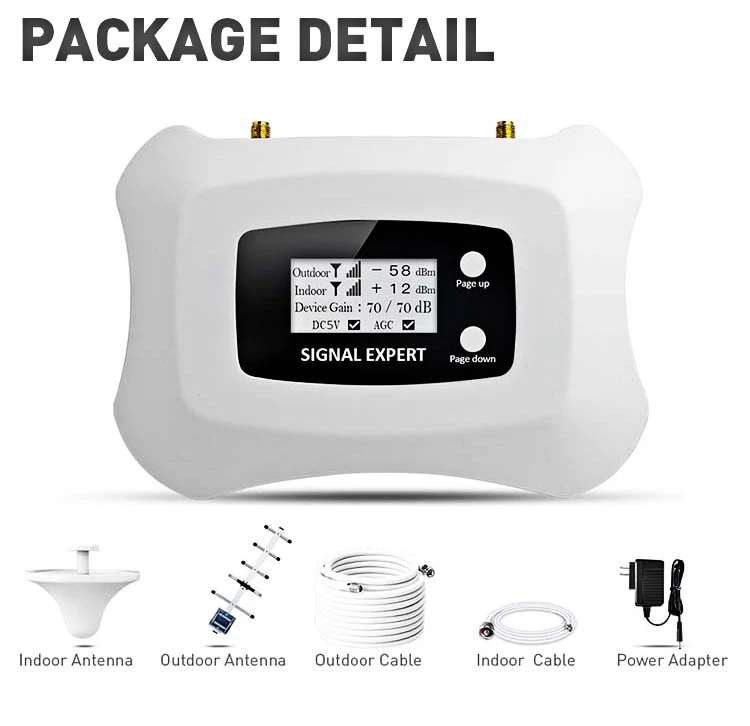

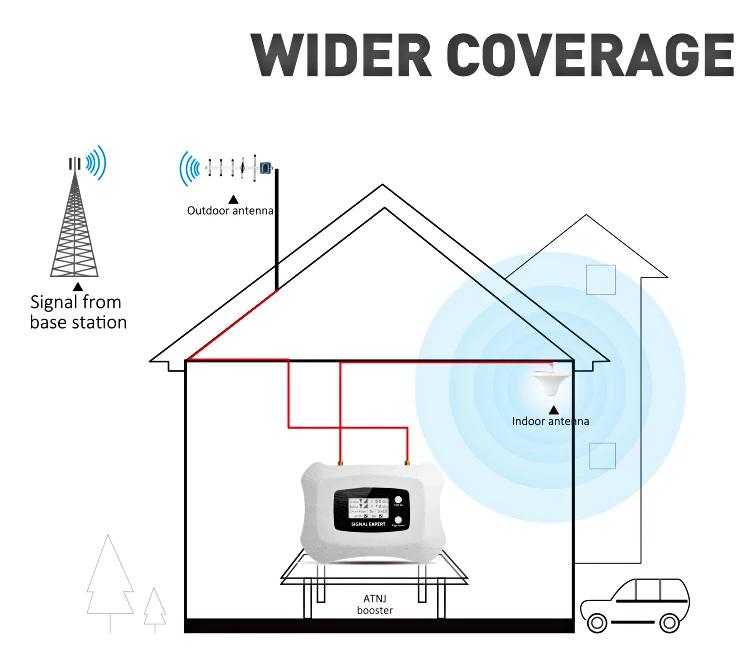

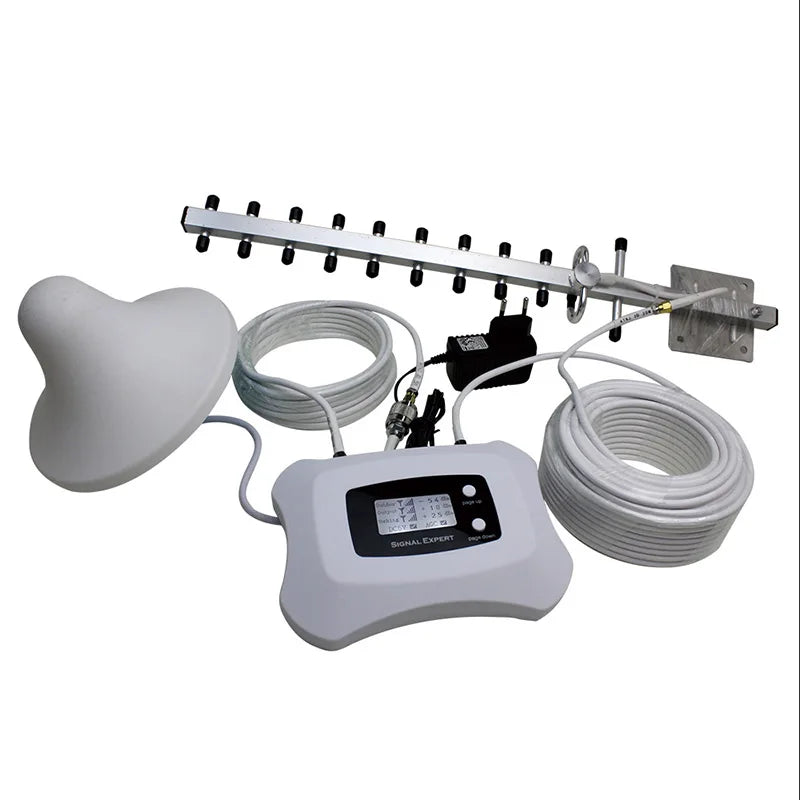

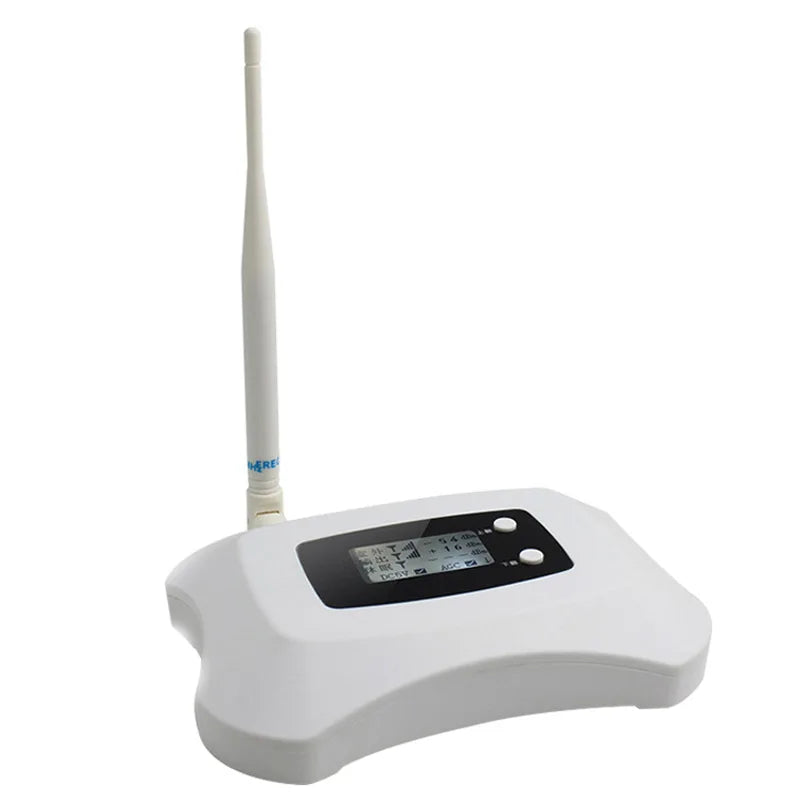

2022 new upgraded Micro power smart single band signal repeater for residential use with WIFI monitoring and control function, it could cover 100- 300sqm (standard kit), and could support max 2 to 3 indoor antennas to cover over 800sqm. Analog repeater and Digital(Customized Selected Band) repeater for Choice.
Technical Specifications
| SPECIFICATIONS |
Parameters |
|
| Band |
WCDMA (DCS/PCS/GSM/AWS/GSM850/FDD-LTE-4G /UMTS/LTE) |
|
| Frequency Range (Customers to Choose) |
Uplink |
1920-1980MHz |
| Downlink |
2110-2170MHz |
|
| Frequency Bandwidth (3dB Bandwidth) |
60MHz |
|
| Gain |
70dB |
|
| Automatic gain control (Step Attenuation) |
31dB @ 1dB/ Step |
|
| Auto Gain Control |
20dB Min. |
|
| Output Power(Customers to Choose) |
20dBm |
|
| Spurious Emission |
≤ -15dBm/30kHz |
|
| 9kHz~1GHz: ≤ -36dBm/30kHz |
||
| 1GHz~12.75GHz: ≤ -30dBm/30kHz |
||
| Inter-Modulation Attenuation ACPR |
≤ -40dBc / 30kHz (measured under rated output power) |
|
| In-band Ripple |
≤ 3dB |
|
| VSWR |
<=2 |
|
| I/O Impedance |
50 Ω |
|
| Noise Figure |
≤ 5dB |
|
| System Delay |
≤ 5μs |
|
| RF Connector(Customers to Choose) |
SMA (Female) |
|
| Operating Temperature |
Operation: - 10°C ~ + 55°C / Storage: -20°C ~ +60°C |
|
| Power Supply |
AC 110~220V±20%, 50/60Hz(AC 220V/ DC5V/2A power adapter) |
|

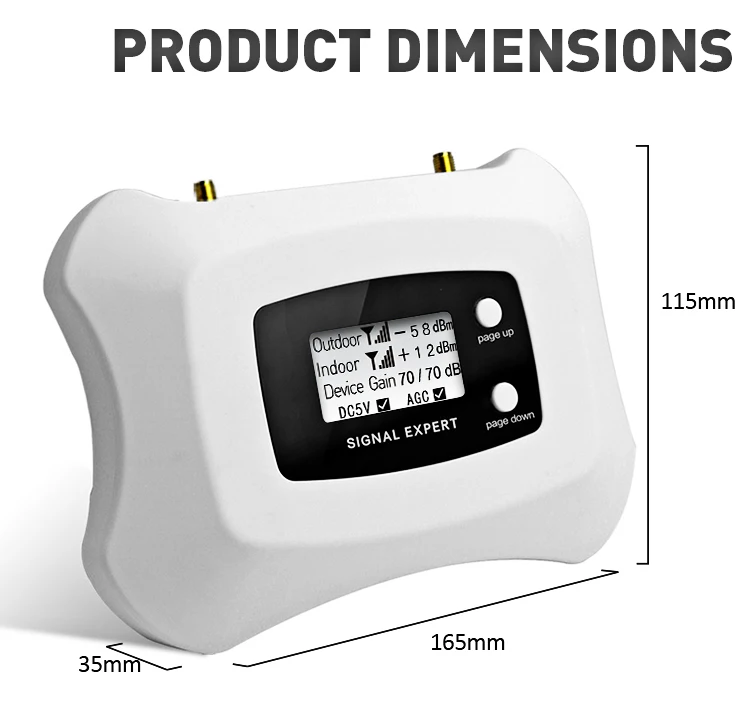

| Dimensions |
165*130*40 (mm) |
|
| Weight |
≤0.8 kg(Net) |
|
| Alarm Monitoring System |
Alarm for uplink self-oscillation |
|
| Indication LED |
Power supply |
|

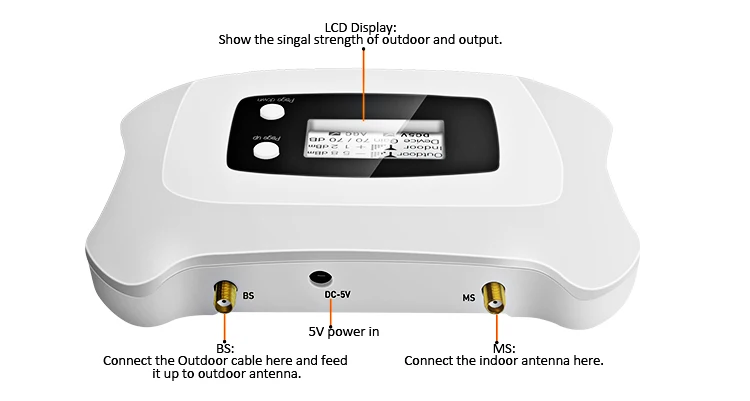

1,Intelligent to guide the installation with LCD

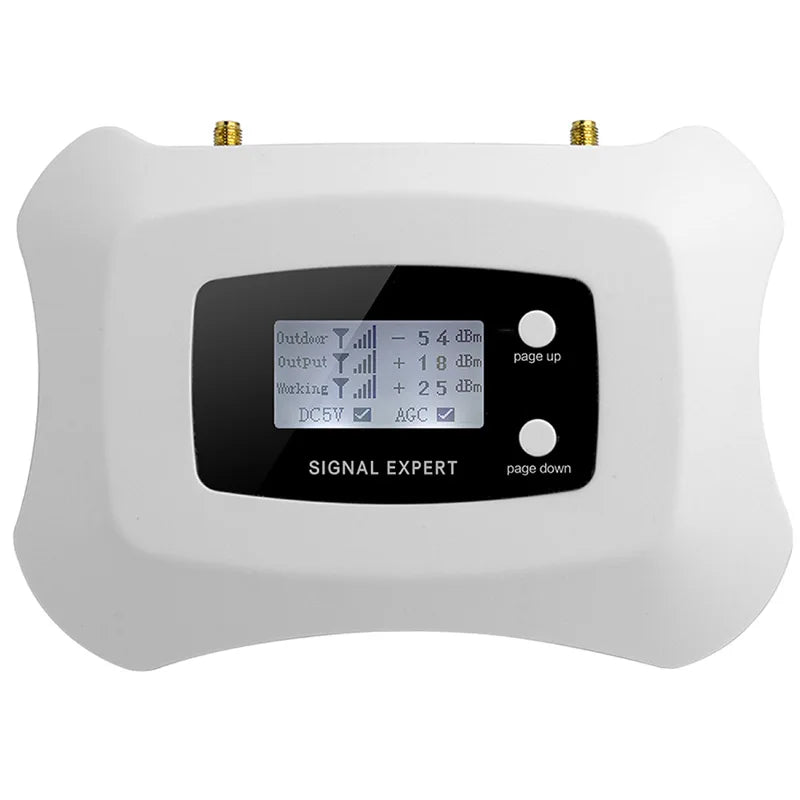

2,Real time display the signal strength.

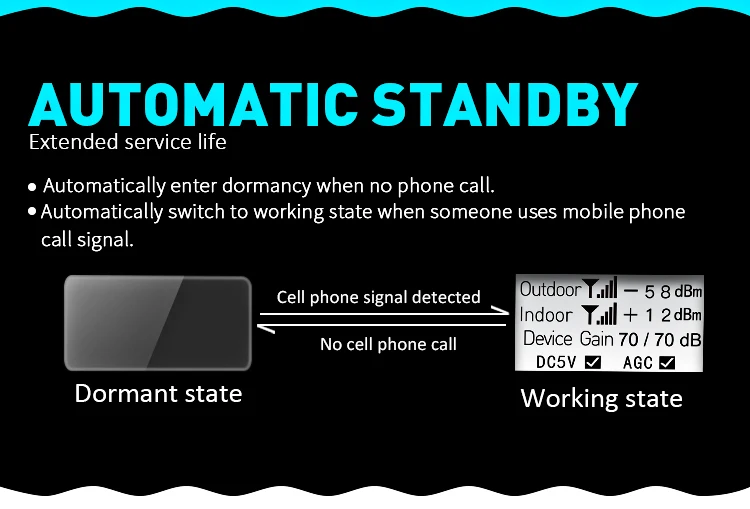

3,Automatic dormancy when no user make the calling
4,Automatic alarm when installation mistake and provide the according solution
5,Supports 10MHz from 0.2 to 10MHz bandwidth adjusted(Customized)
