Factory price HD 1080P IR- CUT CMOS 2MP OV2710 Sensor WRD Infrared USB UVC Driver Free Fisheye Camera Module with Microphone

Write a review

Save -53% Rs. 10,252.87 ~~Rs. 21,798.06~~

Brand : Shanvis

Collection : Action Camera - Sports Camera - Water Camera Mobiles & Accessories

SKU : 7101781013089_116149917

Availability : 9999 In Stock Sold Out 9999 9999

HURRY ! ONLY 9999 LEFT IN STOCK.

NetworkSDKTCP

Resolution1920 x 1080

Translation missing: en.products.product.product_variants

Quantity

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Security

FREE SHIPPING

WORLDWIDE

BIG SAVING ON

WEEKENDS

24H SUPPORT

Description
Shipping

Customize Factory manufacturers cmos 1080p OV2710 sensor WRD 69DB IR- CUT USB UVC camera module with microphone

haozhou provides high quality camera modules with professional OEM design and manufacturing services to customers worldwide. We are carrying OmniVision, Sony, Samsung, Hynix, GalaxyCore...

The main application areas: mobile phone, digital still camera, laptop, DV, PDA/handheld, toy, PC camera, security camera, automotive camera, tablet pc, visual doorbell, medical system, smart home, industrial image, recognition system, fingerprint identification system ...

Module No.	003-0353-01
Module Size	38mm *38mm
Object distance	20CM-∞
Resolution	800LW/PH (Center)
Focus	Fixed

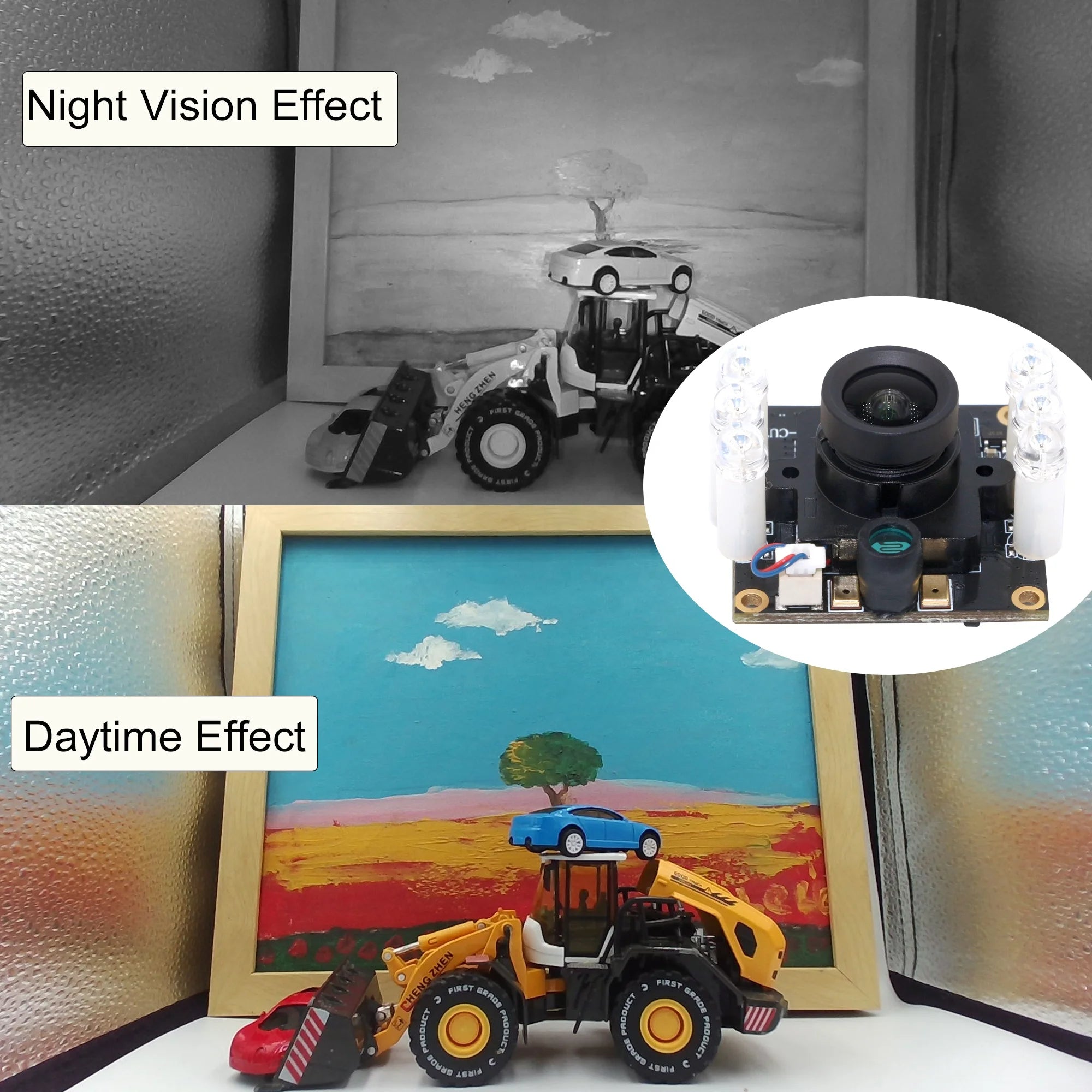

Image color	normal Image+night viewing
Sensor No	OV2710
Sensor Type	1/2.7”
Active Array Size	1920*1080
Sensitivity	3700mV/（Lux·sec）
Maximum Image Transfer Rate	1080P@30fps,720p@60fps
Dynamic Range	69DB
Lens Type	5G
FOV	D=160
IR-Cut	YES(650/850)
Mount	M12*p0.5mm
Application	Face Recognition,AR, AI,VR, Robot

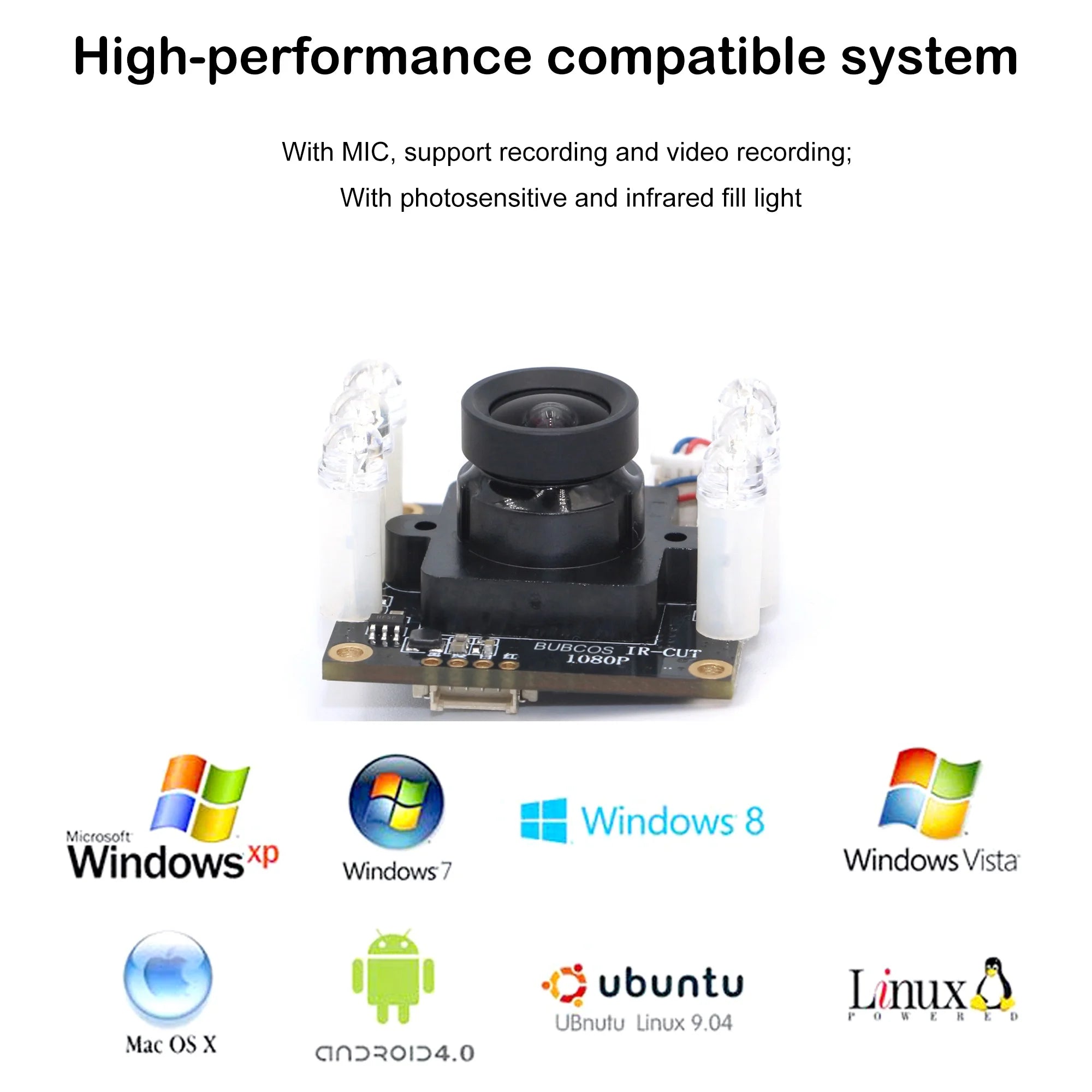

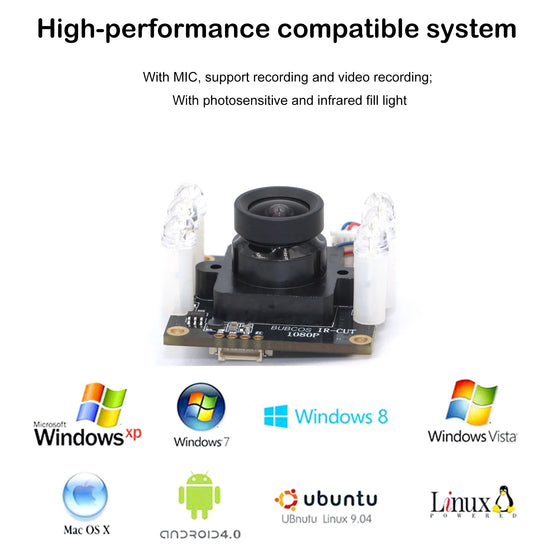

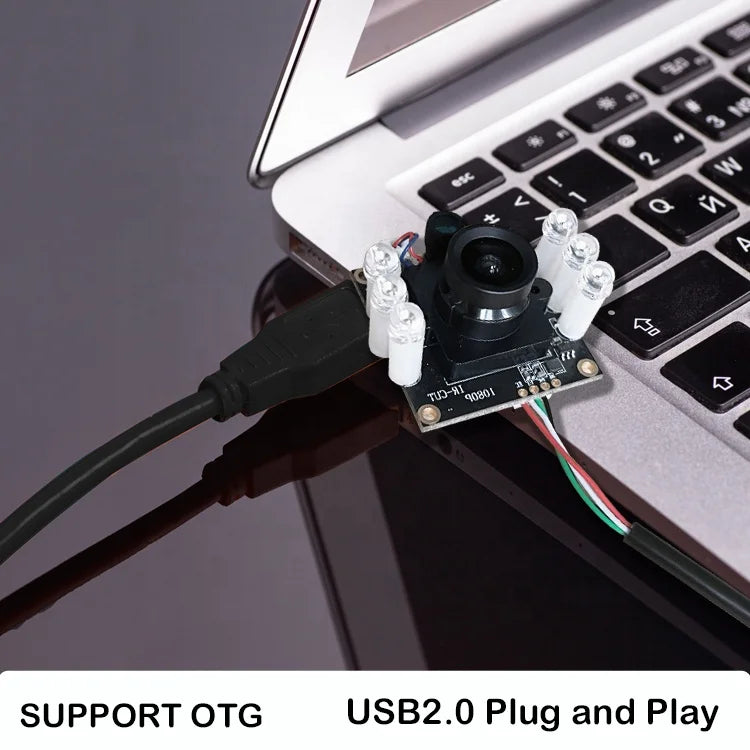

Feature Full HD 1080P OV2710 CMOS sensor High quality images; high sensitivity UVC compatible, Plug and Play Supports Linux, Android, Mac, and Windows Module size 38mm * 38mm/32mm * 32mm and customizable LED lamp support Various FOV lenses are available

OEM&ODM

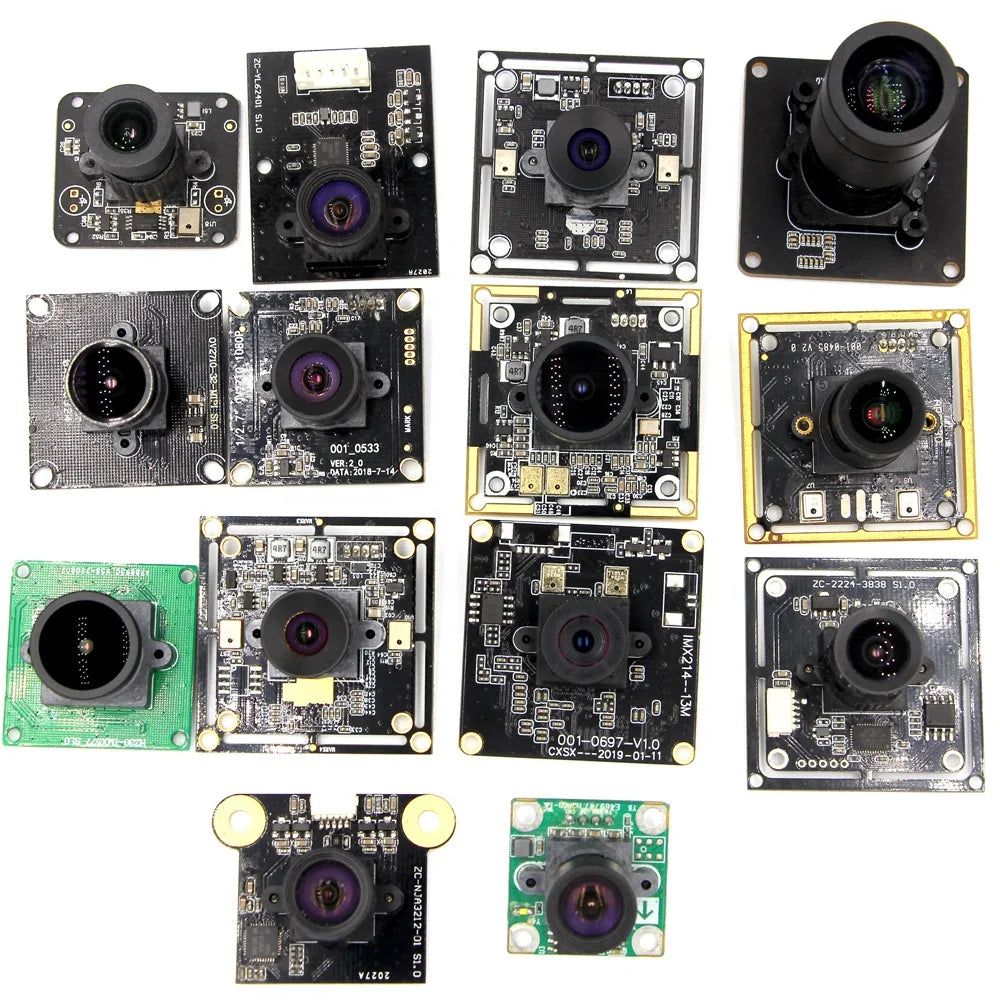

Customizable usb2.0 & usb3.0 camera module / mipi camera module / binocular camera module / endoscope camera module / HDMI camera module / infrared camera module / global shutter camera module etc.

Application Field

More Applications: bar code scanning machine, license plate recognition, eye tracking, smart home, access control system, driving recorder, notebook computer, all-in-one machine, iris scanning, AR, VR, robot, machine vision, industrial inspection, ATM machine, automatic vending machine, face recognition, unmanned aerial vehicle, security gate machine, pc multimedia, attendance machine, endoscope, security monitoring, pos machine, conference camera, video doorbell, motion camera, 3D vision, arcade game machine, automatic terminal equipment Wait for more applications

Main Pixel

3mp ( VGA ) pixels, 1mp ( 720P) pixels, 1.3mp (960P) pixels 2mp(1080P)pixels, 3mp (1080P)pixels, 4mp (2KP) pixels 5mp ( 2KP) pixels, 8mp ( 4KP ) pixels, 12mp (4KP) pixels, 13mp (4KP) pixels, 16mp (4KP) pixels, 20mp pixels

Interface

·FPC interface: DVP, MIPI; Using CSP (BGA chip technology), COB, PLCC, CLCC process AV output interface: CVBS, AHD analog signal output ·USB output interface: free drive, plug and play, monocular, binocular; Starlight level, wide dynamic H.264, IR-CUT infrared, global exposure, AF focus, high-speed frame, and other USB camera modules for various applications

Lens / Angle

Composition material: 2P3P 4P 5P 6P IG2P 2G2P 4G 5G 6G7G 8G 9G.etc Focus: FF MFAF. (according to customer demand) Angle of view: 5 degrees -240 degrees panorama

HOW TO CHOOSE THE LENS

It is a close-focus lens; in a camera, the smaller the focal length, the larger the imaging range, the smaller the image of the object in the screen, the larger the focal length, the smaller the imaging range, and the larger and clearer the image of the object in the screen, this is a far-focus lens

Shenzhen Haozhou Technology Co., Ltd. was established in 2014. It is a high-tech company specializing in R&D, design, production, sales, CMOS camera module, USB camera module, analog camera module, endoscope camera module, sensor chip and other high-quality camera modules technology enterprise. Passed IS09001 CE ROHS quality system certification. Products are widely used in nearly a hundred fields such as face recognition, biometrics, artificial intelligence, machine vision, drones, self-service terminals, smart homes, security monitoring, and medical applications.Warmly welcome OEM and ODM. We can design according to the drawings provided by customers. All of our products have a 2-year warranty, we are willing to provide customers with products that carry corporate culture and convey brand ideas to end users, we believe that success is built on a solid foundation and commitment to delivery.

Packing&Shipping

OUR CERTIFICATION

OUR SERVICE

1. Good quality products and low factory direct price 2.Free technical support and professional advice,timely communication and after-sale service 3.24-hour aging process, 1-year warranty, CE/FCC/RoHS compliant 4.OEM/ODM service a) Customized camera housingb) Print logo on the camera c)Any your idea on camera we can help you design and put it into production 5.Fast delivery, 3-7 days for production 6.Accept paypal, T/T, western union payment 7.Delivery by DHL/EMS/FedEx/UPS/TNT, by air or by sea etc

FAQ

A1: Please contact us first to confrim.We do not provide fee sample and the cost and shipping fee for sample shoudbe paid by buyers.Usually we can offer it in about 3 working days. Q2:What is your acceptable payment term? A2: Trade assurance is our first choice. Then TлT, Western Union,and so on.If you prefer other ways, please contact us. Q3:What is your guranree for quality? A3: We have 12 months warranty and we will take responsibility for our quanlity and free to repair. Q4:Could you give me a discount? A4: It depends on quantity. Large quantity equal best price. Q5:How long is your delivery time? A5: After receiving your payment, 1-3days for stock goods and 3-21 days forother goods according to the quantity. Q6:Can you accept small orders? A6: Yes. We enjoy growing up together with all of our clients whether big or small. Q7:How about your after-saleservice? A7: First, we guarantee the quality of our products. Any problem, please contactwith uS and we would solve it as soon as possible.
