Specification
|
Model Number
|
TE-723
|
|
Type
|
4G signal booster
|
|
Brand Name
|
Vodasafe
|
|
Network
|
signal booster
|
|
Frequency Range
|
703-748MHz 758-803MHz
|
|
Coverage Range
|
100-500 Square Meters
|
|
Outpower
|
23dBm
|
|
Size
|
148mm*106mm*33mm
|
|
Weight
|
4.5kg
|
|
I/O Return Loss
|
-10 dB
|
|
Noise Figure
|
-8dB
|
|
I/O impedance
|
50/N Connector
|
|
4G700MHz
|
≤107MHz
|
|
Power Supply
|
AC110-220V
|
Product Description

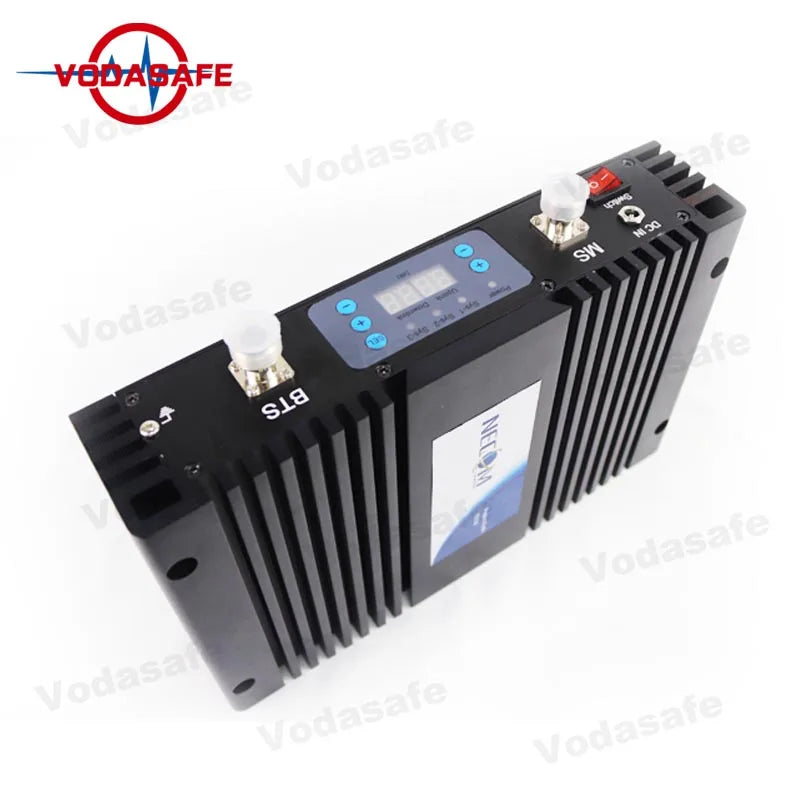

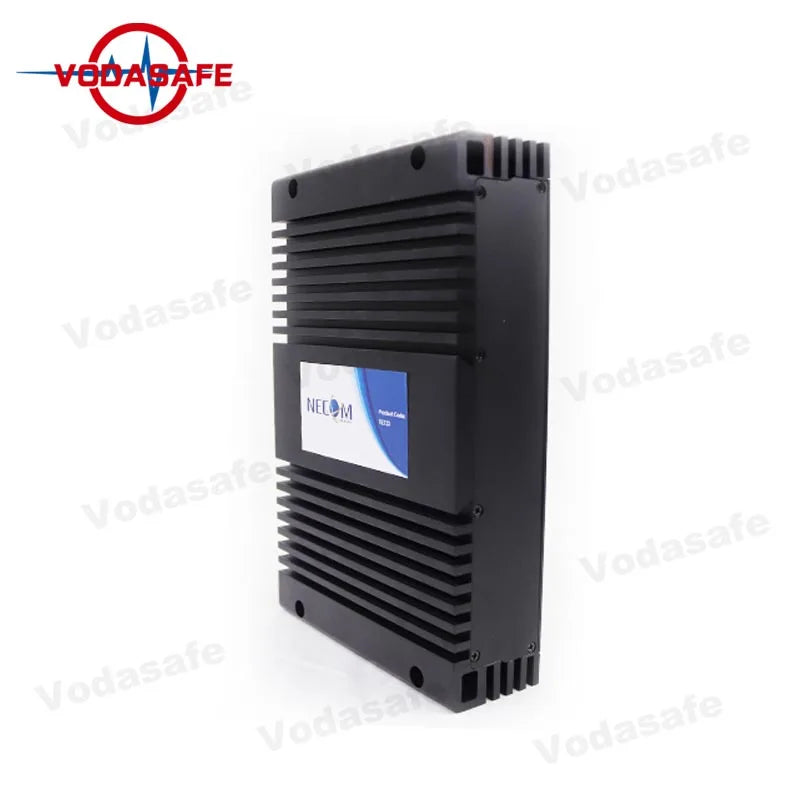

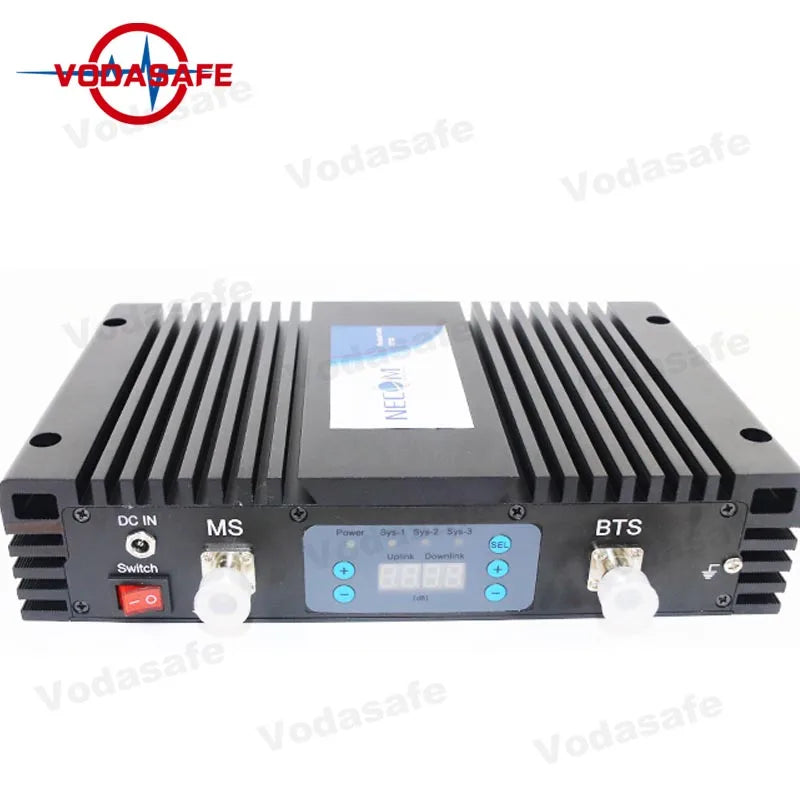

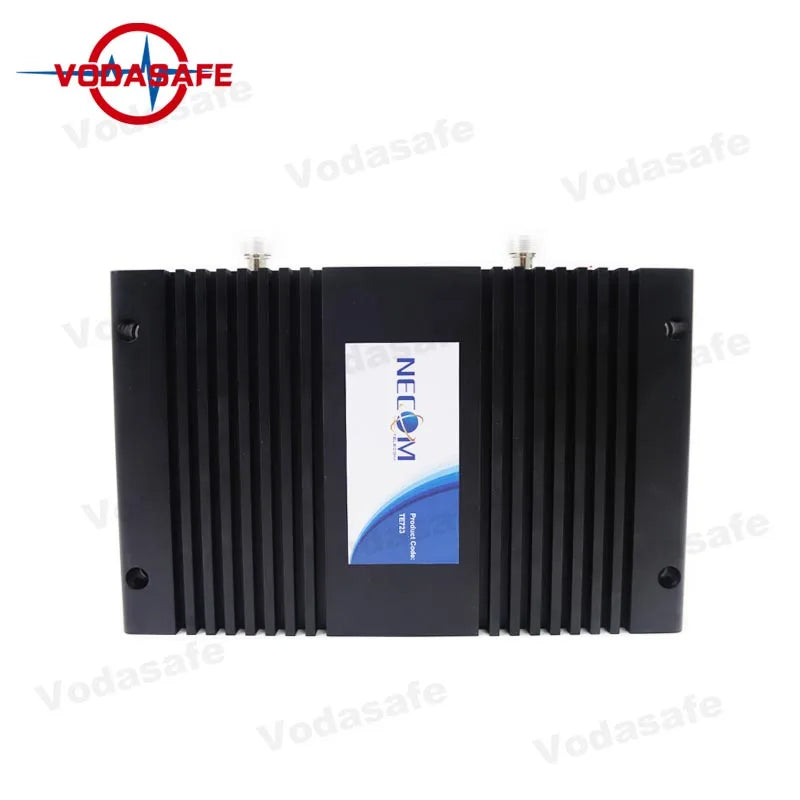

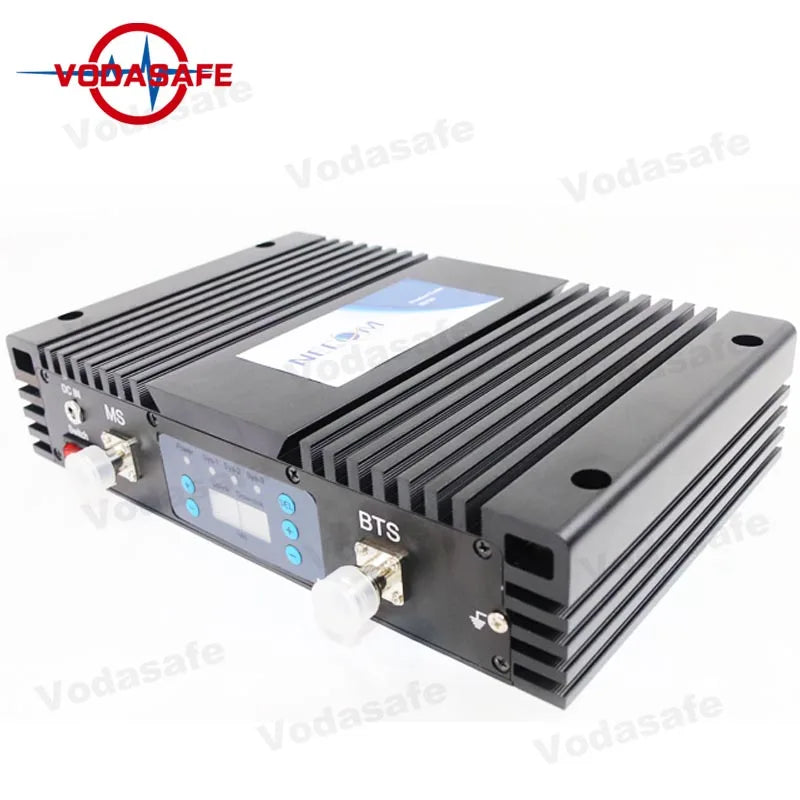

4G700MHz Cell Phone Signal Booster GSM 4G Cell Phone Repeater Booster
700MHz Full Band Signal Booster TE-723
Our shipping settings are based on the United States.
If you need it, please leave your detailed shipping address.
We will adjust the shipping cost according to your specific address.
Thank you for your cooperation. If you have any questions, please contact us in time.
If you need it, please leave your detailed shipping address.
We will adjust the shipping cost according to your specific address.
Thank you for your cooperation. If you have any questions, please contact us in time.
Brief Description:
700MHz Pico-Repeater is intended to strengthen the signal of 700MHz mobile phone in the buildings. Ideal for use in areas where the 700MHz signal is weak to cause Call dropout or Cant connection. The device improves the voice calls and data VOICE GPRS and EDGE (depends of the signal operator).
Features:
*High system gains.
*Full duplex and double-end design, external power supply, and convenient installation.
*ALC technology with auto-steady function adopted.
*Provide power indication and uplink and downlink indications.
*With the amplified power, the inter-modulation and spuriousness are suppressed effectively.
*The reliability conforms to GB6993-86 standards.
*The electromagnetic compatibility conforms to ETS300 609-4 standards.
*Full duplex and double-end design, external power supply, and convenient installation.
*ALC technology with auto-steady function adopted.
*Provide power indication and uplink and downlink indications.
*With the amplified power, the inter-modulation and spuriousness are suppressed effectively.
*The reliability conforms to GB6993-86 standards.
*The electromagnetic compatibility conforms to ETS300 609-4 standards.
Specification:
Frequency Range:
1. TE-7023 (Uplink:703-748MHz; Downlink:758-803MHz);
Gain:TE-7023(700MHz Uplink)Gp≥65dB; (700MHz Downlink)Gp≥70dB;
Output Power:TE-7023 ≥23dBm;
Pass band ripple:4G700MHz≤8dB;
Guard band rejection: 4G700MHz (BW-60DB) ≤104MHz;
4G700MHz(BW-70dB)≤107MHz;
I/O impedance: 50/N Connector;
I/O return loss: ≤-8dB;
Noise figure: ≤-8dB;
Inter-modulation attenuation(Po=13dBm):≤-40dBm;
Transmission: ≤0.5μs;
Ambient:-10ºC-50ºC;
Power Supply: AC110-220V±10%/45-55Hz;
Size:148mm×106mm×33mm;
Reliability:To the GB6993-86 standard;
Electromagnetic:To the ETS300 694-4 standard;
Function:
a) Power supply LED denote
b) Export power LED denote
Order Information :
700MHz Pico-Repeater Model:TE-7023: Cover-max 100-500 square meters;
1. TE-7023 (Uplink:703-748MHz; Downlink:758-803MHz);
Gain:TE-7023(700MHz Uplink)Gp≥65dB; (700MHz Downlink)Gp≥70dB;
Output Power:TE-7023 ≥23dBm;
Pass band ripple:4G700MHz≤8dB;
Guard band rejection: 4G700MHz (BW-60DB) ≤104MHz;
4G700MHz(BW-70dB)≤107MHz;
I/O impedance: 50/N Connector;
I/O return loss: ≤-8dB;
Noise figure: ≤-8dB;
Inter-modulation attenuation(Po=13dBm):≤-40dBm;
Transmission: ≤0.5μs;
Ambient:-10ºC-50ºC;
Power Supply: AC110-220V±10%/45-55Hz;
Size:148mm×106mm×33mm;
Reliability:To the GB6993-86 standard;
Electromagnetic:To the ETS300 694-4 standard;
Function:
a) Power supply LED denote
b) Export power LED denote
Order Information :
700MHz Pico-Repeater Model:TE-7023: Cover-max 100-500 square meters;
