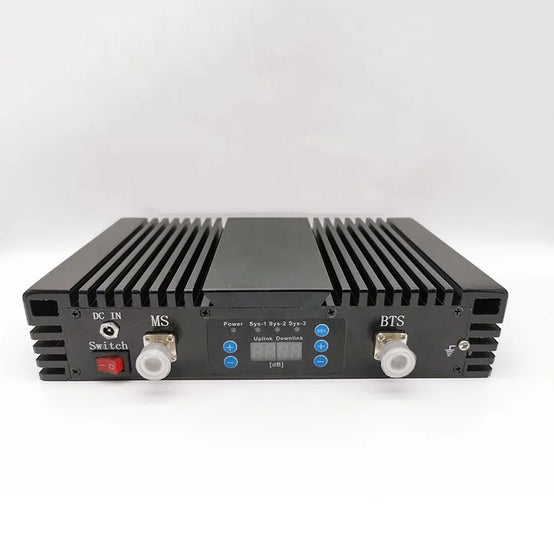

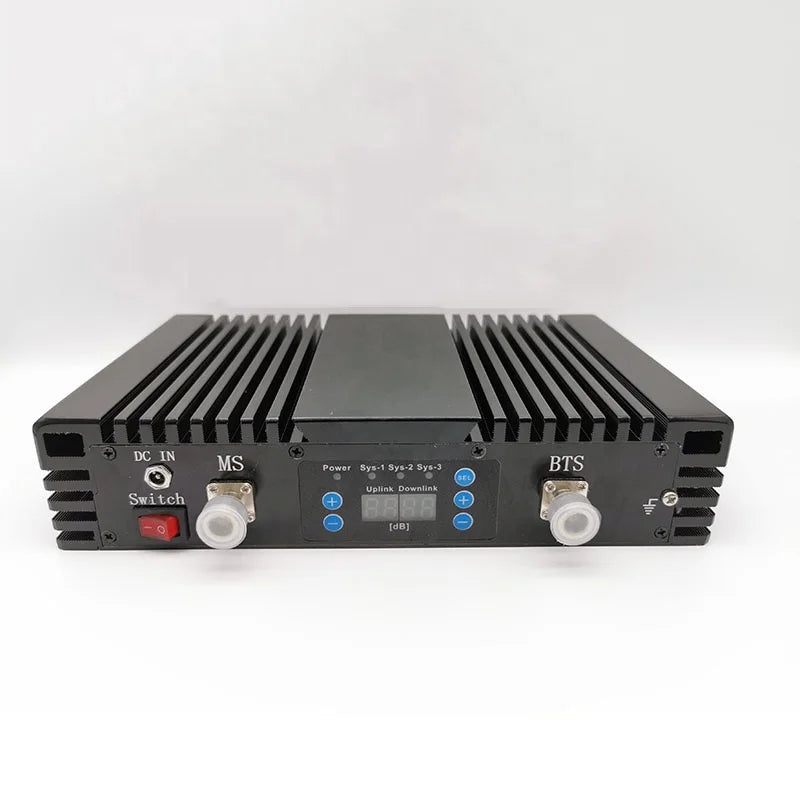

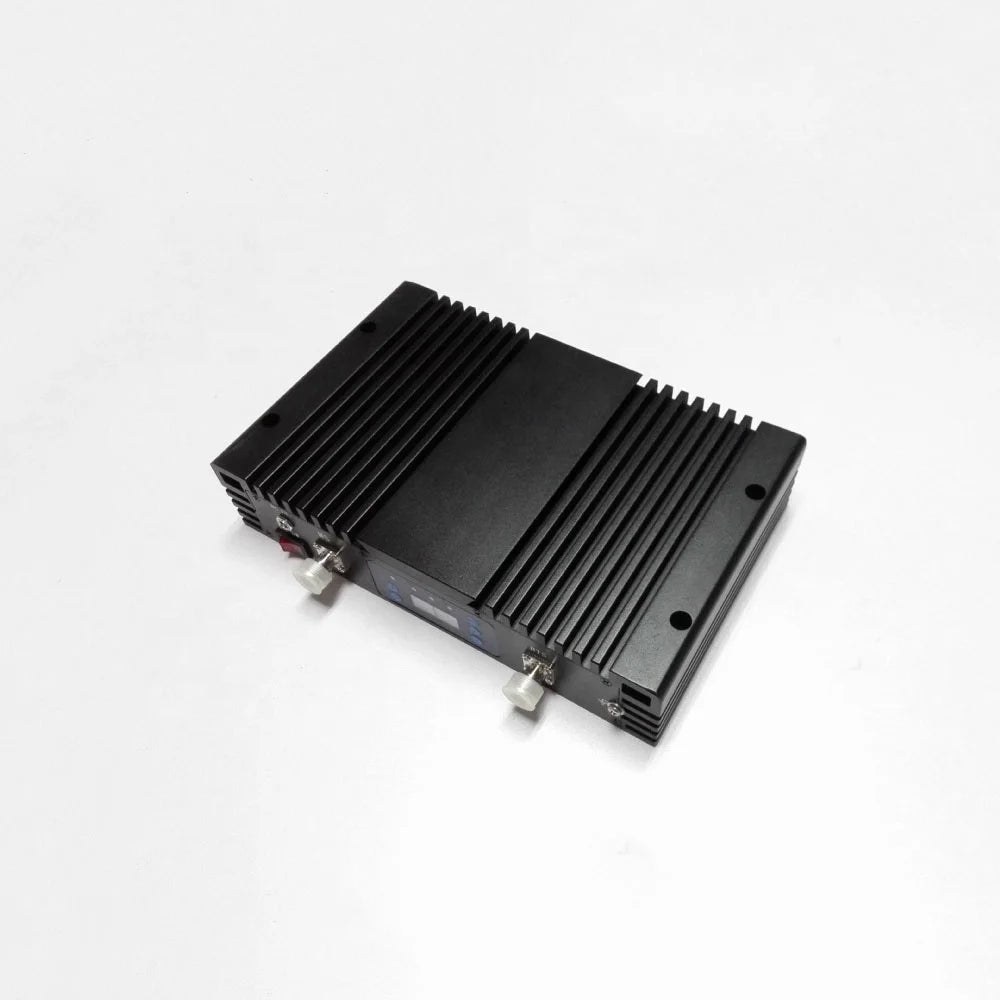

JIAMUSI OEM AWS 2100MHz 4g signal booster 2g 3g repeater with AGC MGC 80dB/27dBm gsm signal amplifier Telecom Mobile Signal Booster
Save -56%
Rs. 41,368.42
Rs. 93,078.94
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
|
Frequency Range
|
Uplink
|
Uplink
|
Downlink
|
||||||
|
AWS (Band 4)
|
1710~1755MHz
|
|
2110 ~ 2155MHz
|
||||||
|
Operation Bandwidth
|
Wide Band
|
||||||||
|
Gain
|
75dB±2dB
|
80dB±2dB
|
|||||||
|
Output Power
|
23dBm±2dBm
|
27dBm±2dBm
|
|||||||
|
MGC (Manual Gain Control)
|
31dB range/1dB step
|
||||||||
|
AGC (Automatic Gain Control)
|
≥25dB
|
||||||||
|
Spurious Emission
|
9KHz~1GHz
|
≤-36dBm
|
|||||||
|
1GHz~12.75GHz
|
≤-30dBm
|
||||||||
|
Ripple in Band
|
≤ 8dB
|
||||||||
|
Noise Figure
|
≤ 6dB
|
||||||||
|
VSWR
|
≤2.0
|
||||||||
|
Intermodulation
|
≤ -40dBc
|
||||||||
|
Group Delay
|
≤1μs
|
||||||||
|
Frequency stability
|
≤ 0.01ppm
|
||||||||
|
MTBF
|
> 50000 hours
|
||||||||
|
RF Connector
|
N-Female
|
||||||||
|
Impedance
|
50Ω
|
||||||||
|
LED Alarm
|
Power LED
|
Power indicator
|
|||||||
|
Alarm LED
|
Red
|
Self oscillation or Strong input signal
|
|||||||
|
Green
|
Normal
|
||||||||
|
Switch
|
Power Switch,Manual Gain Control Switch
|
||||||||
|
Cooling
|
Heatsink Convection cooling
|
||||||||
|
Humidity
|
< 90%
|
||||||||
|
Installation Type
|
Wall Installation
|
||||||||
|
Power Supply
|
Input: AC 110~240V; Output: DC 9V/3A
|
||||||||
|
Operating Temperature
|
-10℃~50℃
|
||||||||
|
Environment Conditions
|
IP40
|
||||||||
|
Dimensions (D x W x H )
|
268*170*58mm
|
||||||||
|
Weight
|
4.1KG
|
||||||||
Products Description

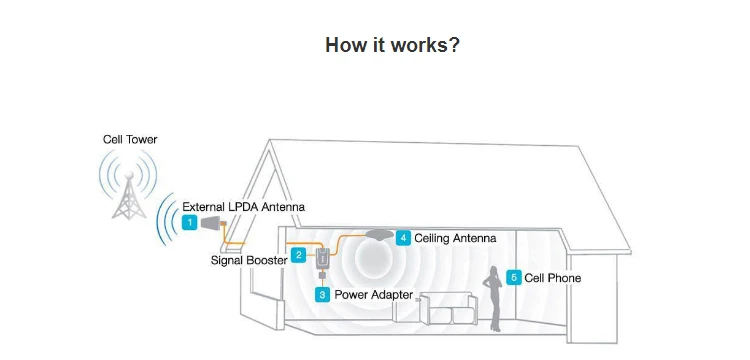

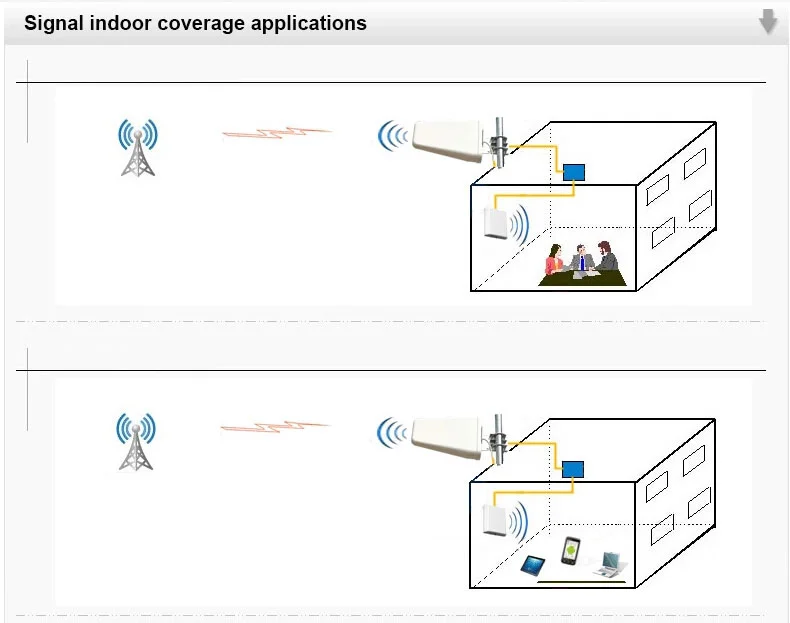

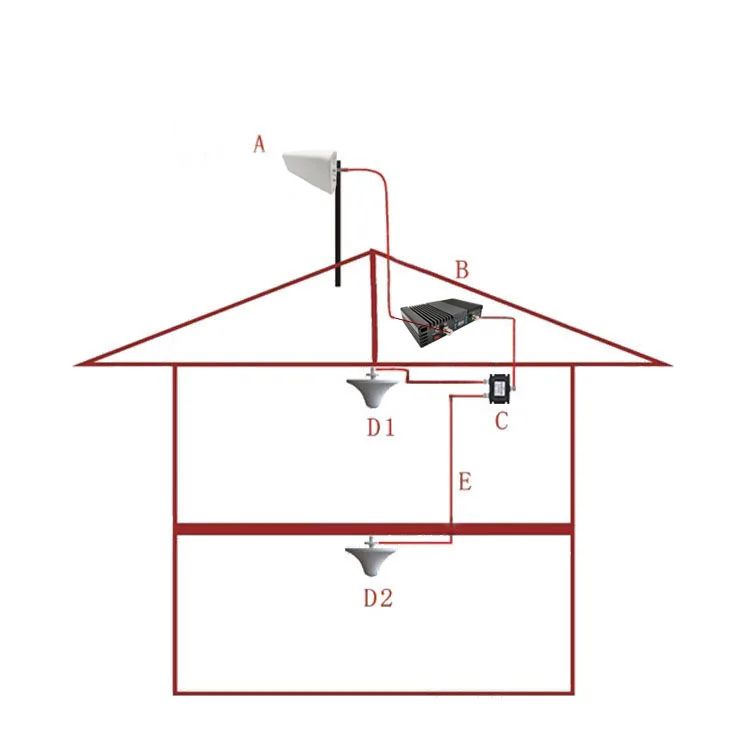

•The outside antenna catches low signal from operator servicer’s base station and delivers it to cell phone repeater through the connection cable (coax).
•After the signal is accepted by the mobile repeater, this device amplifies it.
•Then this amplified signal goes through the connection cable (coax) to the inside antenna.
•And after that, the amplified signal transmits to your cell phone.
• Finally, your cell phone will get good signal, never on and off.
•After the signal is accepted by the mobile repeater, this device amplifies it.
•Then this amplified signal goes through the connection cable (coax) to the inside antenna.
•And after that, the amplified signal transmits to your cell phone.
• Finally, your cell phone will get good signal, never on and off.

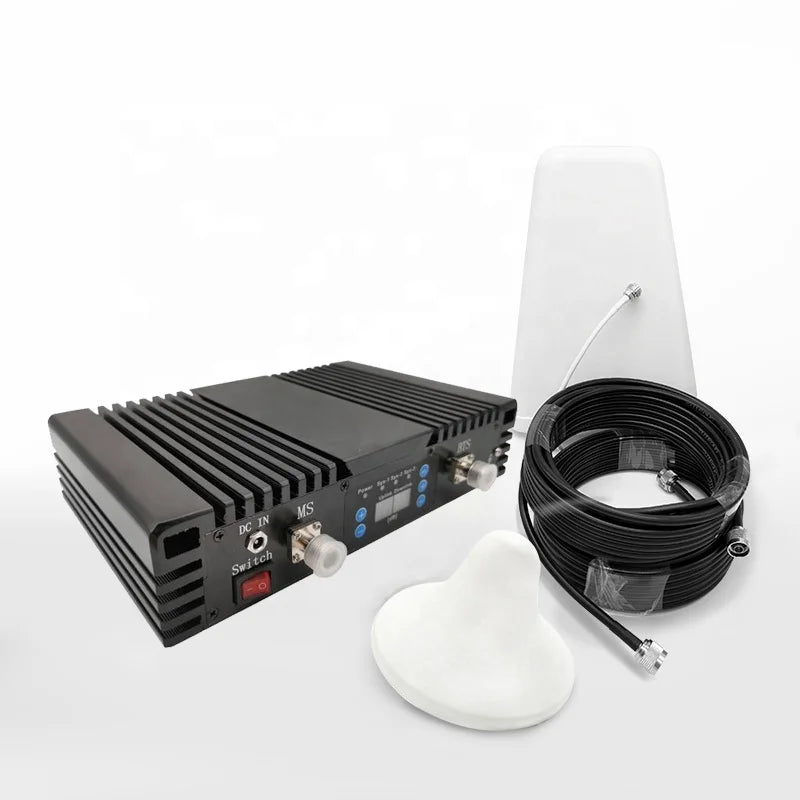

Kit accessories recommend:full kit
1x repeater
1x indoor antenna
1x outdoor LPDA antenna
1x power adapter
1x 15 meters cable
1 x 5 meters cable
1x indoor antenna
1x outdoor LPDA antenna
1x power adapter
1x 15 meters cable
1 x 5 meters cable
