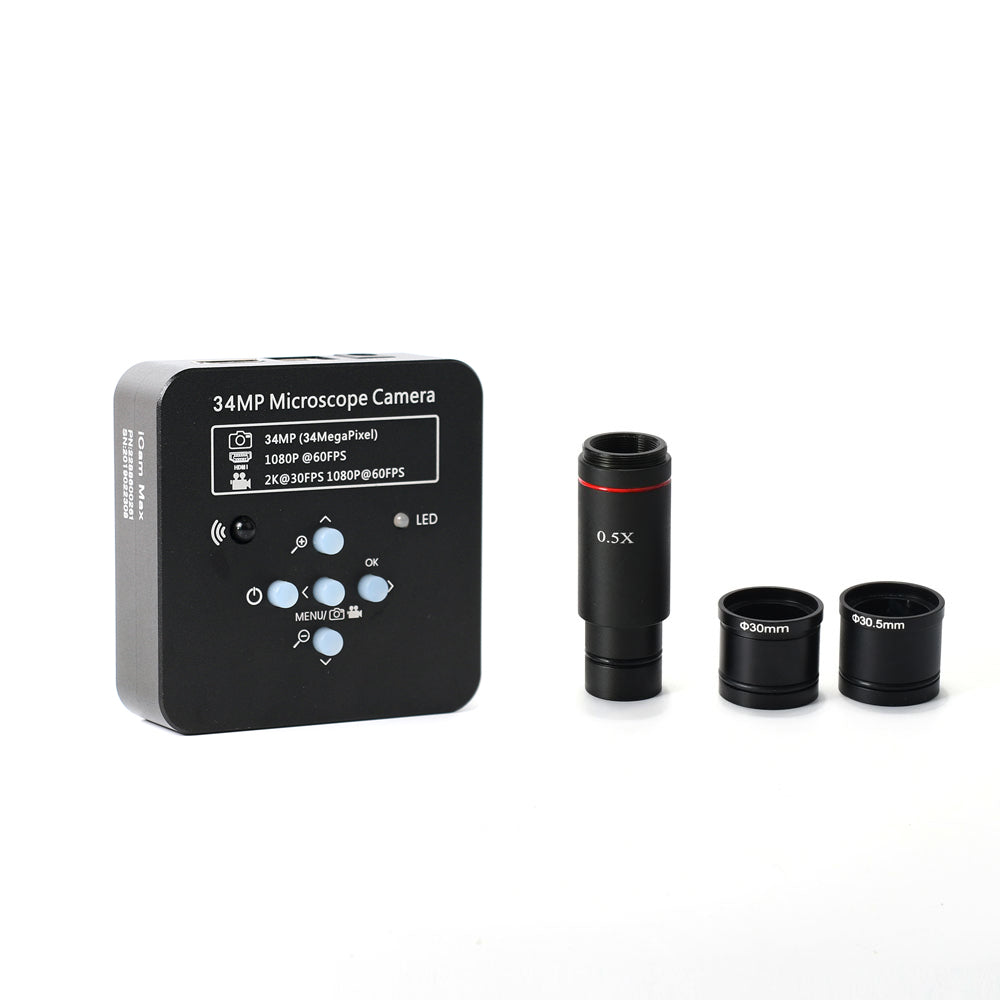

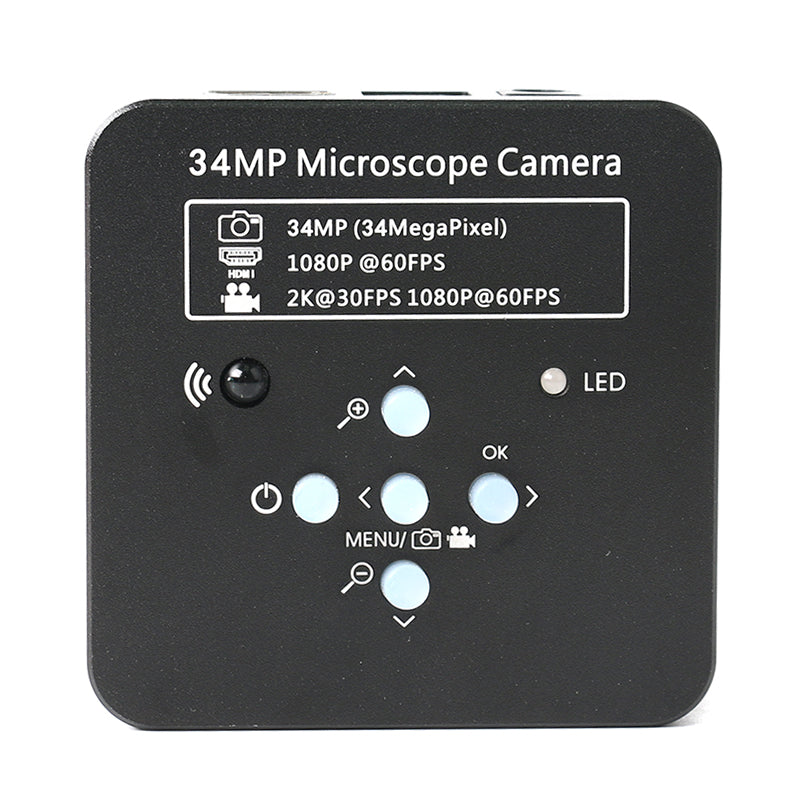

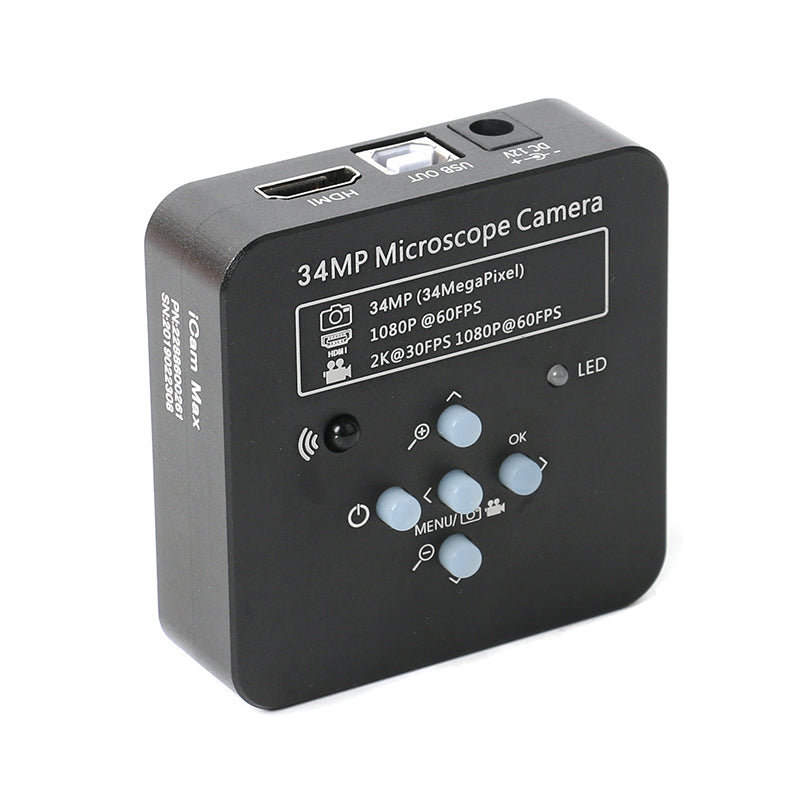

2K 34MP 1080P 60FPS HDMI USB Electronic Industrial Microscope Camera 0.5X Eyepiece Adapter 30mm/30.5m Ring
Noting:
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera.
| Specification |
|
| Image sensor |
34 megapixel Panasonic CMOS sensor 1/2.33 inch |
| Effective pixel |
34 megapixel |
| Pixel size |
1.335μm × 1.335μm |
| Frame rate |
60fps |
| Definition |
FULL HD |
| Housing |
metal |

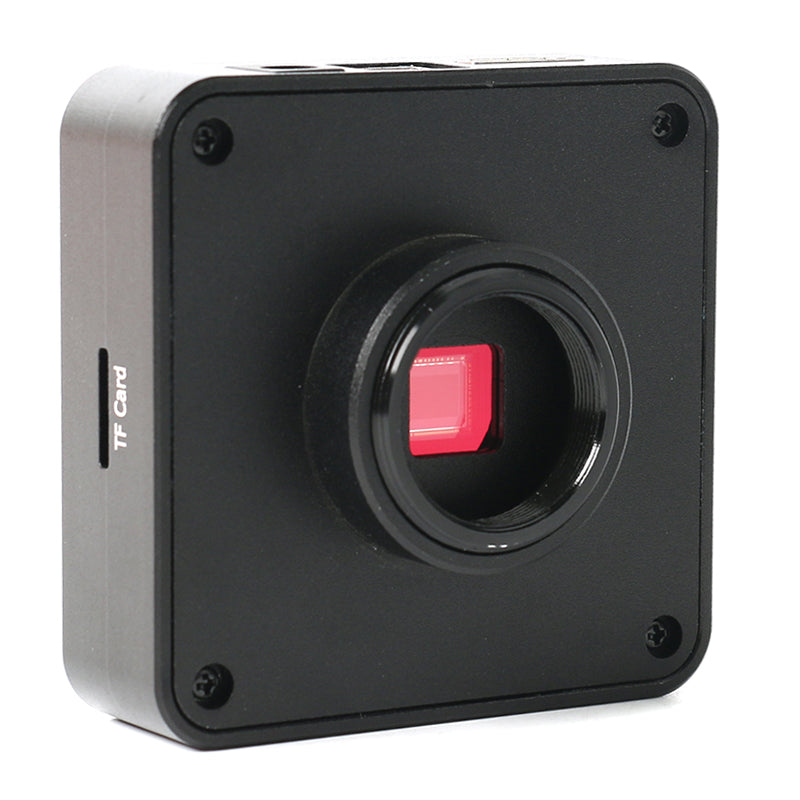

| Lens |
C/CS |
| Video format |
MP4 |
| Digital Zoom |
Support |
| Brightness control |
Auto/manual |
| Color |
R/G/B adjustable |
| Film and record |
Support |
| Cross cursor |
Support multi-color, size adjustable |
| Transverse and vertical line |
Support multi-color, 5 pcs of transverse lines/vertical lines, movable |
| TF card interface |
Max 64G |

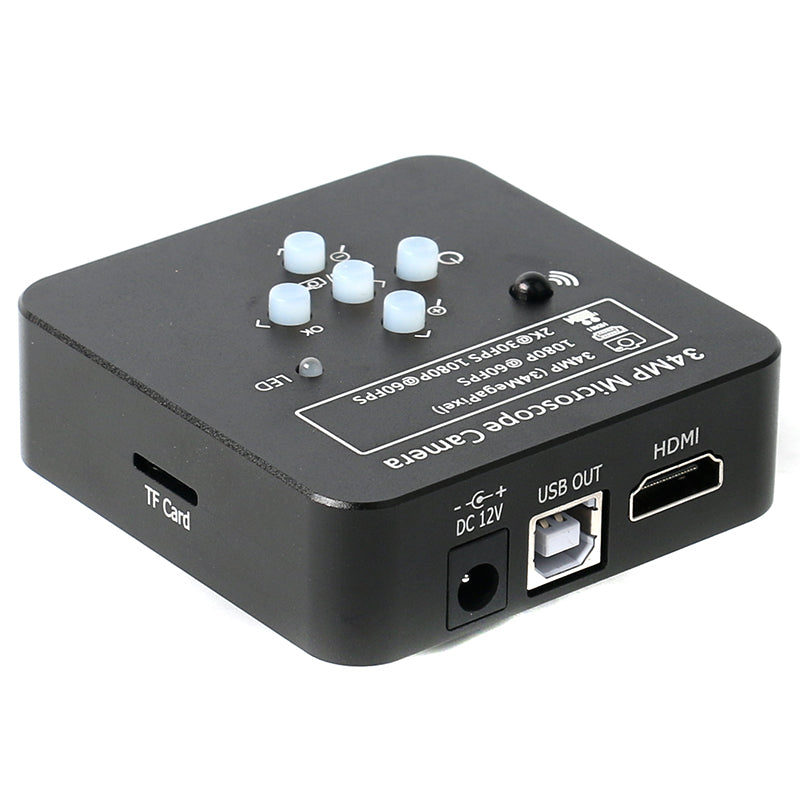

| HDMI interface |
Standard HDMI output (Type A) |
| USB interface |
Standard usb2.0 interface (Type B) |
| Input Voltage |
DC 12V |

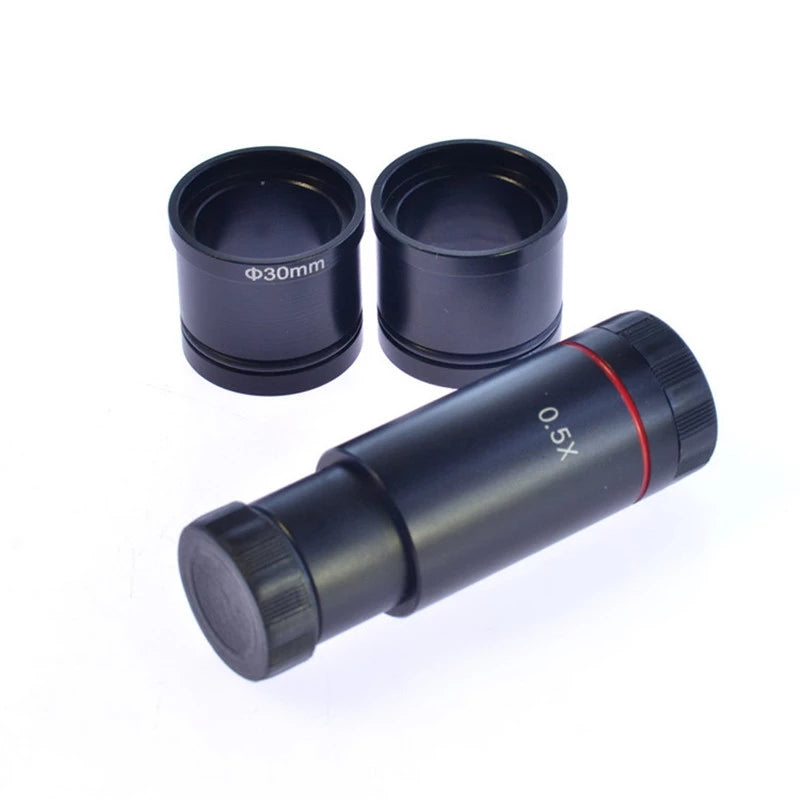

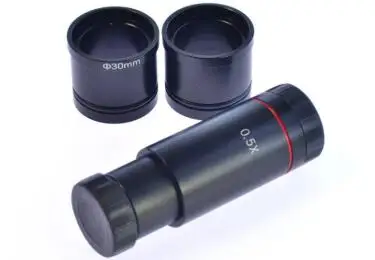

| This microscope camera is a 0.5x Reducing lens, which expands the camera's field of view. It can be used with C-Mount or CS-Mount camera in any pixel and placed in a binocular or trinocular microscope to expand its field of view. Can be installed directly in the biological or stereo eyepiece camera. |
|
| CCD Specification |
|
| Magnification |
0.5X |
| Mounting Size |
23.2mm, 30mm ,30.5mm |
| C-mount Thread |
32TPI-UN-2A |
| Suit Microscope |
biological microscope and stereo microscope |
| CCD Feature |
|
| 0.5X magnification to get a more wide view of microscope |
|
| C-MOUNT adapter to connect CCD camera or Digital eyepiece to microscope |
|

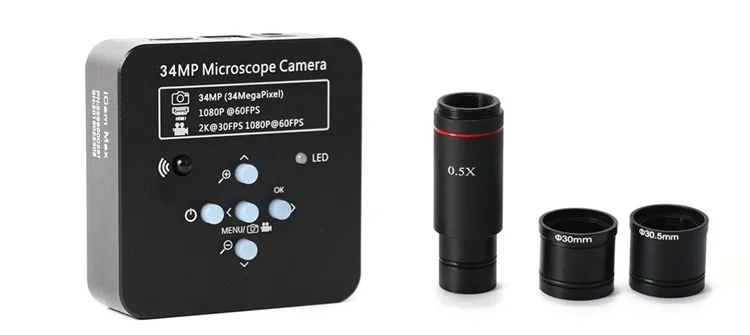

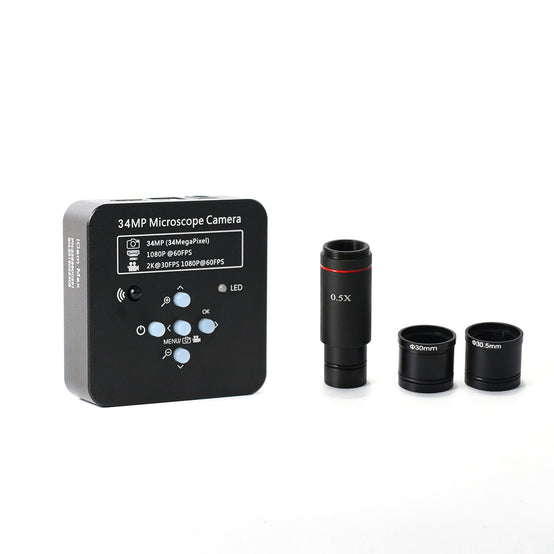

Package including:
1 x 34MP Microscope Camera
1 x Power supply
1 x USB line
1 x Software DISC
1 x Remote Control
1 x 0.5X Reducing Lens and 30/30.5mm adapter
 |

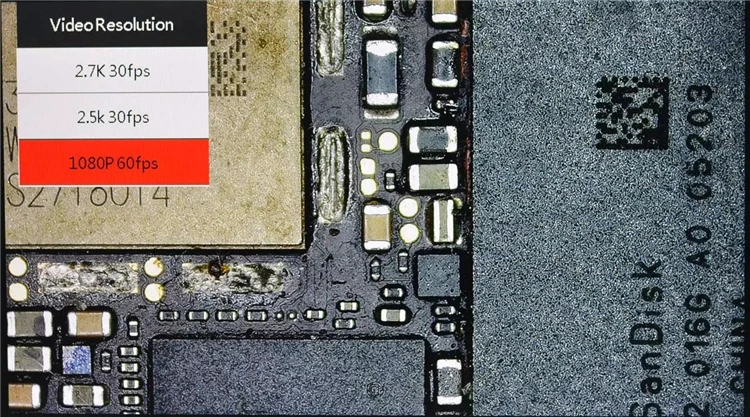

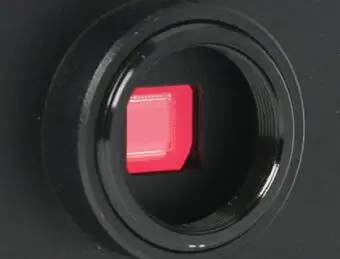

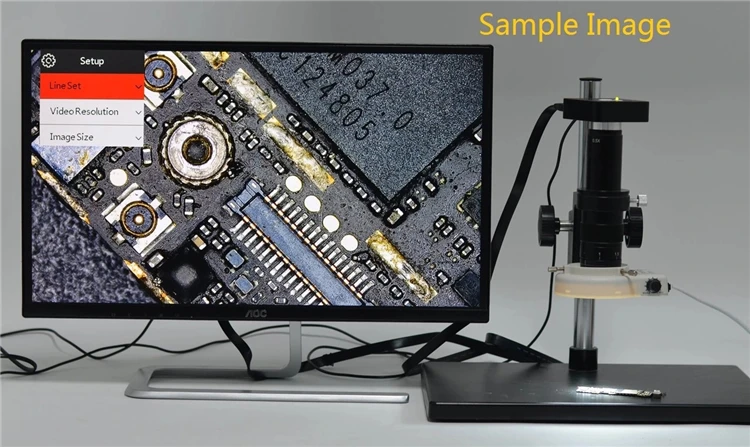

High quality CMOS Bring you the amazing Image |

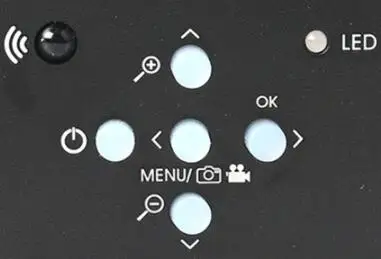

| Multi-function physical buttons Easy to use |
 |
 |
Highly compatible CCD adapter The make the camera can be used on biological microscopes and stereo microscopes |
Private factory: Product customization services to make your products more recognizable.
Professional development team: Make the product performance and function the first echelon in the market, can adjust product functions according to customer needs.
Independent after-sales team: Provide more professional after-sales service to ensure that the problems encountered by each guest are solved.
Long term warranty: The warranty period is longer than other sellers, just because we have confidence in our products.
