Wholesale 2G 4G Phone Signal Booster Gsm Jio Mobile Signal Booster Tri Band Repeater Signal Amplifier
Share

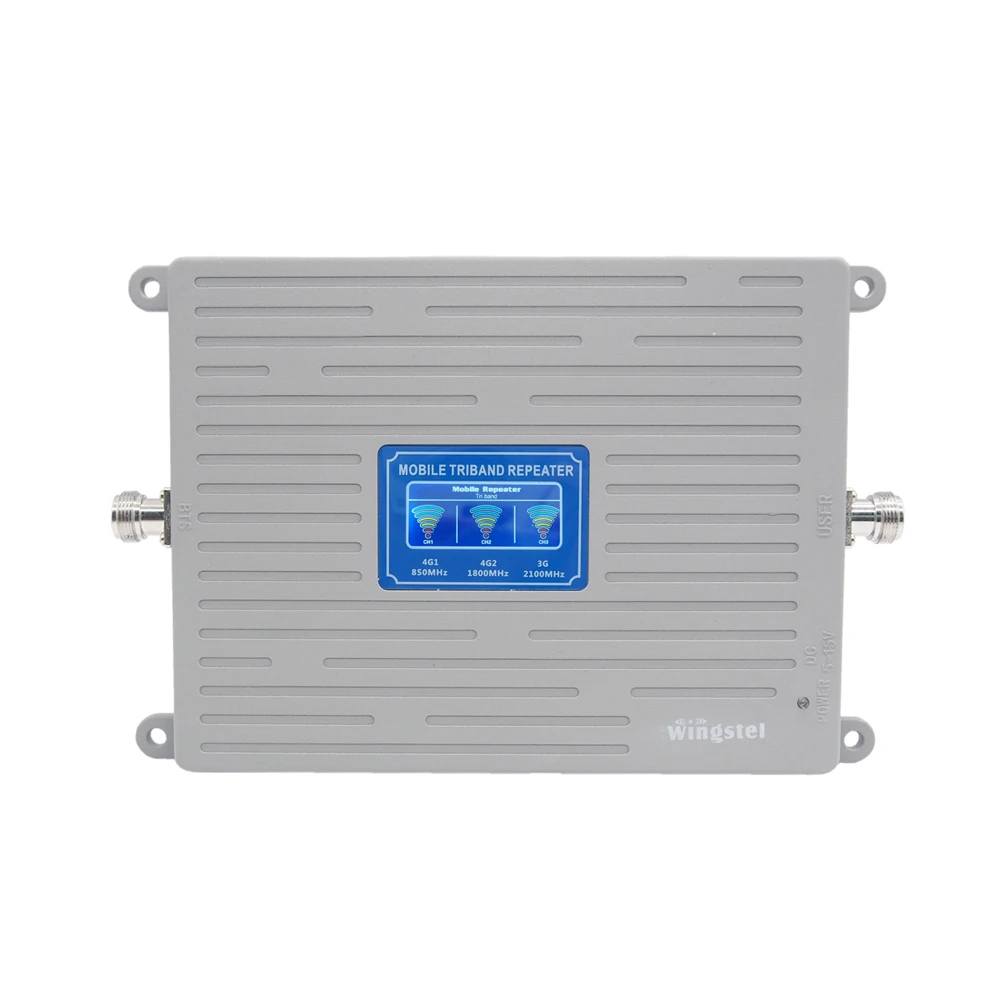

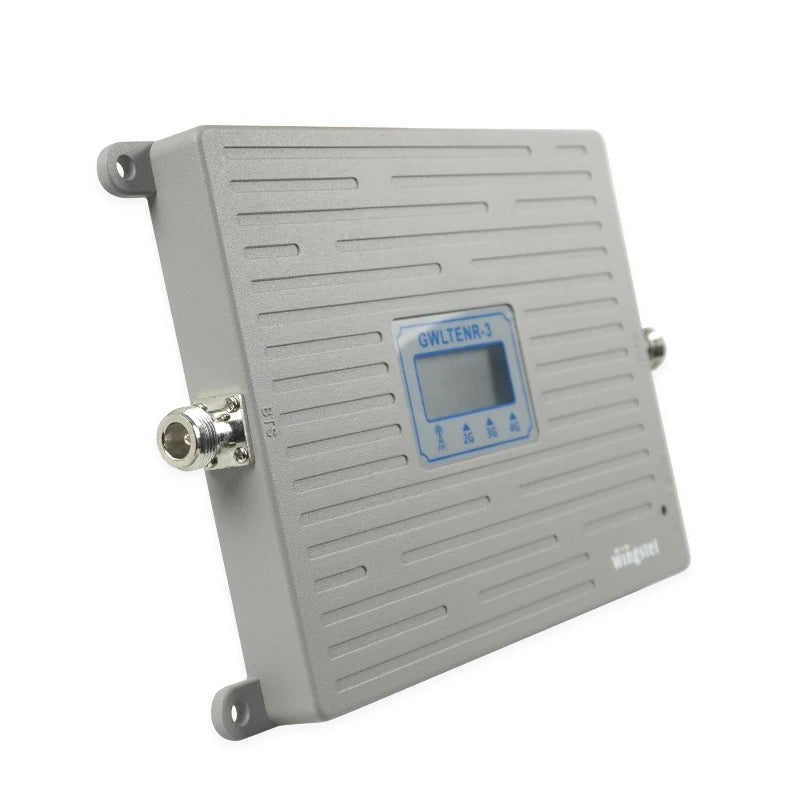

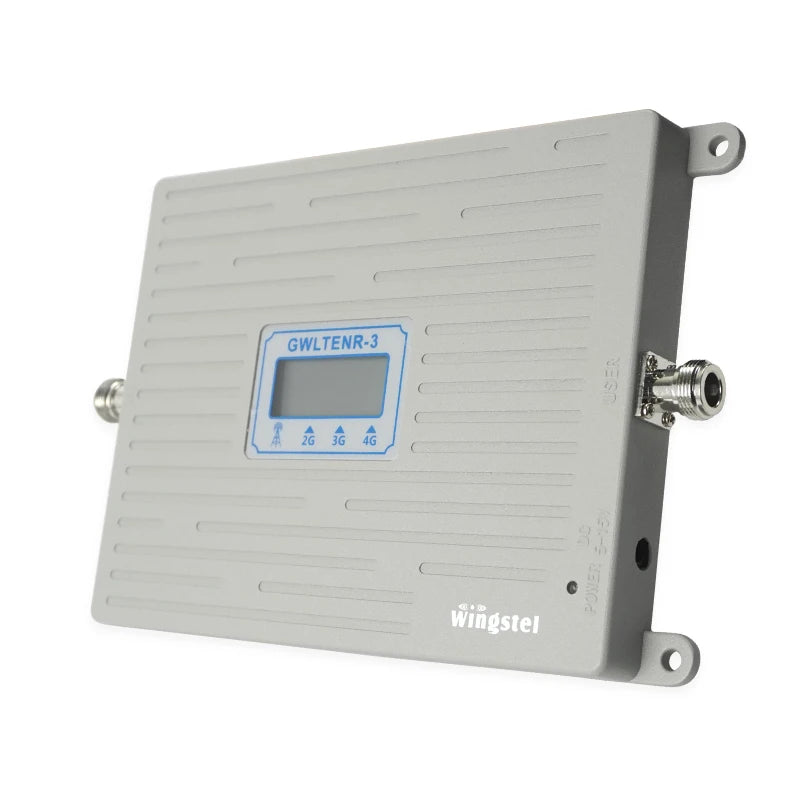

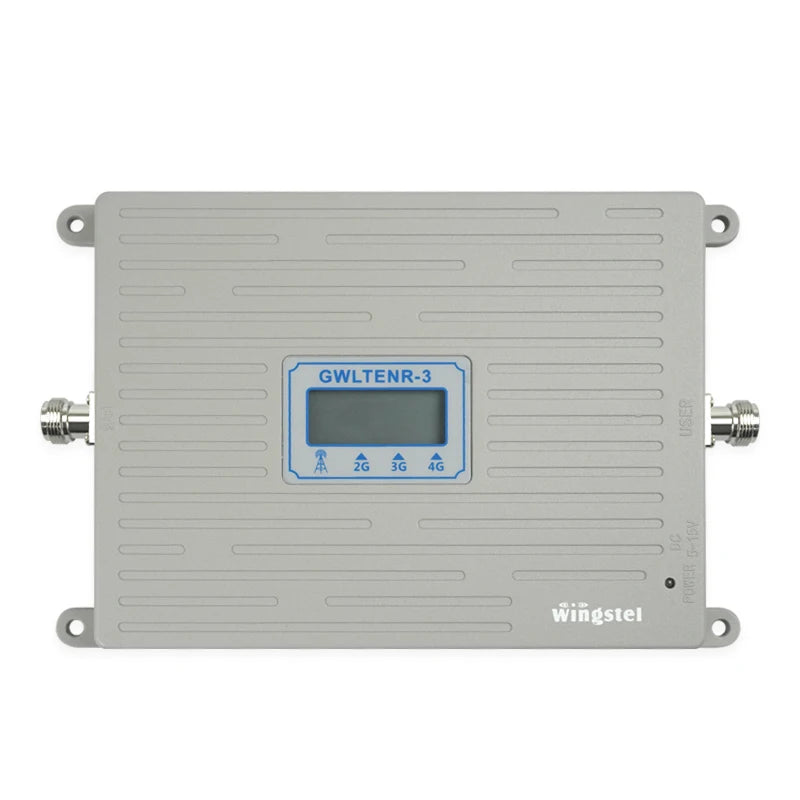

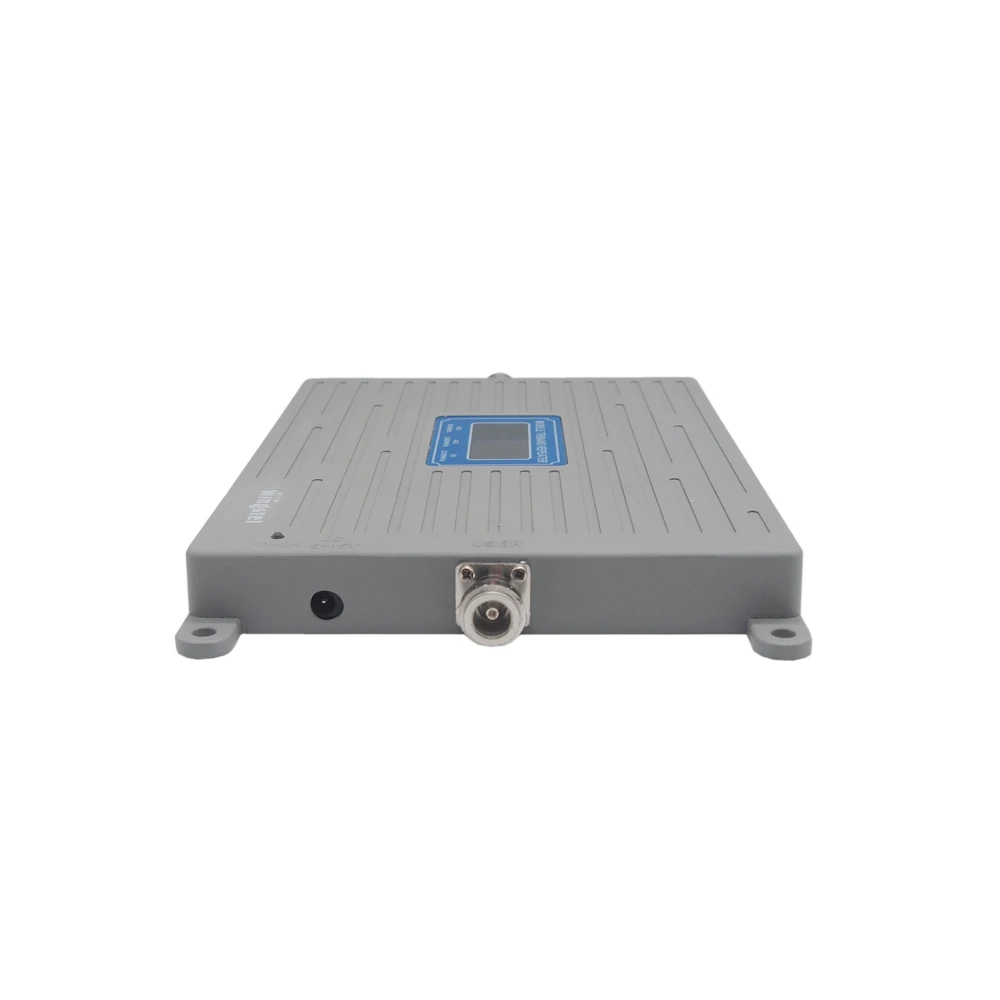

High Power GSM 2G 3G 4G LTE Tri band Cell Phone Signal Booster Mobile Network Signal Amplifier Repeater
WT-GDW09 900/1800/2100MHz
A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference.
It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.
| Model No | WT-GDW09 |
| Frequency | 900/1800/2100MHz(GSM/DCS/W-CDMA) |
| Frequency Range |
Uplink 890-915MHz / 1710-1785MHz / 1920-1980MHz Downlink :935-960MHz / 1805-1880MHz / 2110-2170MHz |
| Gain | Uplink 70±3dBi Downlink 75±3dBi |
| Export: Power | 23dBm±3dBm |
| Power Supply |
Input AC100V-240V 50/60Hz 1.5A Output 12V 4.0A |
| Size | 235*150*20mm |
| Weight | 1.4kg |
| Coverage Area | 800-1500sqm |
| Pass Band Ripple | ≤3dBi |
| I/O Impedance | 50Ω |
| Connector | Type N female connector |
| Noise Figure | ≤4dBi |
| Transmission Delay | ≤0.5μs |
| Ambient Temperature | -10ºC~60ºC |
| Reliability | To the GB6993-86 standard |
| Electromagnetic Compatibility | To the ETS300 694-4 standard |
| Function | a) Power supply LED denote b) Export power LED denote |

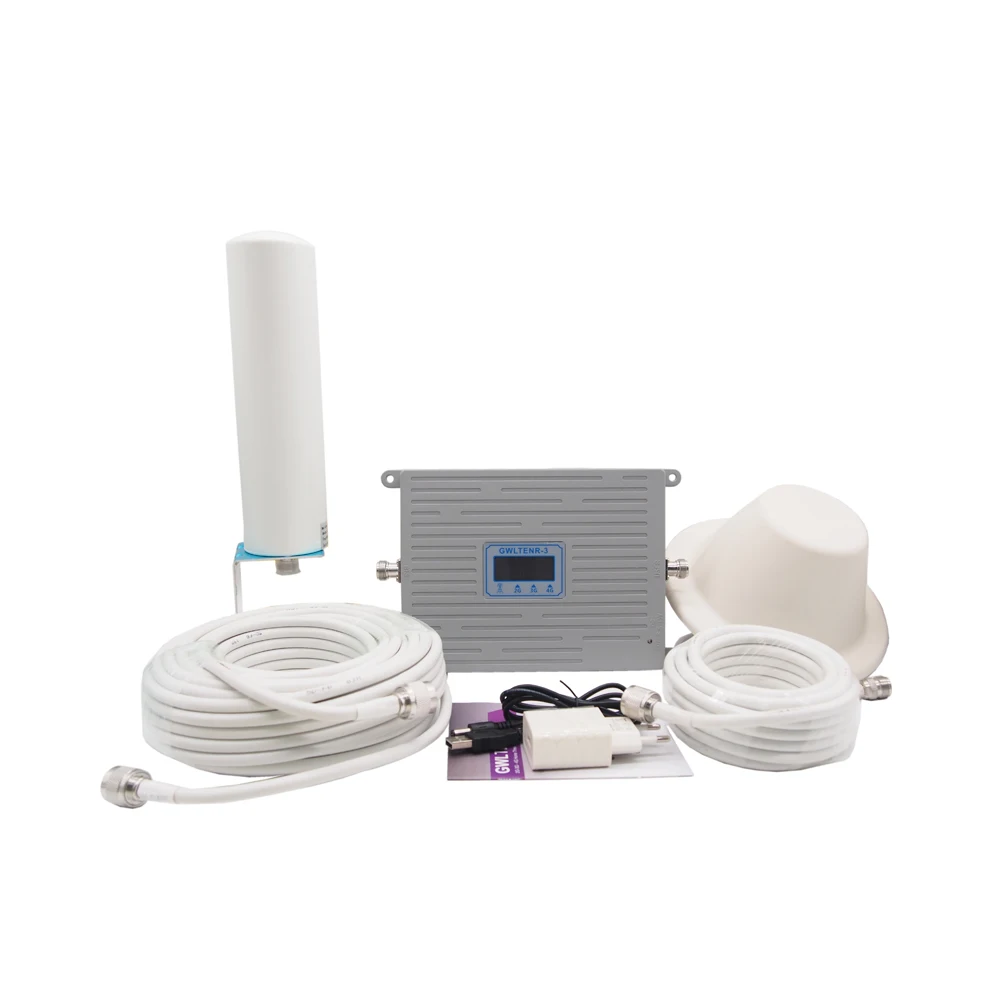

This triband booster packing list:
| ITEM | QUANTITY(PC) |
| Triband 900/1800/2100mhz Signal Booster | 1 |
| Omini PVC Antenna | 1 |
| Ceiling Antenna | 1 |
| LMR300 15m Cable | 1 |
| LMR300 5m Cable | 1 |
| Power Supply | 1 |
| User Manul | 1 |
| White color packing box | 1 |
Installation Approaches
- Fix up outdoor antenna reception on housetop and point to signal tower.
- Connect outdoor antenna to “outdoor” port in repeater machine through cable.
- Connect indoor antenna(s) to “indoor” port in repeater machine through cable also.
- Plug power adaptor into AC power socket and finish installation.
Technique Supporting
- If still no signal receipt after activated repeater, please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70DBM.
- If can not call out, please adjust the direction of outdoor antenna.
- If strength is not steady, please check if outdoor & indoor antennas are too close. Please ensure the outdoor and indoor antenna have distance of 20 meters at least, with a wall between and not at the same horizontal line(outdoor antenna can be one floor higher than the repeater and indoor antenna).
- Indoor antenna and repeater better to be minimum 4 meters far away from nearby windows and doors.
