🔍 1. Professional Product Overview

The Hobbywing X9 motors Power System 9616 110KV 12-14S with ESC+Propeller+Motor for 10L/16L/22L multirotor Agricultural Drone is a high-utility asset meticulously selected for the Shanvis Store 2026 collection. Engineered to bridge the gap between industrial reliability and commercial affordability, this product is a cornerstone for D2C brands and B2B resellers looking to establish market dominance through quality-vetted inventory.

📦 2. Manufacturer Specifications & Technical Configuration

Please refer to the detailed configuration, dimensions, and reference data provided below:

Specification

item	value
Place of Origin	China
	Guangdong
Brand Name	Hobbywing
Model Number	X9 power system
Combo Weight:	1040g
Waterproof Rating:	IPX7
Operating Temperature:	-20℃~50℃
Outer Diameter:	90*16
KV Rating:	100KV
O.D of Carbon Fiber Tube:	40MM
Bearing:	Imported Bearing
Support lithium battery	6-14S
Certification	ce

Product Description

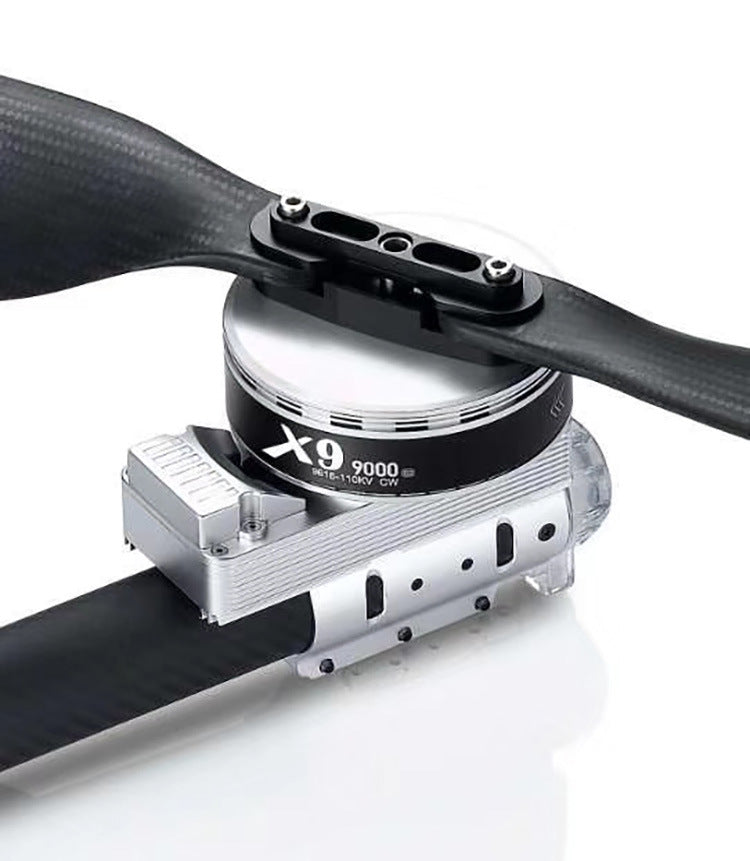

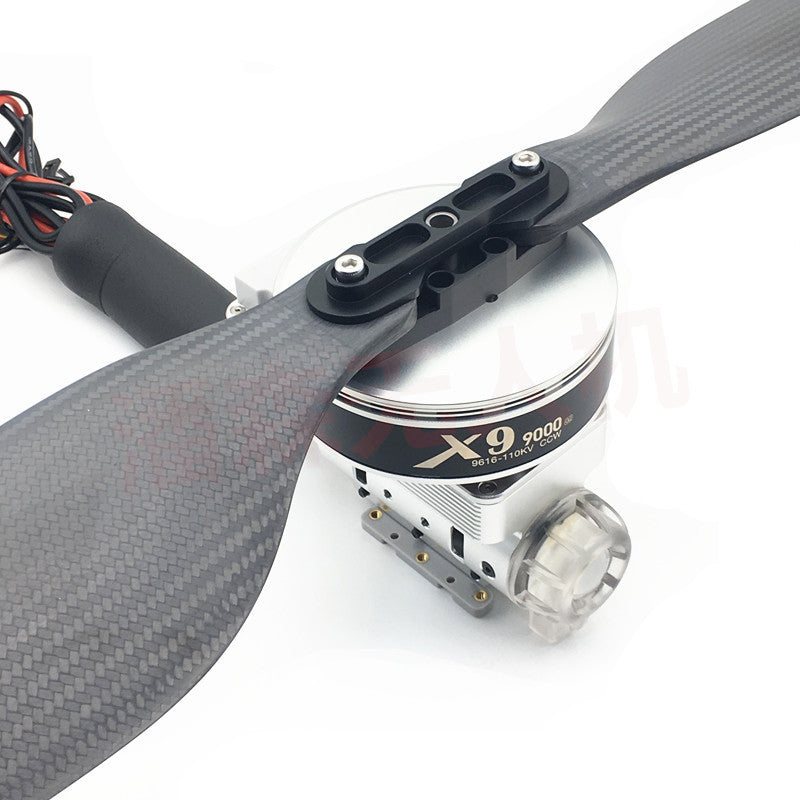

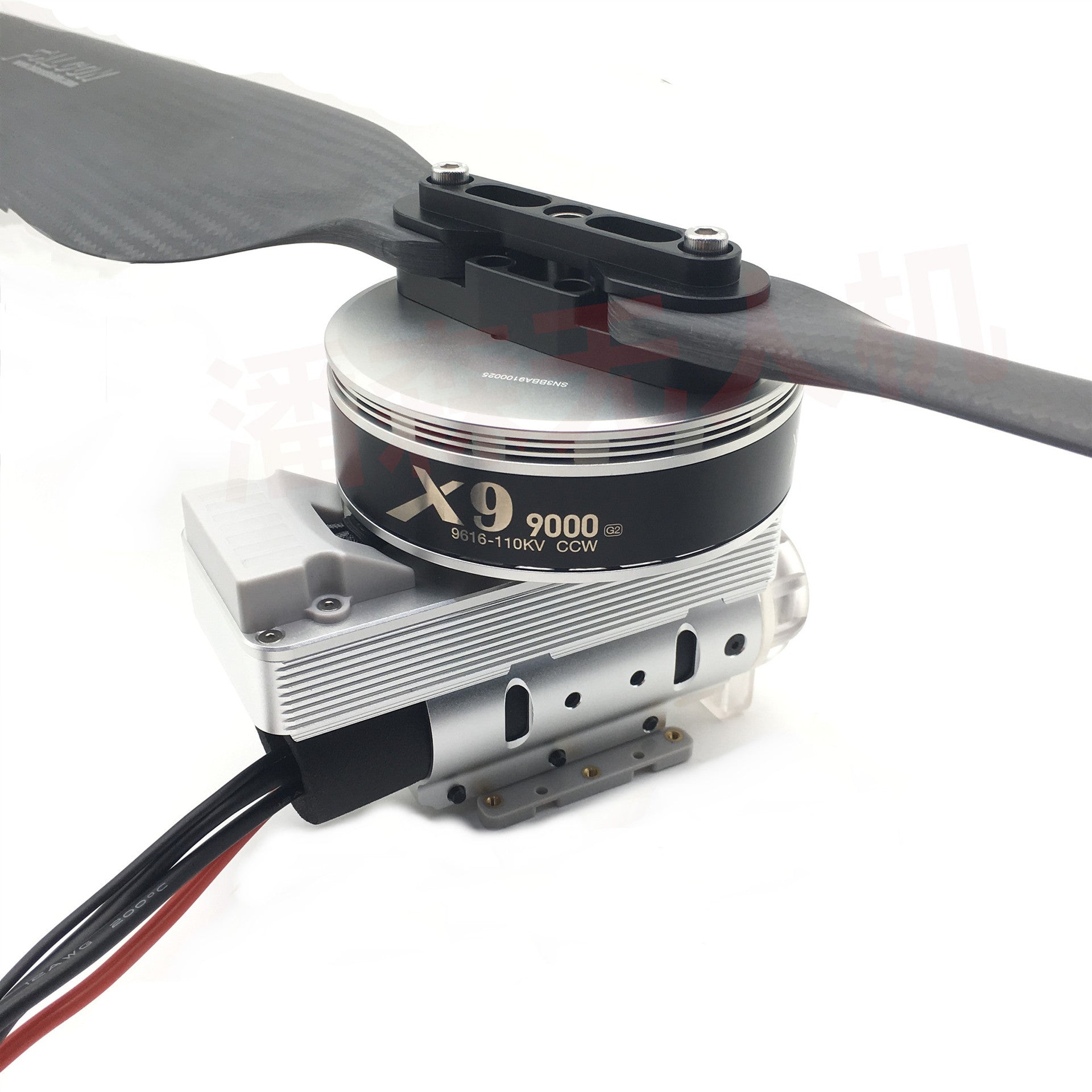

One-piece structure on the tube
X9 three-dimensional stage design, integrated motor, ESC, and motor base are integrated, lightweight structure, installation and
installation and use are very convenient; the diameter of the tube can be matched with a 40mm diameter circular carbon fiber tube.
Protection upgrade, all-weather and all-regional application
In order to cope with the application in different areas of the plant protection industry and the harsher use environment, the X9
power system is upgraded with overall protection, motor enclosed design, ESC full irrigation protection and its connector plug
part adopts waterproof and anti-corrosion plug-ins, and the overall protection level can reach IPX7 ,
Large-load plant protection machine application

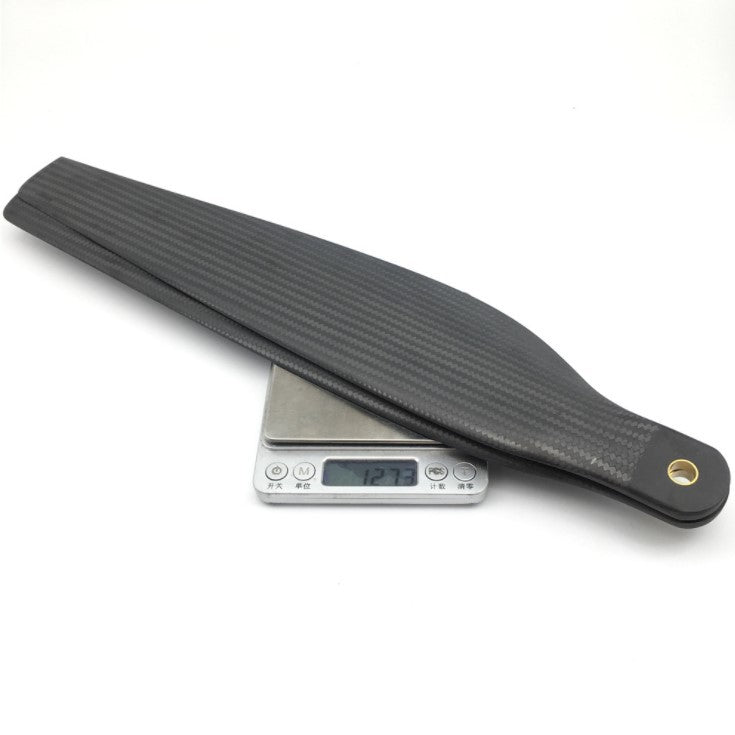

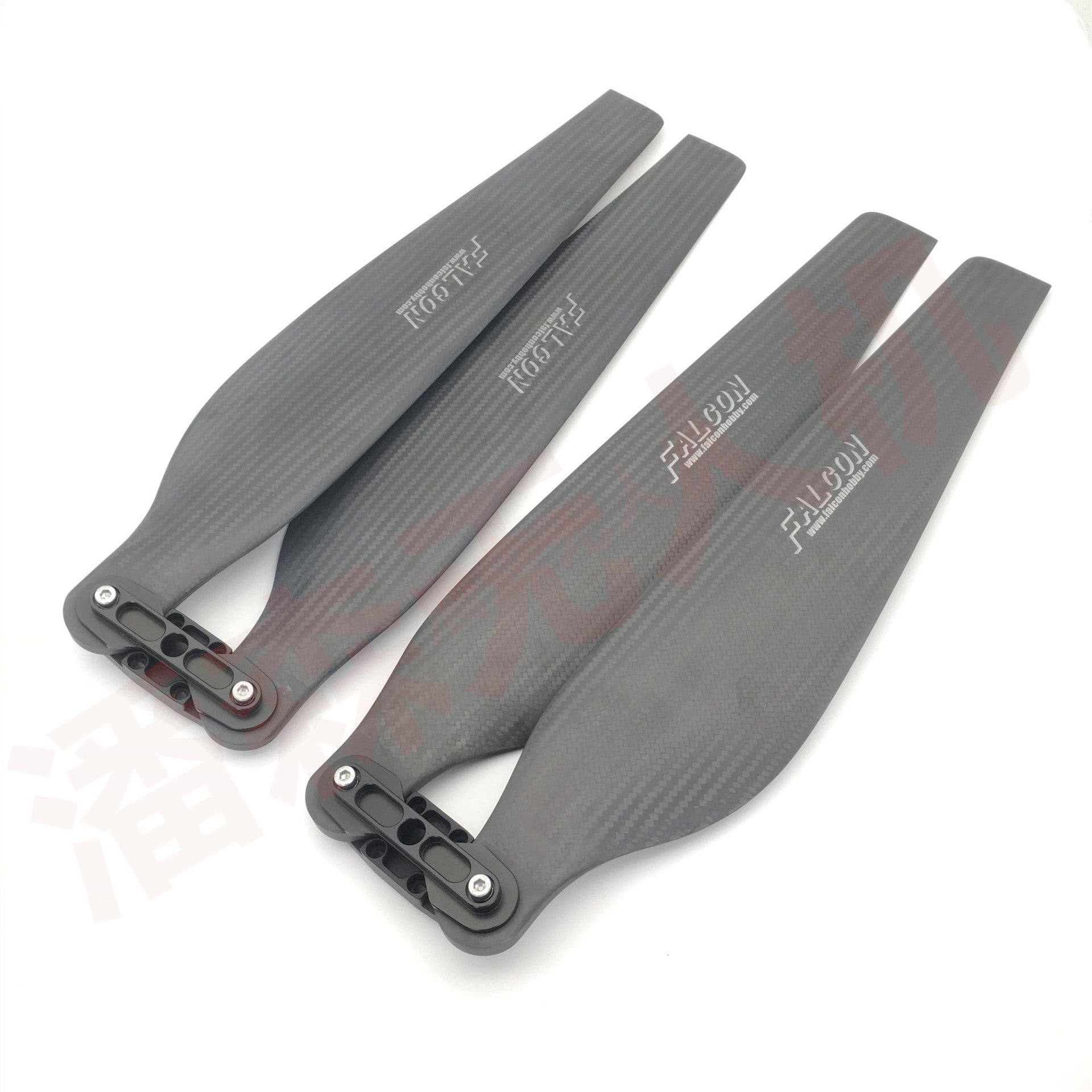

The X9 power system is equipped with a 34-inch high-efficiency straight propeller, and the maximum pull force of a single shaft
can reach 22.5kg.
Rich accessibility interface
The base of the power system reserves the nozzle installation fixed seat and the ESC has a built-in brush centrifugal nozzle ESC,
which can be directly connected for installation and use, enriching the application of plant protection models and simplifying the
structure of the model.
Multiple protection functions
The X9 power system has a series of early warning and intelligent protection functions such as power-on self-check, power-on
voltage abnormal protection, current protection, external force jam, stall protection, etc., and can output operating status data
to the flight control in real time, including: input throttle amount , Respond to the throttle amount, motor speed, bus voltage,
bus current, phase current, capacitor temperature and MOS tube temperature, etc., so that the flight controller can grasp the
operating conditions of the ESC motor in real time, improve the flight performance and efficiency of the drone, and improve the
system reliability
Smarter and more compatible
Intelligent upgrades from the underlying system, the power system runs more smoothly, the flight controller is more compatible and
can be used with more excellent flight controllers; increase the motor steering, system acceleration and deceleration rate, LED
light color, system brake and other software adjustment parameters Function, the overall performance of the aircraft is more
stable and reliable, and the flight effect is better.
Excellent heat dissipation, anti-collision structure design
The integrated design of the X9 system, the motor, the ESC, and the motor base are tightly connected, increasing the conduction
heat dissipation area, and can be used with higher power. The motor rotor has its own centrifugal fan function, the ESC has a
uniform and efficient heat dissipation structure, and the overall power system is more reliable; The anti-impact design at the end
of the motor base can absorb the impact of force, protect the motor and the ESC, and reduce the damage to the power components
caused by the failure of the crash.
