Features:

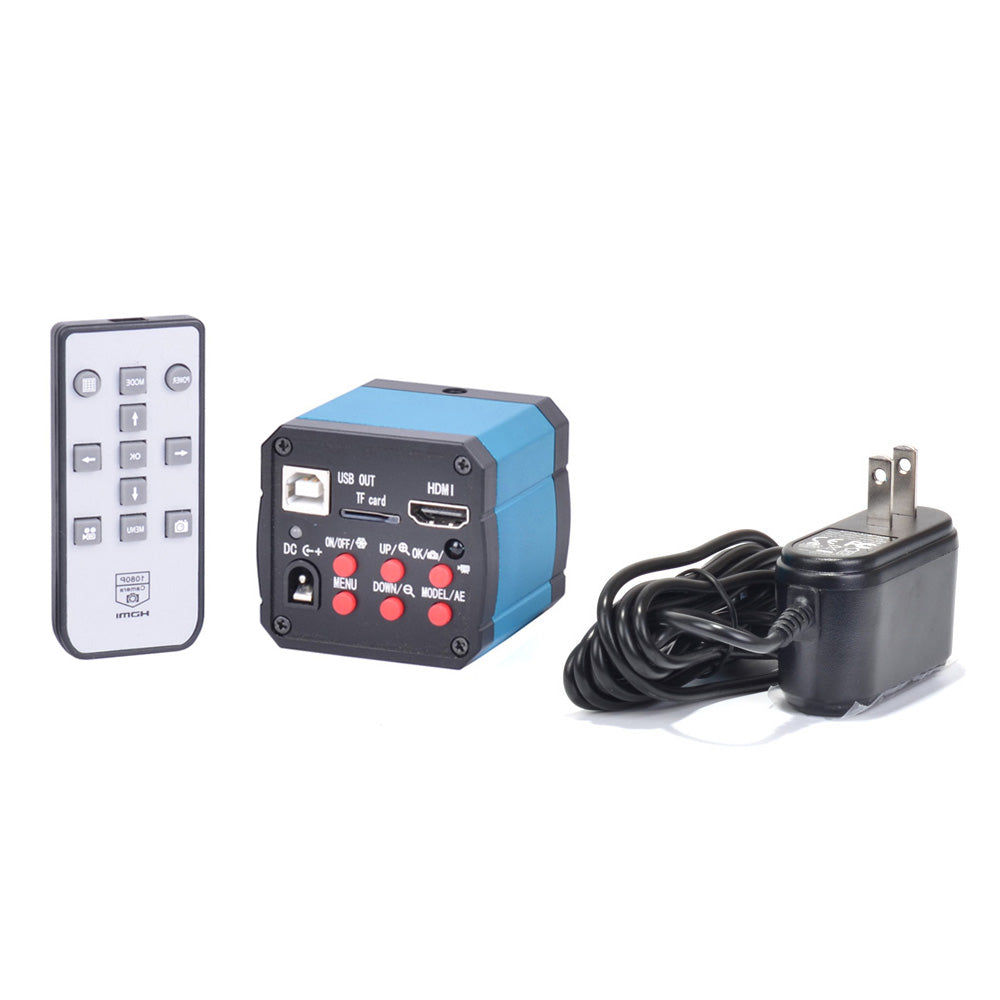

Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 4320*3240 (for TF card) 1920*1080 @ 60FPS(for TF card)
Video format: MP4
Video recorder: 1920*1080 @ 60FPS (for TF Card)
USB Video resolution: 1920*1080 @ 30FPS
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese/French/Spanish/Portuguese
Line: different color,5 horizontal line , 5 vertical line,any positions
Specification:
Image sensor:14 megapixel Panasonic sensor 1/2.3 inch
Effective pixel:14 megapixel
Pixel size:1.43x1.43um
Frame rate:60fps
Definition:FULL HD
Housing:metal
Lens:C mount
Video format: MP4
Encode: H.264 (High Profile)
Digital magnification:5 times digital zoom
Brightness control:Auto/manual
Color:R/G/B adjustable
Film and record:Support
Cross cursor:Support multi-color, size adjustable
Transverse and vertical line:
Support multi-color, 5 pcs of transverse lines/vertical lines, moveable
Different color,5 horizontal line , 5 vertical line,any positions
SNR:Support
TF card interface:Max 64G
HDMI interface:Standard HDMI output (Type A)
Lens:C
USB interface:Standard usb2.0 interface (Type B)

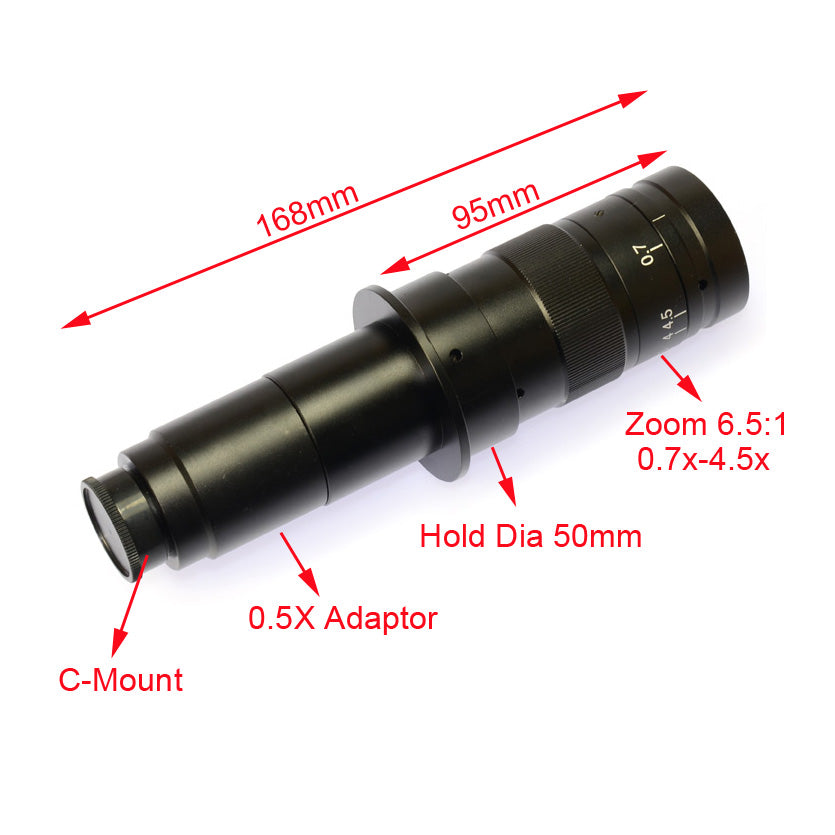

C-MOUNT Lens:
Zoom c-mount Lens
Magnification Power by 0.7 - 4.5X (about 10 - 180X on the display)
Work distance:100mm-150mm
Visual field :2.3mm-22mm
Size: 180mm(L) * 50mm(DIA)
Weight: 450g
| Eepiece lens |
Standard |
Add 0.5x Barlow |
Add 2X Barlow lens |
|||
| 100mm working distance |
198mm working distance |
46mm working distance |
||||
| Ratio |
FOV |
Ratio |
FOV |
Ratio |
FOV |
|
| 0.35X |
0.245X |
23 |
0.1225X |
46 |
0.49X |
11.6 |
| 1.575X |
3 |
0.7875X |
7 |
3.15X |
1.7 |
|
| 0.5X |
0.35X |
17.6 |
0.175X |
35 |
0.7X |
8.8 |
| 2.25X |
2.7 |
1.125X |
5 |
4.5X |
1.3 |
|
| 1X |
0.7X |
9 |
0.35X |
17.6 |
1.4X |
4 |
| 4.5X |
1.6 |
2.25X |
3 |
9X |
0.71 |
|
* FOV = field of view
Objective lens: 0.7X ~4.5X continuously variable
Objective lens variable ratio: 6.4:1
Balow lens: 0.5X/ 2.0X, optional
