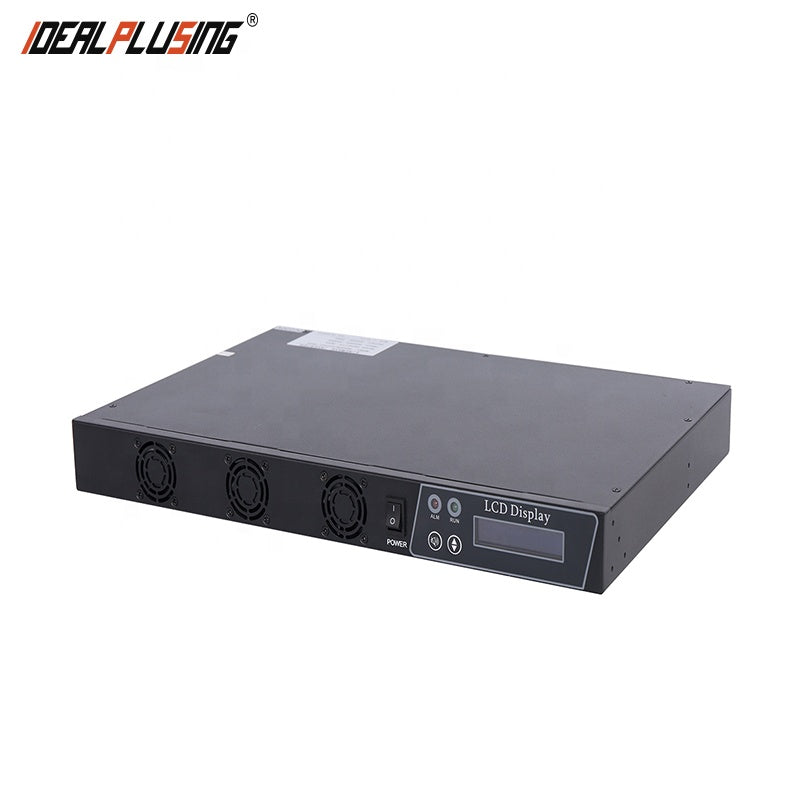

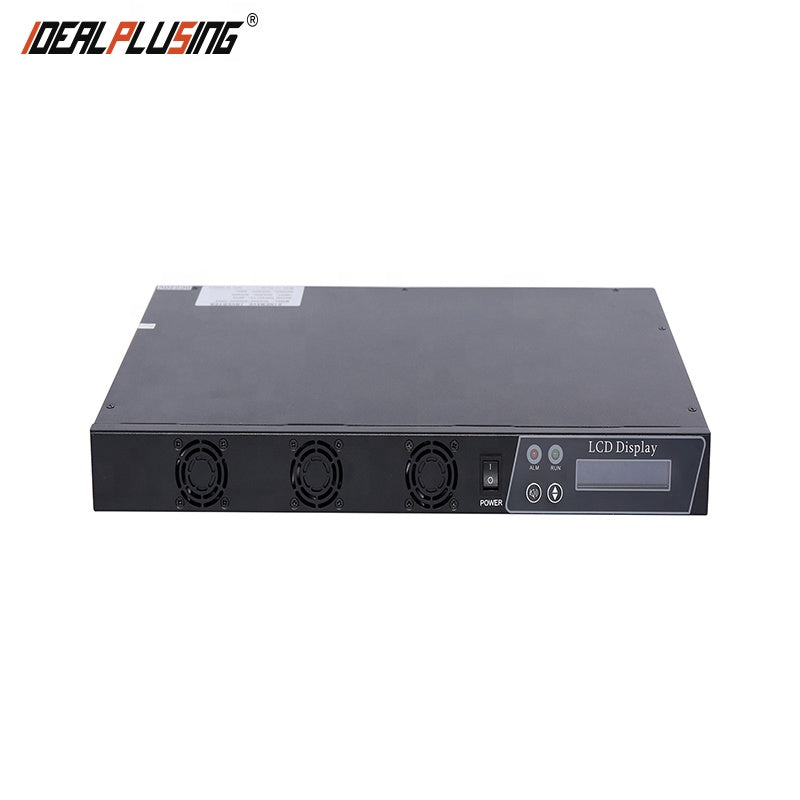

19inch 1U LCD Display Power inverter dc 110v to 220 ac 800w 110v power inverter solar hybrid inverter 1KVA
Share

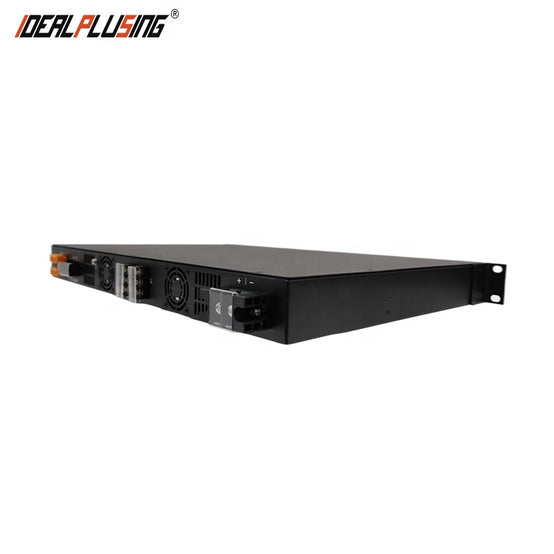

19inch 1U LCD Display Power inverter dc 110v to 220 ac 800w 110v power inverter solar hybrid inverter 1KVA
AC input startup available: the system could power on with the mains supply 220V input if there is no DC input;
Unattended operation: the system switches automatically to provide AC 220V to the load between the DC input and AC input;
Safety protection: DC input polarity converse , over/low voltage, short-road, over-load, over temperature, and inverting malfunction;
Converse current control: not disturb other communication device in the same DC cabinet;
DC-dominated Mode: the inverter is providing AC 220V to the load in normal, and automatically switches to by-pass AC 220V input if DC input fault occurs.
AC-dominated Mode: the inverter is stand by, the bypass is providing AC 220V to the load in normal, the load will switch to the inverter automatically if the bypass AC 220V input fault occurs;
Maintenance bypass is available for battery replacement:
5 groups passive dry contacts respectively for DC input fault, AC input fault, overload information, by-pass information and output fault ;(Standard configuration)
Independent RS232 and RS485 communication interfaces to monitor and manage the device in real time; (Standard configuration)
Support built-in TCP/IP interface to monitor and manage the device; (Optional)
Support built-in SNMP TCP/IP interface to monitor and manage the device (Optional).
| Band |
IDEALPLUSING |
|
| MOdel |
IPS-DTA1000-110 |
|
| KVA |
1KVA | |
| Rate output powe |
800W |
|
| Dimension(W*H*D) |
482*300*44mm |
|
| NW/GW(kg) |
5/7 |
|
| DC Input |
Rated voltage |
220V |
| Cutoff voltage |
90-145V |
|
| Start-up voltage |
94-142V |
|
| AC Input |
By-pass voltage range |
220Vac±20% |
| Rated Current |
16.6A | |
| Bypass switch time (ms) |
≤5ms |
|
| AC Output |
Rated voltage /frequency |
220Vac/50Hz~60Hz |
| Waveform |
Pure Sine Wave |
|
| Rated current |
8.3A |
|
| voltage precision |
220VAC±1.5% |
|
| frequency precision (Hz) |
50Hz±0.1% or 60Hz±0.1% |
|
| Waveform distortion (THD) |
≤3% (linear load) |
|
| Dynamic respond time |
5% (Load25%←→100%) |
|
| Power factor |
>0.8 |
|
| Overload ability |
100%~125% 600s,120%~150% 15S150%, shut down Immediately |
|
| Conversion efficiency |
≥85%(80% resistive load) |
|
| Operating environment |
Insulating intensity |
1500Vac,1min(input&output) |
| Noise (1m) |
≤40dB |
|
| Operation temperature |
-20℃~+50℃ |
|
| Humidity |
0~90%, no moisture condensation |
|
| Operation altitude |
≤2000m |
|
| Cooling mode |
Forced wind cooling |
|
| Indication |
Inverter status |
Mains supply is normal, invert normal, battery under voltage, output overloading |
| Protect function |
Input under/over voltage, output overloading, short circuit, city power high-low voltage protection |
|
| Display |
LCD |
|
| Output mode |
Terminal block |
|
Telecom 800w pure sine wave inverter is a new generation of dual input inverter solution designed for the field of communication applications, which is suitable for the high reliability of the communication system. The solution is equipped with a 110V/220V/230V AC power supply and a 220V DC power supply, which fills the gap between the traditional UPS power supply and common 800w pure sine wave inverter solutions.
It uses a novel design structure that helps users to provide clean, stable and durable AC power for critical loads, and has the same high reliability as the DC power supply system. The design characteristics of the dedicated communication 800w pure sine wave inverter ensure the seamless conversion between the AC and DC power supply, almost no conversion delay, and no need to use the static switch.
Regard as the 1kva inverter, we can customize below range
220vac output design
24vdc to 220vac, 1-5KVA
48vdc to 220vac, 1-6KVA, 8KVA, 10KVA
110vdc to 220vac, 1-6KVA, 8KVA, 10KVA
220vdc to 220vac, 1-6KVA, 8KVA, 10KVA
120vac output design
24vdc to 120vac, 1-5KVA
48vdc to 120vac, 1-6KVA
110vdc to 120vac, 1-6KVA
All design 19 Inch 1U/2U/4U rack mount, LCD+LED display , RS232&485 communication port, power factor 0.8.
