1KW 2KW Mini Split Inverter Air Conditioner Hybrid Inverter Charge Mppt Controller For Household LED Bulb And Refrigerator
Save -46%
Rs. 202,069.85
Rs. 375,929.49
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Specification
|
Technical parameters:
|
||||||||
|
Type(unit)
|
SuninvM MPPT 1K 24V
|
SuninvM MPPT 2K 48V
|
SuninvM MPPT 3K 48V
|
SuninvM MPPT 5K 48V
|
||||
|
Rated capacity
|
1KVA
|
2KVA
|
3KVA
|
5KVA
|
||||
|
Battery rated voltage
|
24V
|
48V
|
48V
|
48V
|
||||
|
PV maximum input open voltage
|
225V
|
225V
|
225V
|
225V
|
||||
|
MPPT voltage range
|
100V
|
150V
|
150V
|
150V
|
||||
|
Voltage range
|
110/220VAC ±15%
|
|||||||
|
Frequency
|
50/60Hz
|
|||||||
|
Rated charge current
|
30A
|
30A
|
30A
|
30A
|
||||
|
Rated output voltage
|
110/220V ±15%
|
|||||||
|
Rated output frequency
|
50/60Hz ±1%
|
|||||||
|
Rated output current
|
5.5A
|
9.1A
|
13.6A
|
22.7A
|
||||
|
Output power factor
|
≥0.8
|
|||||||
|
THD
|
<3%
|
|||||||
|
Output wave
|
Sine wave
|
|||||||
|
Output phase
|
Single phase
|
|||||||
|
Peak factor
|
3:1
|
|||||||
|
PV charge current
|
2*20A
|
2*20A
|
2*30A
|
2*50A
|
||||
|
Efficiency
|
≥90%
|
|||||||
|
Dynamic response
|
5% (load from 0 to 100%)
|
|||||||
|
Noise level
|
≤40dB (1m distance)
|
|||||||
|
Display interface
|
LCD
|
|||||||
|
Communication interface
|
USB
|
|||||||
|
Environmental temperature
|
-30+55℃
|
|||||||
|
Environmental humidity
|
10%-90% (non condensing)
|
|||||||
|
Protection level
|
IP21
|
|||||||
|
Protection function
|
Array/ Over voltage/ Over current/ Short circuit/ Reverse connection ect protection function
|
|||||||
|
Altitude (m)
|
≤2000 ( above 1000m need according GB/T3859.2 to derate operating)
|
|||||||
|
Dimensions (mm)
|
420*640*210(W*H*D)
|
|||||||
|
Weight (kg)
|
20
|
25
|
25
|
30
|
||||
|
Warranty
|
2 years
|
|||||||
|
Certificate
|
CE/ ISO9001
|
|||||||

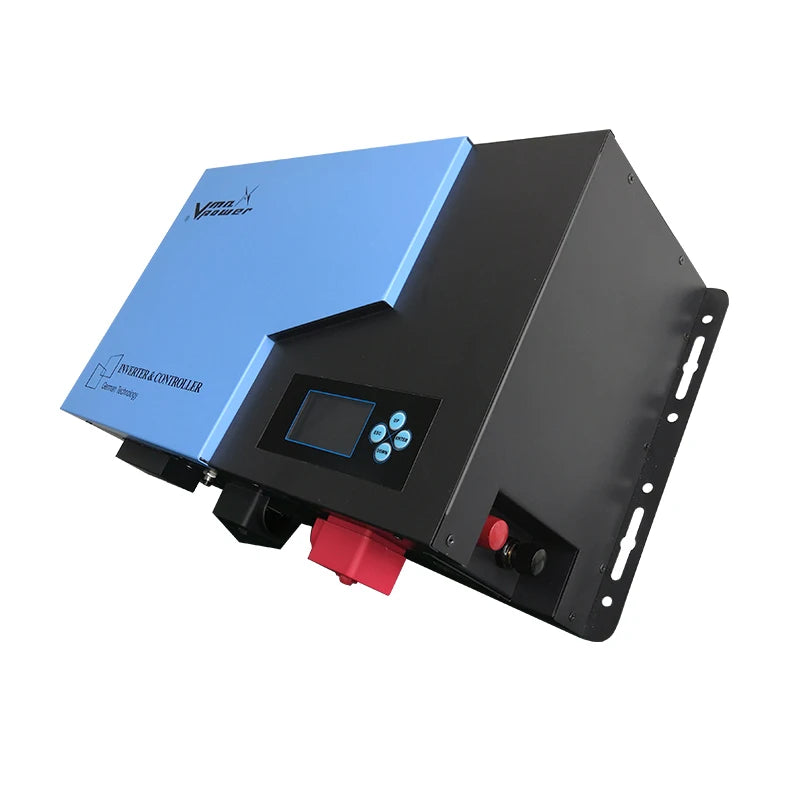

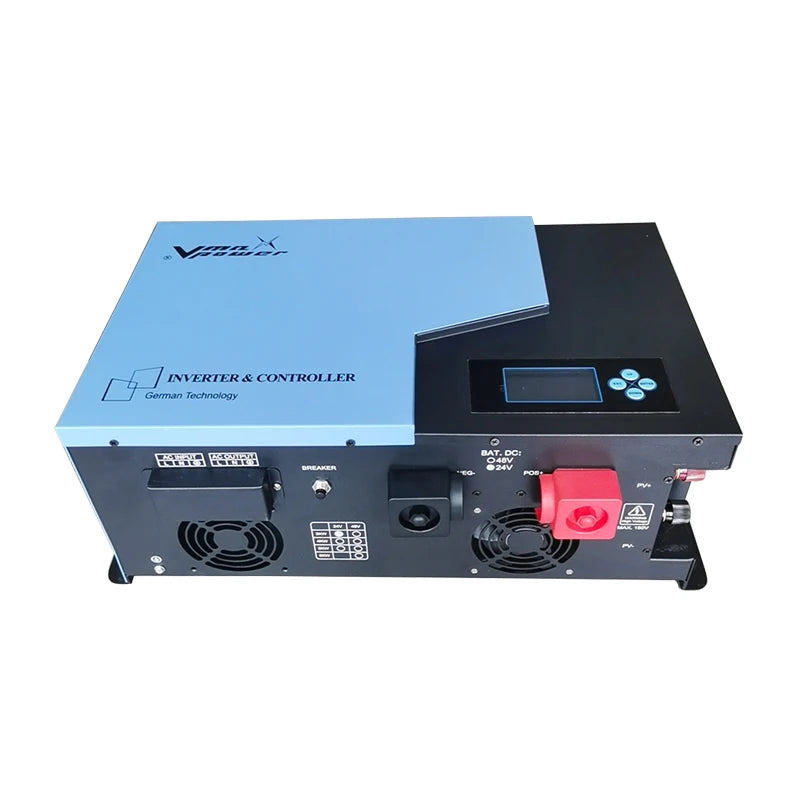

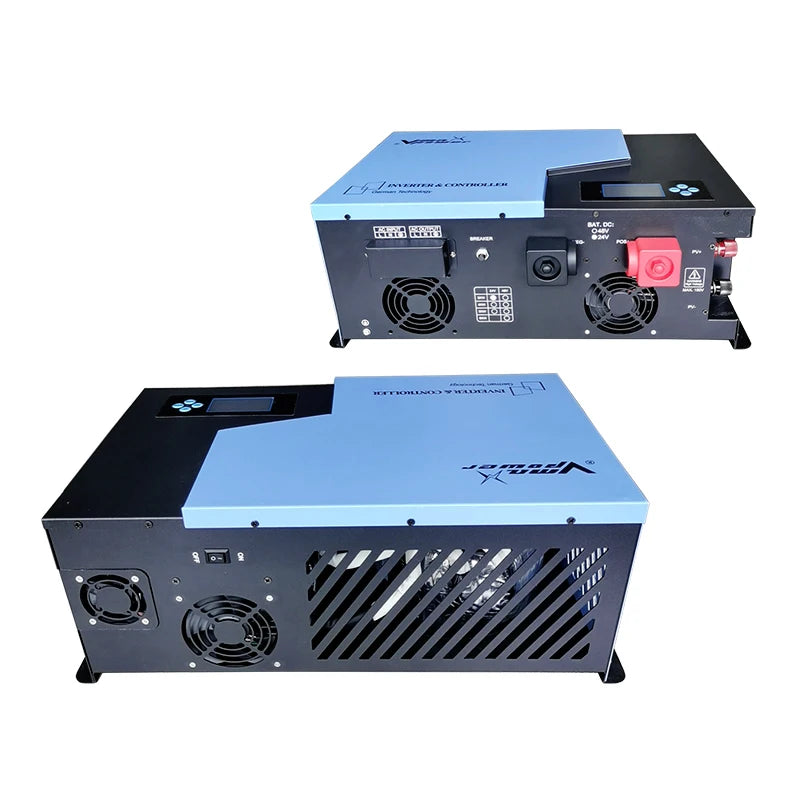

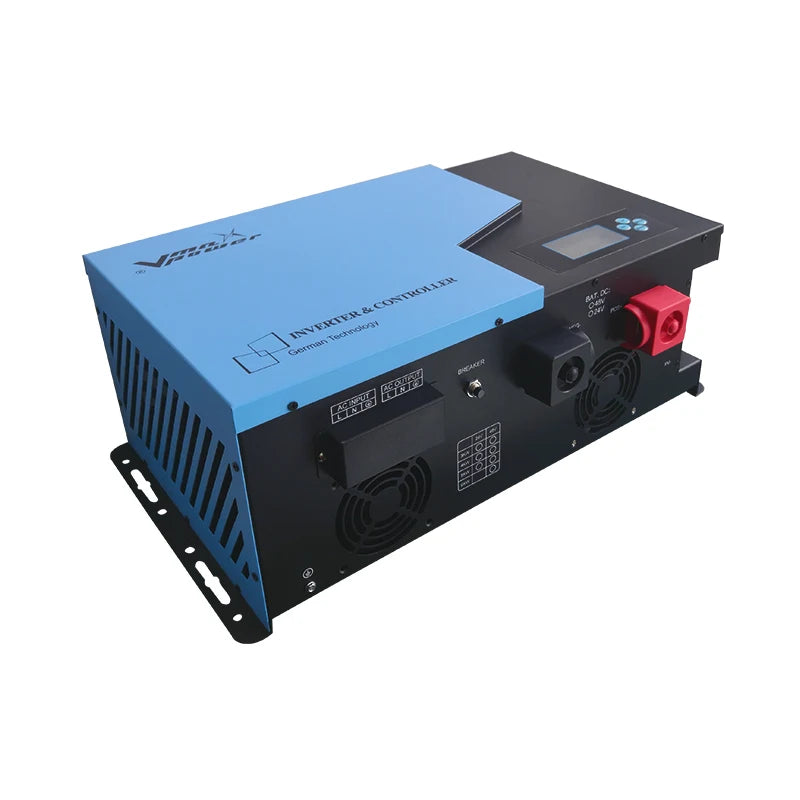

Product Details
Engineering Cases
About MULTIFIT
MULTIFIT was founded in 2009, based on providing the world-class small-scale photovoltaic power plants for civilian solutions and innovative research and development of renewable energy electrical products, we have cultivated a group of sales and R&D teams with ideals, experience and technology. The product has obtained more than 10 patent certificates, which has been exported to Europe, America, Africa, and Latin America etc, more than 50 countries and regions in the world.
Come with MULTIFIT, to power a better world !
