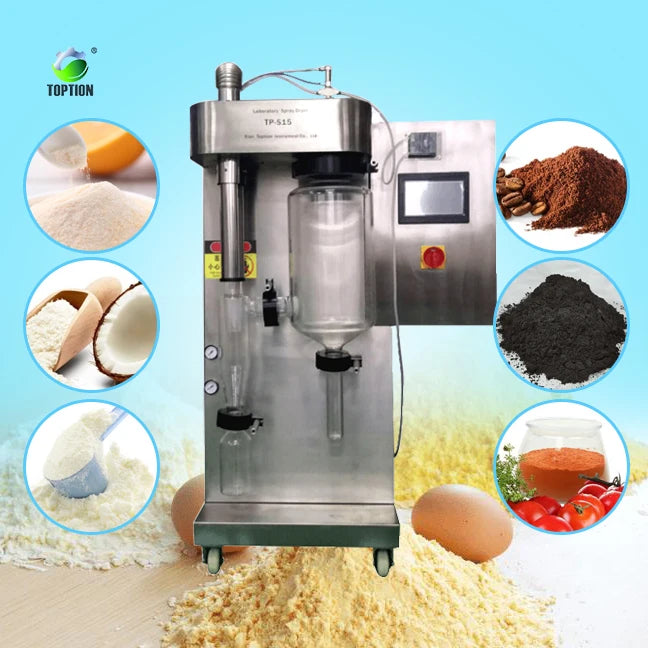

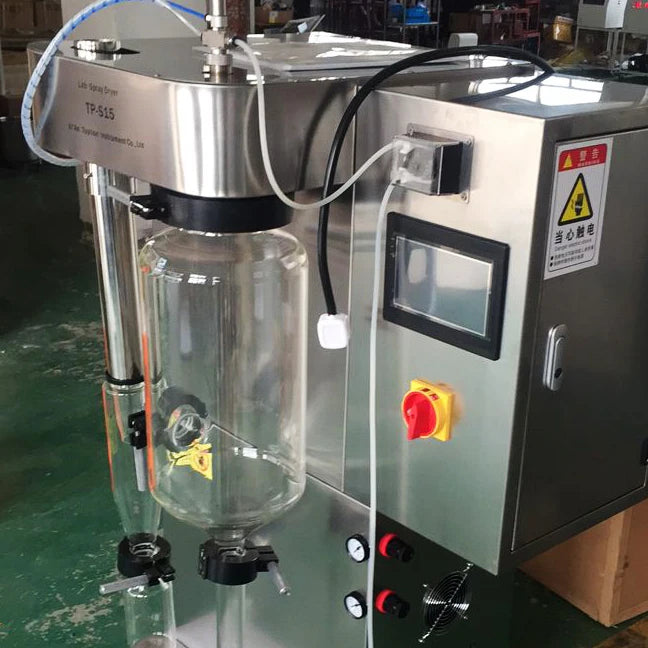

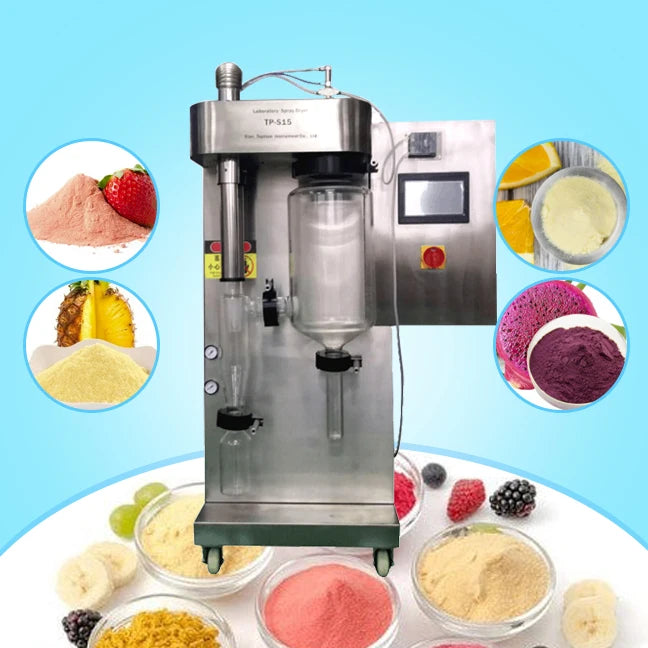

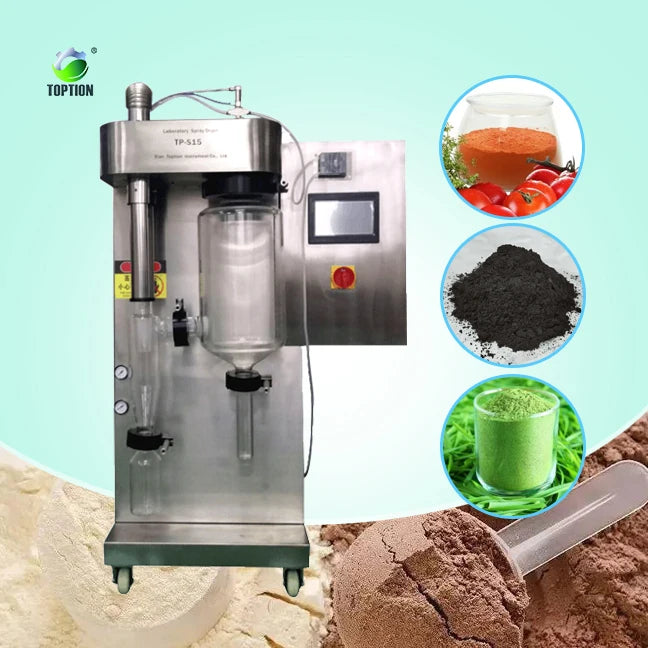

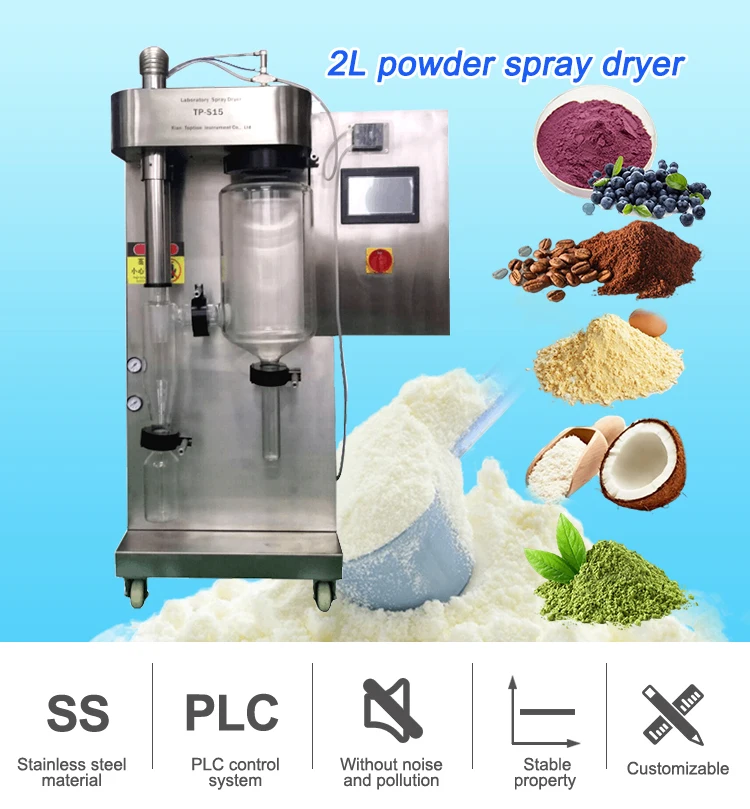

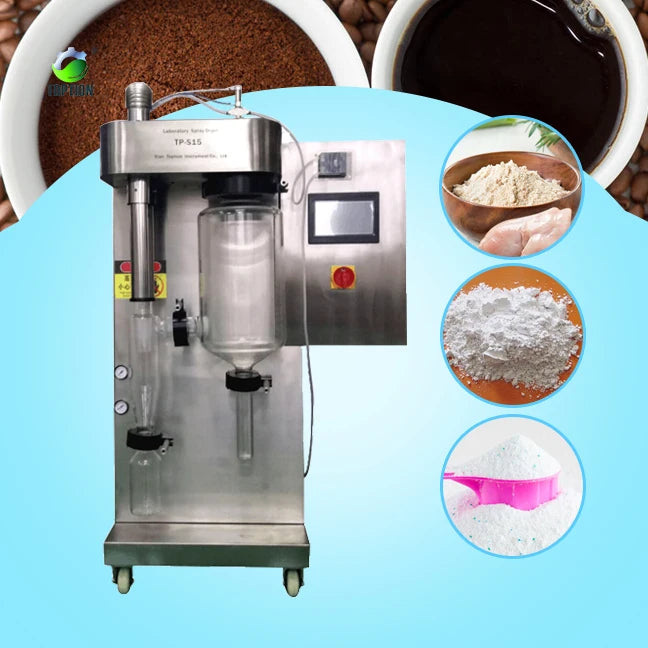

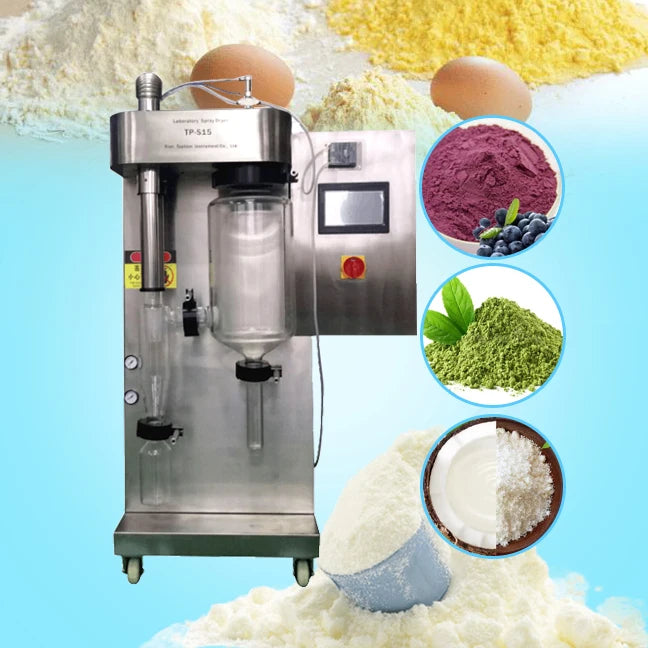

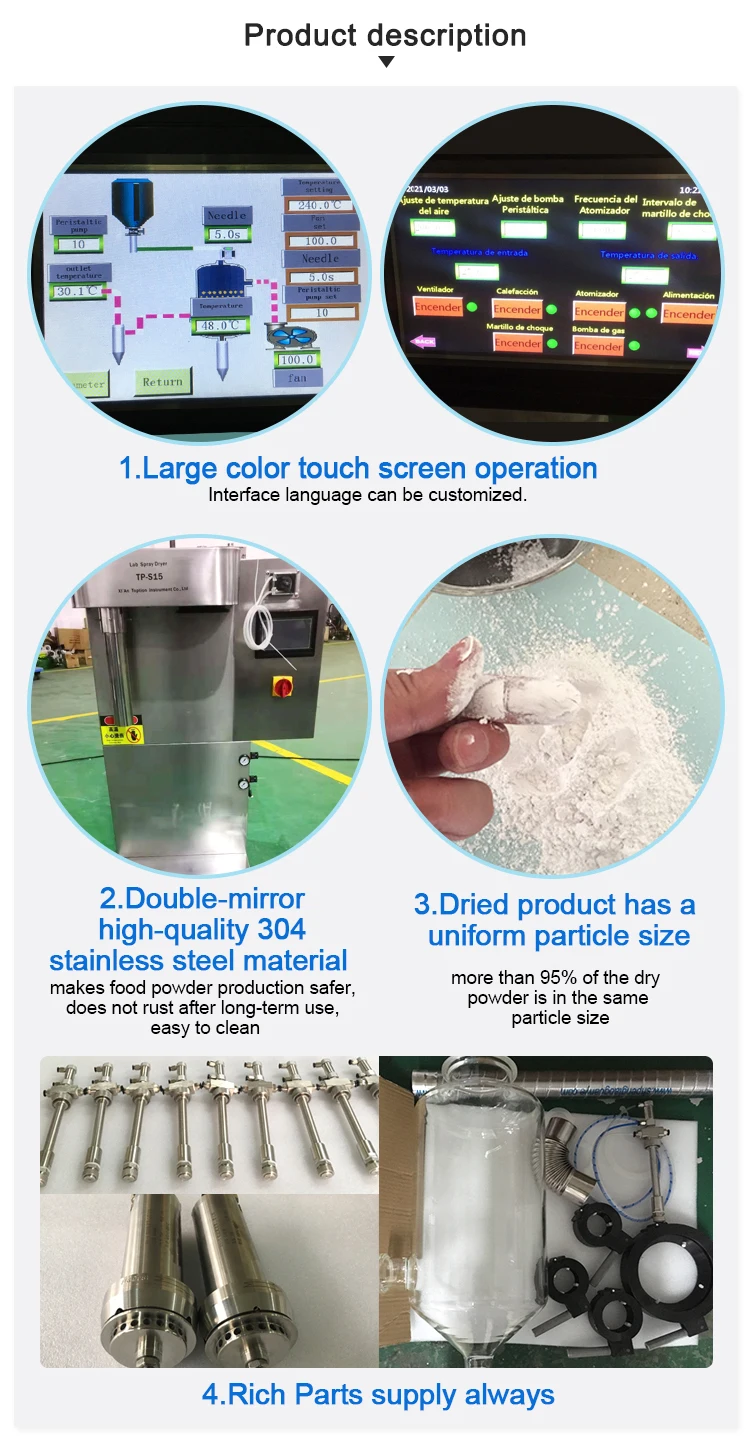

Products Description
spray dryer is a kind of continuous atmospheric dryer.Use pneumatic or electric atomization device to make liquid high-speed centrifugal spray as fog droplet, make these fog droplet contact with the hot air in the drying chamber and instantaneous drying.
|
Model
|
TP-S15
|
|
Max capacity
|
2000ml/h
|
|
Temperature range of inlet air
|
40~300℃
|
|
Temperature range of outlet air
|
80~90℃
|
|
Spray system
|
two-fluid nozzle
|
|
Pcision of temp
|
±1℃
|
|
Dry time
|
1.0~1.5S
|
|
Speed of squirt pump
|
50~2000ml/h
|
|
Nozzle size
|
0.5/0.7/0.75/1.0/1.5/2.0mm,optional
|
|
Spray direction
|
downwards co-current
|
|
Heat power
|
3500w
|
|
total power
|
4500w 220v
|
|
heat source
|
electric
|
Function

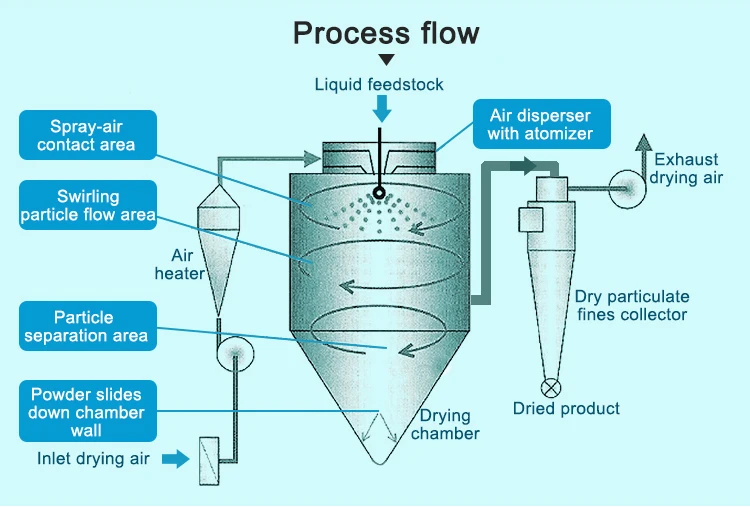

Air through filtering and heating, enter the hot air distributor which is at the top of spray dryer, hot air spiraling evenly into the drying chamber. Liquid through the high-speed centrifugal automizer which is at the top of drying chamber, (rotating) centrifugal spray into tiny fog droplet, then contact with the hot air flow, drying finish product in a very short time and whereabouts. Finished product output continuously between the drying tower bottom and cyclone separator, exhaust through dust catcher emptying by induced draft fan.
Application
Certificate

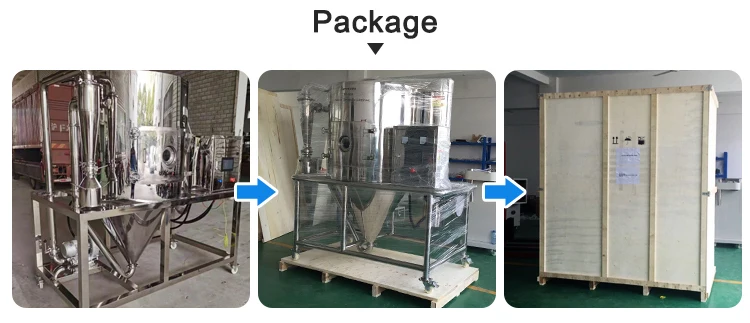

Package
