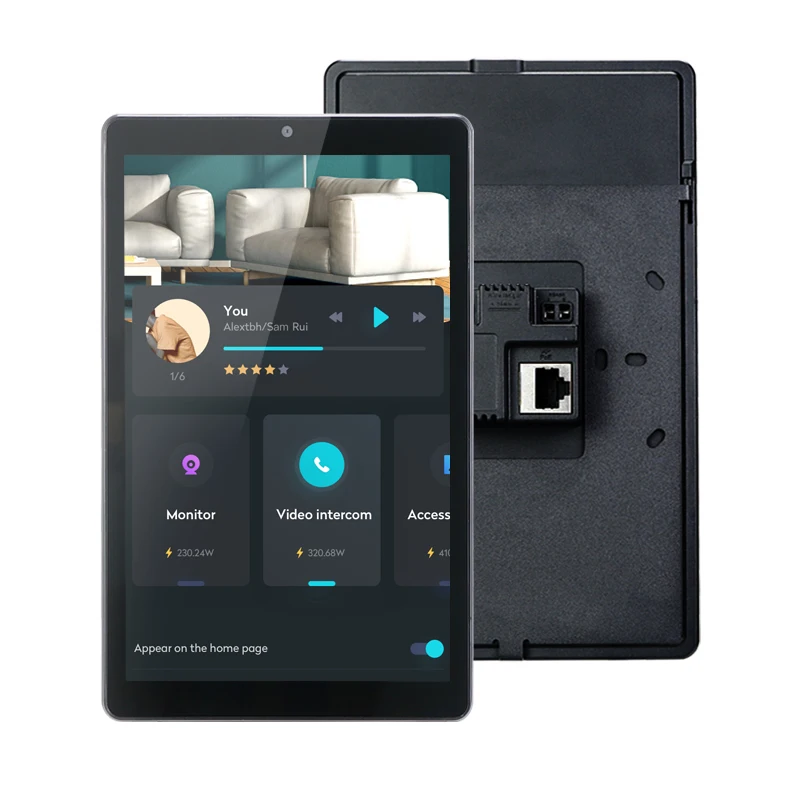

2024 new 8 inch rk3566 quad core 2gb ram wifi RJ45 PoE capacitive touch switch smart for smart home
Features :
(1) 8" IPS 1280*800 touch screen tablet pc;
(2) RK3566 Android 11 OS Quad core tablet pc
(3) 2GB RAM and 16B nand flash
(4) Build in Wifi, Camera , Speakers , Micphone etc
(5) Type C USB,RJ45 , RS485 etc

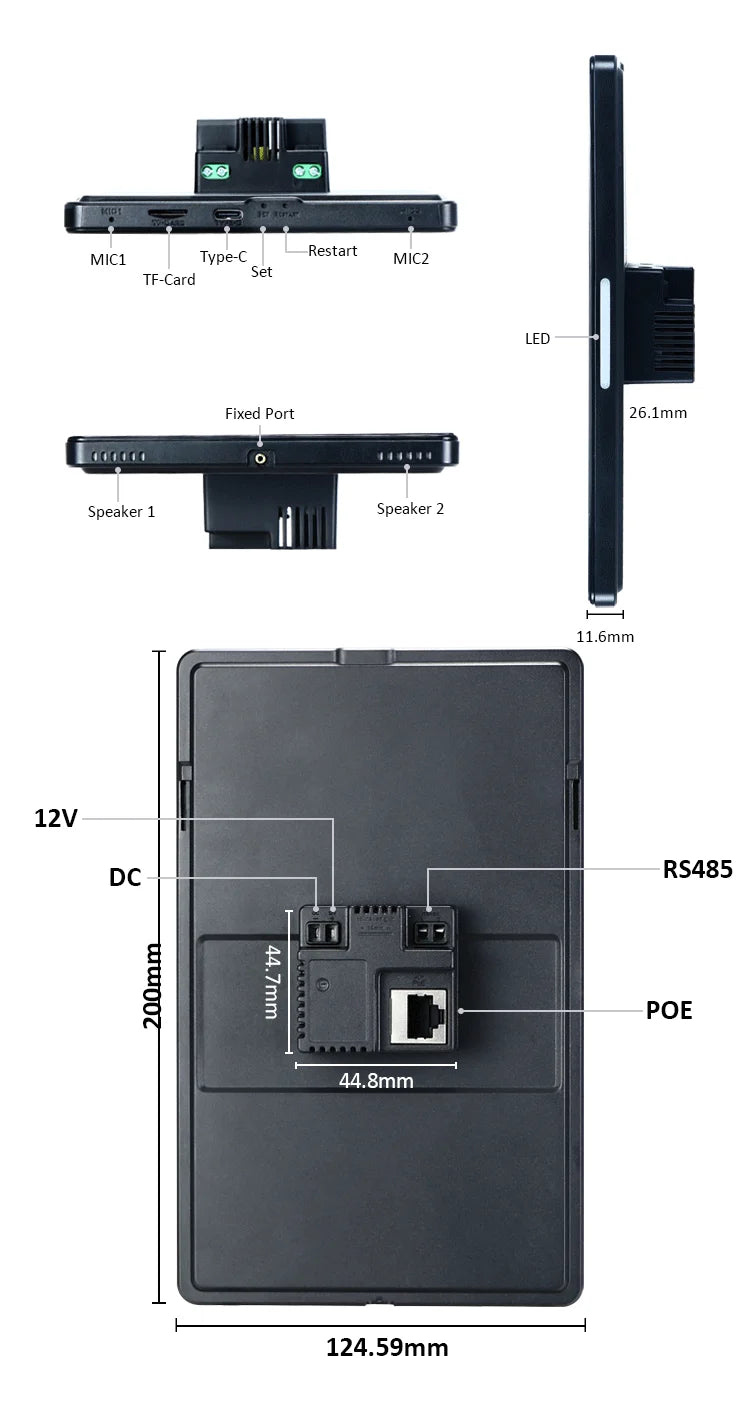

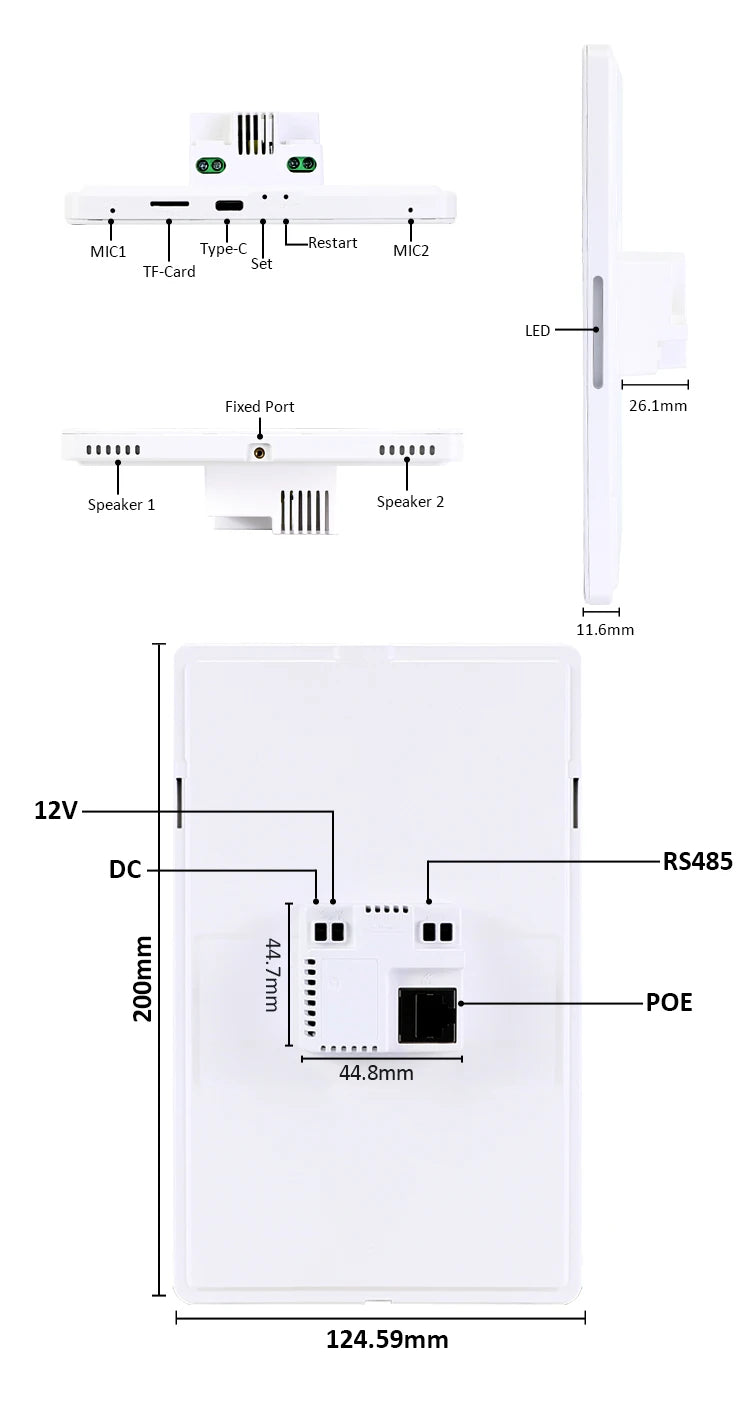

| System | Dimension | 200mm*124.59mm*37.7mm | |
| CPU | RK3566 Quad-core Cortex-A55 up to 1.8GHz | ||
| System | Android 11 | ||
| RAM | 2G | ||
| Rom | 16G | ||
| Display | Display size | 8inch | |
| Resolution | 800*1280 | ||
| Touch Panel | 5 points capactive touch panel, IPS | ||
| Brightness | 300nit | ||
| Active area | 120.96(L)*68.04(W)mm | ||

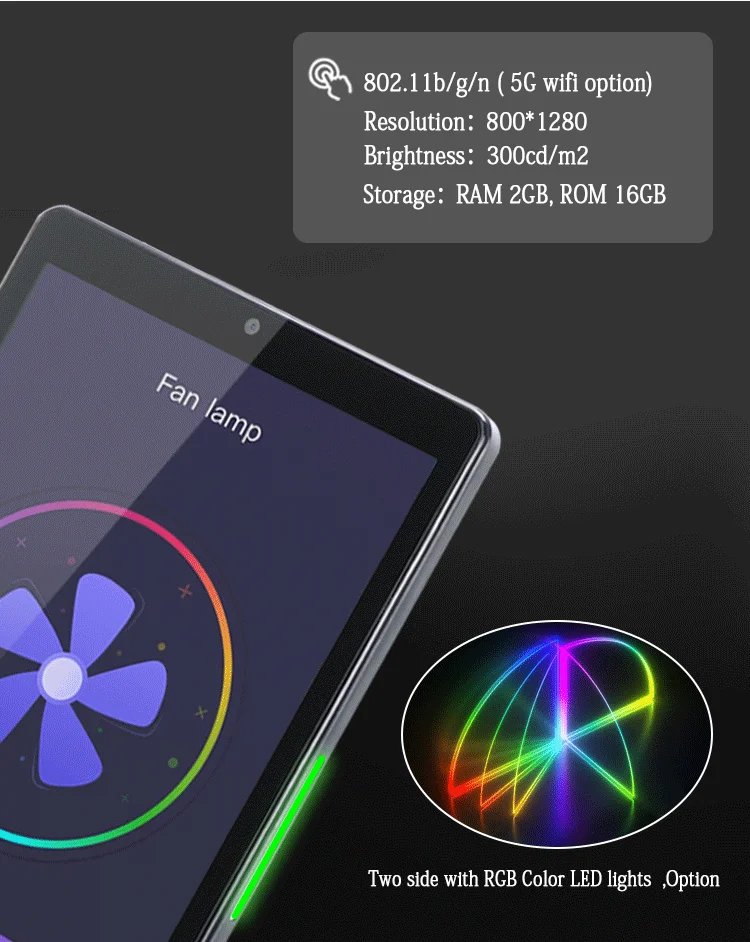

| Network | WIFI | 802.11b/g/n ( 5G wifi option) | |
| Blue`tooth | BT 4.0 | ||
| Ethernet | 10M/100M | ||

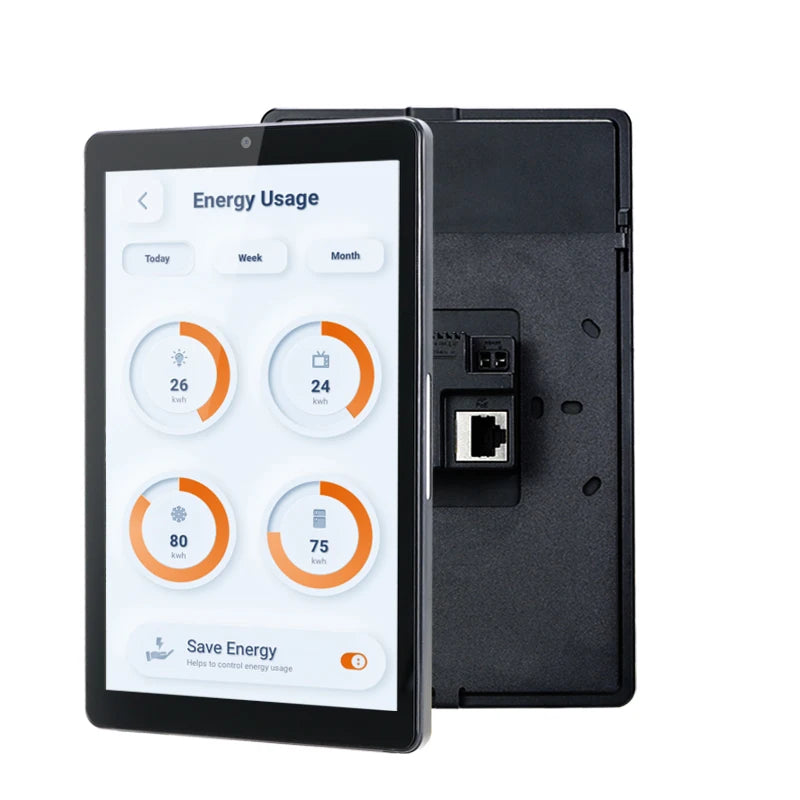

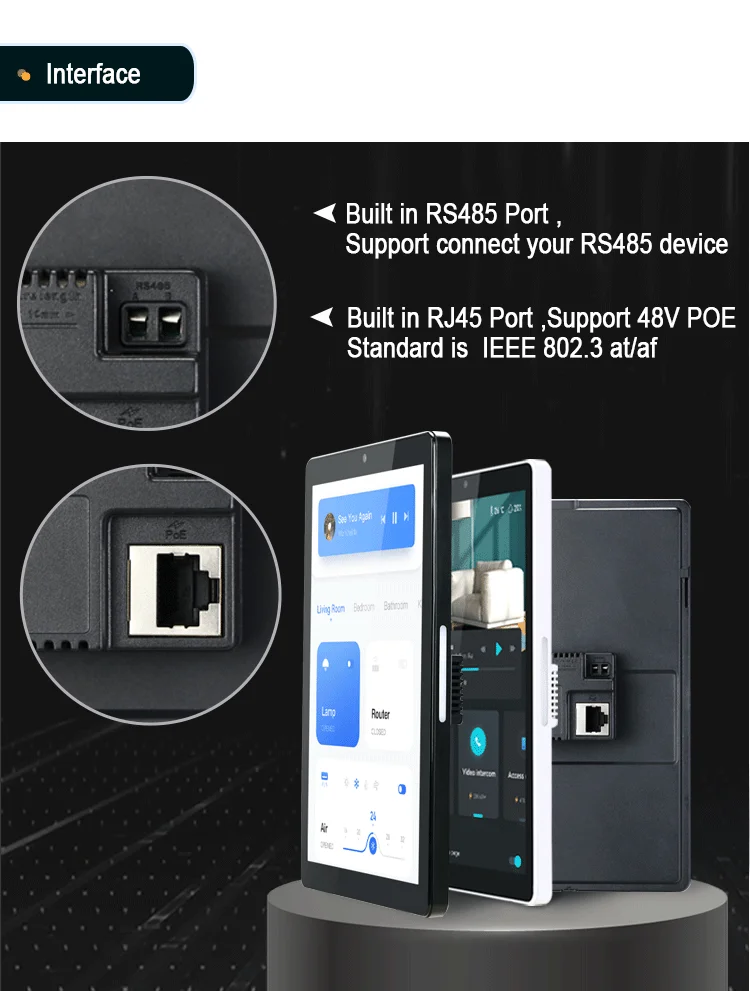

| I/O ports | RJ45 | Ethernet interface input (RJ-45 cable support POE function) | |
| TF Card | TF Card *1 | ||
| USB Type C | Type C USB | ||
| RS485 | RS485 A,B | ||
| Set | Built- in | ||
| Restart | Built- in | ||
| Power suply | DC 12V /24V input | ||

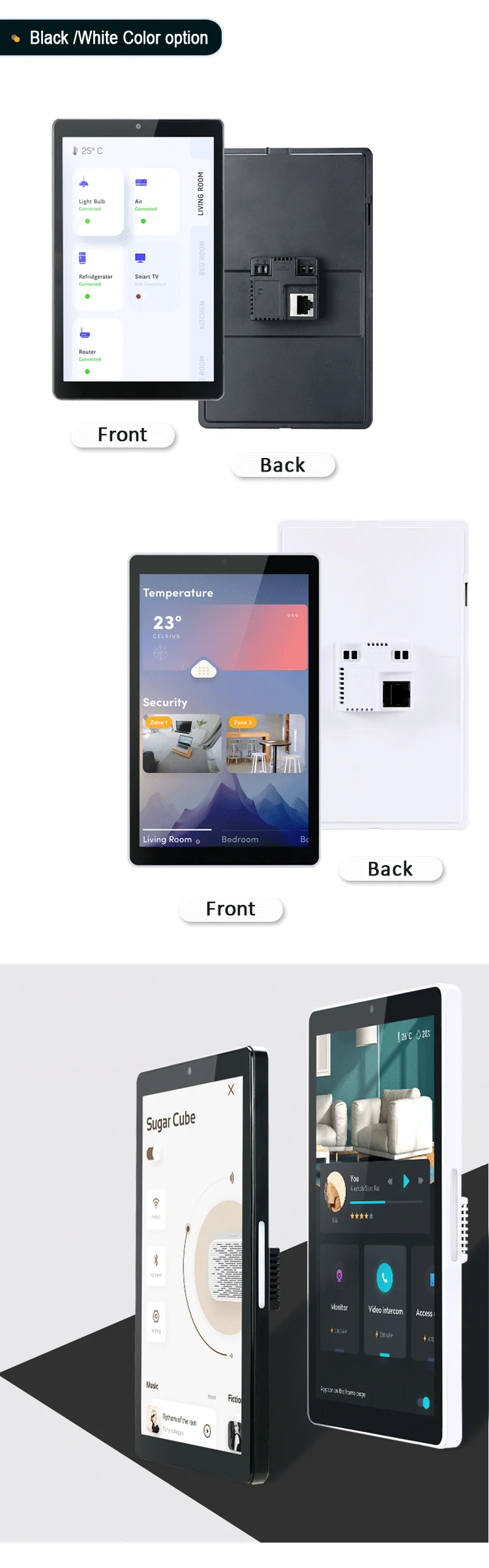

| Material | Plastic case + Glass touch panel | Plastic case cover | |
| Features | Microphone | 2* Mic Built- in | |
| Speaker | 1W | ||
| Media plays | Video | MOV 1080P / AVI / WMV / RM / RMVB / 3GP / MKV / MP4 / ASF/ VOB | |
| Audio | MP3 / WMA / WAV / AAC / FLAC / OGG | ||
| Entertainment | Video / Movie / Music / FM online | ||
| Others | Camera | Front camera 2.0MP | |
| Battery | NO | ||

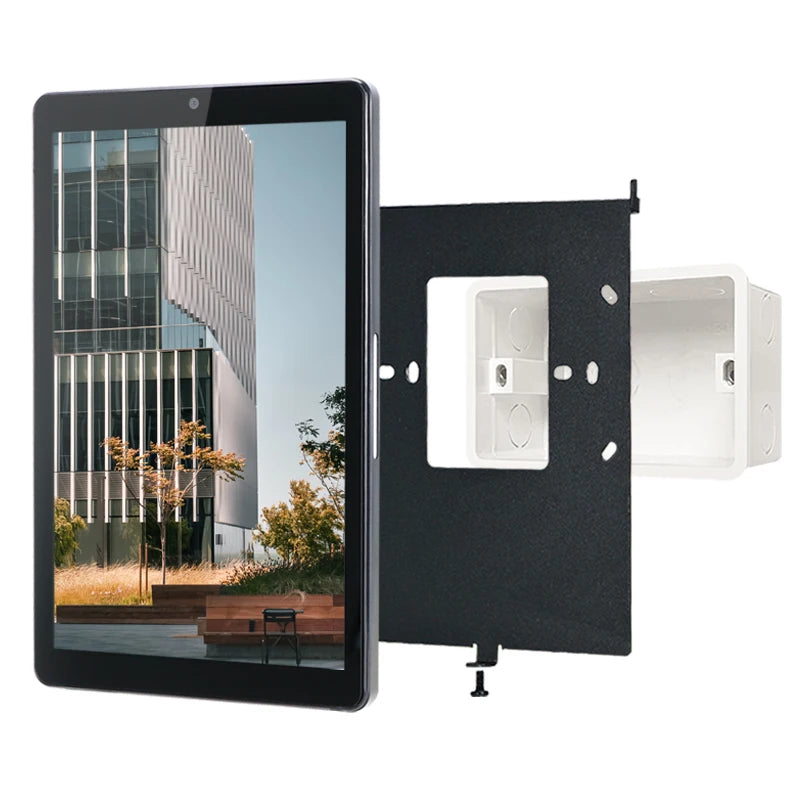

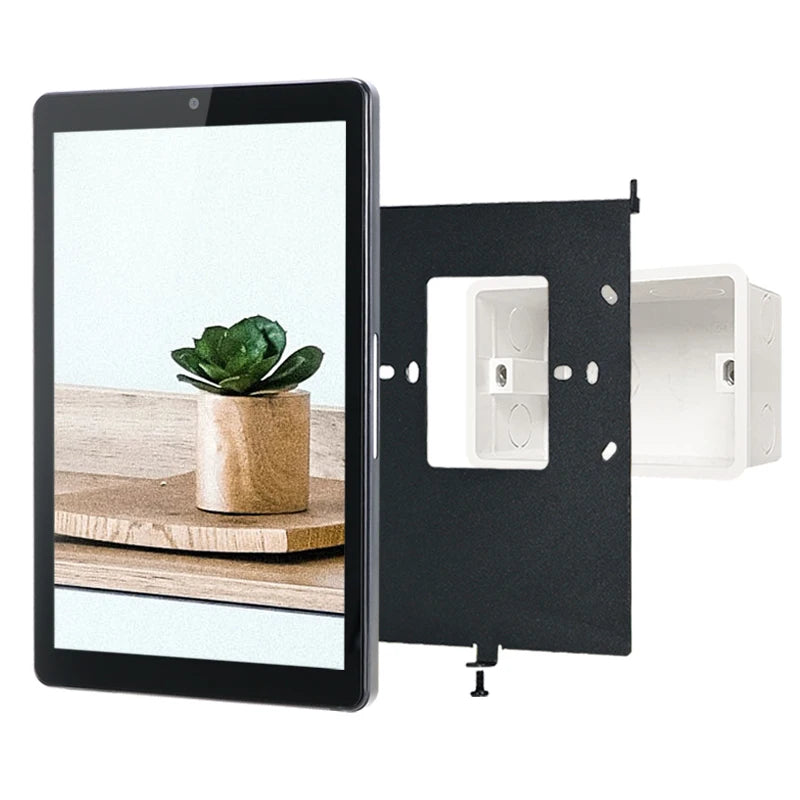

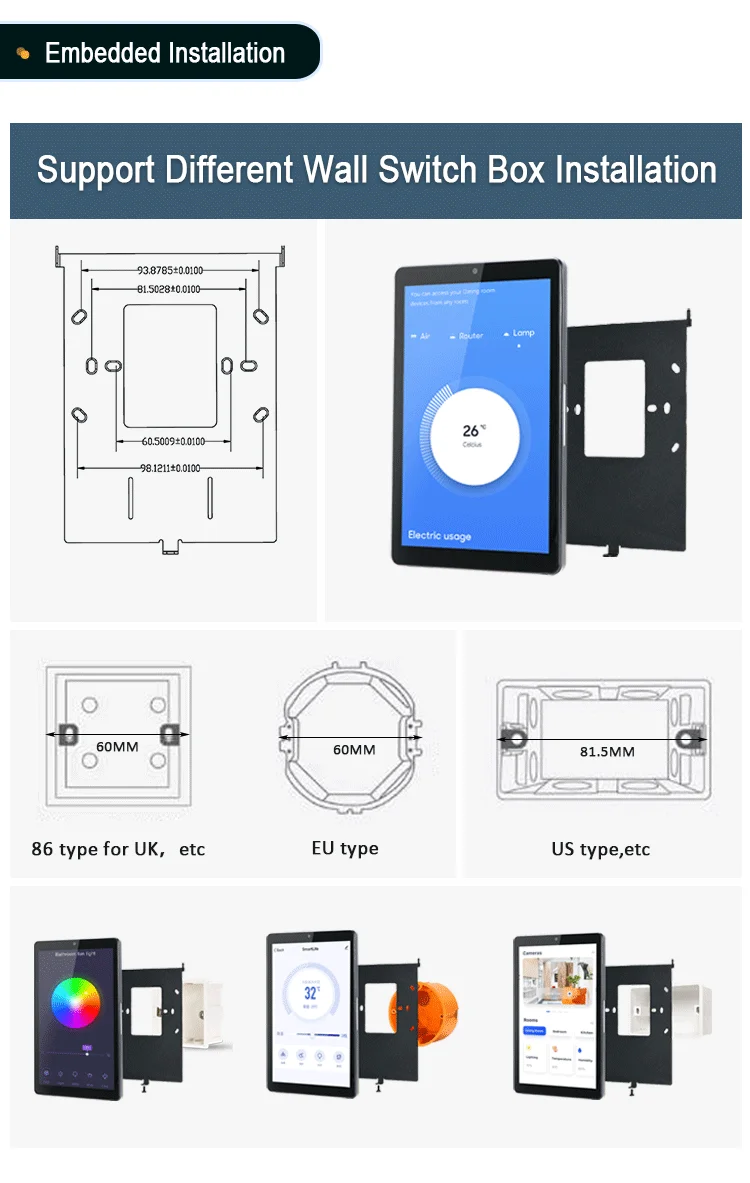

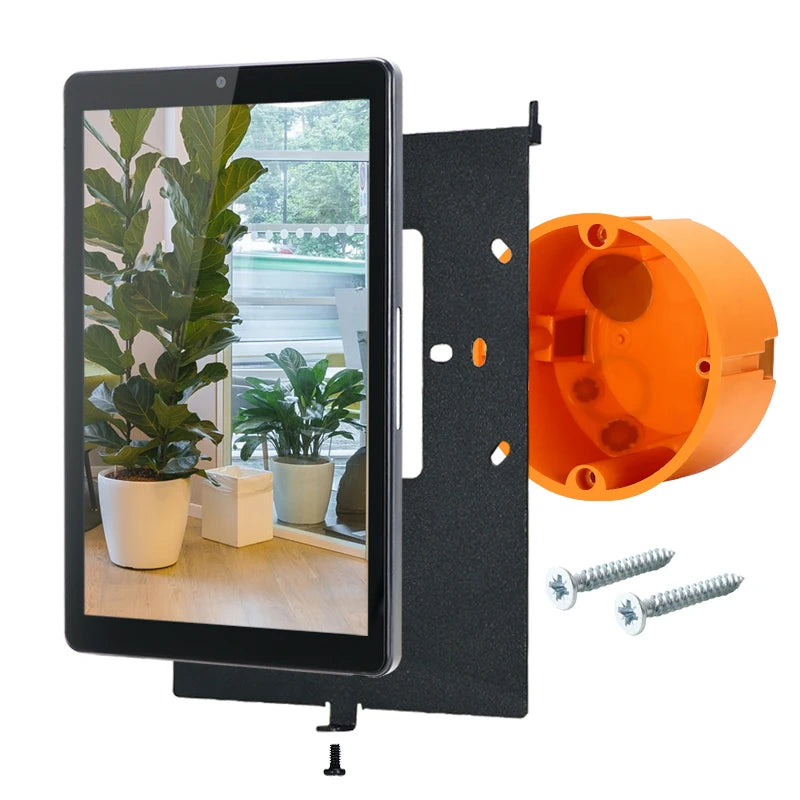

| Mount | wall mounted / in wall & embedded | ||
| Power consumption | 2x10W MAX | ||
| Working temperature | .-5°~70° | ||
| Language | Support multi-languages | ||
