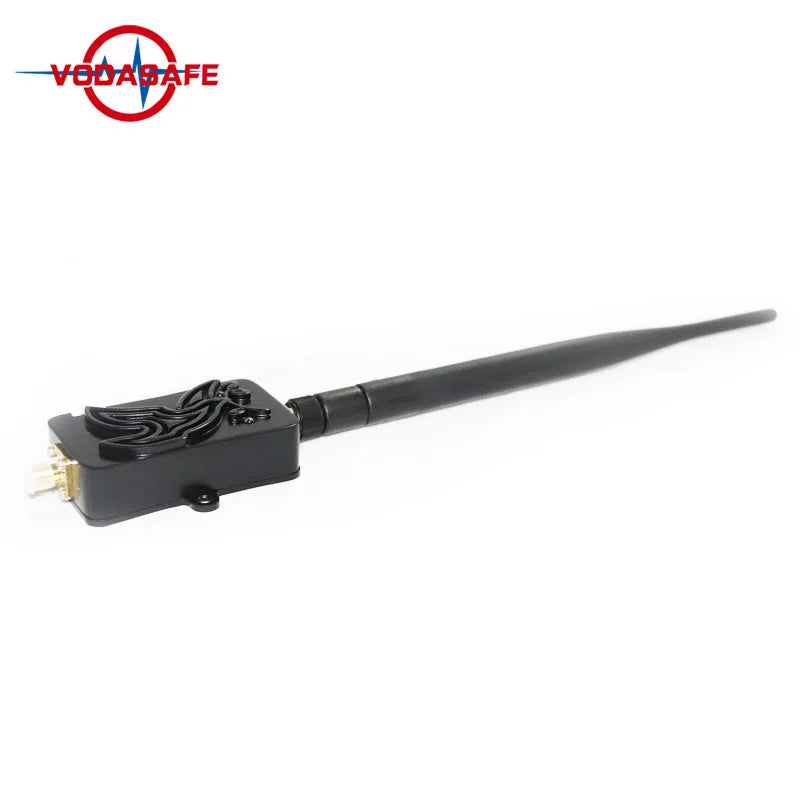

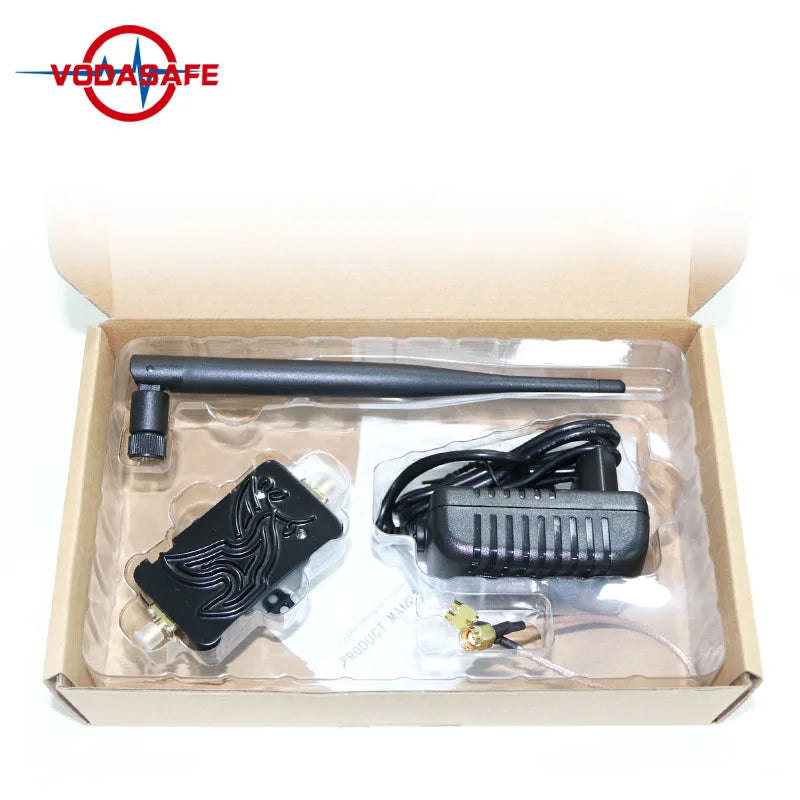

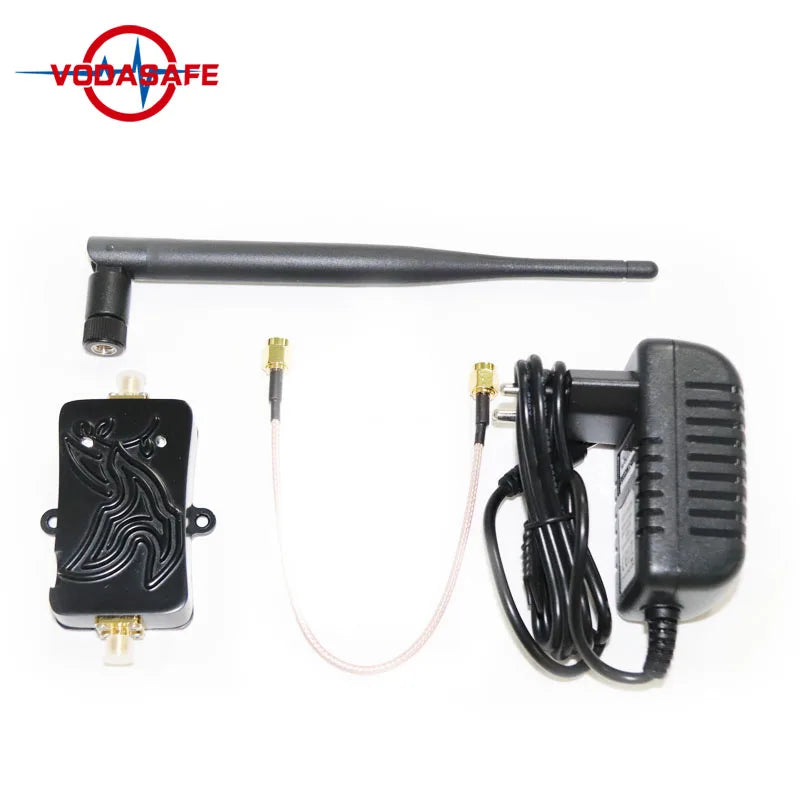

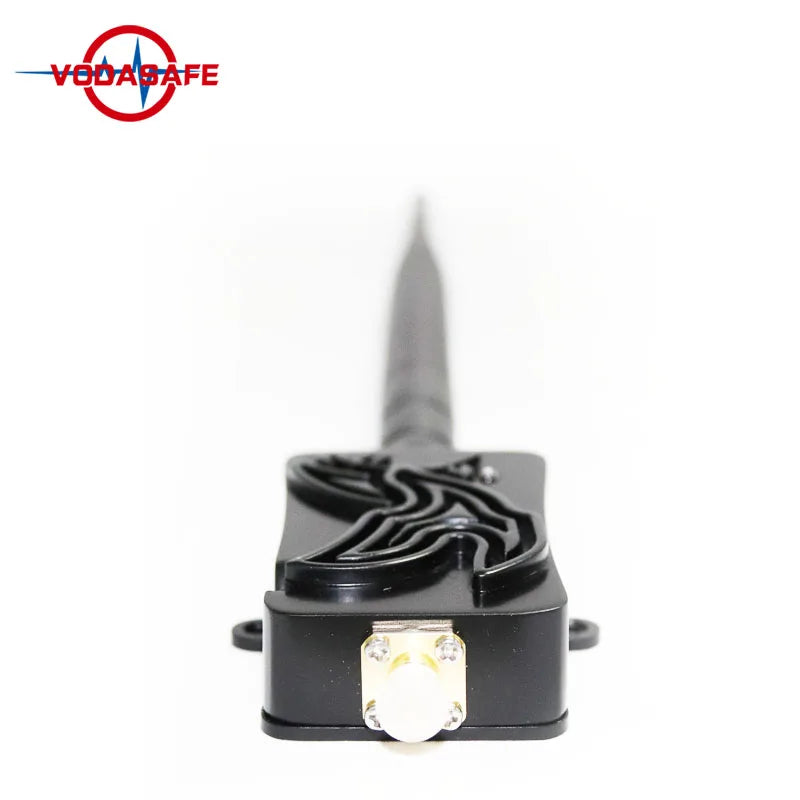

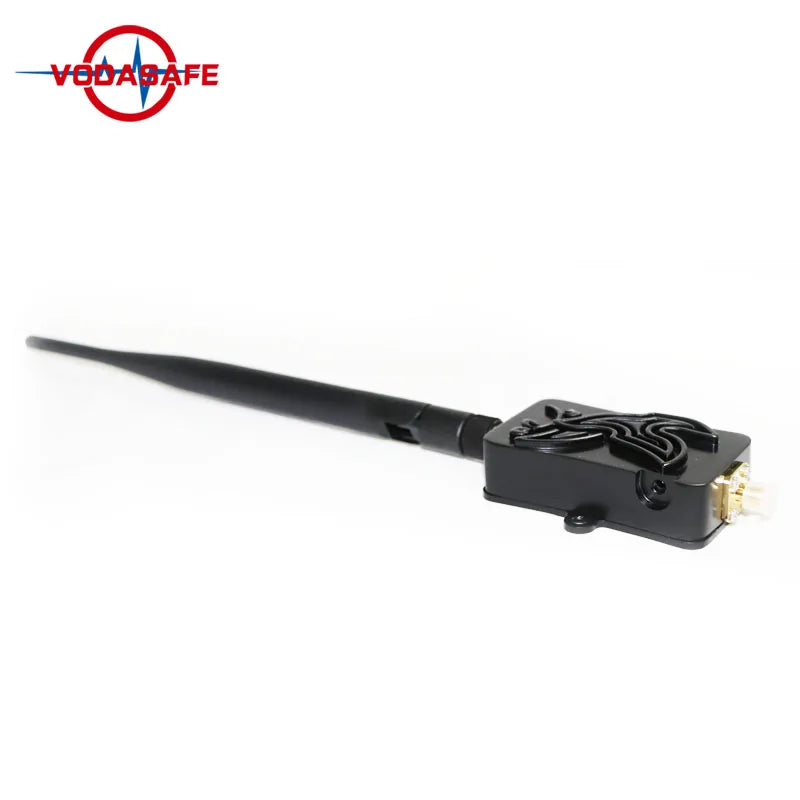

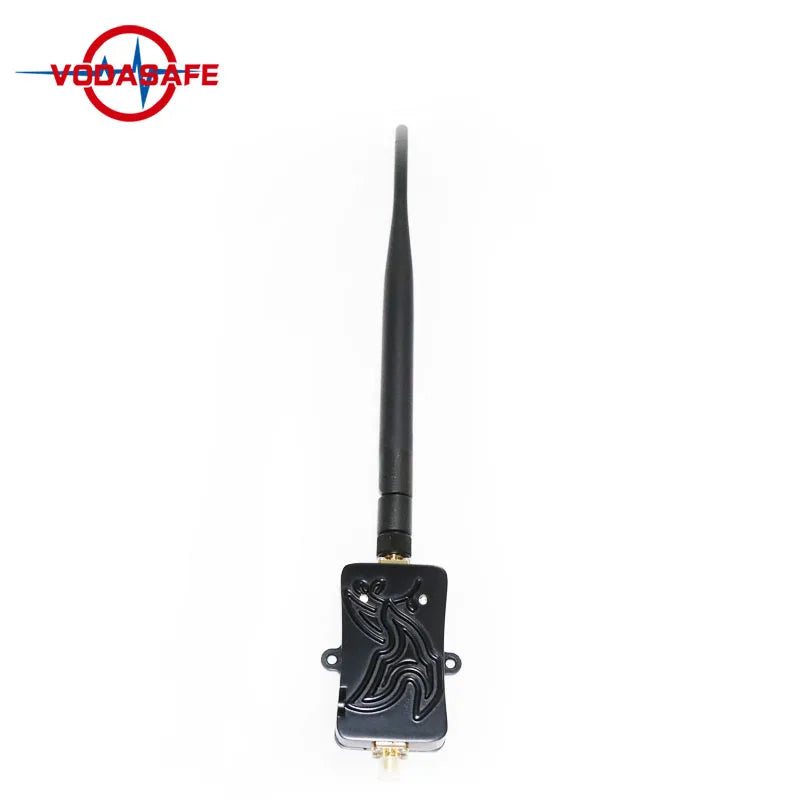

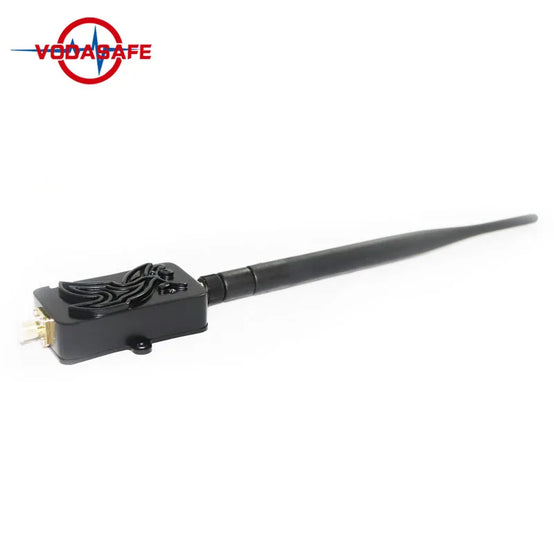

20x Power Signal Booster 2.4GHz Signal
Save -48%
Rs. 8,513.37
Rs. 16,344.88
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Specification
|
Model Number
|
NE242036T1
|
|
Type
|
4G signal booster
|
|
Brand Name
|
Vodasafe
|
|
Network
|
WIFI Signal Booster
|
|
Frequency Range
|
2.4-2.5GHz
|
|
Operating Voltage
|
6-16V
|
|
Receiving Gain
|
10dB±1
|
|
Transmission Gain
|
13dB±
|
|
Maximum Output Power(P1dB)
|
36dBm(4W)
|
|
DC Supply Current
|
435mA@Pout 28dBm 9V
|
|
Noise Figure
|
<2.5dB
|
|
Operating Ambient Temperature
|
40℃-+70℃
|
|
Dimension
|
82mmx50mmx21mm
|
|
Weight
|
0.25kg net
|
Product Description
The Features:
1. 20X the power, improving the link quality and coverage of certified WLAN devices
2. 2.5dB ultra-low noise
3. Wide 6v to 16v operating input range
4. Working with certified IEEE 802.11b/g/n Wireless LAN devices
5. Simply plug and play, no software is required.
2. 2.5dB ultra-low noise
3. Wide 6v to 16v operating input range
4. Working with certified IEEE 802.11b/g/n Wireless LAN devices
5. Simply plug and play, no software is required.
Specification:
Frequency Range: 2.4-2.5GHz;
Operating Voltage: 6-16V;
Receiving Gain: 10dB±1;
Transmission Gain: 13dB±1;
Input Trigger Power: Min:3dBm Max:20dBm
Maximum Output Power(P1dB):36dBm(4W)
EVM:3%@28dBm 802.1
Operating Voltage: 6-16V;
Receiving Gain: 10dB±1;
Transmission Gain: 13dB±1;
Input Trigger Power: Min:3dBm Max:20dBm
Maximum Output Power(P1dB):36dBm(4W)
EVM:3%@28dBm 802.1
Installation Instructions:
Step1:Disconnect power supply to AP/Router;
Step2:Detach the antenna from your certified wireless AP/Router
Step3:Connect Rg316 cable to the booster and AP/Router
Step4:Connect the antenna to the other end of the booster
Step5: Connect the power supply to the booster first and subsequently the AP/Router.
1g 54Mbps OFDM 64QAM BW 20MHz
DC Supply Current: 435mA@Pout 28dBm 9V
Noise Figure: <2.5dB
TX/RX Switch Time Delay:< 1us
LED Indicator: Transmitter: Green; Receiver: Red;
Operating Ambient Temperature: 40℃-+70℃
Operating Humidity:up to 95% rel.humidity;
Dimension: 82mmx50mmx21mm
Weight:0.25kg net
Step2:Detach the antenna from your certified wireless AP/Router
Step3:Connect Rg316 cable to the booster and AP/Router
Step4:Connect the antenna to the other end of the booster
Step5: Connect the power supply to the booster first and subsequently the AP/Router.
1g 54Mbps OFDM 64QAM BW 20MHz
DC Supply Current: 435mA@Pout 28dBm 9V
Noise Figure: <2.5dB
TX/RX Switch Time Delay:< 1us
LED Indicator: Transmitter: Green; Receiver: Red;
Operating Ambient Temperature: 40℃-+70℃
Operating Humidity:up to 95% rel.humidity;
Dimension: 82mmx50mmx21mm
Weight:0.25kg net
