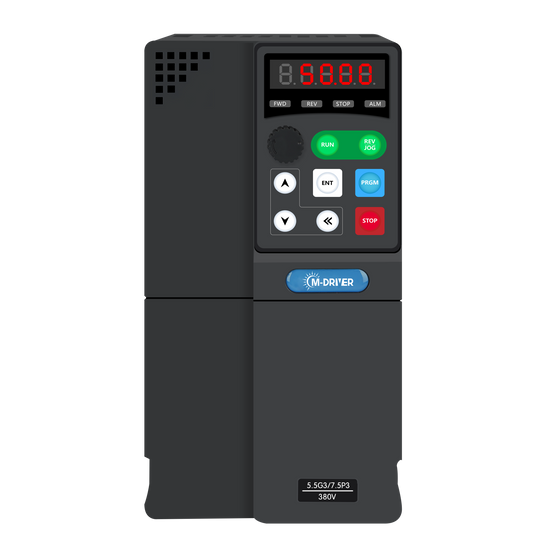

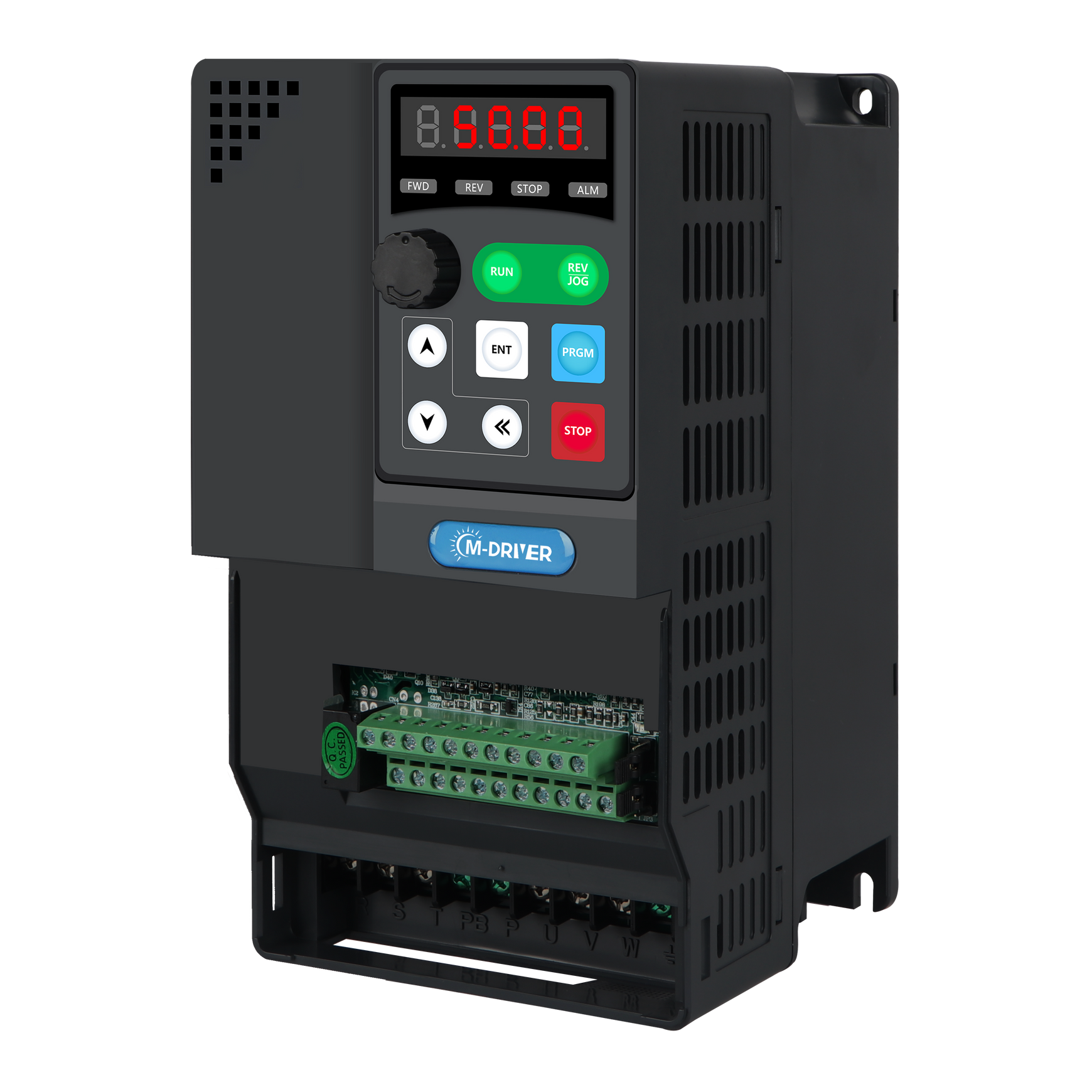

220V 3 phase solar water pump inverter 2.2kw 4kw vfd drives with hybrid ac and dc input
Share
3 phase 220V ac pump controller 3hp 5hp solar water pumping inverter
frequency converter freqency inverter ac driver

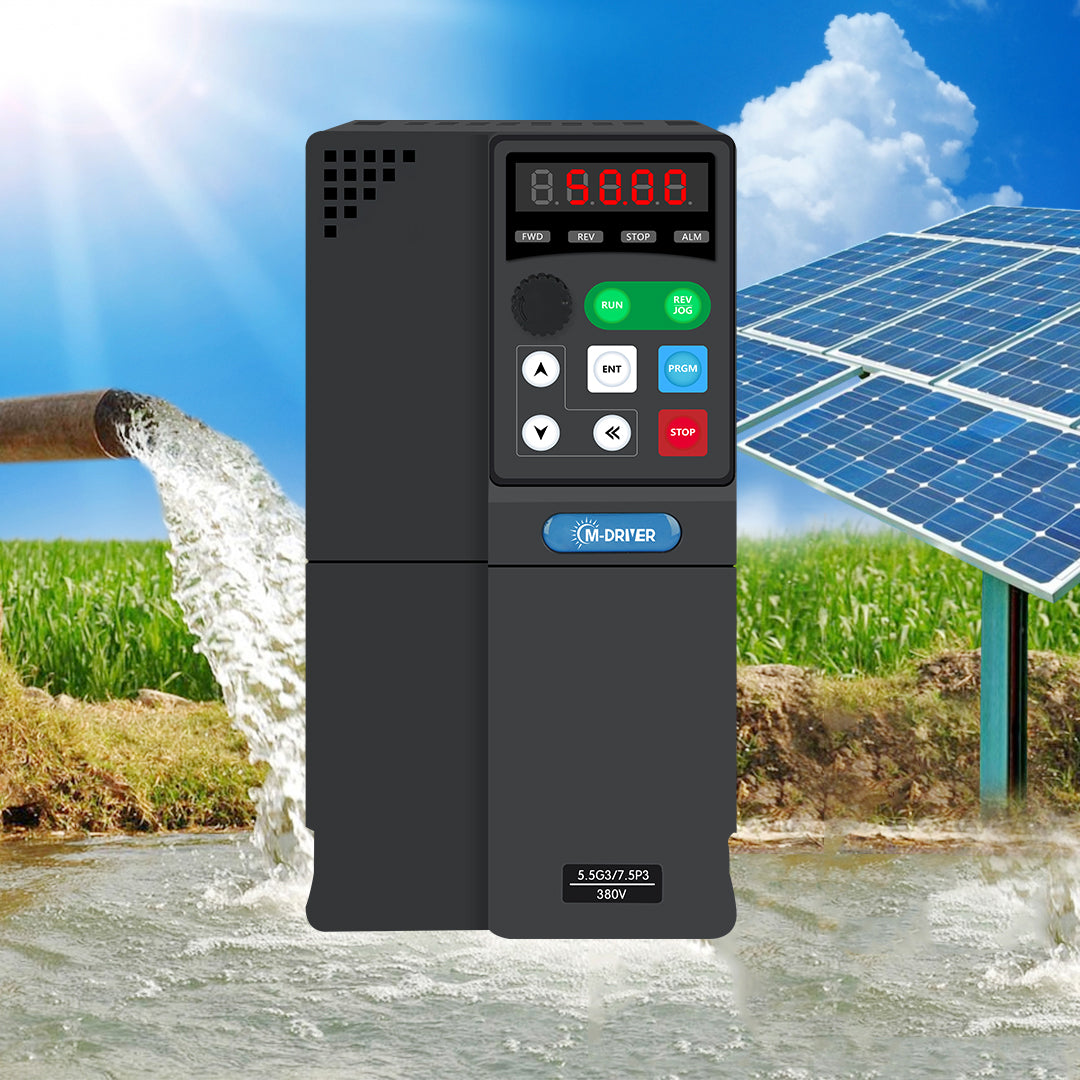

M-driver Power solar pumping system consists of solar pumping inverter, pump and PV array. Consider that storing water is more efficient than storing electricity, the system is designed to directly drive the pump without battery which can reduce the construction and operating cost and routine maintenance effectively.
Solar pumping inverter can implement the control of the whole system operation, which drives the pump by converting DC power produced by the PV array to AC power. This inverter can adjust the output frequency according to the solar irradiation intensity in real time to implement the MPPT (maximum power point tracking).
Features
____________________________________________________________________________________________________________________
1. MPPT control
With high accuracy MPPT algorithms, tracking the PV array output by the maximum power point, driving the pump motor to meet various pump applications in agriculture, irrigation etc.
2. Supports AC&DC input
The system is powered by the solar panels regularly. When the sunlight is not good, the system can also be powered by AC grid.
3.Dry protection
If there's no water in the ground, the water pump will stop working automatically and when the water comes, the system starts to work automatically.
4. Auto sleep&Wake:
The pump will slow down automatically when the sunlight is weak , and it will sleep and wake automatically as the sulight .
5. Smart water level control
The water level in the tank can also be controlled . The inverter will sleep when the water level is above maxium water level and it will wake up automatically when it's under the minimum water level. The maximum and minimum water level can be set by the user.
Specifics
________________________________________________________________________________________________________
| 220V Solar Pumping Inverter | |
| Input Specification | |
| PV input | |
| Maxiumum input DC voltage | 400V DC |
| Recommended MPPT voltage range | 250~350V DC |
| Recommended input Operation Voltage | 310V DC |
| Grid or backup generator input | |
| Input voltage | Single phase 220V(-15%~30%) |
| Output Specification | |
| Rated output voltage | 3PH 220V |
| Output frequency | 0~500.00Hz (default: 0~50.00Hz) |
| 380V Solar Pumping Inverter | |
| Input Specification | |
| PV input | |
| Maxiumum input DC voltage | 800V DC |
| Recommended MPPT voltage range | 450~600V DC |
| Recommended input Operation voltage | 540V DC |
| Grid or backup generator input | |
| Input voltage | Three phase 380V(-15%~30%) |
| Output specification | |
| Rated ouput voltage | 3PH 380V |
| Output frequency | 0~500.00Hz (default: 0~50.00Hz) |
| Protection | |
| Built-in Protection | Lighting Protection ,over-current, overvoltage, ouput phase lose, under-load, under-voltage, short circuit , overheating, water pump run dry etc. |
| General Parameters | |
| Application site | No direct sunshine, no dust,corrosive gas,combustible gas, oil mist, steam,dripping or salinity etc. |
| Altitude | 0~2000m |
| Derated use above 1000m, per 100m, the rated output current decrease 1% | |
| Environment Temperature | -10°C~40°C (Environment Temperature be 40°C~50°C, please keep derated use) |
| Humidity | 5~95%, non-condensation |
| Vibration | less than 5.9 m/s²(0.6G) |
| Storage Temperature | -20°C~+70°C |
| Efficiency | Rated Power Run≥93% |
| Installation | Wall or rail mounting |
| Protectiion Grade | IP20 |
| Cooling | Forced Air Cooling |
| Type | Drive motor | Power capacity | Input current | Output current | Shape case |
| KW | KVA | A | A | ||
| Single phase power supply: 220V, 50/60A | |||||
| PV500-0004M1 | 0.4 | 0.5 | 5.4 | 2.5 | 000 |
| PV500-0007M1 | 0.75 | 1 | 8.2 | 4 | 000 |
| PV500-0015M1 | 1.5 | 2 | 14 | 7 | 000 |
| PV500-0007G1 | 0.75 | 1 | 4.2 | 4 | 001 |
| PV500-0015G1 | 1.5 | 2 | 14 | 7 | 001 |
| PV500-0022G1 | 2.2 | 3 | 23 | 10 | 001 |
| Three phase power supply; 220V ,50/60hz | |||||
| PV500-0040G2 | 4 | 5 | 18.1 | 16 | 002 |
| PV500-0055G2 | 5.5 | 7.5 | 28 | 25 | 003 |
| PV500-0075G2 | 7.5 | 10 | 37.1 | 32 | 003 |
| PV500-0110G2 | 11 | 15 | 49.8 | 45 | 004 |
| PV500-0150G2 | 15 | 20 | 65.4 | 60 | 004 |
| PV500-0185G2 | 18.5 | 25 | 81.6 | 75 | 004 |
| PV500-0220G2 | 22 | 30 | 97.7 | 90 | 005 |
| PV500-0300G2 | 30 | 40 | 122.1 | 110 | 005 |
| PV500-0370G2 | 37 | 50 | 157 | 150 | 006 |
| PV500-0450G2 | 45 | 60 | 185 | 170 | 006 |
| PV500-0550G2 | 55 | 70 | 215 | 210 | 007 |
| PV500-0750G2 | 75 | 100 | 320 | 300 | 007 |
| Three phase power supply: 380V ,50/60hz | |||||
| PV500-0007G3 | 0.75 | 1 | 3.4 | 2.1 | 001 |
| PV500-0015G3 | 1.5 | 2 | 5 | 3.8 | 001 |
| PV500-0022G3 | 2.2 | 3 | 5.8 | 5 | 001 |
| PV500-0040G3 | 4 | 5 | 10.5 | 9 | 002 |
| PV500-0055G3 | 5.5 | 7.5 | 14.6 | 13 | 002 |
| PV500-0075G3 | 7.5 | 10 | 20.5 | 17 | 002 |
| PV500-0110G3 | 11 | 15 | 26 | 25 | 003 |
| PV500-0150G3 | 15 | 20 | 35 | 32 | 003 |
| PV500-0185G3 | 18.5 | 25 | 38.5 | 38 | 003 |
| PV500-0220G3 | 22 | 30 | 46.5 | 45 | 004 |
| PV500-0300G3 | 30 | 40 | 62 | 60 | 004 |
| PV500-0370G3 | 37 | 50 | 76 | 75 | 004 |
| PV500-0450G3 | 45 | 60 | 92 | 90 | 005 |
| PV500-0550G3 | 55 | 70 | 113 | 110 | 005 |
| PV500-0750G3 | 75 | 100 | 157 | 150 | 006 |
| PV500-0930G3 | 93 | 125 | 180 | 170 | 006 |
| PV500-1100G3 | 110 | 150 | 214 | 210 | 007 |
| PV500-1320G3 | 132 | 175 | 256 | 250 | 007 |
| PV500-1600G3 | 160 | 210 | 307 | 300 | 007 |
| PV500-1850G3 | 185 | 250 | 385 | 340 | 008 |
| PV500-2000G3 | 200 | 260 | 385 | 380 | 008 |
| PV500-2200G3 | 220 | 300 | 430 | 415 | 008 |
| PV500-2500G3 | 250 | 350 | 468 | 470 | 008 |
| PV500-2800G3 | 280 | 370 | 525 | 520 | 008 |
| PV500-3150G3 | 315 | 400 | 590 | 585 | 009 |

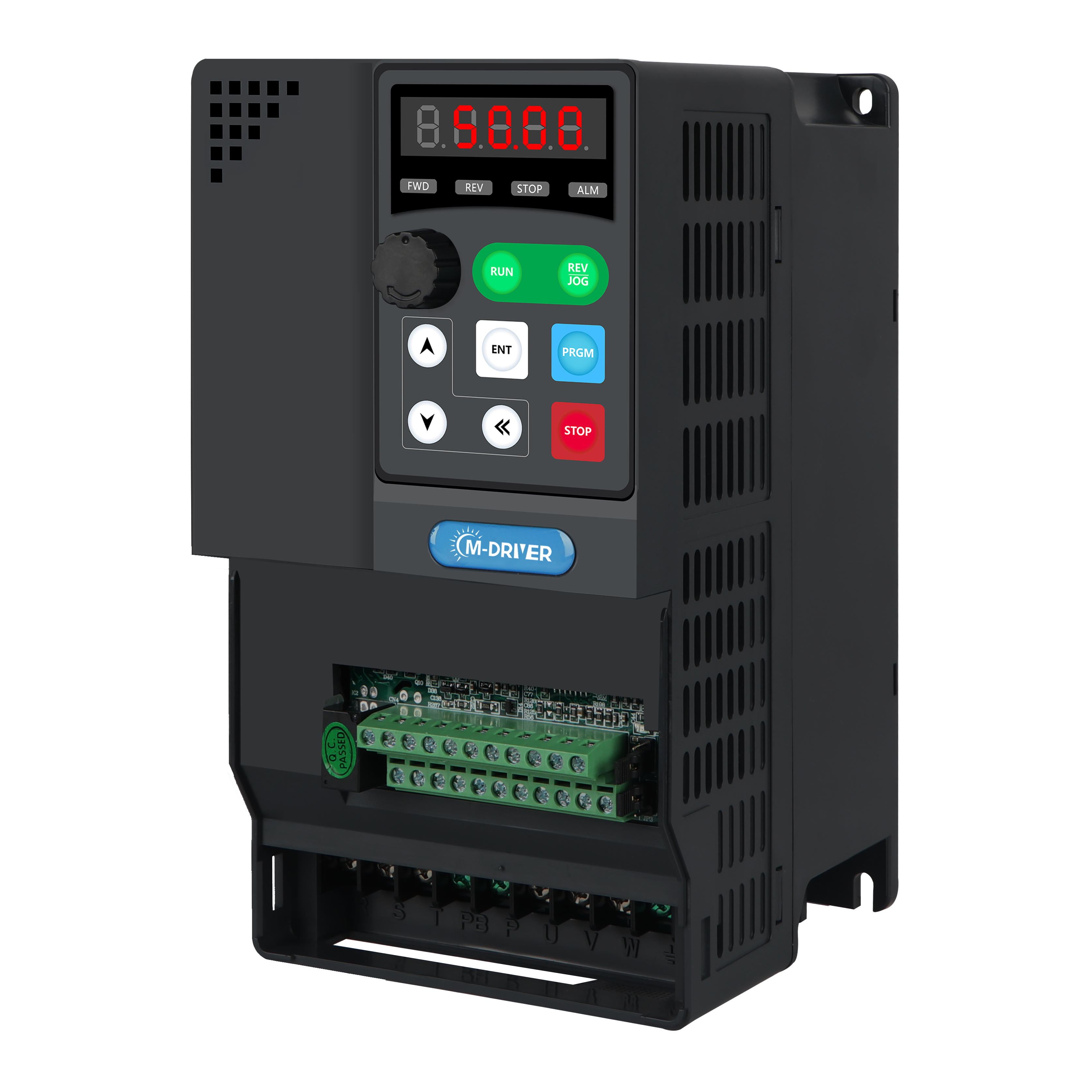

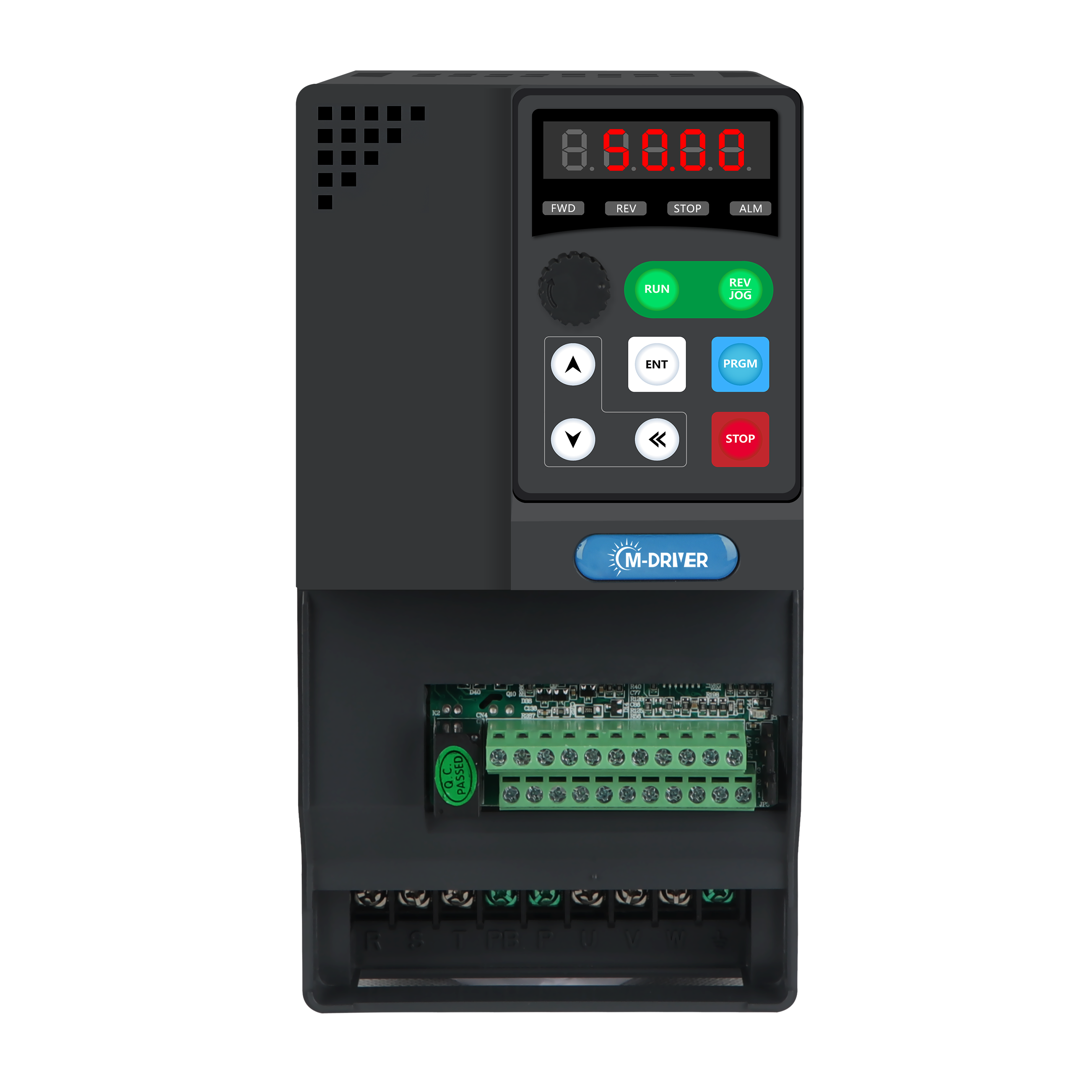

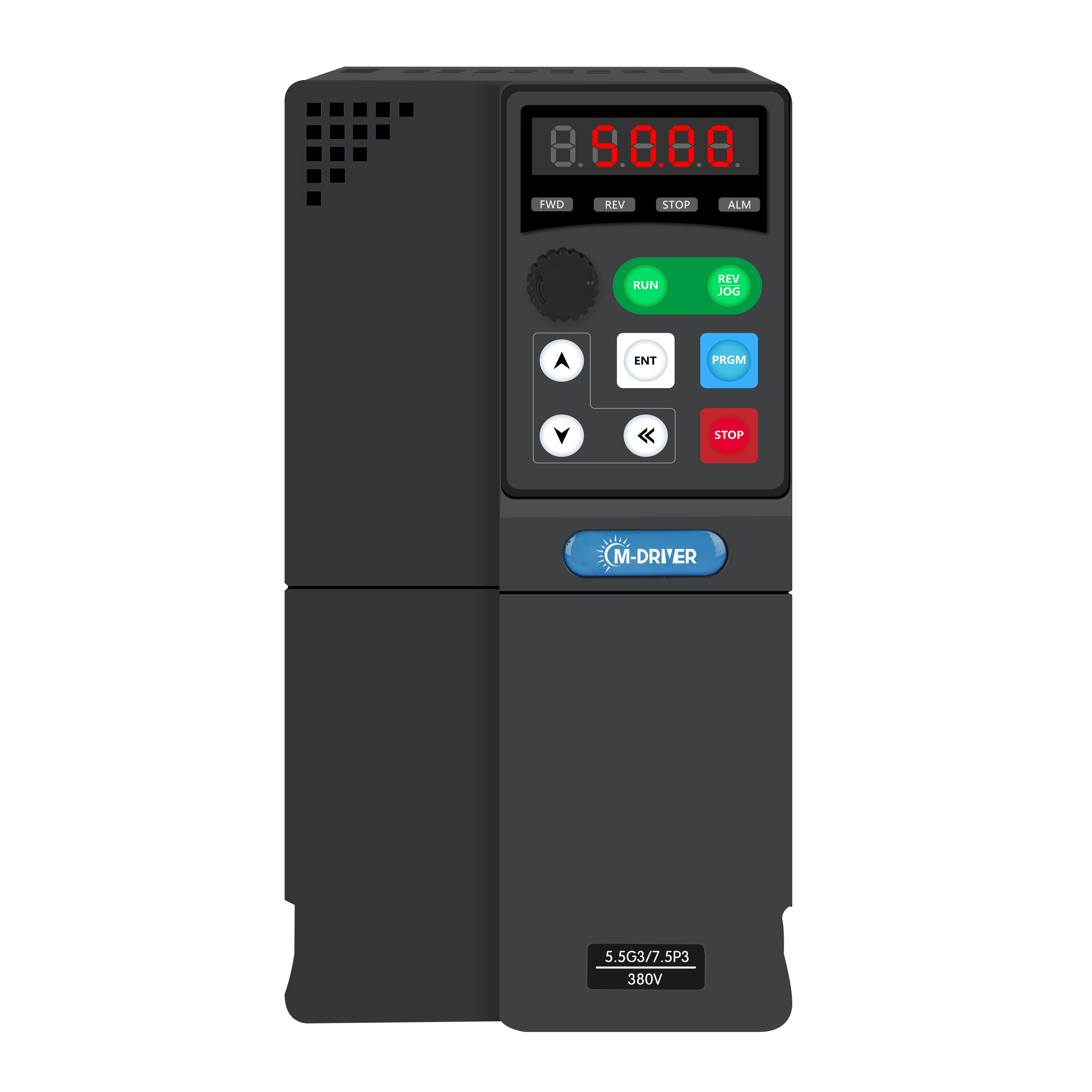

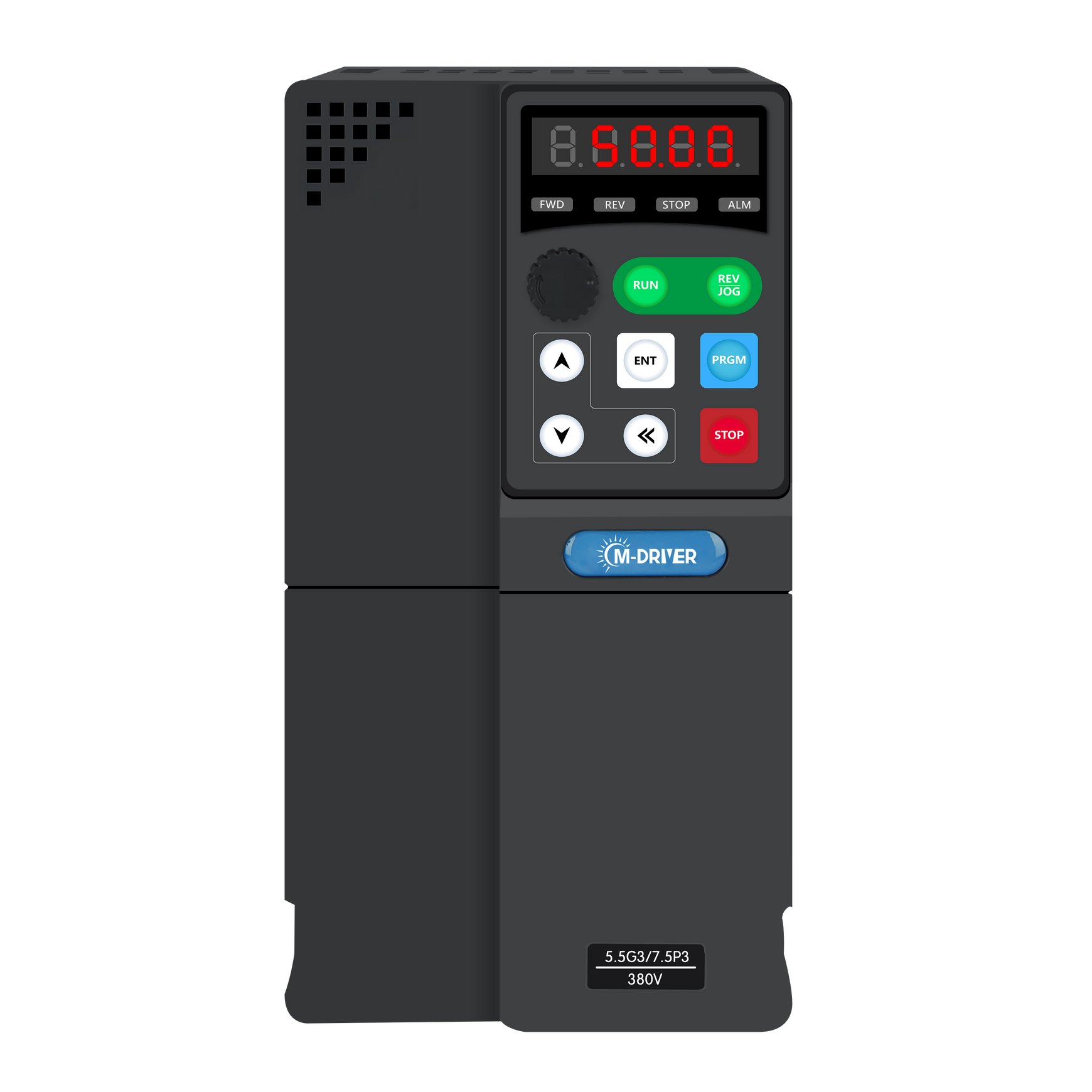

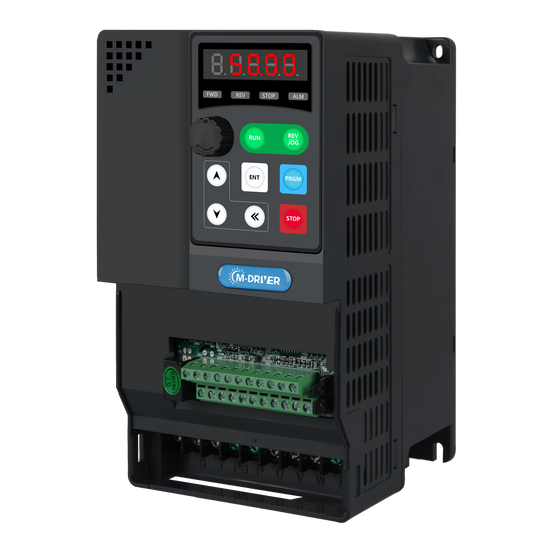

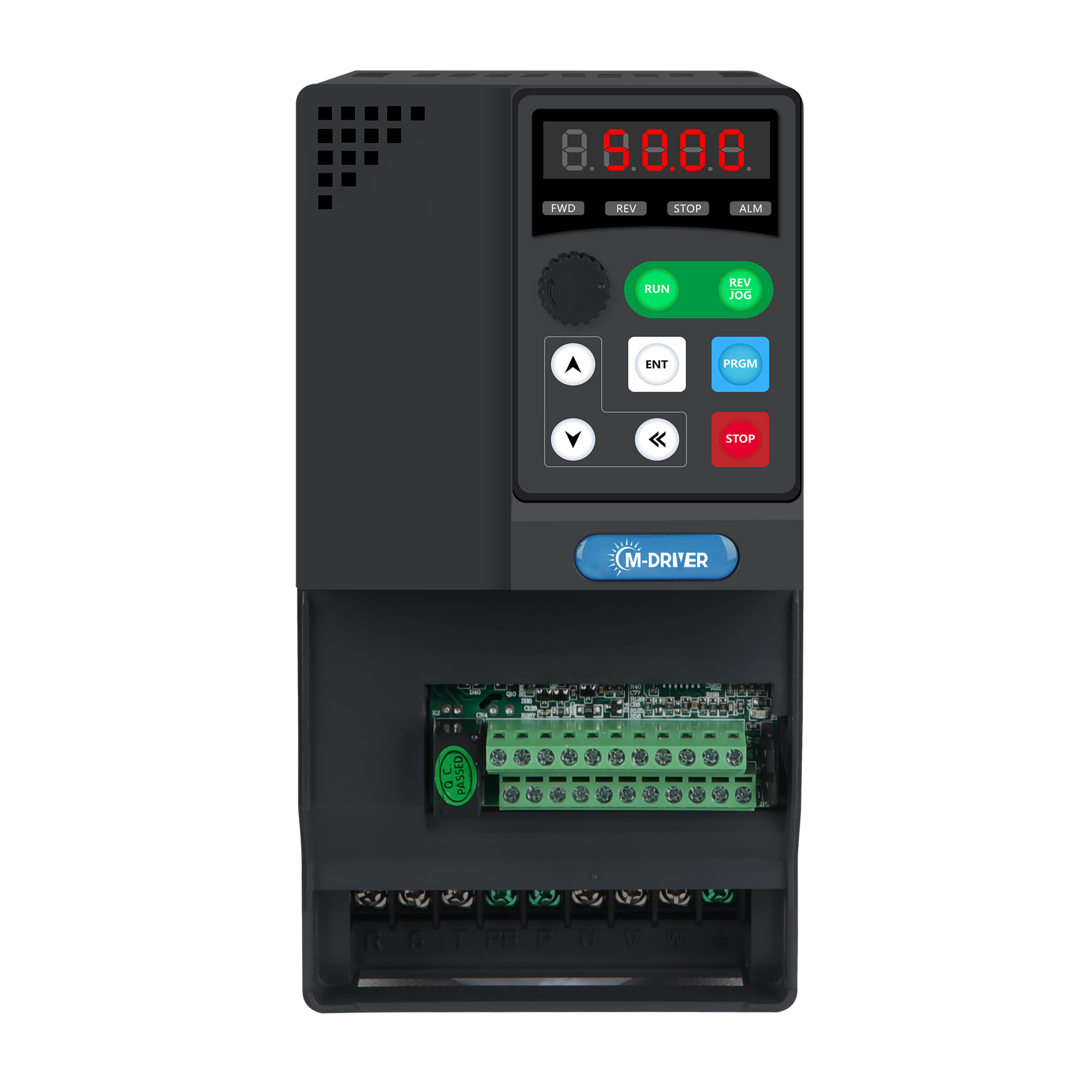

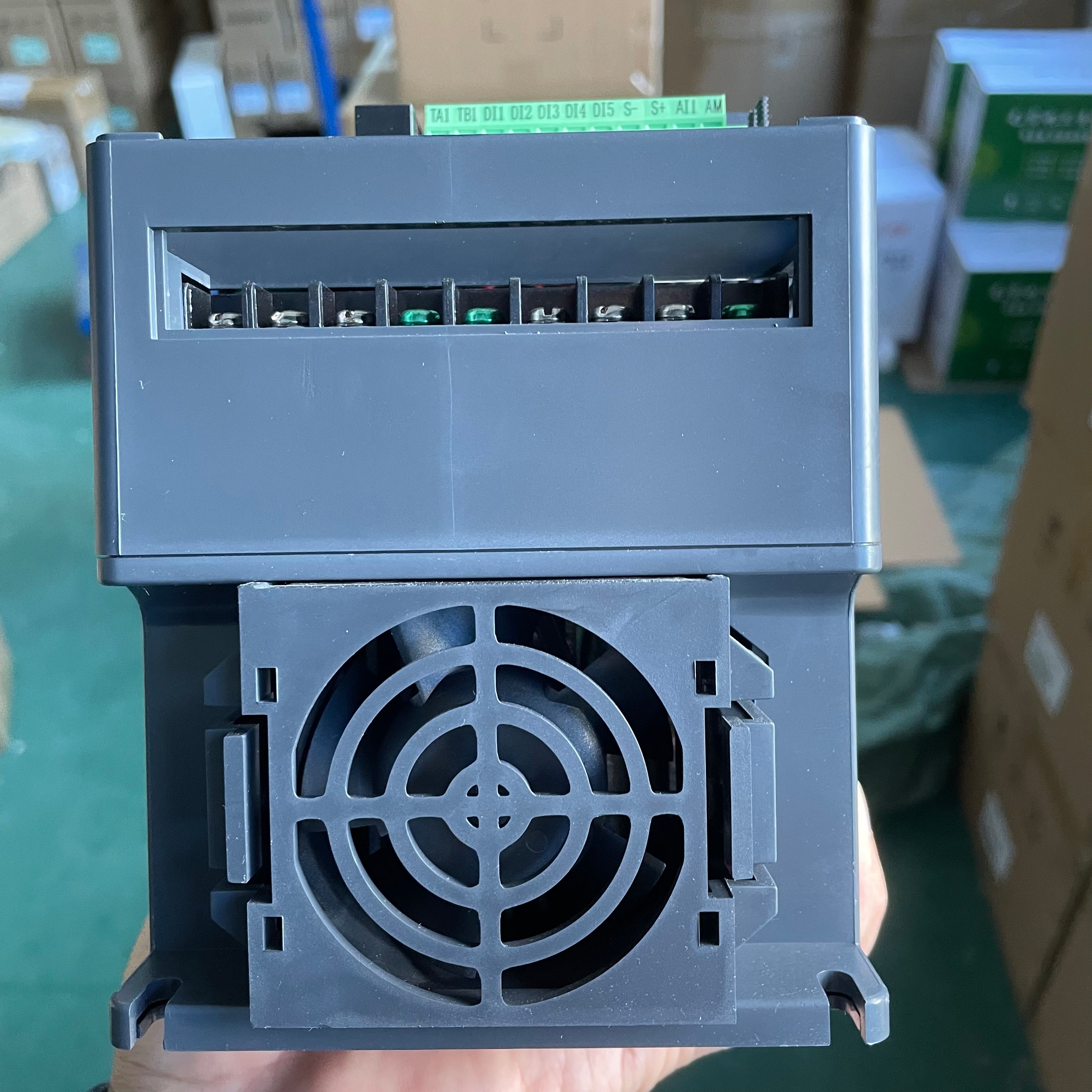

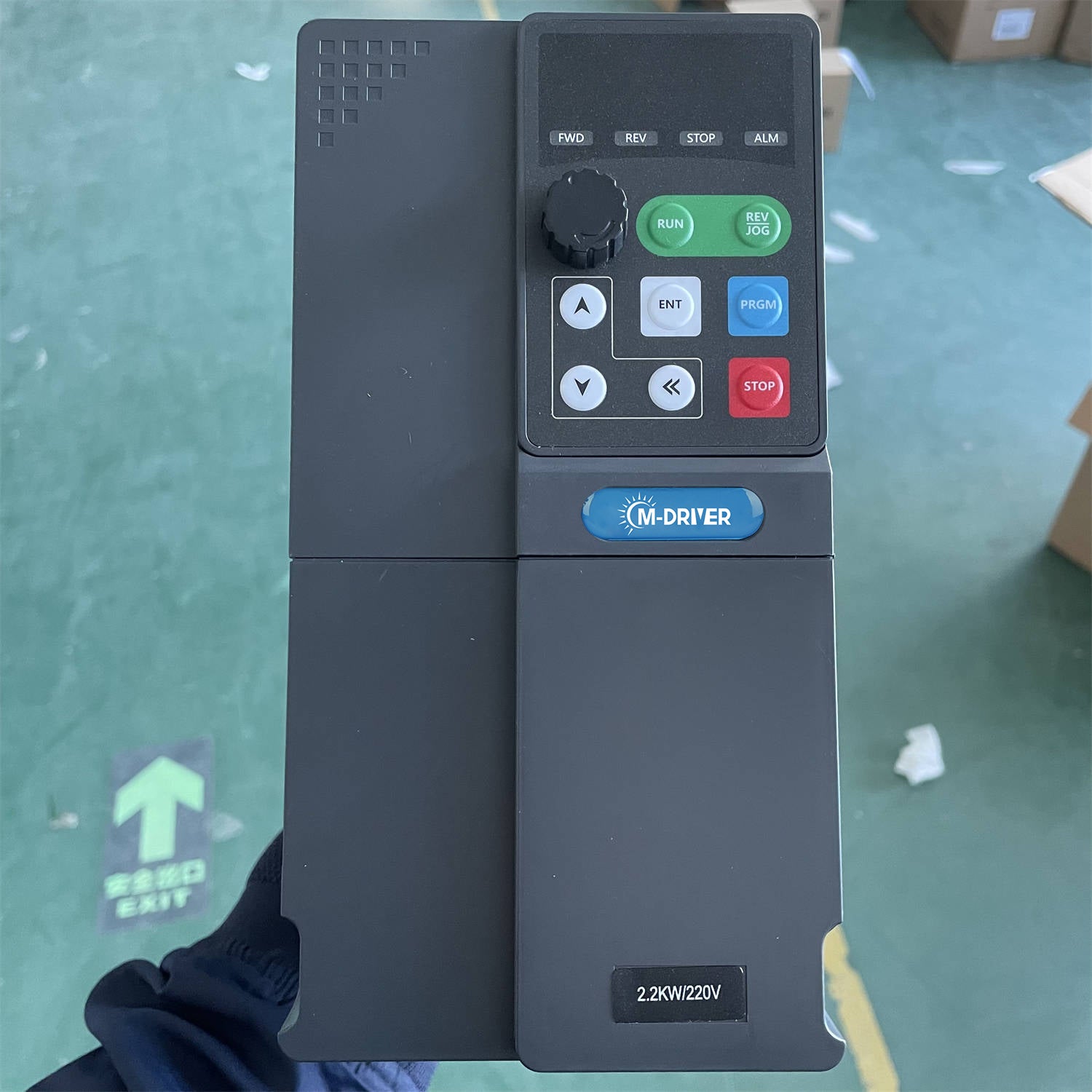

Product details
