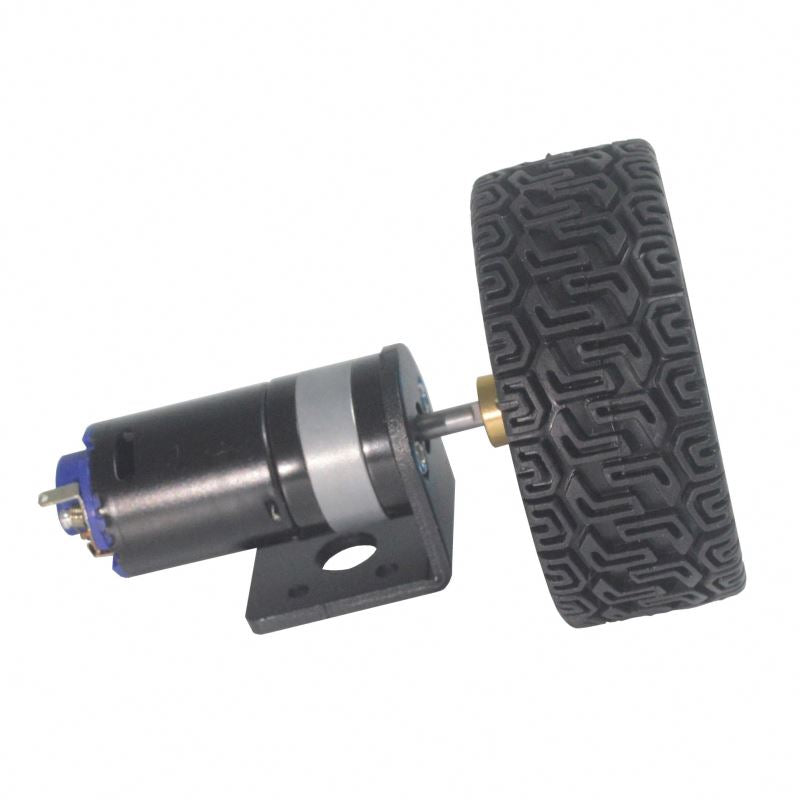

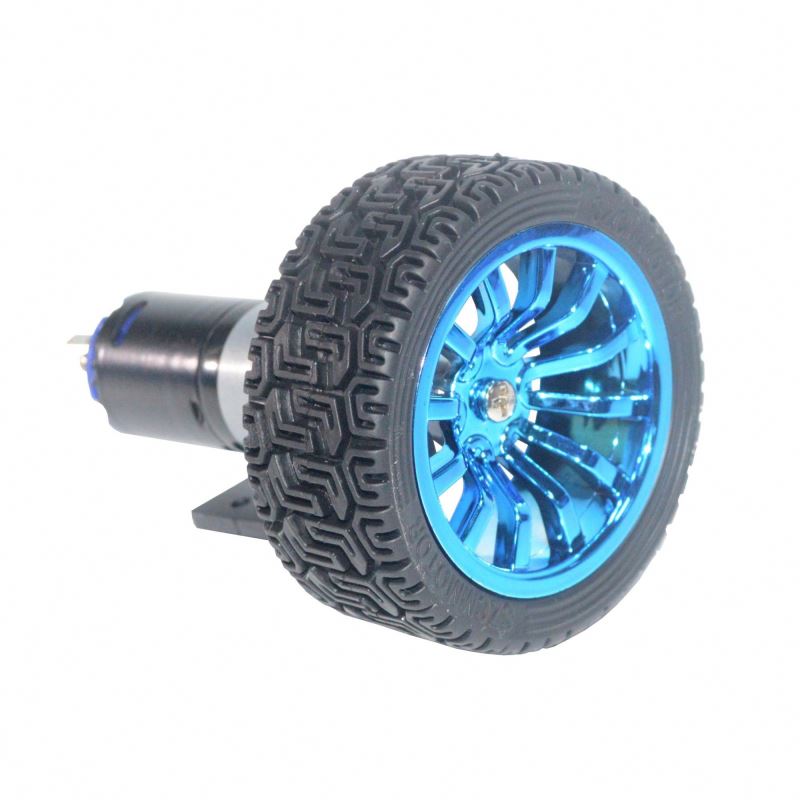

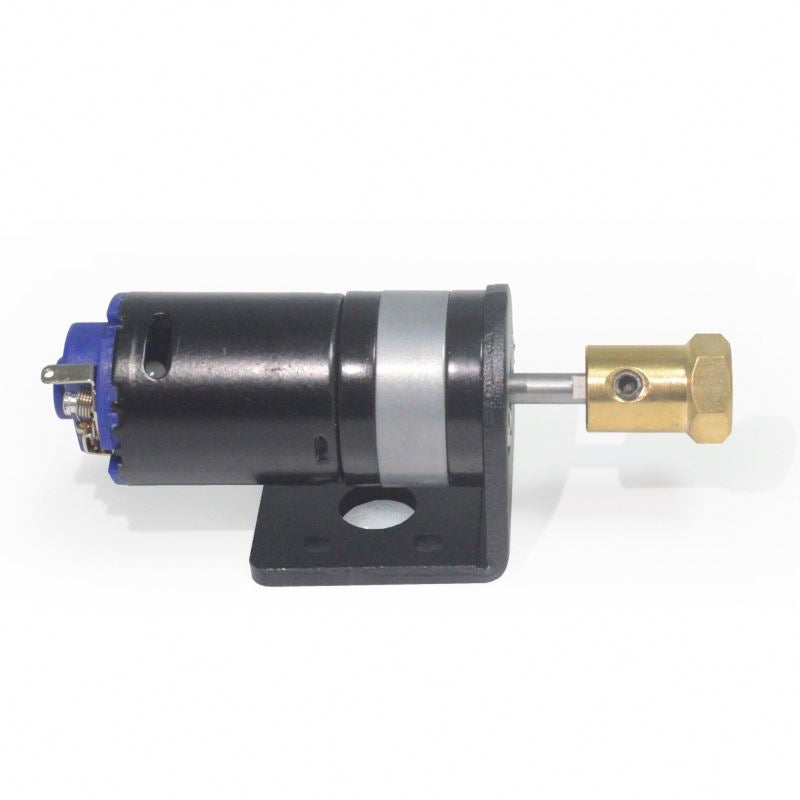

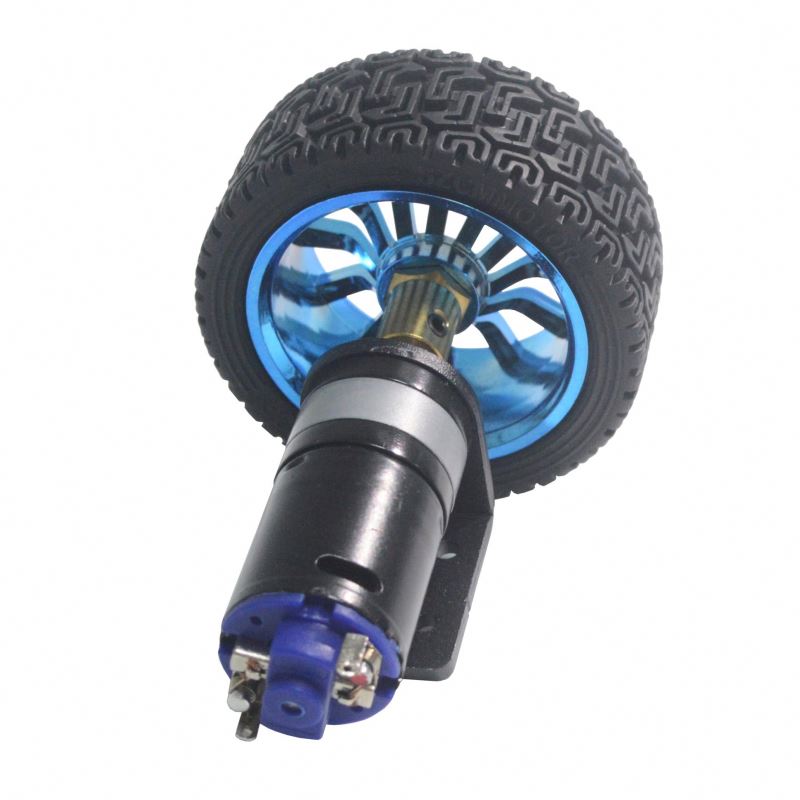

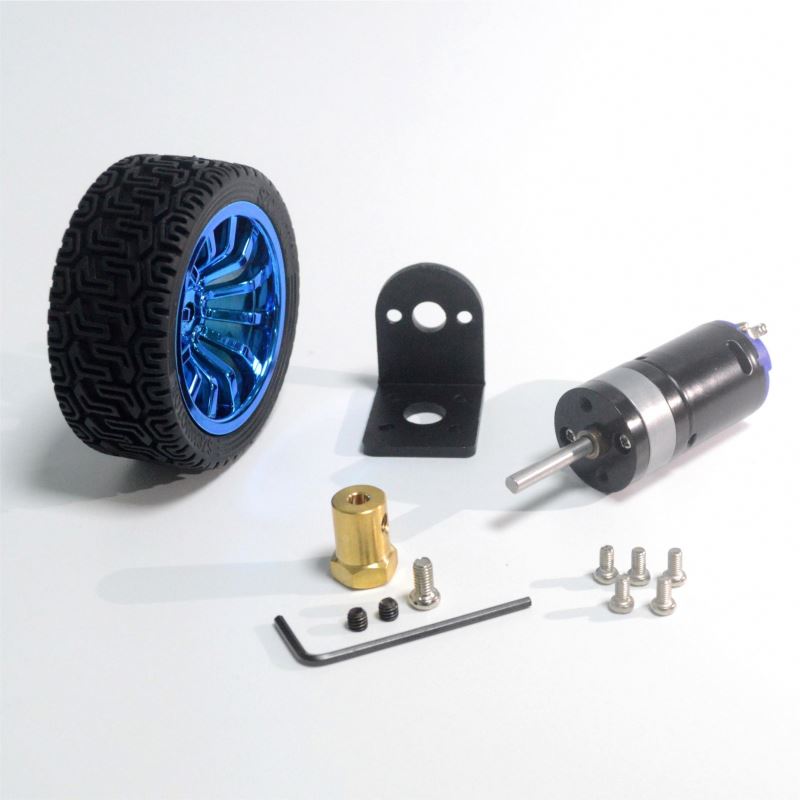

25mm 6v 12v 24v mini dc gear box motorLow Rpm With Brushless 12V Micro Geared Motors Spur High Speed Gear Motor
Save -33%
Rs. 4,404.51
Rs. 6,537.65
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
| Gear Ratio | Rated Voltage | No Load | Rated Load | Stall Extrapolation | L Size | Weight | ||||
| Speed | Current | Torque | Speed | Current | Torque | Current | ||||
| V | RPM | A | Kg.cm | RPM | A | Kg.cm | A | MM | G | |
| 4.4 | 6 | 2273 | 0.3 | 0.1 | 1864 | 1.6 | 0.6 | 8.5 | 18 | 85 |
| 9.6 | 6 | 1042 | 0.3 | 0.3 | 854 | 1.6 | 1.2 | 8.5 | 17.5 | |
| 21.3 | 6 | 469 | 0.3 | 0.6 | 385 | 1.6 | 2.8 | 8.5 | 19 | 87 |
| 35.5 | 6 | 282 | 0.3 | 1.1 | 231 | 1.6 | 4.6 | 8.5 | 21 | 92 |
| 46.8 | 6 | 214 | 0.3 | 1.4 | 175 | 1.6 | 6.1 | 8.5 | ||
| 78 | 6 | 128 | 0.3 | 2.3 | 105 | 1.6 | 10.1 | 8.5 | 23 | 95 |
| 103 | 6 | 97 | 0.3 | 3.1 | 80 | 1.6 | 13.4 | 8.5 | ||
| 171 | 6 | 58 | 0.3 | 5.1 | 48 | 1.6 | 22.2 | 8.5 | 25 | 97 |
| 226 | 6 | 44 | 0.3 | 6.8 | 36 | 1.6 | 25 | 8.5 | ||
| 378 | 6 | 26 | 0.3 | 11.3 | 22 | 1.6 | 8.5 | 27 | 100 | |
| 500 | 6 | 20 | 0.3 | 15 | 16 | 1.6 | 8.5 | |||
| 4.4 | 12 | 4545 | 0.4 | 0.3 | 3864 | 2.2 | 1.2 | 17 | 18 | 85 |
| 9.6 | 12 | 2083 | 0.4 | 0.6 | 1771 | 2.2 | 2.6 | 17 | 17.5 | |
| 21.3 | 12 | 939 | 0.4 | 1.3 | 798 | 2.2 | 5.8 | 17 | 19 | 87 |
| 35.5 | 12 | 563 | 0.4 | 2.1 | 479 | 2.2 | 9.6 | 17 | 21 | 92 |
| 46.8 | 12 | 427 | 0.4 | 2.8 | 363 | 2.2 | 12.6 | 17 | ||
| 78 | 12 | 256 | 0.4 | 4.7 | 218 | 2.2 | 21.1 | 17 | 23 | 95 |
| 103 | 12 | 194 | 0.4 | 6.2 | 165 | 2.2 | 27.8 | 17 | ||
| 171 | 12 | 117 | 0.4 | 10.3 | 99 | 2.2 | Banning block MAX 25KG | 17 | 25 | 97 |
| 226 | 12 | 88 | 0.4 | 13.6 | 75 | 2.2 | 17 | |||
| 378 | 12 | 53 | 0.4 | 15 | 45 | 2.2 | 17 | 27 | 100 | |
| 500 | 12 | 40 | 0.4 | 34 | 2.2 | 17 | ||||

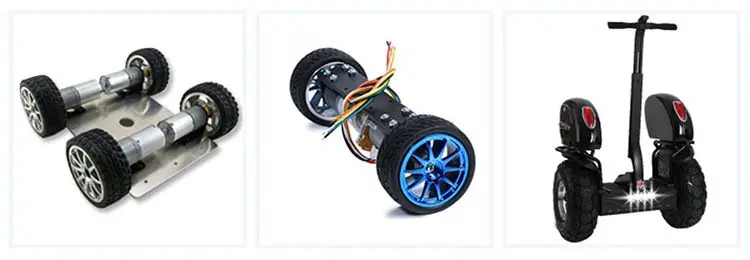

Product Applications
Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged. It was popularised in the 1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.
