300Mbps RTL8192EU Comfast Wifi Network Accessories Network Card Quad WiFi Adapter Wireless Dongle
Share
EDUP 300Mbps 2.4GHz Realtek8192EU Wi-fi display Wireless Dongle lb link wifi adapter
Features
1. MIMO technology improves data throughput and range over existing 802.11b/g products
2. Add high-speed Wireless-N (draft 802.11n) Internet access to any USB enabled computer
3. Download music & movies, surf the internet and e-mail up to 5 times faster than previous generation wireless networks (Wireless 802.11g)
4. Offers greater coverage than Wireless-G networks for internet access throughout your home or office
5. Works with older Wireless-G and Wireless-B networks
6. Wi-Fi Protected Setup (WPS) simplifies setup and operation
7. Operating distance of up to 300 feet indoor, and up to 900 feet in open space
8. Data transfer rate of up to 300Mbps
9. Supports USB 2.0 interface, backward compatible to USB 1.1 and 1.2
10. Enhanced WEP and WPA wireless security for protected Internet access
11. 64-bit / 128-bit WEP (Wired Equivalent Privacy), TKIP, AES 2.400GHz ISM
12. Frequency Band Modulation Method: QPSK / BPSK / 16-QAM / 64-QAM
13. Supports Ad Hoc and Infrastructure modes
14. Supports IEEE 802.11e standard
Specification
| IEEE 802.11n (draft) IEEE 802.11g IEEE 802.11b |
|
| Host Interface |
High speed USB2.0/1.1 interface |
| Wireless Signal Rates with Automatic Fallback |
802.11n: up to 300Mbps(Dynamic) 802.11g: up to 54Mbps(Dynamic) 802.11b: up to 11Mbps(Dynamic) |
| Frequency Range |
2.4GHz-2.4835GHz |
| Wireless Transmit Power |
18dBm(EIRP) |
| Modulation Type |
DBPSK,DQPSK,CCK,OFDM |
| Receiver Sensitivity |
270M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@10% PER |
| Work Mode |

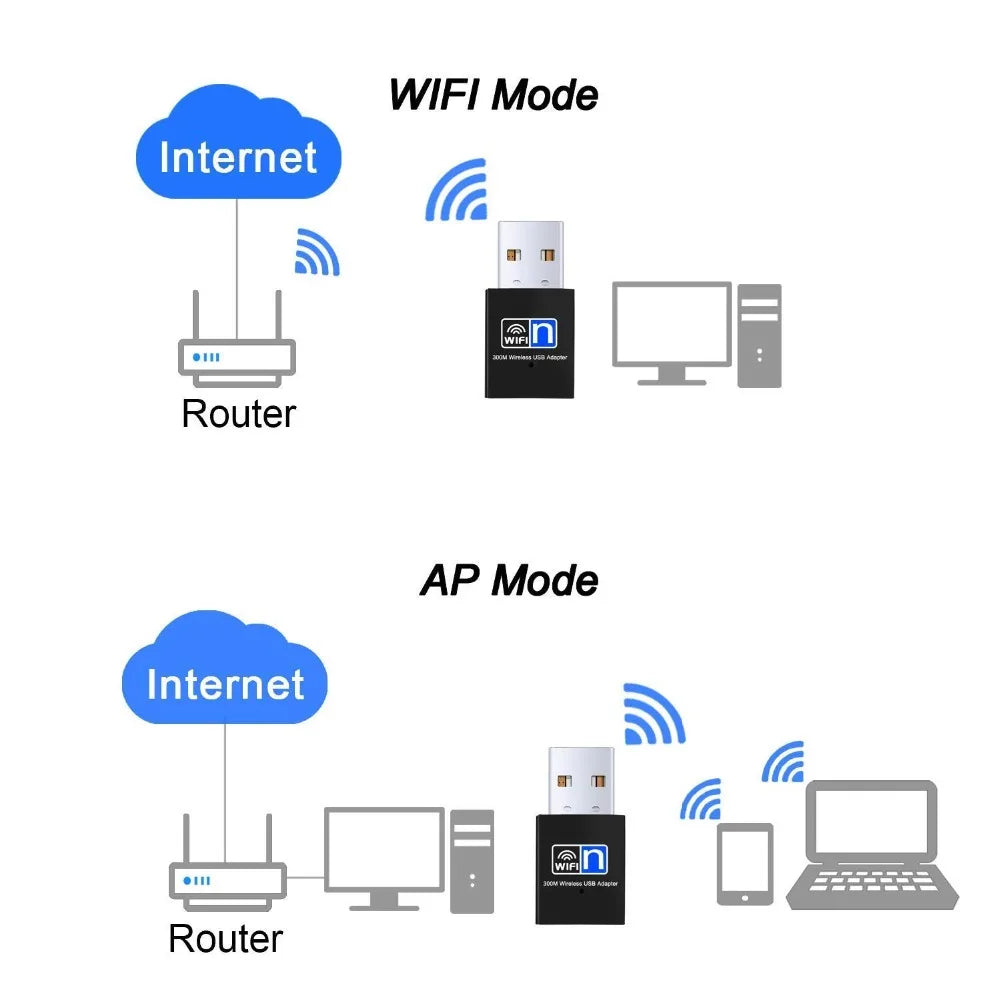

Ad-Hoc Infrastructure, soft AP |
| Wireless Security |
WPS, 64/128big WEP, WPA/WPAS, WPA-PSK/WPA2-PSK(TKIP/AES) |
| Support Operation System |

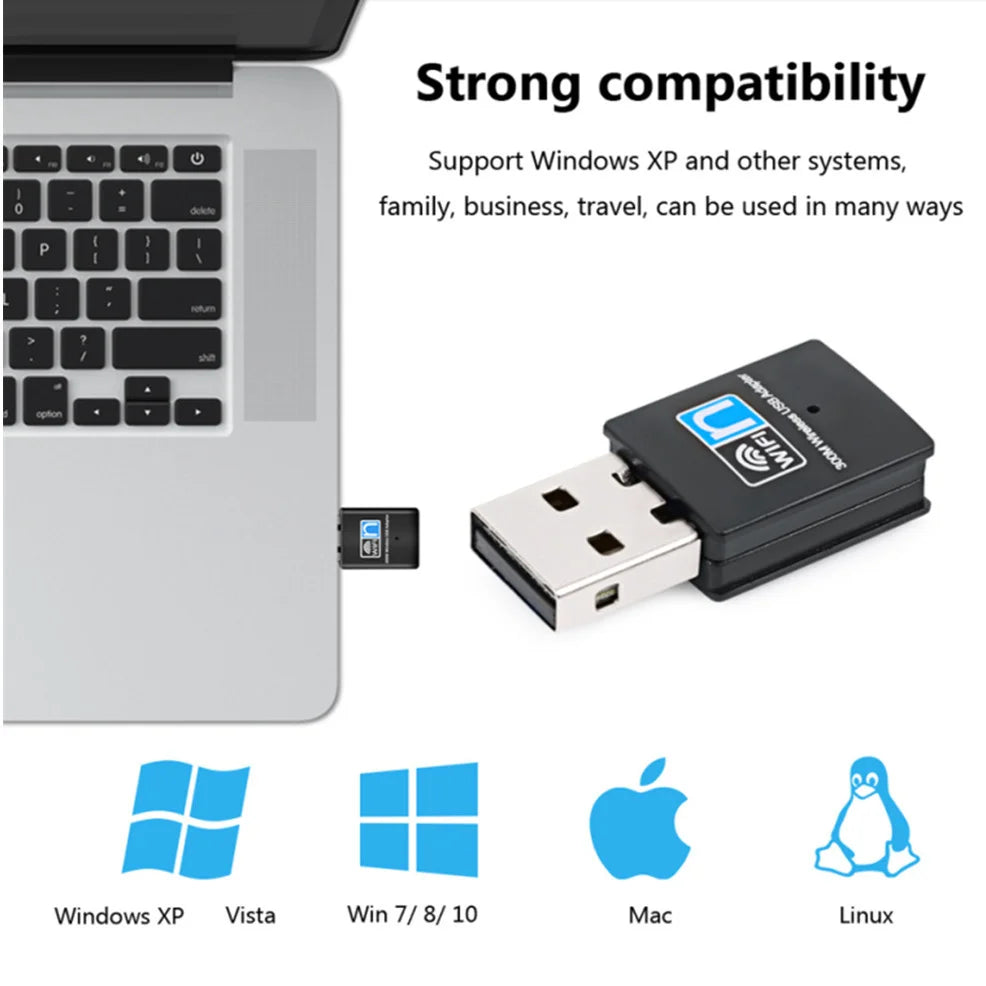

Windows XP/VISTA/Win7/Linux/Macintosh |
| Interface |
USB2.0 Hi-Speed connector |
| Antenna Type |
Internal Omni-directional PIFA Antenna |
| Environment |
Operating Temperature: 0oC to 40oC Storage Temperature: -40oC to 70oC Operating Humidity: 10% ~ 90% (Non Condensing) Storage Humidity: 5% ~ 95% (Non Condensing) |
| Dimensions |
20mm X 14.4mm X 6mm |
| Compliant |
FCC (USA) CE Mark (Europe) RoHS Compliant Wi-Fi Compliant |
