4KW 6KW 7KW 8KW 10KW Dual Output On Off Grid Solar Inverter 24V 48V Pure Sine Wave Hybrid Solar Inverter With MPPT Controller
Save -32%
Rs. 47,919.00
Rs. 70,916.36
HURRY ! ONLY
1919 LEFT IN STOCK.
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Product Description

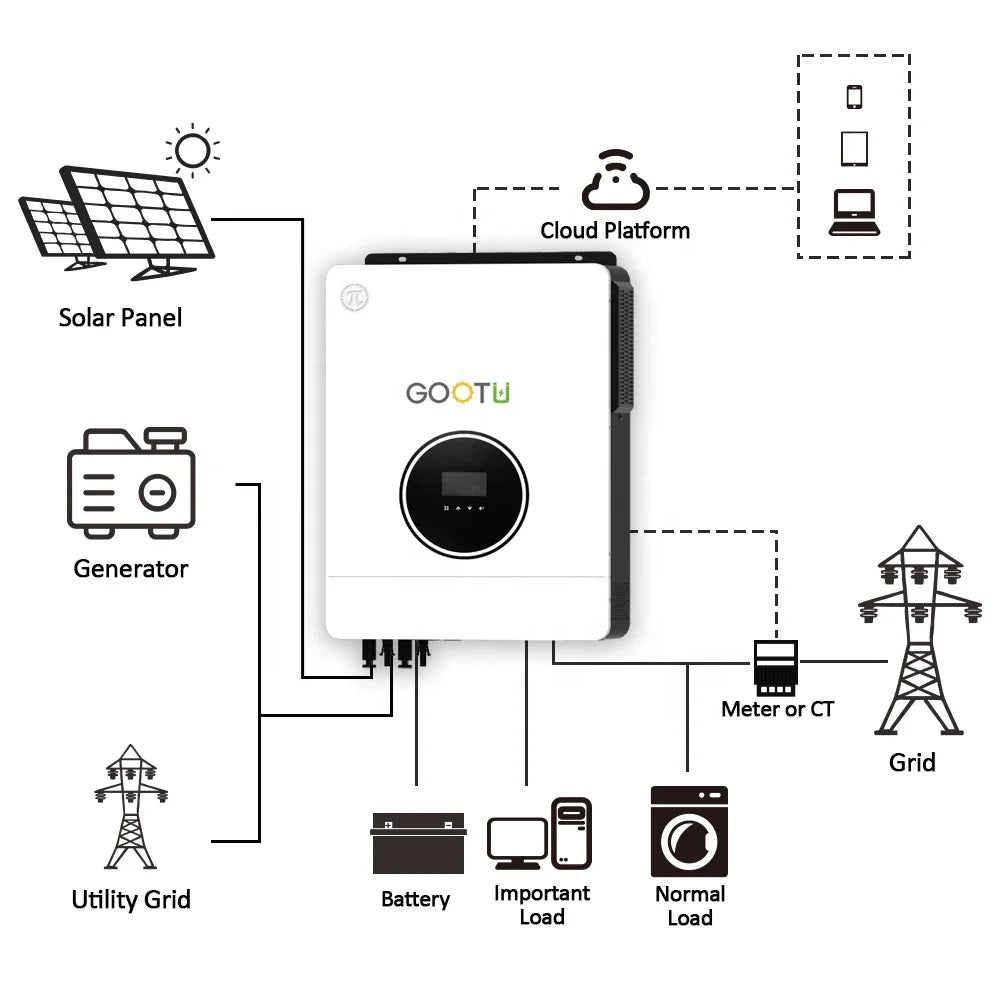

What is dual output solar inverter?
GOOTU dual output solar inverter is a type of solar inverter that has two separate AC outputs. This allows for the inverter to be used in a variety of different applications, such as powering two separate buildings or powering a home and a backup generator simultaneously. The dual output feature also allows for greater flexibility in system design, as it can be used to optimize energy production and distribution. Dual output solar inverters are commonly used in larger residential and commercial solar installations.
GOOTU Dual Output Solar Inverter Main Features
* Pure sine wave solar inverter (Grid Tie / Off Grid).
* 1.0 output power factor.
* WIFI & GPRS available for IOS and android.
* Support running without battery.
* One click to restore factory settings.
* Built-in 120/160A MPPT solar charger.
* Built-in lithium battery automatic activation.
* Built-in anti-dusk kit for harsh environment(optional).
* High PV input voltage range(360~500VDC)
* Smart battery charge design to optimize battery life.

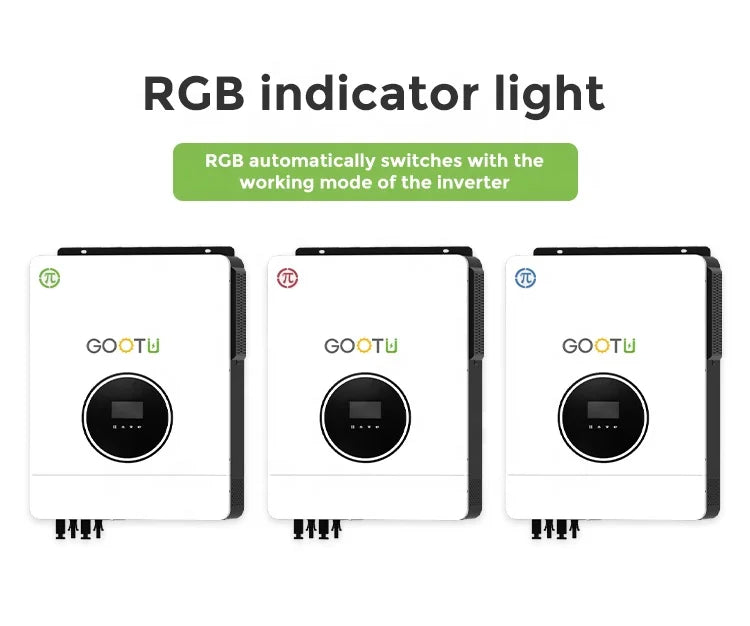

* Touch button, RGB light.
* Dual output.
NOTE:
The JSY Series Inverters are wide voltage Hybrid Inverters. The voltage that starts to connect to the solar panels must be above 120V for the Hybrid Inverter to work normally. If you have any questions before order, please feel free to contact us, thank you!
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Data Sheet
|
MODEL
|
JSY-H2436E120-D
|
JSY-H4862E120-D
|
||
|
Maximum PV Input Power
|
6200W
|
|||
|
Rated Output Power
|
3600W
|
6200W
|
||
|
Maximum Solar Charging Current
|
120A
|
|||
|
GRID-TIE OPERATION
|
||||
|
PV Input(DC)
|
||||
|
Nominal DC Voltage/Maximum DC Voltage
|
360VDC/500VDC
|
|||
|
Start-up Voltage/Initial Feeding Voltage
|
90VDC/120VDC
|
|||
|
Maximum DC Voltage
|
90~450VDC
|
|||
|
Number of MPPT Trackers/Maximum Input Current
|
1/27A
|
|||
|
GRID OUTPUT(AC)
|
||||
|
Nominal Output Voltage
|
220/230/240VAC
|
|||
|
Output Voltage Range
|
195.5~253VAC
|
|||
|
Nominal Output Current
|
15.7A
|
30A
|
||
|
Power Factor
|
>0.99
|
|||
|
Feed-inGrid Frequency Range
|
49~51±1Hz
|
|||
|
EFFICIENCY
|
||||
|
Maximum ConversionE ficiency
|
98%
|
|||
|
TWO LOAD OUTPUT POWER
|
||||
|
Full Load
|
3600W
|
6200W
|
||
|
Maximum Main Load
|
3600W
|
6200W
|
||
|
Maximum Second Load(battery mode
|
1200W
|
2067W
|
||
|
Main Load CutOff Voltage
|
22VDC
|
44VDC
|
||
|
Main Load Return Voltage
|
27VDC
|
54VDC
|
||
|
OFF-GRID OPERATION
|
||||
|
AC INPUT
|
||||
|
AC Start-up Voltage/Auto Restart Voltage
|
120-140VAC/180VAC
|
|||
|
Acceptable Input Voltage Range
|
90-280VAC or 170-280VAC
|
|||
|
Maximum AC Input Current
|
30A
|
40A
|
||
|
Nominal operating frequency
|
50/60Hz
|
|||
|
Surge power
|
7200VA
|
12400VA
|
||
|
BATTERY MODE OUTPUT(AC)
|
||||
|
Nominal Output Voltage
|
220/230/240VAC
|
|||
|
Output Waveform
|
Pure sine wave
|
|||
|
Efficiency(DC to AC)
|
94%
|
|||
|
BATTERY & CHARGER
|
||||
|
Nominal DC Voltage
|
24VDC
|
48VDC
|
||
|
Maximum Charging Current(Solar to AC)
|
120A
|
|||
|
Maximum AC Charging Current
|
100A
|
|||
|
GENERAL
|
||||
|
PHYSICAL
|
||||
|
Dimension， DX WxH(mm)
|
420*310*110
|
|||
|
Net Weight(kgs)
|
10
|
11
|
||
|
INTERFACE
|
||||
|
Communication Port
|
RS232/RS485/WIFI/GPRS
|
|||
|
ENVIRONMENT
|
||||
|
Operating Temperature
|
-10~50℃
|
|||
|
Model
|
JSY-H4872E140-D
|
JSY-H4882E160-D
|
JSY-H48102E160-D
|
|||
|
Rated Output Power
|
7200W/7200VA
|
8200W/8000VA
|
10200W/10200VA
|
|||
|
Max. PV Input Power
|
8200W
|
8200W
|
10200W
|
|||
|
Max. Solar Charging Current
|
160A
|
160A
|
160A
|
|||
|
Grid Tie Operation
|
||||||
|
PV Input(DC)
|
||||||
|
Normal DC Voltage / Max. DC Voltage
|
360VDC/500VDC
|
|||||
|
Start-up Voltage / Initial Feeding Voltage
|
90VDC/120VDC
|
|||||
|
MPPT Voltage Range
|
90VDC~450VDC
|
|||||
|
Number of MPPT Tracker / Max. Input Current
|
1/27A
|
|||||
|
Grid Output(AC)
|
||||||
|
Nominal Output Voltage
|
220/230/240VAC
|
|||||
|
Output Voltage Range
|
195~253VAC
|
|||||
|
Nominal Output Current
|
31.3A
|
35.6A
|
44.3A
|
|||
|
Power Factor
|
＞0.99
|
|||||
|
Feed-in Grid Frequency Range
|
49~51±1HZ
|
|||||
|
Efficiency
|
||||||
|
Max. Conversion Effeciency(DC/AC)
|
98%
|
|||||
|
Two Load Output Power
|
||||||
|
Full Load
|
7200W
|
8200W
|
10200W
|
|||
|
Max. Main Load
|
7500W
|
8200W
|
10200W
|
|||
|
Max. Second Load(Battery Mode)
|
2400W
|
2733W
|
3400W
|
|||
|
Main Load Cut Off Voltage
|
44VDC
|
44VDC
|
44VDC
|
|||
|
Main Load Return Voltage
|
48VDC
|
48VDC
|
48VDC
|
|||
|
Off Grid Operation
|
||||||
|
AC Input
|
||||||
|
AC Start-up Voltage / Auto Restart Voltage
|
120-140VAC/180VAC
|
|
|
|||
|
Acceptable Input Voltage Range
|
90-280VAC/170-280VAC
|
|
|
|||
|
Max. AC Input Current
|
40A
|
40A
|
50A
|
|||
|
Nominal Operatiing Frequency
|
50/60HZ
|
|
|
|||
|
Super Power
|
14400W
|
16400W
|
20400W
|
|||
|
PV Input(DC)
|
||||||
|
Max. DC Voltage
|
500VDC
|
|
|
|||
|
MPPT Voltage Range
|
90VDC~450VDC
|
|
|
|||
|
Number Of MPPT Tracker/Max. Input Current
|
1/27A
|
|
|
|||
|
Battery Mode Output(AC)
|
|
|
|
|||
|
Normal Output Voltage
|
48VDC
|
|
|
|||
|
Output Waveform
|
Pure Sine Wave
|
|
|
|||
|
Efficiency(DC to AC)
|
94%
|
|
|
|||
|
Battery & Charger
|
|
|
|
|||
|
Nominal DC Voltage
|
48VDC
|
|
|
|||
|
Max. Solar Charging Current
|
160A
|
160A
|
160A
|
|||
|
Max. AC Charging Current
|
120A
|
140A
|
140A
|
|||
|
General
|
|
|
|
|||
|
Physical
|
|
|
|
|||
|
Product Dimension
|
420*310*110mm
|
|
|
|||
|
Carton Dimension
|
588*463*205mm
|
|
|
|||
|
Net Weight
|
14.2KGS
|
14.2KGS
|
14.5KGS
|
|||
|
Gross Weight
|
15.7KGS
|
15.7KGS
|
16KGS
|
|||
|
Interface
|
|
|
|
|||
|
Communication Port
|
RS232 / WIFI / RS485 /GPRS
|
|
|
|||
|
Enviroment
|
|
|
|
|||
|
Operating Temperature
|
-10~50°C
|
|
|
|||
