🔍 1. Professional Product Overview

The 5.5MM 1080P 60fps 1/6inch cmos sensor 140degree Industrial Medical Endoscope Camera Module 2mp with infrared filter is a high-utility asset meticulously selected for the Shanvis Store 2026 collection. Engineered to bridge the gap between industrial reliability and commercial affordability, this product is a cornerstone for D2C brands and B2B resellers looking to establish market dominance through quality-vetted inventory.

📦 2. Comprehensive Detailed Description & Technical Specifications

Customize factory high quality 5.5mm mobile phone computer HD usb industrial emedical ndoscope for auto repair pipeline inspection tool

haozhou provides high quality camera modules with professional OEM design and manufacturing services to customers worldwide. We are carrying OmniVision, Sony, Samsung, Hynix, GalaxyCore...

The main application areas: mobile phone, digital still camera, laptop, DV, PDA/handheld, toy, PC camera, security camera, automotive camera, tablet pc, visual doorbell, medical system, smart home, industrial image, recognition system, fingerprint identification system ...

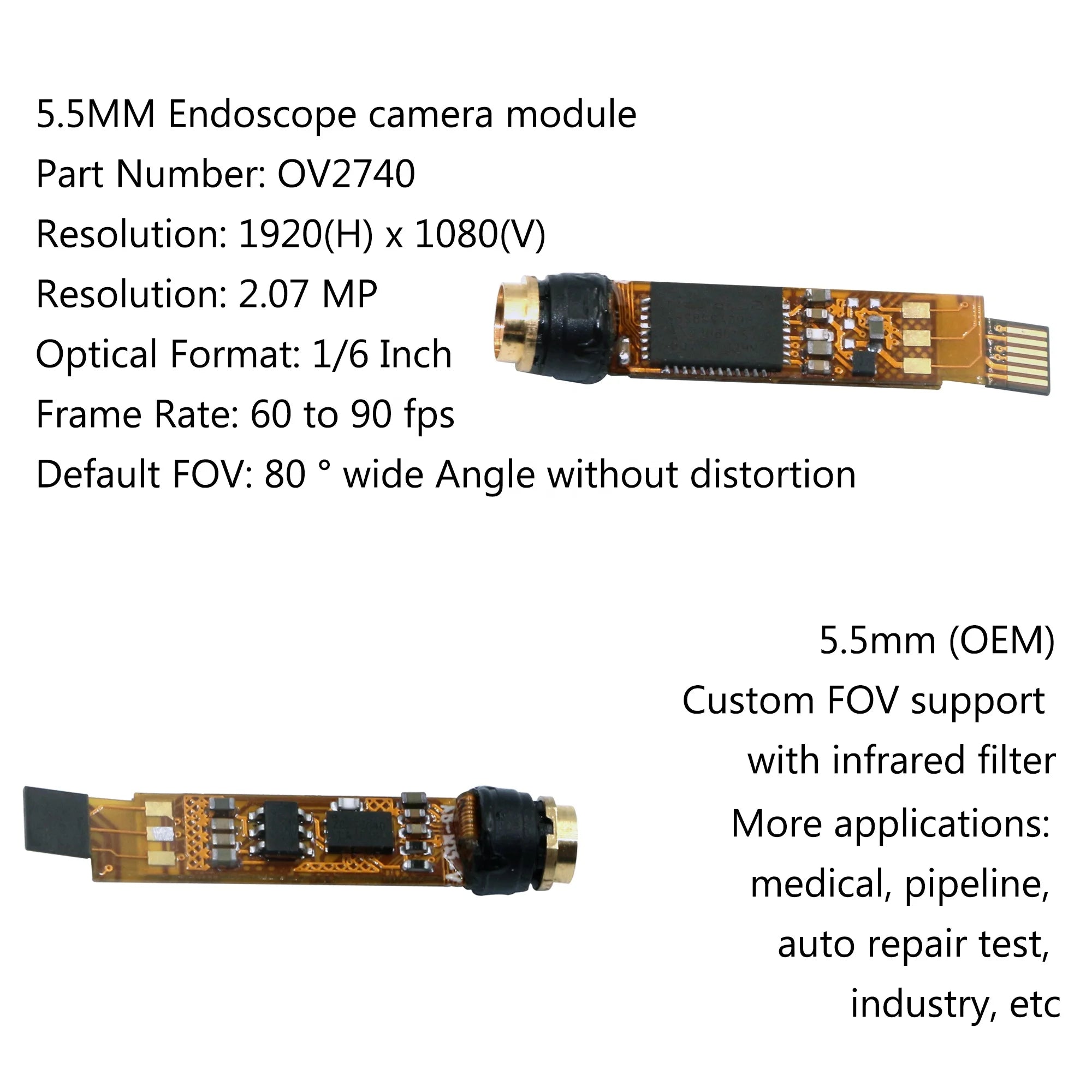

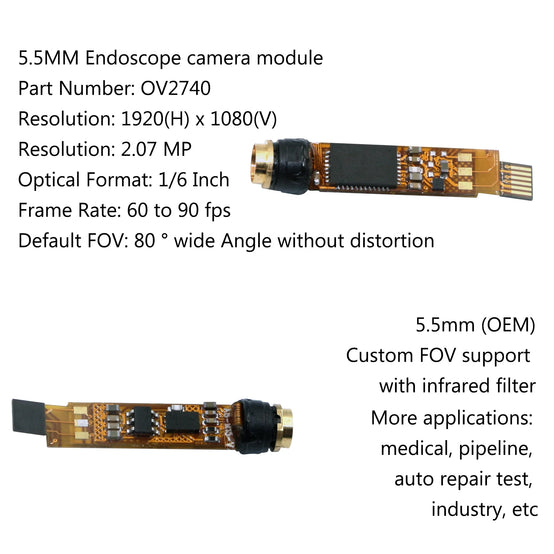

Module No.	USB 5.5MM
Sensor	OV2740
Lens Size	1/6inch
Pixel size	1.4um X 1.4um
Image region	2728µm x 1549µm
Maximum effective pixel	1920(H)X1080(V)
Output image format	MJPEG / YUV2（YUYV）
Supported resolution and frame rate	60fps 1080PYUV/MJPEG/60FPS VGA /MJPEG
Signal-to-noise ratio	38.3db
Dynamic range	42db@8x gian
sensitivity	553mV/Lux-sec
Minimum illuminance	1lux
Shutter type	Electronic rolling shutter
Interface type	USB2.0 High Speed
USB protocol	USB2.0 HS/FS
Support drive - free protocol	USB Video Class（UVC）
OTG protocol is supported	USB2.0 OTG
Automatic exposure control AEC	support
Automatic white balance AEB	support
Automatic gain control AGC	support
Adjustable parameter	Brightness, contrast, color saturation, hue, sharpness, gamma, white balance, backlight contrast, exposure
lens	Hd lens/macro
Power supply mode	USB BUS POWER 5P
Operating voltage	DC5V
Working current	100mA
Operating temperature	:-20～70℃
Storage temperature	:0～50℃
Supported system	WinXP/Vista/Win7/Win8.1/Win10/Linux with UVC（above linux-2.6.26）Android 4.0 or above with UVC

Shenzhen City Hao Zhou Technology Co.,Ltd. was established in 2014, and is located in shenzhen city, guangdong province, China. We provide with face recognition, camera modules, endoscope and webcam. Customers can choose different type products here, we can ship all items together, so they are able to enjoy one-stop service, it saves time, cost and effort, which benefits customers a lot. And All Our products are with 2 years warranty, O E M and O D M are warmly welcomed. We can design according to the drawings provided by our customers. We are willing to provide customers with products, which carrying their corporate culture and conveying brand concept to end-users., we believe that success is building on a solid foundation and a commitment of delivery. We strive for designing high quality products to meet the changing needs of the marketplace, Offering a perfectly balanced combination of design , sourcing, quality control and marketing. Our company's products are sold worldwide. We have won the unanimous recognition and praise of consumers with satisfactory product quality and perfect after-sales service. We can offer small order quantity, such as retailers on Amazon, Ebay, shopify and so on. it effectively save their economic pressure. We sincerely welcome friends from all over the world to visit our company and cooperate with us on the basis of long-term mutual benefits. We are looking forward to receiving your enquiry soon.

1. Good quality products and low factory direct price 2.Free technical support and professional advice,timely communication and after-sale service 3.24-hour aging process, 1-year warranty, CE/FCC/RoHS compliant 4.OEM/ODM service a) Customized camera housingb) Print logo on the camera c)Any your idea on camera we can help you design and put it into production 5.Fast delivery, 3-7 days for production 6.Accept paypal, T/T, western union payment 7.Delivery by DHL/EMS/FedEx, by air or by sea etc

A1: Please contact us first to confrim.We do not provide fee sample and the cost and shipping fee for sample shoudbe paid by buyers.Usually we can offer it in about 3 working days. Q2:What is your acceptable payment term? A2: Trade assurance is our first choice. Then TлT, Western Union,and so on.If you prefer other ways, please contact us.

Q3:What is your guranree for quality? A3: We have 12 months warranty and we will take responsibility for our quanlity and free to repair. Q4:Could you give me a discount? A4: It depends on quantity. Large quantity equal best price.

Q5:How long is your delivery time? A5: After receiving your payment, 1-3days for stock goods and 3-21 days forother goods according to the quantity. Q6:Can you accept small orders? A6: Yes. We enjoy growing up together with all of our clients whether big or small. Q7:How about your after-saleservice? A7: First, we guarantee the quality of our products. Any problem, please contactwith uS and we would solve it as soon as possible.

📦 3. What is in this Order & Packaging Information

What is in this Order:

• 1 x 5.5MM 1080P 60fps 1/6inch cmos sensor 140degree Industrial Medical Endoscope Camera Module 2mp with infrared filter
• 1 x High-Capacity Battery Pack / Power Source (If applicable)
• 1 x Fast-Charging Station & Cable (If applicable)
• 1 x Technical User Manual & Access Guide
• 1 x Secure Shanvis Store Enterprise Packaging

🚚 Packaging & Shipping Information:
Our units are shipped in multi-layered industrial-grade vibration-proof boxes. We offer Domestic and Global Shipping via our Delivered Duty Paid (DDP) model to ensure your order arrives in showroom condition directly to your warehouse.

💡 4. Strategic Importance & Business Value

In the evolving landscape of 2026 e-commerce, the 5.5MM 1080P 60fps 1/6inch cmos sensor 140degree Industrial Medical Endoscope Camera Module 2mp with infrared filter matters because it minimizes operational downtime and maximizes end-user satisfaction. For Amazon, Flipkart, and Meesho sellers, it represents a 'Hero SKU' that maintains consistent performance ratings, reducing return rates and enhancing your brand’s supply chain integrity.

🚀 5. Core Advantages & Key Features

• 🛡️ Advanced Build Integrity: Sourced using premium materials to ensure longevity in high-frequency commercial environments.
• ⚙️ Precision Functionality: Every unit is verified to meet international standards (CE/ISO equivalent) for reliable deployment.
• 💹 High ROI Potential: Low maintenance requirements paired with high-performance output ensures maximum profitability per unit.
• 📦 Fulfillment Ready: Designed with protective packaging standards suitable for global transit and Indian FBA warehouses.

📊 6. Technical Fact Sheet & Commercial Use Cases

👍 8. Core Business Advantages (Top 10)

1. Commercial Durability: Optimized build for educational and industrial use cases.
2. DDP Shipping: Final landed cost certainty with no hidden import fees.
3. Low MOQ Access: Low entry barriers for growing MSMEs and startups.
4. Full GST Compliance: Verified B2B invoices for input tax credit claims.
5. Global Quality QA: Strict multi-point checks at international source points.
6. Supply Chain Stability: Reliable inventory availability for high-volume resellers.
7. High Market ROI: Low overheads and consistent performance metrics.
8. Fulfillment Integration: Packaging standard compatible with major Indian logistics.
9. Reduced Overhead: Streamlined procurement process through official Shanvis partners.
10. Verified Branding: Direct professional partnership with MeeThought/Bhavitha Sree Trading.

❓ 9. B2B Procurement FAQ

Q1: Can we claim GST Input Tax Credit?
A: Yes, we provide official B2B invoices with your GSTIN for full tax compliance.

Q2: What is the benefit of DDP Shipping for us?
A: DDP means the price you see is the final landed cost. No surprise customs or hidden duties at the time of delivery.

Q3: Is this product suitable for high-volume reselling?
A: Absolutely. We source this specifically for Amazon and Meesho power-sellers who require consistent quality.

Q4: How do you handle Quality Assurance (QA)?
A: Each batch undergoes a rigorous multi-point check at our global source facilities before dispatch.

Q5: Can we request bulk customized branding?
A: Yes, for large-scale enterprise orders, we facilitate OEM branding through our manufacturing partners.

🛡️ 10. Warranty & After-Sales Support

Shanvis Enterprise Warranty: Every unit is backed by our B2B buyer protection program. We offer comprehensive after-sales assistance, defective-on-arrival (DOA) replacements, and dedicated technical support to ensure your business operations never face unnecessary downtime.
