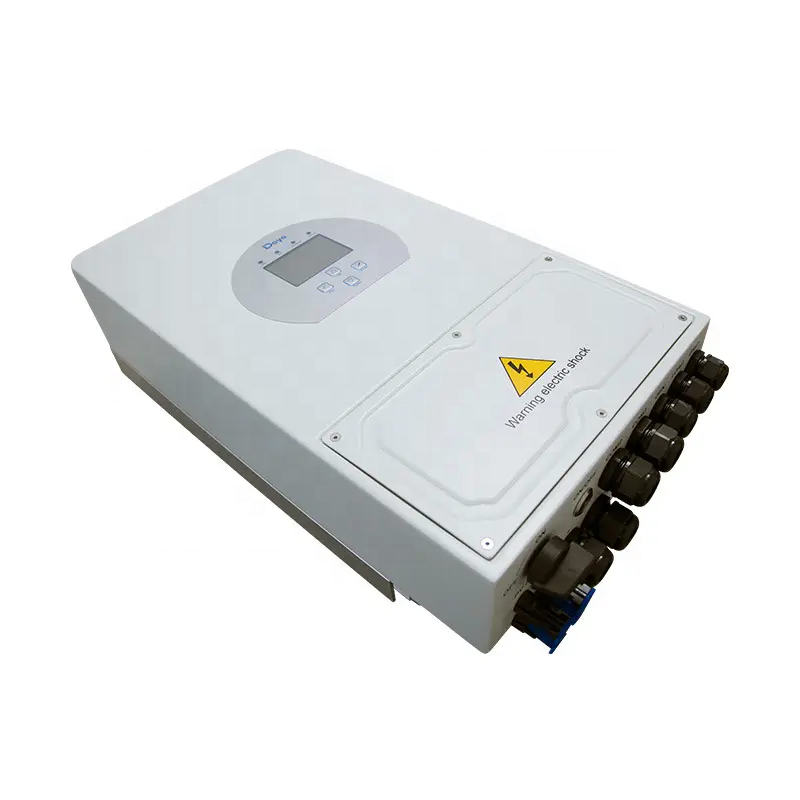

5KW 3KW Hybrid MPPT Deye Inverter 220V/240V 8KW Deye Hybrid Solar Inverter
Save -55%
Rs. 270,240.11
Rs. 602,705.58
HURRY ! ONLY
999 LEFT IN STOCK.
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US
Product Description
The following illustration shows basic application of this inverter.
It also includes following devices to have a Complete running system.
- Generator or Utility
- PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as
refrigerator and air conditioner.
- Generator or Utility
- PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as
refrigerator and air conditioner.
① DC Breaker for battery
SUN 8K-SG: 250A DC breakerSUN 10K-SG:300A DC breaker
SUN 12K-SG:300A DC breaker
② AC Breaker for grid and backup load
SUN 8K-SG: 80A AC breaker SUN 10K-SG:80A AC breaker
SUN 12K-SG:80A AC breaker
③ AC Breaker for grid and backup load
SUN 8K-SG: 20A AC breaker SUN 10K-SG:32A AC breaker
SUN 12K-SG:32A AC breaker
④ AC Breaker for home load
Depends on household loads
SUN 8K-SG: 250A DC breakerSUN 10K-SG:300A DC breaker
SUN 12K-SG:300A DC breaker
② AC Breaker for grid and backup load
SUN 8K-SG: 80A AC breaker SUN 10K-SG:80A AC breaker
SUN 12K-SG:80A AC breaker
③ AC Breaker for grid and backup load
SUN 8K-SG: 20A AC breaker SUN 10K-SG:32A AC breaker
SUN 12K-SG:32A AC breaker
④ AC Breaker for home load
Depends on household loads
Specifications
|
Model
|
SUN-3.6K-SG04LP1-EU
|
SUN-5K-SG04LP1-EU
|
SUN-6K-SG04LP1-EU
|
|||
|
Battery Input Data
|
||||||
|
Battery Type
|
Lead-acid or Lithium-ion
|
|||||
|
Battery Voltage Range (V)
|
40~60V
|
|||||
|
Max. Charging Current (A)
|
90A
|
120A
|
135A
|
|||
|
Max. Discharging Current (A)
|
90A
|
120A
|
135A
|
|||
|
Charging Curve
|
3 Stages / Equalization
|
|||||
|
External Temperature Sensor
|
Optional
|
|||||
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
|||||
|
PV String Input Data
|
||||||
|
Max. DC Input Power (W)
|
4680W
|
6500W
|
7800
|
|||
|
PV Input Voltage (V)
|
370V (125V~500V)
|
|||||
|
MPPT Range (V)
|
150~425V
|
|||||
|
Full Load DC Voltage Range
|
300~425V
|
|||||
|
Start-up Voltage (V)
|
125V
|
|||||
|
PV Input Current (A)
|
11A+11A
|
|||||
|
No.of MPPT Trackers
|
2
|
|||||
|
No.of Strings Per MPPT Tracke
|
1+1
|
|||||
|
AC Output Data
|
||||||
|
Rated AC Output and UPS Power (W)
|
3600W
|
5000W
|
6000W
|
|||
|
Max. AC Output Power (W)
|
3960W
|
5500W
|
6600W
|
|||
|
Peak Power (off grid)
|
2 times of rated power, 10 S
|
|||||
|
AC Output Rated Current (A)
|
15.7A
|
21.7A
|
27.3
|
|||
|
Max. AC Current (A)
|
16.4A
|
22.7A
|
30A
|
|||
|
Max. Continuous AC Passthrough (A)
|
35A
|
40A
|
||||
|
Power Factor
|
0.8 leading to 0.8 lagging
|
|||||
|
Output Frequency and Voltage
|
50/60Hz; 220/230 / 240Vac (single phase)
|
|||||
|
Grid Type
|
Single Phase
|
|||||
|
Current Harmonic Distortion
|
THD<3% (Linear load<1.5%)
|
|||||
|
Efficiency
|
||||||
|
Max. Efficiency
|
97.60%
|
|||||
|
Euro Efficiency
|
96.50%
|
|||||
|
MPPT Efficiency
|
99.90%
|
|||||
|
Protection
|
||||||
|
PV Input Lightning Protection
|
Integrated
|
|||||
|
Anti-islanding Protection
|
Integrated
|
|||||
|
PV String Input Reverse Polarity Protection
|
Integrated
|
|||||
|
Insulation Resistor Detection
|
Integrated
|
|||||
|
Residual Current Monitoring Unit
|
Integrated
|
|||||
|
Output Over Current Protection
|
Integrated
|
|||||
|
Output Shorted Protection
|
Integrated
|
|||||
|
Output Over Voltage Protection
|
Integrated
|
|||||
|
Surge protection
|
DC Type II / AC Type II
|
|||||
|
Certifications and Standards
|
||||||
|
Grid Regulation
|
VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727, RD1699: 2011, XP C15-712-3, CEI 0-21
|
|||||
|
Safety Regulation
|
IEC62109-1, IEC62109-2
|
|||||
|
EMC
|
EN61000-6-1, EN61000-6-3
|
|||||
|
General Data
|
||||||
|
Operating Temperature Range (℃)
|
-25~60℃, >45℃ Derating
|
|||||
|
Cooling
|
Smart cooling
|
|||||
|
Noise (dB)
|
<30dB
|
|||||
|
Communication with BMS
|
RS485; CAN
|
|||||
|
Weight (kg)
|
14
|
|||||
|
Size (mm)
|
330W×580H×232D
|
|||||
|
Protection Degree
|
IP65
|
|||||
|
Installation Style
|
Wall-mounted
|
|||||
|
Warranty
|
5 years
|
|||||
Why Choose Deye Solar inverters?
1.Deye Solar inverters have been installed in more than 60 countries (e.g. Australia, Brazil, India, the UK, Germany,
Italy,Belgium, Spain, Netherland, France, Vietnam, South Africa, Pakistan, Japan, Korea, China etc.) with currently 9 own
subsidiaries in Shenzhen, Wuxi, Dongguan, Xinyang, Australia, India, Germany, UK and Italy.
2.Your Best Choice For AC Storage Hybrid Solutions and String Inverters
3.All Deye Solar inverters can be found in PV Solar system
4.All Deye Solar inverters and distributors are insured by US CHUBB Insurance corporation company
5.All Deye Solar inverters are equipped with Standard WiFi communication
6.Deye Solar inverters are equipped with 25-year data storage capability (Internal SD Card)
1.Deye Solar inverters have been installed in more than 60 countries (e.g. Australia, Brazil, India, the UK, Germany,
Italy,Belgium, Spain, Netherland, France, Vietnam, South Africa, Pakistan, Japan, Korea, China etc.) with currently 9 own
subsidiaries in Shenzhen, Wuxi, Dongguan, Xinyang, Australia, India, Germany, UK and Italy.
2.Your Best Choice For AC Storage Hybrid Solutions and String Inverters
3.All Deye Solar inverters can be found in PV Solar system
4.All Deye Solar inverters and distributors are insured by US CHUBB Insurance corporation company
5.All Deye Solar inverters are equipped with Standard WiFi communication
6.Deye Solar inverters are equipped with 25-year data storage capability (Internal SD Card)
