This item is battery box,bms and other necessary stuffs to build a battery pack,not including battery cells.Bms with bluetooth module and RS485 cable.
Shipping is DDP service including all tax duty fees.
Products Description
|
Product Name
|

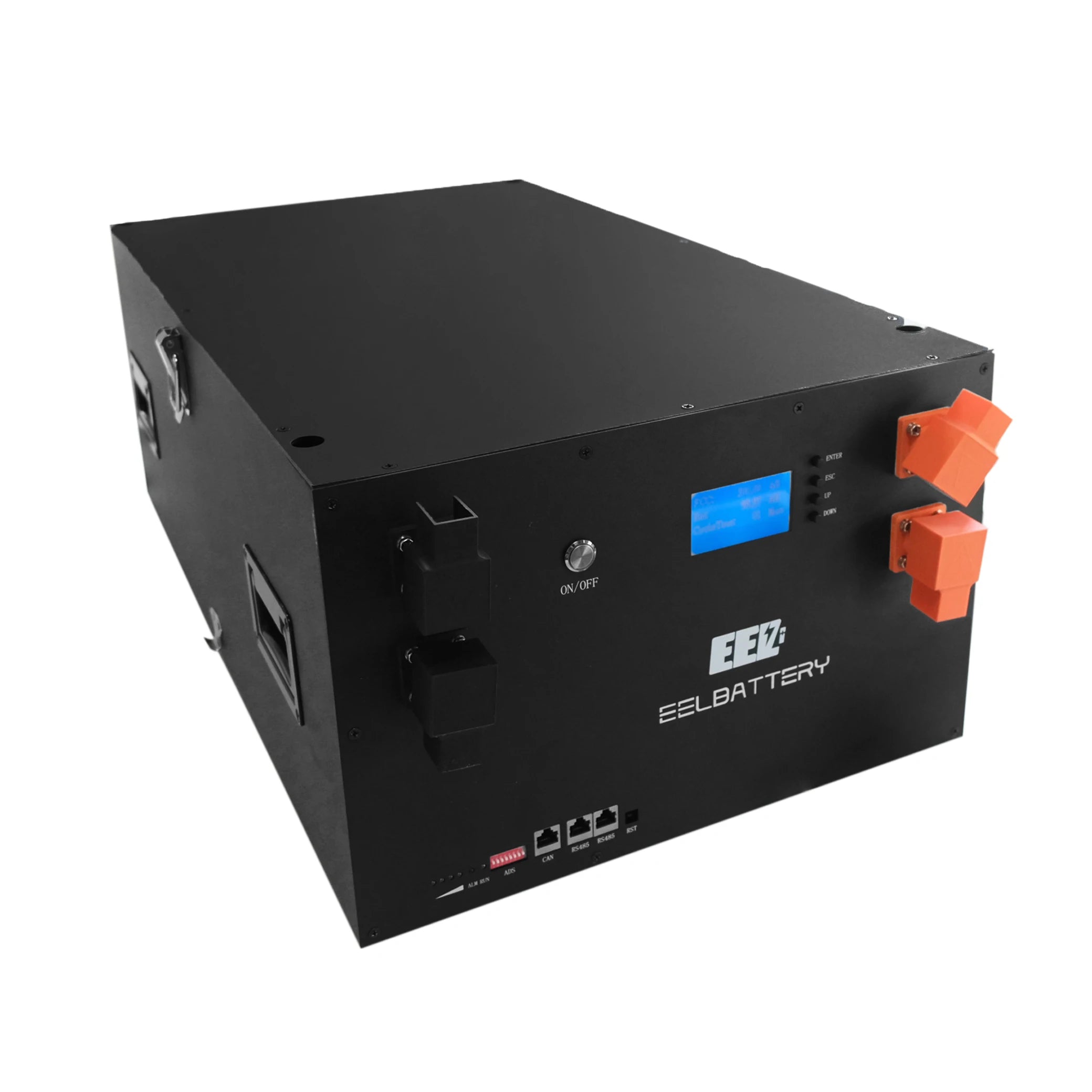

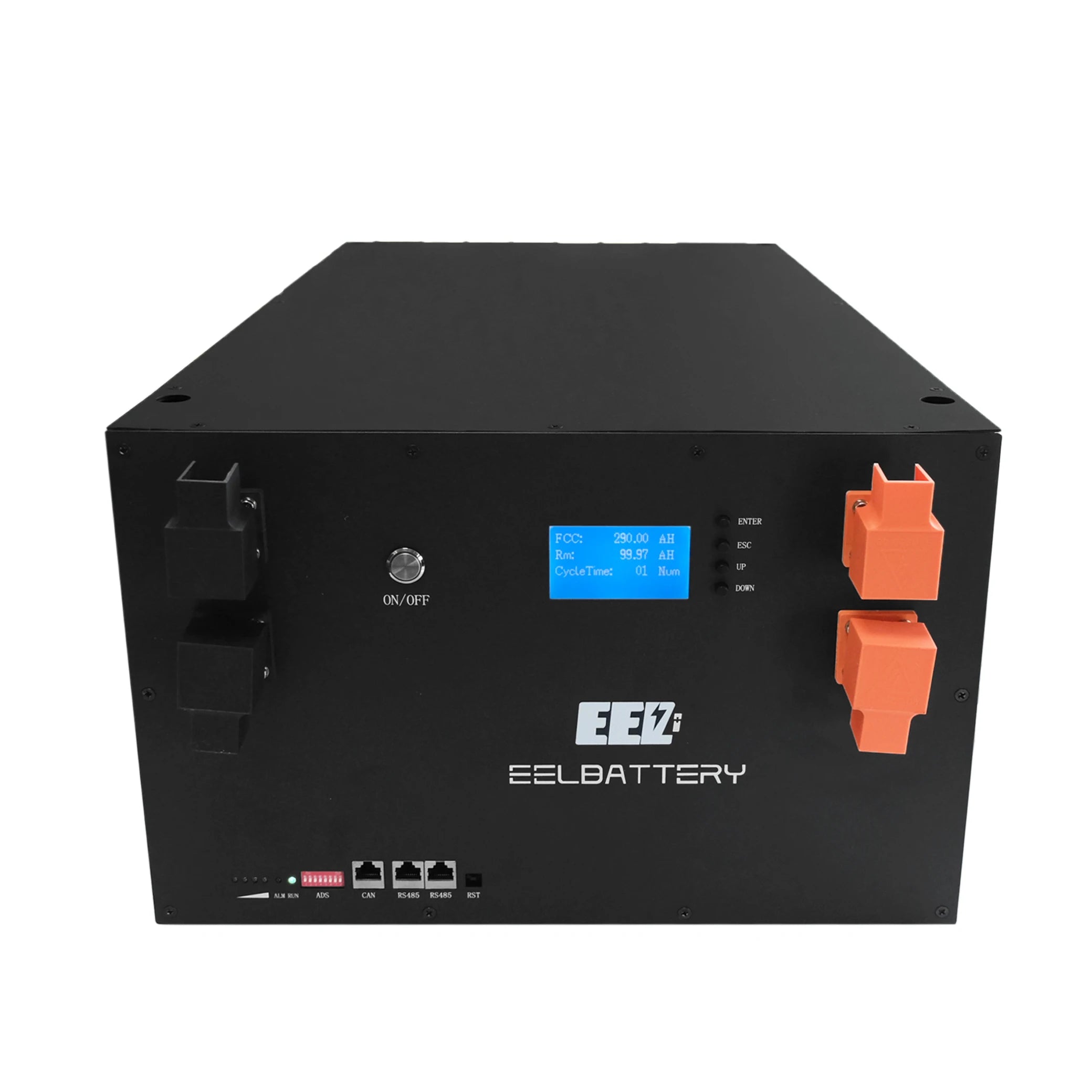

Mars 16S 48v 280Ah LiFePO4 battery box kits
|
||
|
Specifications
|
EEL-MARS-LFP 16S1P 51.2v 280Ah
|
||
|
Nominal Voltage
|
51.2v
|
||
|
Nominal Capacity (25°C , 0.2C)
|
280Ah
|
||
|
Weight (Approximate)
|
26kg
|
||
|
Cell Model
|
CATL/Lishen/REPT/EV-E 280Ah/302Ah/304Ah new cell
|
||
|
Dimension L*W*H
|
L68*W41*H26cm
|
||
|
Communication Interface
|
Canbus&RS485 protocol compatible
|
||
|
Standard Discharge 25°C
|
Max. cont. current
|
200A
|
|
|
Max.10sec.pulse
|
380A
|
||
|
Cut-off Voltage
|
40V
|
||
|
Standard Charge
|
Charge Voltage
|
58.4V
|
|
|
Float
|
55.2V
|
||
|
Current
|
140A@25±2℃(recommended)
|
||
|
Max charge curent
|
200A
|
||
|
Working Temperature
|
Discharge -30 to 60℃;
Charge -20 to 60℃ |
||
|
SOC Range
|
5%-100%
|
||

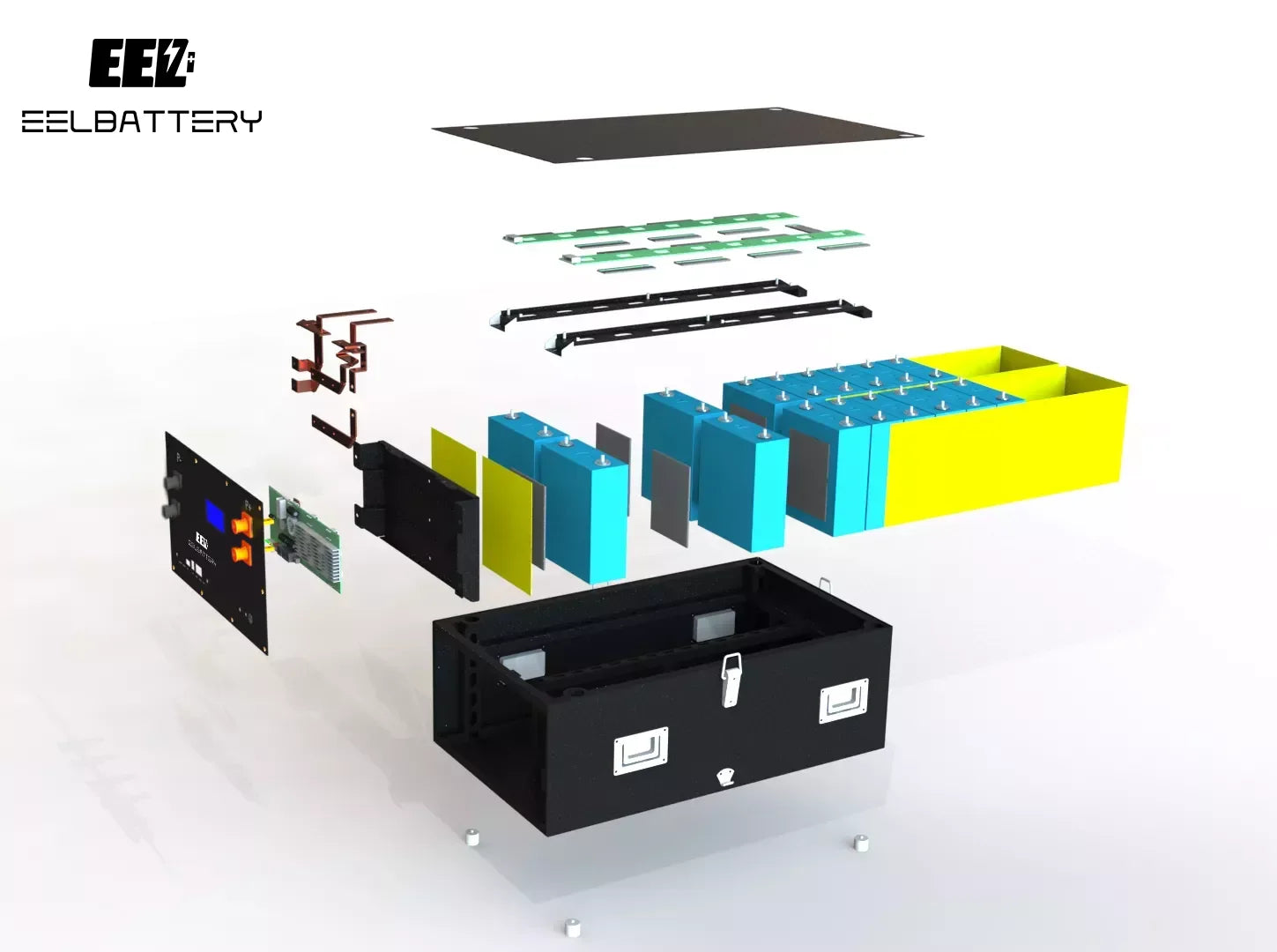

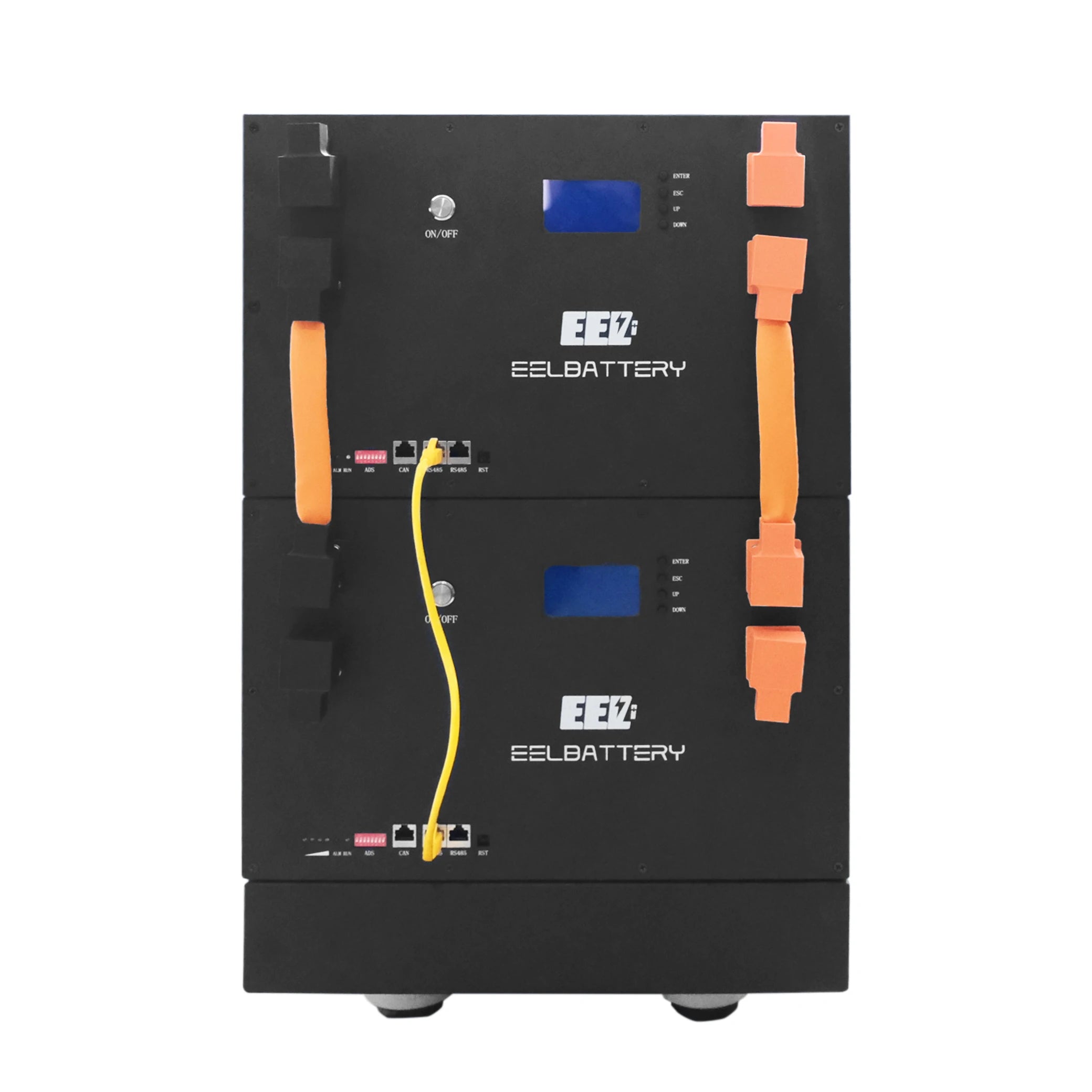

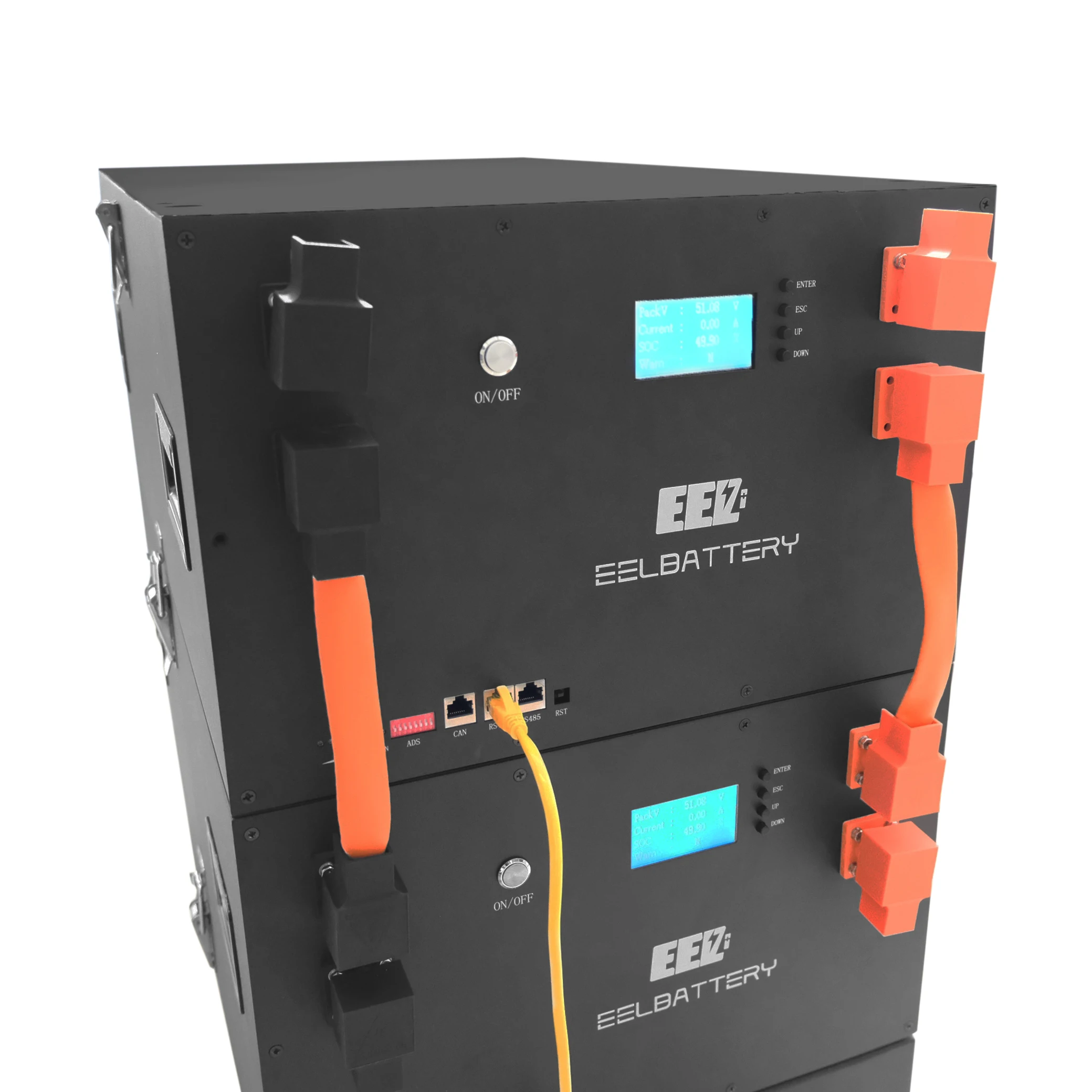

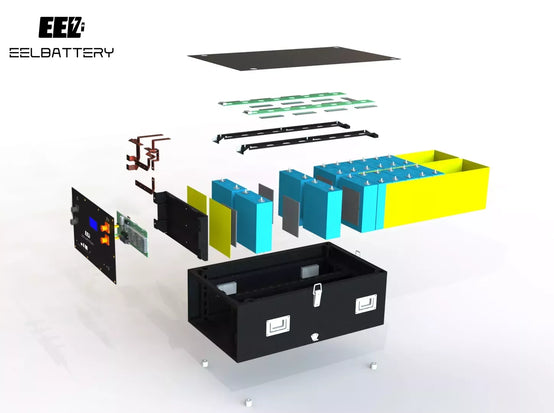

Battery box and bms are all with screws fixation,it's easy to check battery pack condition anytime,bms support 15 parallels.

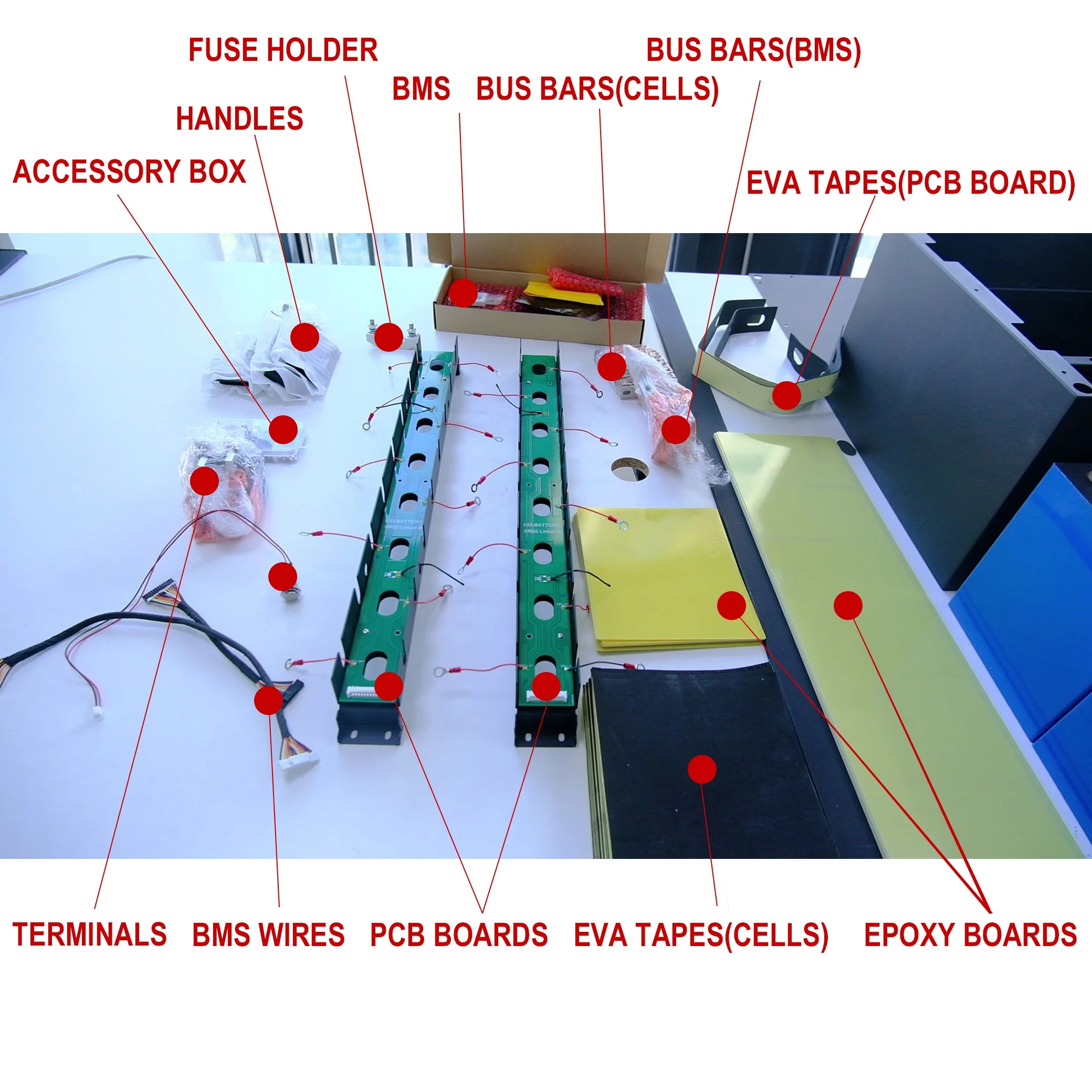

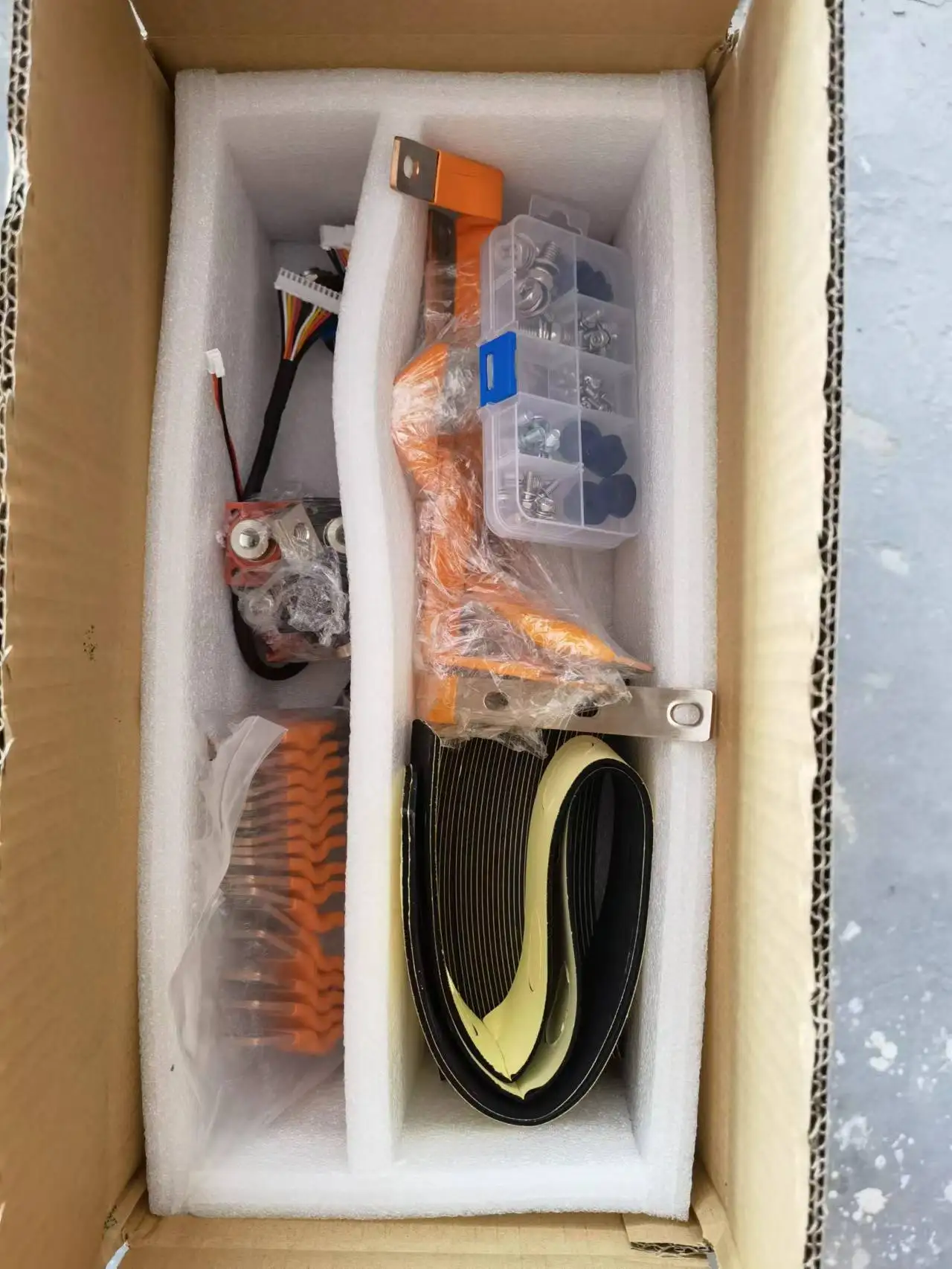

Packing List
1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)1 * 48V (100A/150A/ 200A)16S LiFePO4 battery BMS
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock

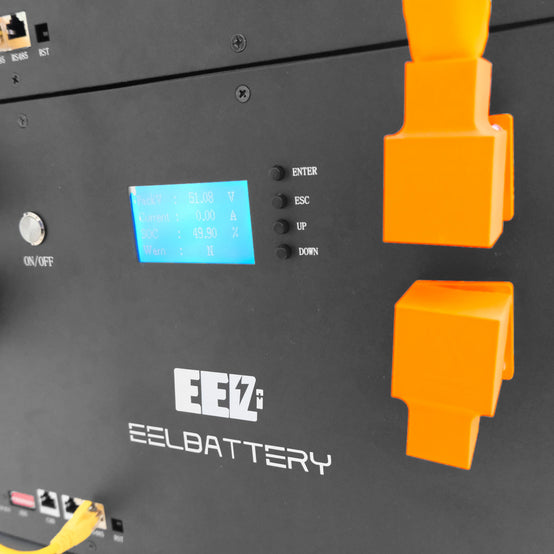

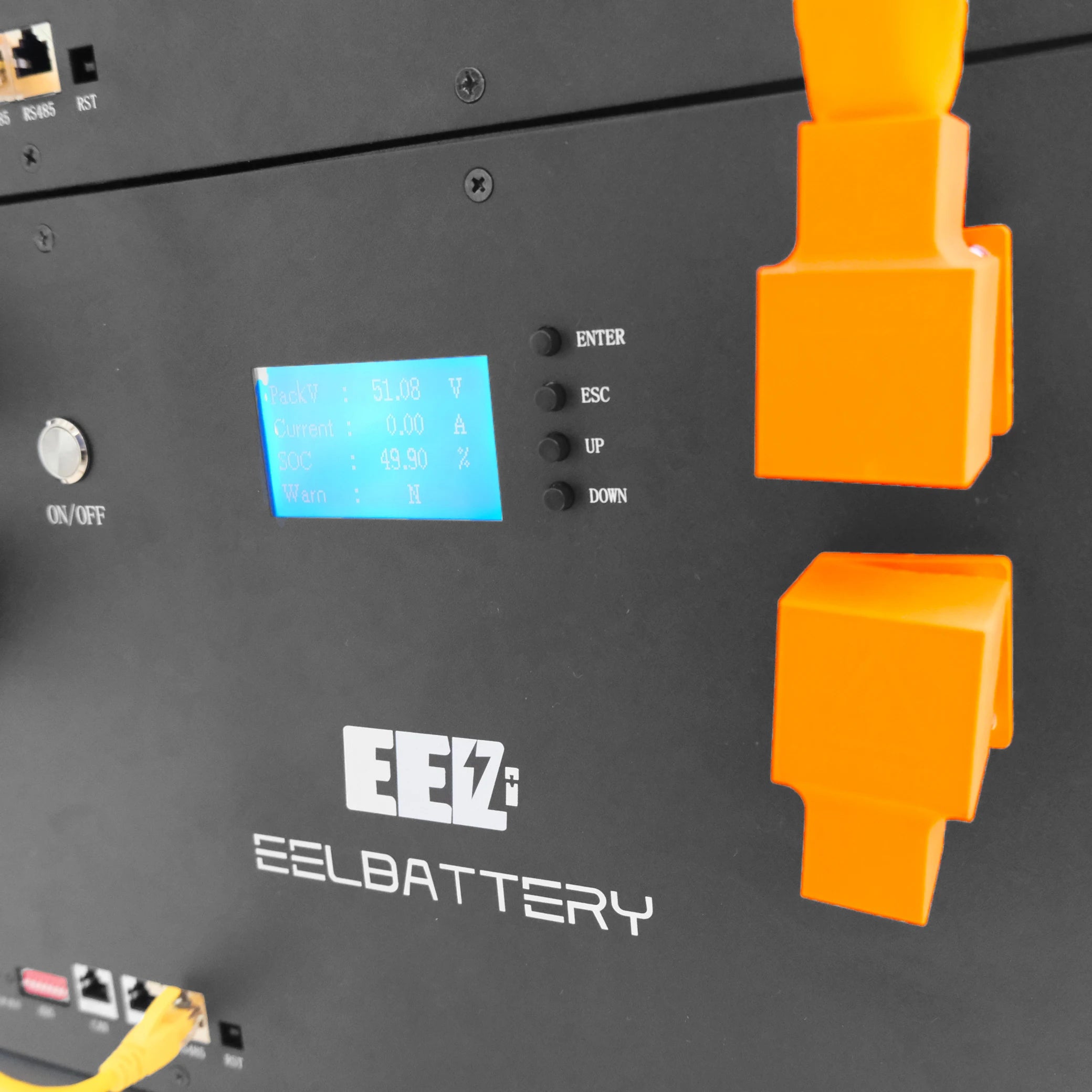

1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper busbars (BMS connection)
15 * Flexible busbars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
