6 zone PID temperature controller thermocouple input HRTC injection molding hot runner system plastic industry machine control
Save -55%
Rs. 273,226.99
Rs. 610,395.40
HURRY ! ONLY
9999 LEFT IN STOCK.
Share
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Security
FREE SHIPPING
WORLDWIDE
BIG SAVING ON
WEEKENDS
24H SUPPORT
CONTACT US

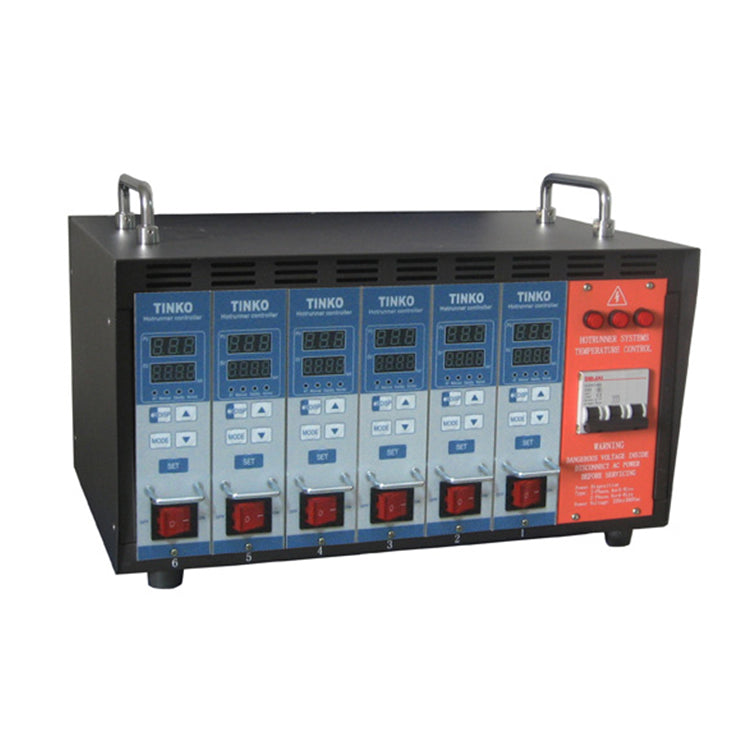

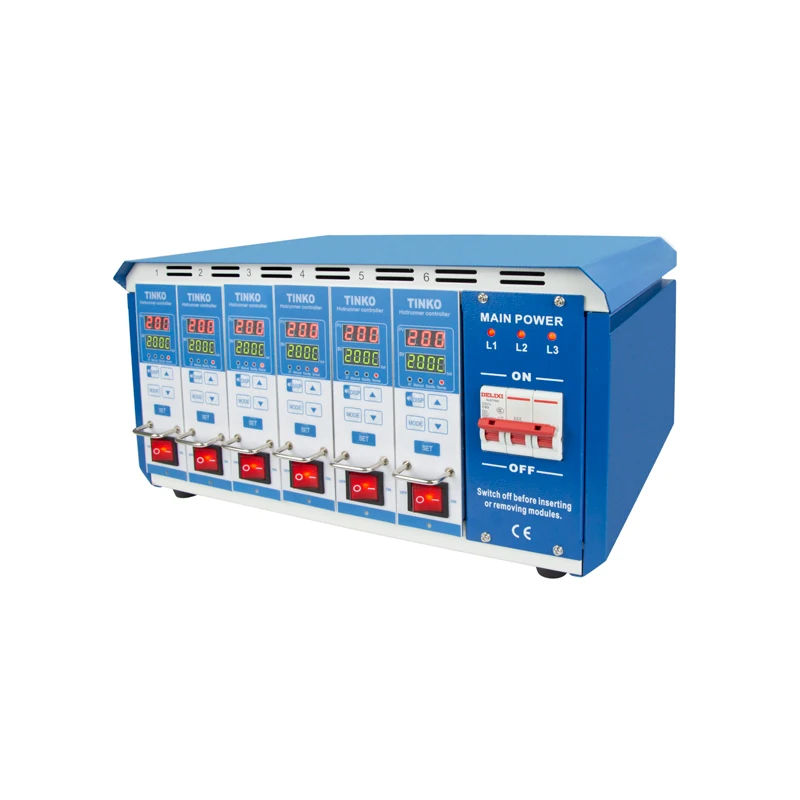

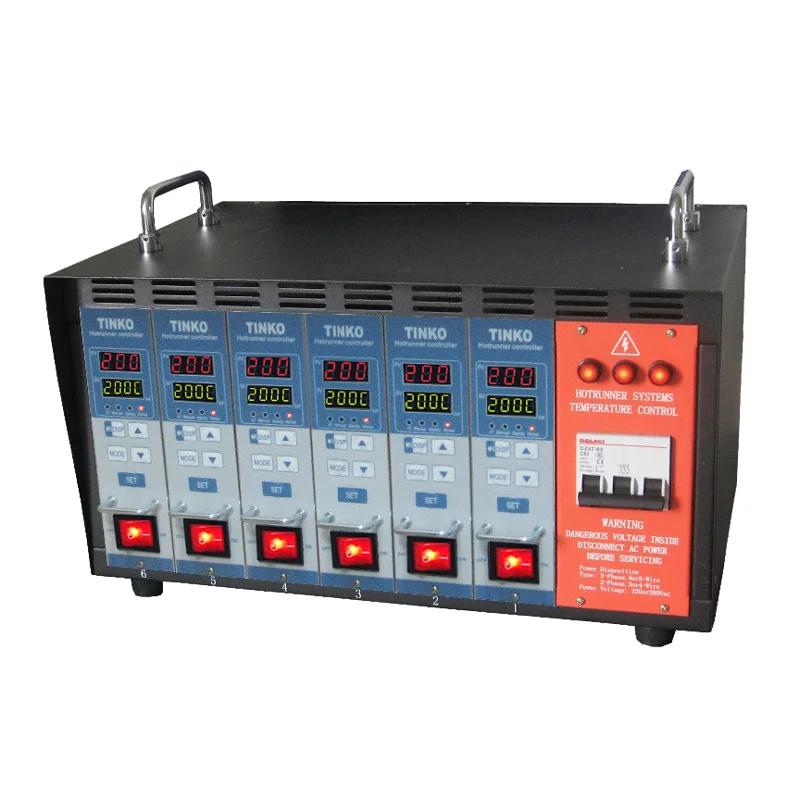

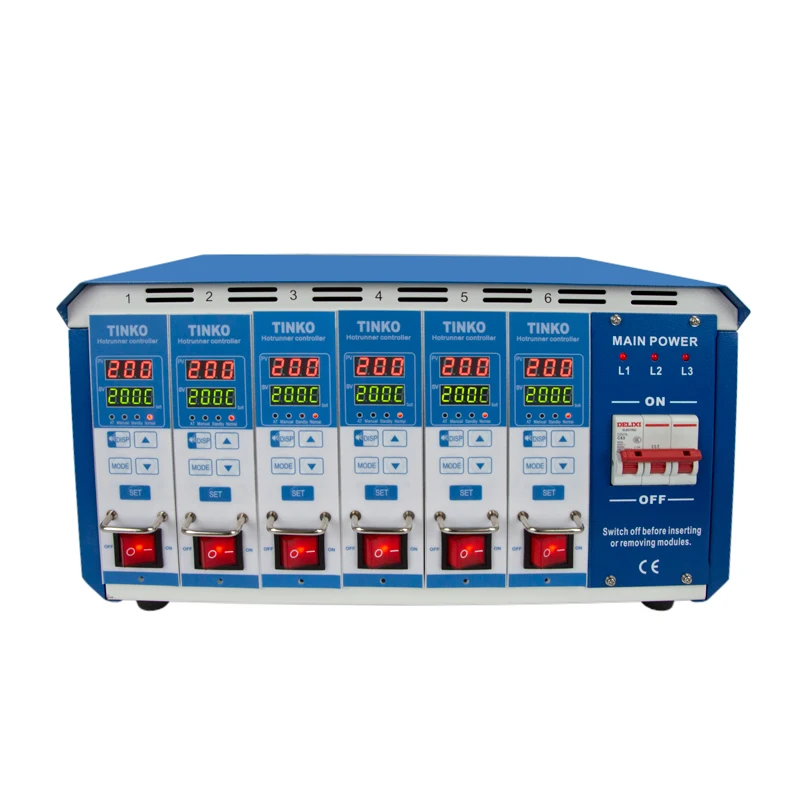

HRTC-06A
Hot Runner Temperature Controller Series
1. General Specifications
|
Power Supply
|
1-phase 3-wire, 240Vac, 50/60Hz
3-phase 4-wire, 240Vac, 50/60Hz
3-phase 5-wire, 380Vac, 50/60Hz
|
Mainframe
|
Black / Blue
|
|

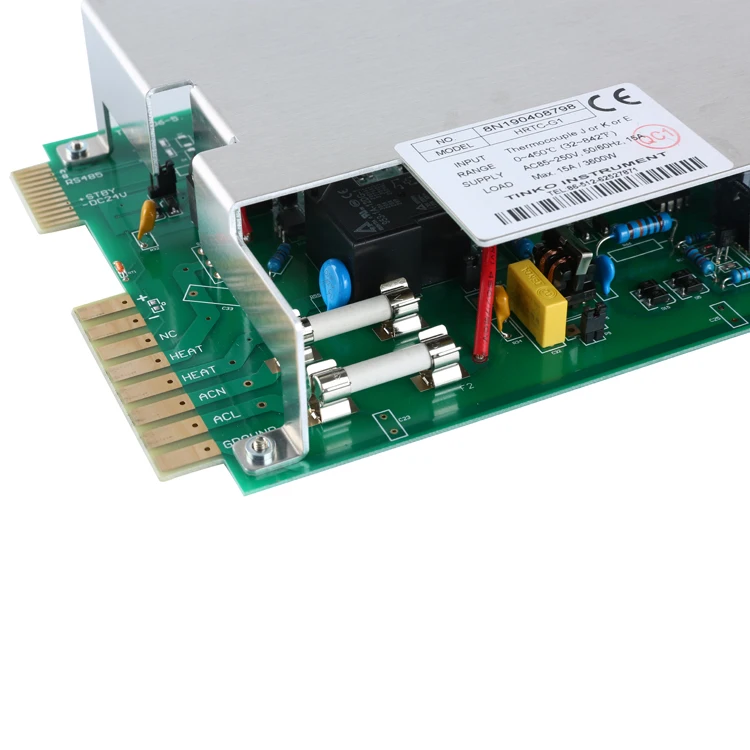

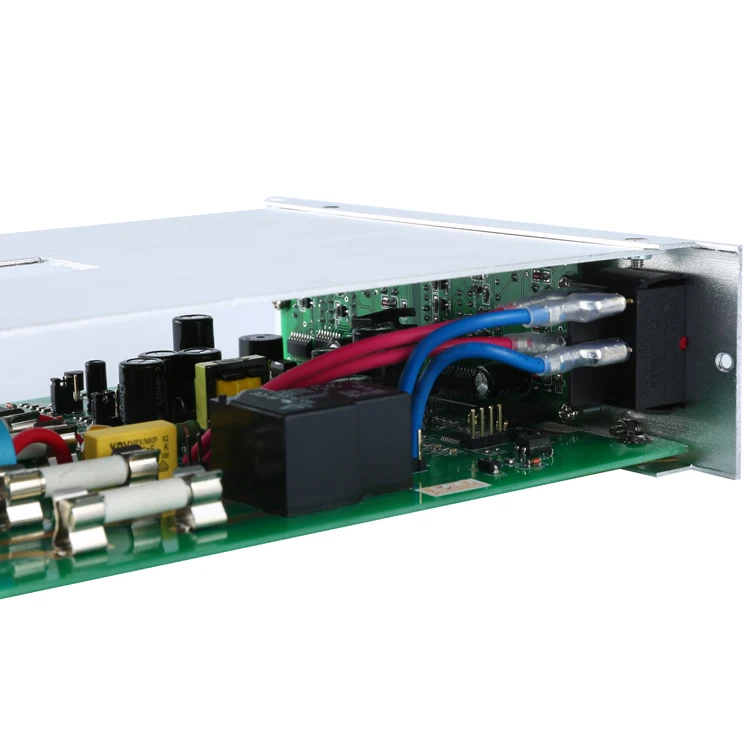

Control Module
|
HRTC-A / HRTC-B /
HRTC-C / HRTC-G |
||
|
Sensor Type
|
Thermocouple J or K
|
Module Qt'y
|
6
|
|
Temperature Control
|
0~450℃(32~842℉)
|
Control Mode
|
Auto-PID / Manual
|
|
Output Type
|
Zero Cross / Phase Angle
|
Control Accuracy
|
±0.1%F.S
|
|

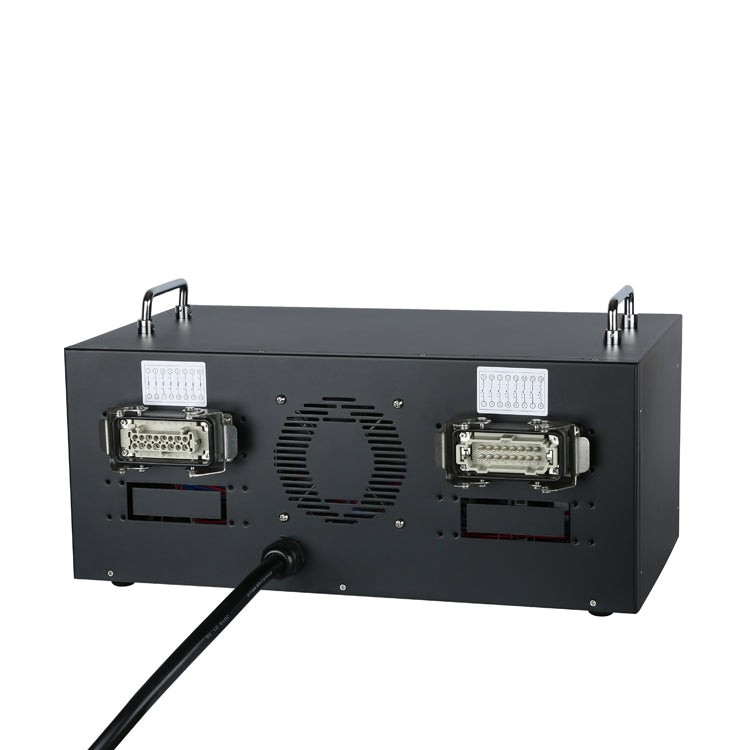

Connector Type
|
Customized
|
Load Capacity
|
15A, 3600W
|
|
Wiring Mode
|
Customized
|
Storage Temperature
|
-20~70℃(-4~158℉)
|
|
Working Temperature
|
0~55℃(32~131℉)
|
Working Humidity
|
10~80%RH(No condensing)
|

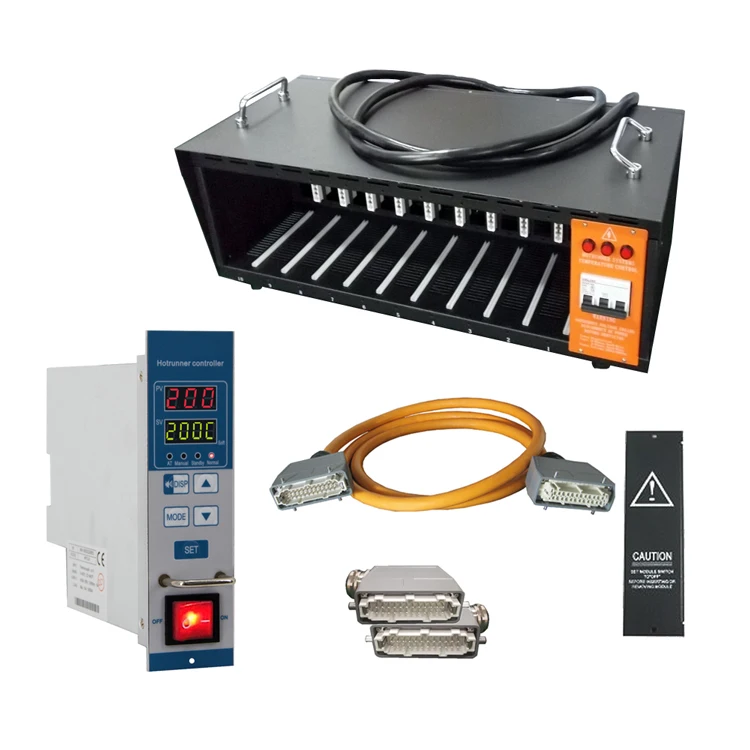

COMPONETS
■
Mainframe

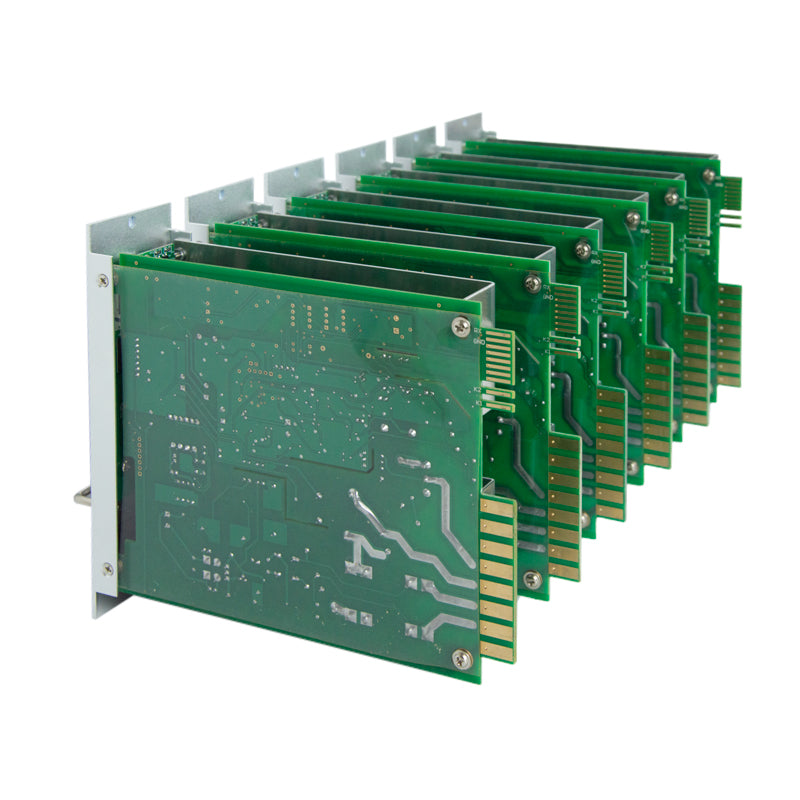

■ Module
■ Connector
■ Cable
■ Blank plate (Exclude 2, 4, 6, 8, 10, 12, 24 zones or their integer multiple)
■ Module
■ Connector
■ Cable
■ Blank plate (Exclude 2, 4, 6, 8, 10, 12, 24 zones or their integer multiple)
2. Features
Stable performance to make your production efficient
■ Wide power supply range: 65-415Vac
■ Multiple self-diagnostic: * thermocouple/heater inverse * thermocouple/heater misconnection * fuse broken down * ambient temperature monitor
■ Selectable manual control mode
■ Optional remote standby/alarm output
■ Compatible with YUDO, Athena, DME, PCS, INCOE, etc
■ Achieved ISO and CE certifications
Outstanding user experience
* Controlling zones: 1-120 zones * Color of mainframe: black/blue/orange * Length of cables: customized * Wiring mode: customized ■ Convient in transportation, 1.5 hours driving to Shanghai. ■ Price advantage from head of supply chain ■ Supporting video inspection
■ Skilled engineer in this field for 25 yrs
3. Application

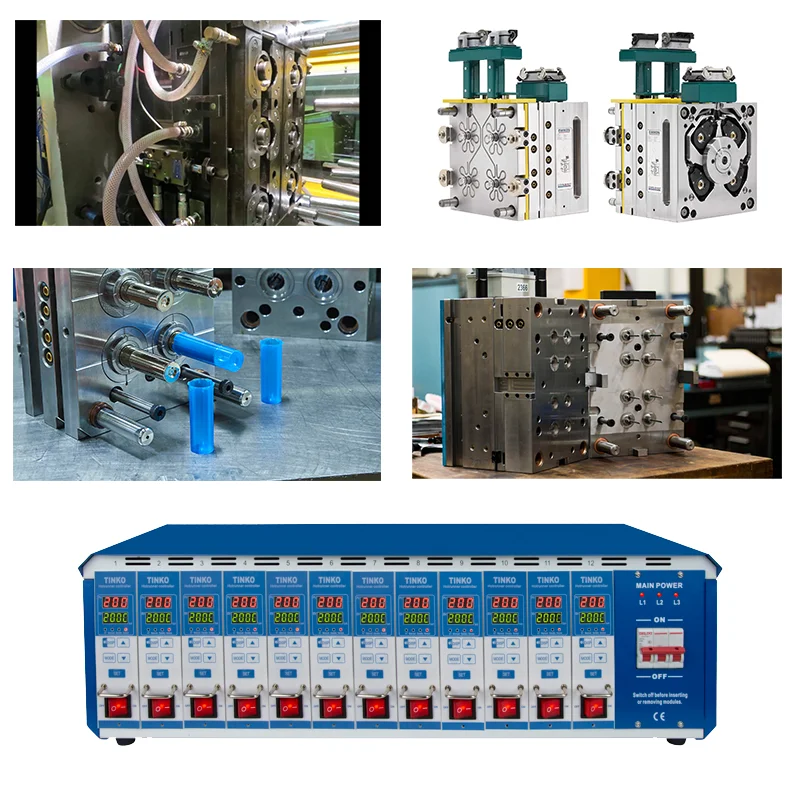

Hot runner temperature controller is a crucial part in the hot runner system. It can test the temperature and continuously adjust the output power to keep the temprature steady.

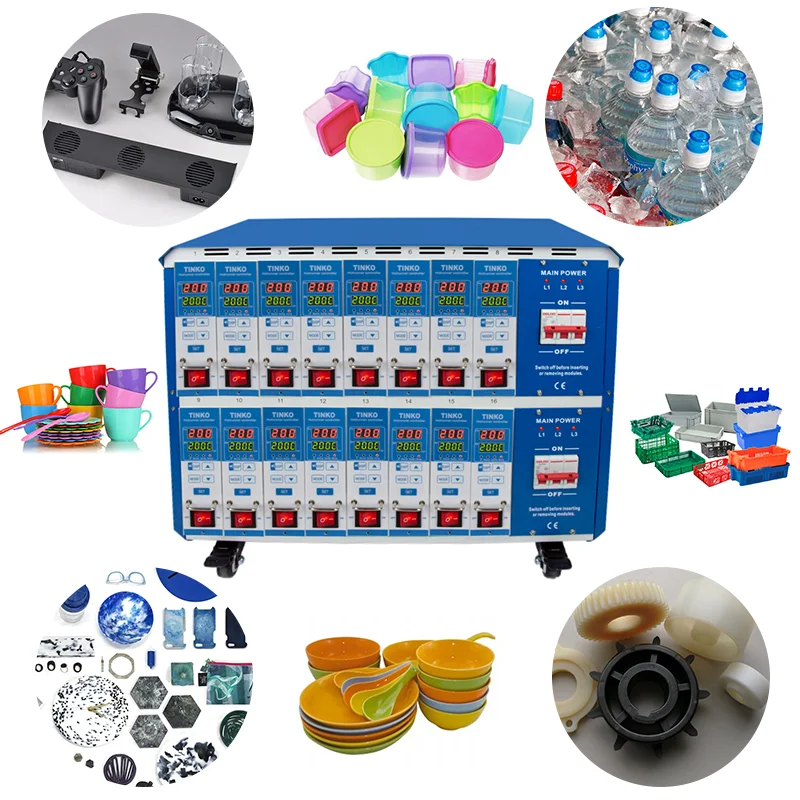

Widely used in
electronics, automobiles, medical, commodities, toys, packaging, architecture, office equipment and other industrial sectors.
From Materials, Quality Control, Package, strictly control the quality from the start to the termination
• Material
—
we have suppliers which have cooperated for more than 10 years, thanks to them, our production growing steadily and supply sufficiently

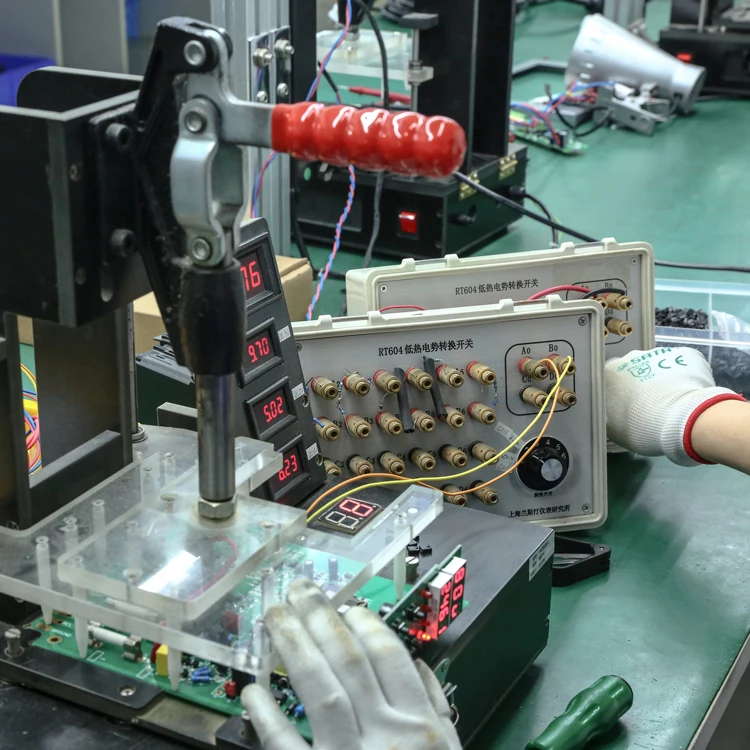

• Quality Control
— we always do examines, burn-out tests and adapting tests to check if the products is qualified (every approved products will have a QC mark on their lables)
• Package — our package box have approved broken-testing which minimizes the risk of damage during the shipping
More Options

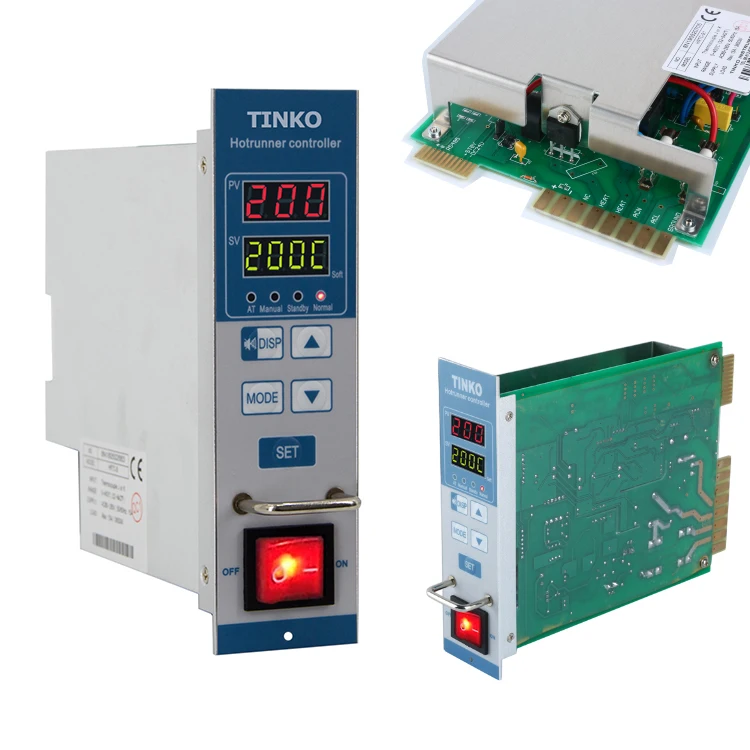

APPLICABLE MODULES
|
Features
|
HRTC-A
|
HRTC-B
|
HRTC-G
|
||
|
Zone
|
Single zone
|
single zone
|
Single zone
|
||
|
Process Display
|
LED
|
LED
|
LCD
|
||
|
Sensor Type
|
Thermocouple J or K
|
||||
|
Power Switch
|
Pushbutton
|
Toggle switch
|
Pushbutton
|
||
|
Control Mode
|
Auto PID or Manual
|
||||
|
Control Accuracy
|
±0.1%F.S
|
±0.1%F.S
|
±0.1%F.S
|
||
|
Comply with DME/Athena/YUDO
|
YES |
||||
|
Communication
|
optional
|
optional
|
optional
|
||
|
Hyperlinks
|
|||||
Q1: Are you trading company or manufacturer ?
A: We are factory supplier and have been a top manufacturer of temperature controller for over 20 years since 2001.
Q2: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 7-10 days if the goods are not in stock, it depends on the
quantity.
Q3: Can you do some change for our special needs ?
A: Yes，we could offer customization products according to your requirements.
Q4: Is it OK to print my logo?
A: Yes. We also offer OEM/ODM service.
Q5: What’s your guarantee term?
A: We offer 2 years warranty for our products.
A: We are factory supplier and have been a top manufacturer of temperature controller for over 20 years since 2001.
Q2: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 7-10 days if the goods are not in stock, it depends on the
quantity.
Q3: Can you do some change for our special needs ?
A: Yes，we could offer customization products according to your requirements.
Q4: Is it OK to print my logo?
A: Yes. We also offer OEM/ODM service.
Q5: What’s your guarantee term?
A: We offer 2 years warranty for our products.
MAINFRAME
ZONE
view more>>

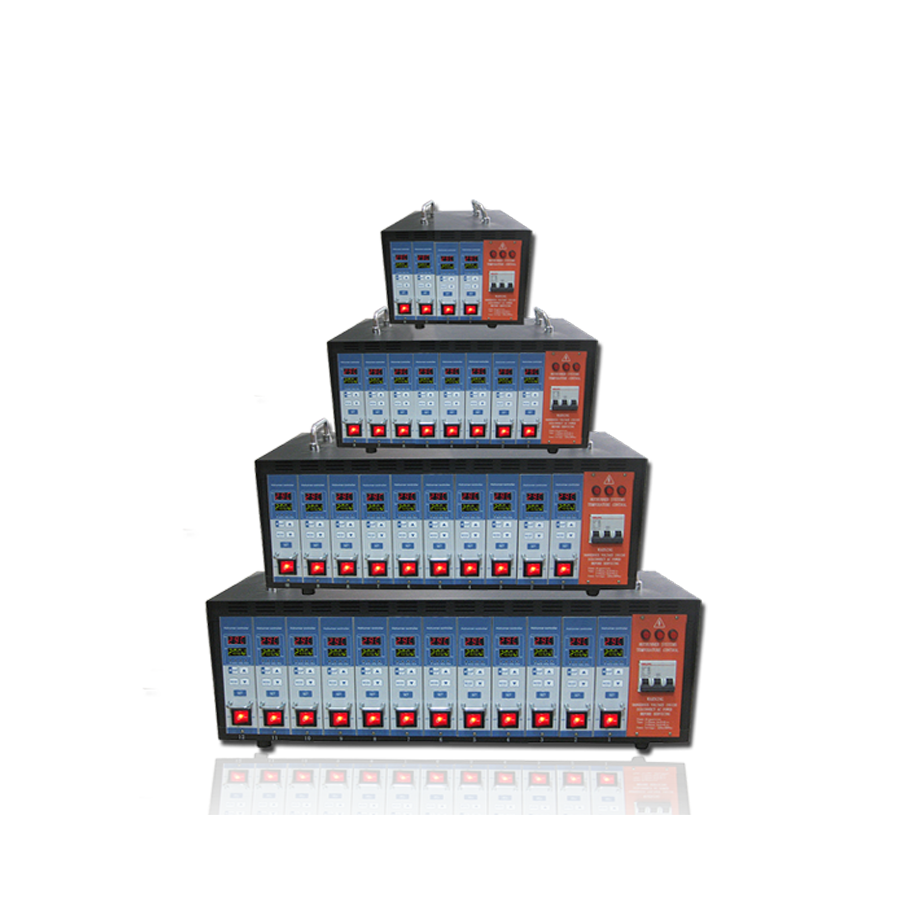

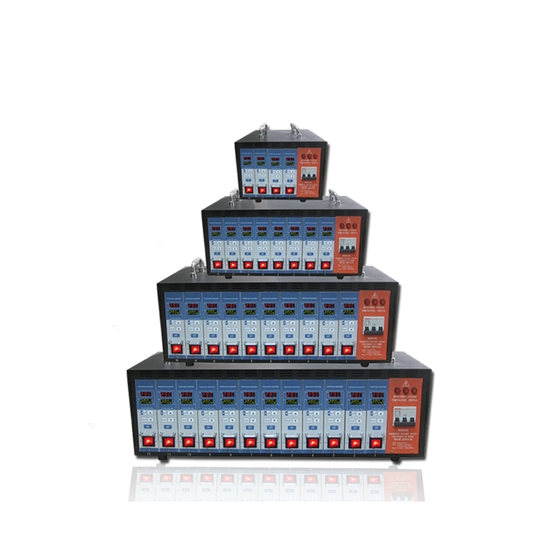

■ 1~36 zones for you to choose
■ Customised to your requirement
